2000 AUDI A4 tow

70-27

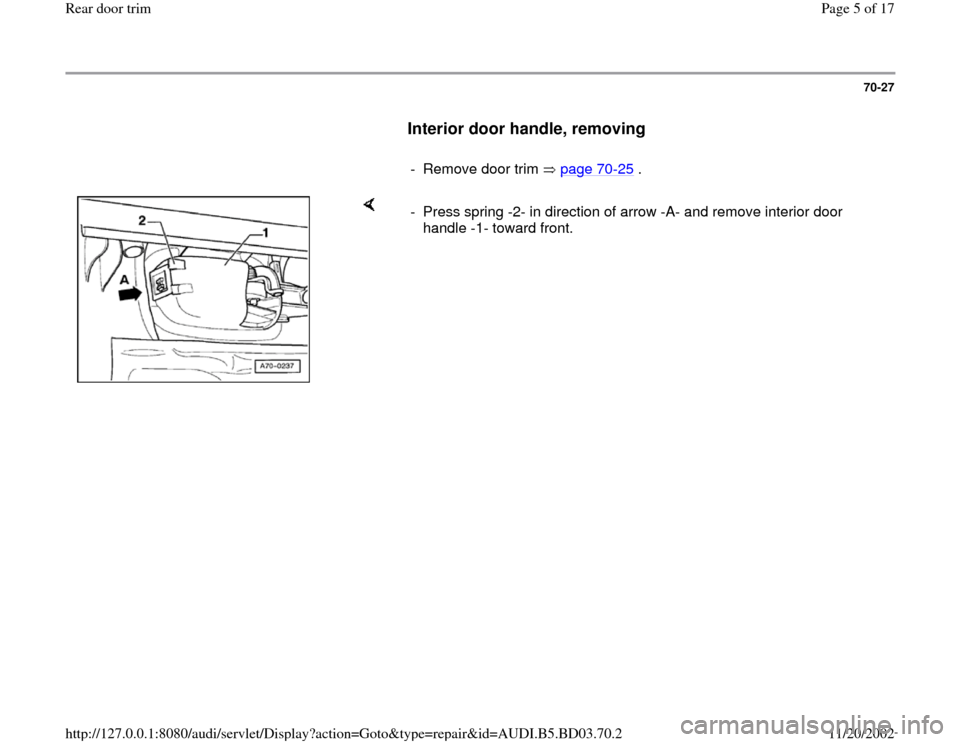

Interior door handle, removing


- Remove door trim page 70
-25
.

- Press spring -2- in direction of arrow -A- and remove interior door
handle -1- toward front.
Pa
ge 5 of 17 Rear door tri
m
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.70.2

70-29

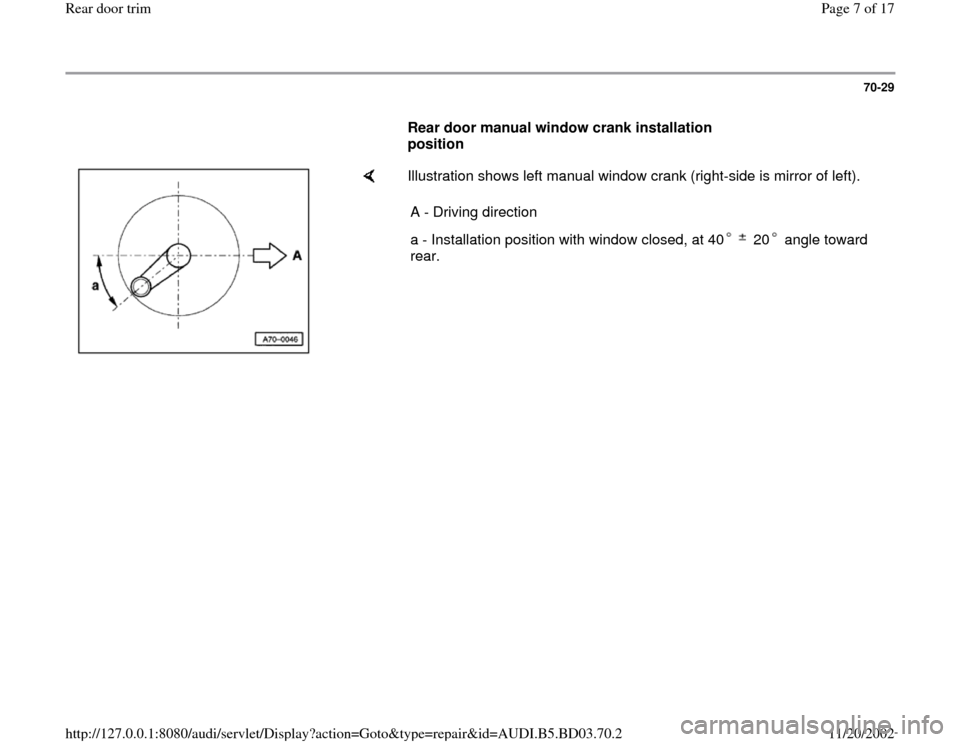

Rear door manual window crank installation
position

Illustration shows left manual window crank (right-side is mirror of left).
A - Driving direction
a - Installation position with window closed, at 40 20 angle toward
rear.
Pa
ge 7 of 17 Rear door tri
m
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.70.2

70-33

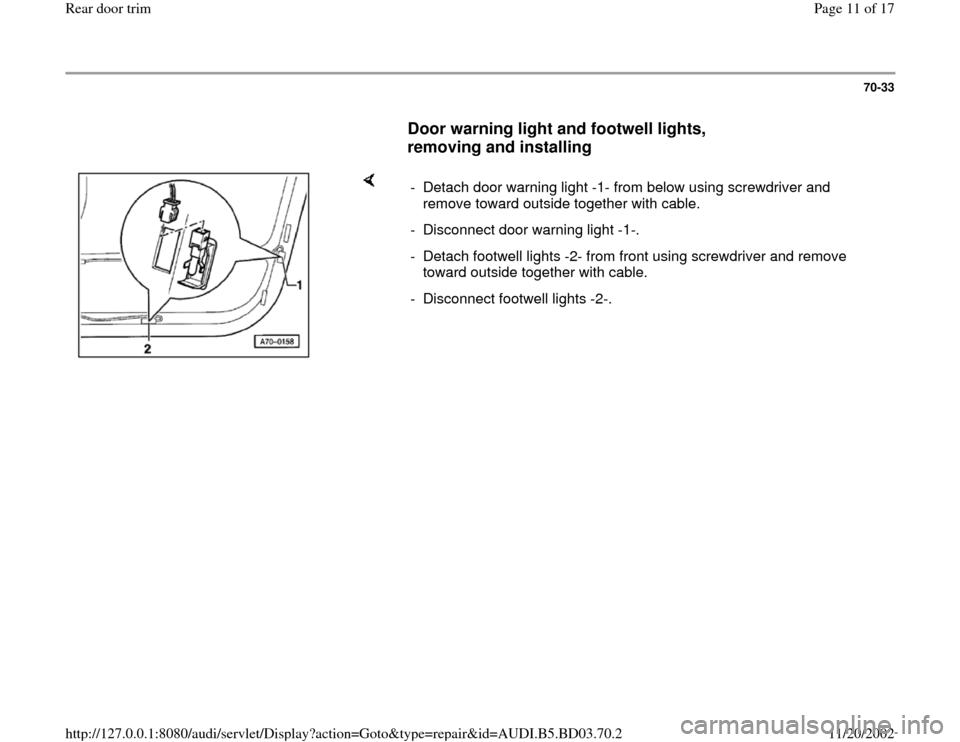

Door warning light and footwell lights,
removing and installing


- Detach door warning light -1- from below using screwdriver and
remove toward outside together with cable.
- Disconnect door warning light -1-.
- Detach footwell lights -2- from front using screwdriver and remove
toward outside together with cable.
- Disconnect footwell lights -2-.
Pa
ge 11 of 17 Rear door tri
m
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.70.2
