90-11

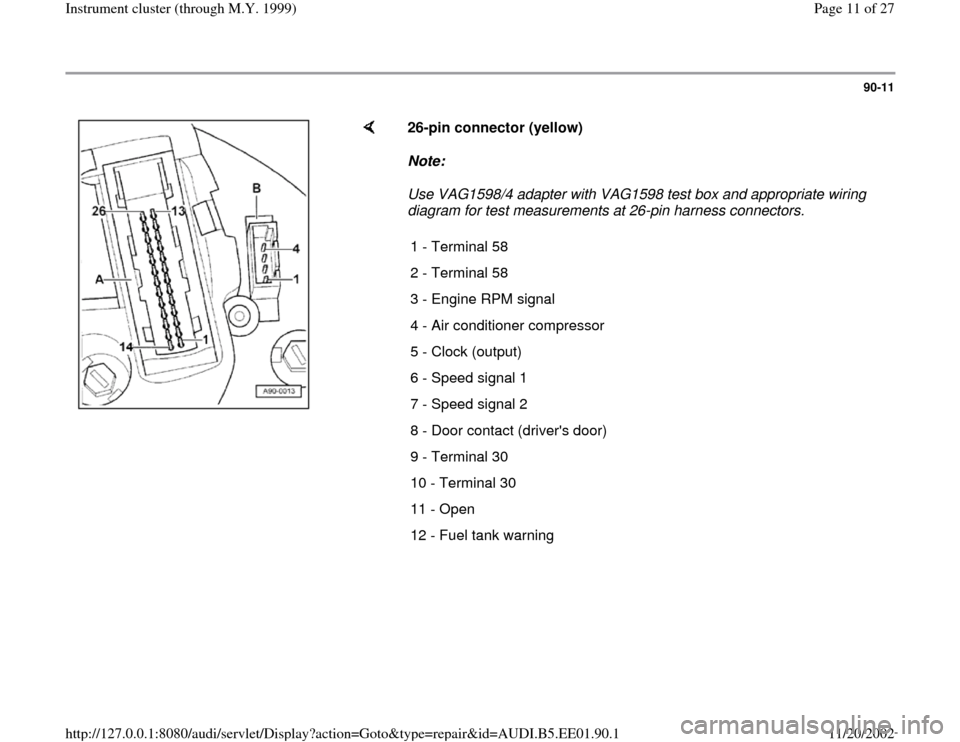

26-pin connector (yellow)
Note:
Use VAG1598/4 adapter with VAG1598 test box and appropriate wiring
diagram for test measurements at 26-pin harness connectors.
1 - Terminal 58
2 - Terminal 58
3 - Engine RPM signal
4 - Air conditioner compressor
5 - Clock (output)
6 - Speed signal 1
7 - Speed signal 2
8 - Door contact (driver's door)
9 - Terminal 30
10 - Terminal 30
11 - Open
12 - Fuel tank warning
