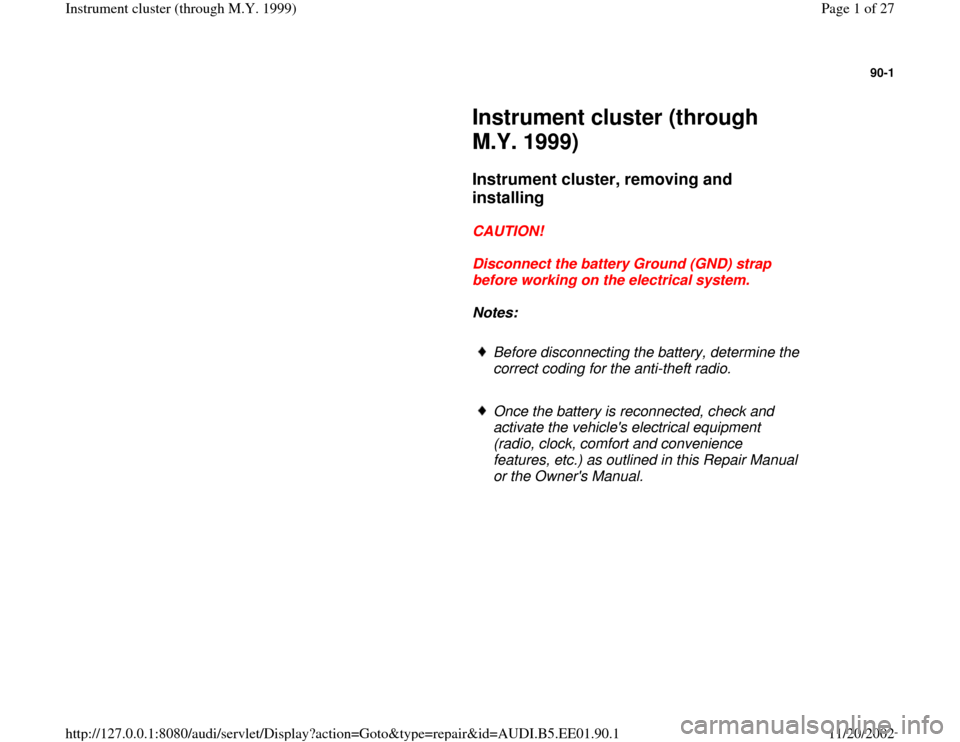

2000 AUDI A4 ESP

90-15

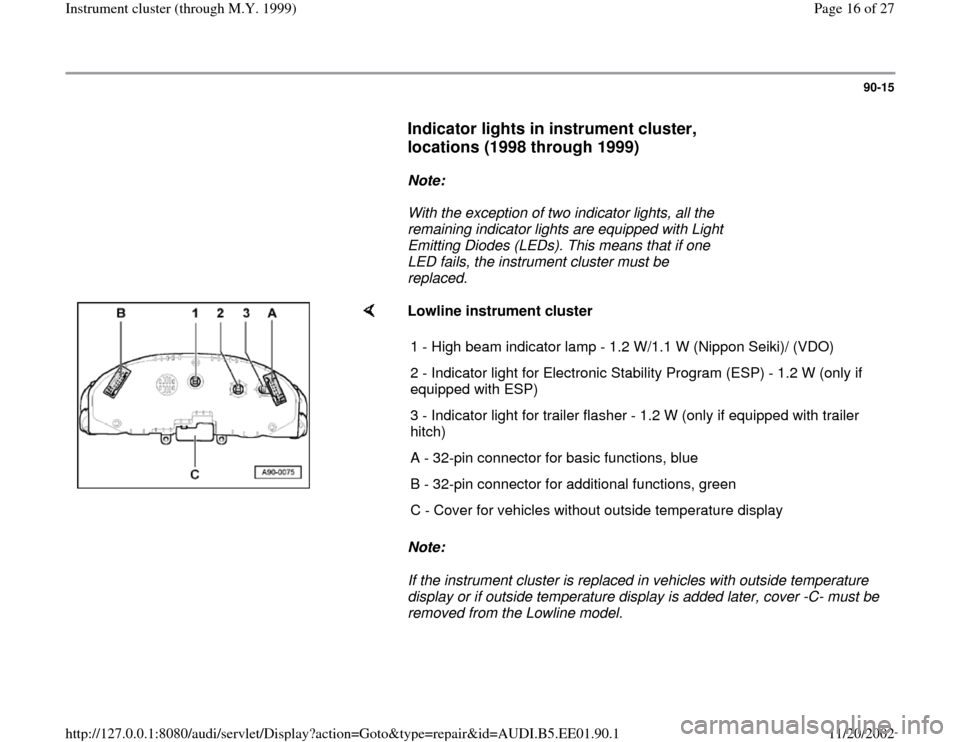

Indicator lights in instrument cluster,
locations (1998 through 1999)


Note:
With the exception of two indicator lights, all the
remaining indicator lights are equipped with Light
Emitting Diodes (LEDs). This means that if one
LED fails, the instrument cluster must be
replaced.

Lowline instrument cluster
Note:
If the instrument cluster is replaced in vehicles with outside temperature
display or if outside temperature display is added later, cover -C- must be
removed from the Lowline model. 1 - High beam indicator lamp - 1.2 W/1.1 W (Nippon Seiki)/ (VDO)
2 - Indicator light for Electronic Stability Program (ESP) - 1.2 W (only if
equipped with ESP)
3 - Indicator light for trailer flasher - 1.2 W (only if equipped with trailer
hitch)
A - 32-pin connector for basic functions, blue
B - 32-pin connector for additional functions, green
C - Cover for vehicles without outside temperature display
Pa
ge 16 of 27 Instrument cluster
(throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.90.1

90-16

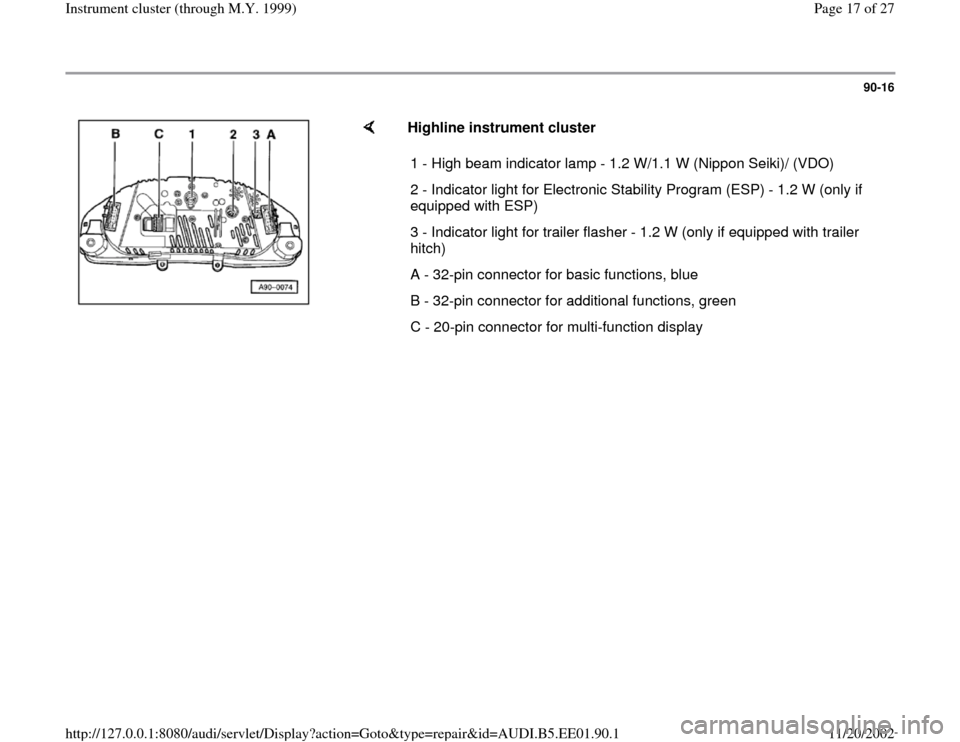

Highline instrument cluster
1 - High beam indicator lamp - 1.2 W/1.1 W (Nippon Seiki)/ (VDO)
2 - Indicator light for Electronic Stability Program (ESP) - 1.2 W (only if
equipped with ESP)
3 - Indicator light for trailer flasher - 1.2 W (only if equipped with trailer
hitch)
A - 32-pin connector for basic functions, blue
B - 32-pin connector for additional functions, green
C - 20-pin connector for multi-function display
Pa
ge 17 of 27 Instrument cluster
(throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.90.1

90-18

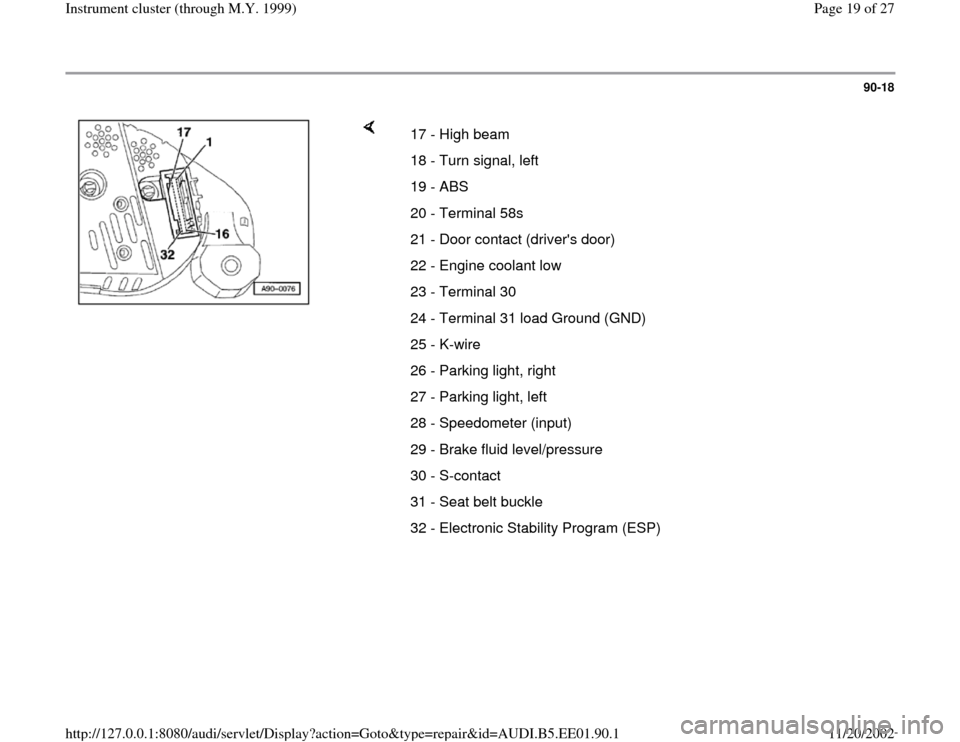

17 - High beam
18 - Turn signal, left
19 - ABS
20 - Terminal 58s
21 - Door contact (driver's door)
22 - Engine coolant low
23 - Terminal 30
24 - Terminal 31 load Ground (GND)
25 - K-wire
26 - Parking light, right
27 - Parking light, left
28 - Speedometer (input)
29 - Brake fluid level/pressure
30 - S-contact
31 - Seat belt buckle
32 - Electronic Stability Program (ESP)
