2000 AUDI A4 fuel

24-12

Checking

- Connect VAG 1551 or VAG 1552 scan tool and
press buttons -0- and -1- to insert "Engine
Electronics" address word 01 (with engine
running at idle) Page 01
-7 .
Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -0- and -4- to select "Basic Setting" function 04, and
press -Q- button to confirm input.
System in Basic Settin
g
HELP
Input displa
y group number XXX

Indicated on display
- Press buttons -0-, -0- and -1- to input display group number 1, and
press -Q- button to confirm input.
System in Basic Setting 1 1 2 3 4

Indicated on display (1-4 = display fields)
Note:
After selecting function 04, the ECM initiates the following:
Continue with the test only when the operating conditions in display field 4
are satisfied.
EVAP canister purge regulator valve is closedA/C compressor is switched of
f
-
Briefly raise engine speed (acceleration burst) and let engine run at idle
Pa
ge 17 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

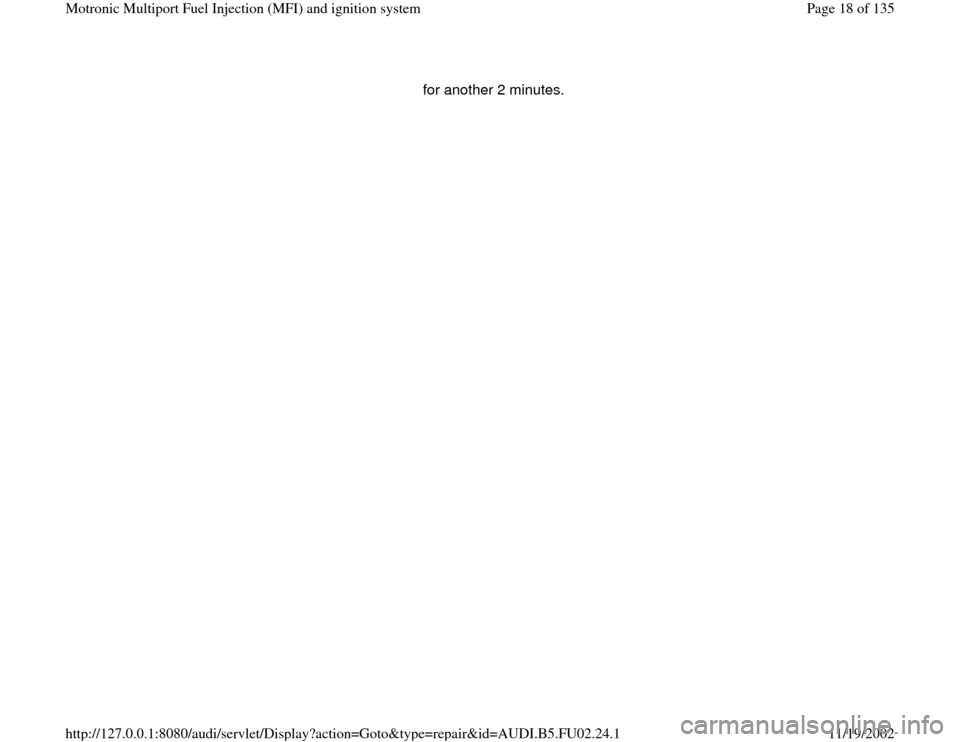

for another 2 minutes.
Pa
ge 18 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

24-13

- Compare display with specified values (display
fields 1-4):

Display fields

1 2 3 4
Display group 1: Engine idle speed
Display xxxx RPM
xxx.x C
xx.x% xxxxxx
Indicates Idle speed Engine Coolant
Temperature (ECT) Oxygen sensor control Adjustment
conditions
Range 0-6800 RPM
(in 40 RPM steps) --- -25.0 to 25.0 % ---
Specified
value 760-960 RPM
80.0 -105.0 C
In the range from -10.0 to 10.0 %,
the value must change by at least
2 % 111111

If not as specified Page 24
-99
,
Throttle valve control module,
checking
--- If not as specified Page 24
-99
,
Throttle valve control module,
checking
Explanation
Page 24
-15

If displayed values are OK (as specified):

- Press -C- button.

- Press buttons -0-, -5- and -6- to input display
group number 56, and press -Q- button to
confirm input.
Pa
ge 19 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

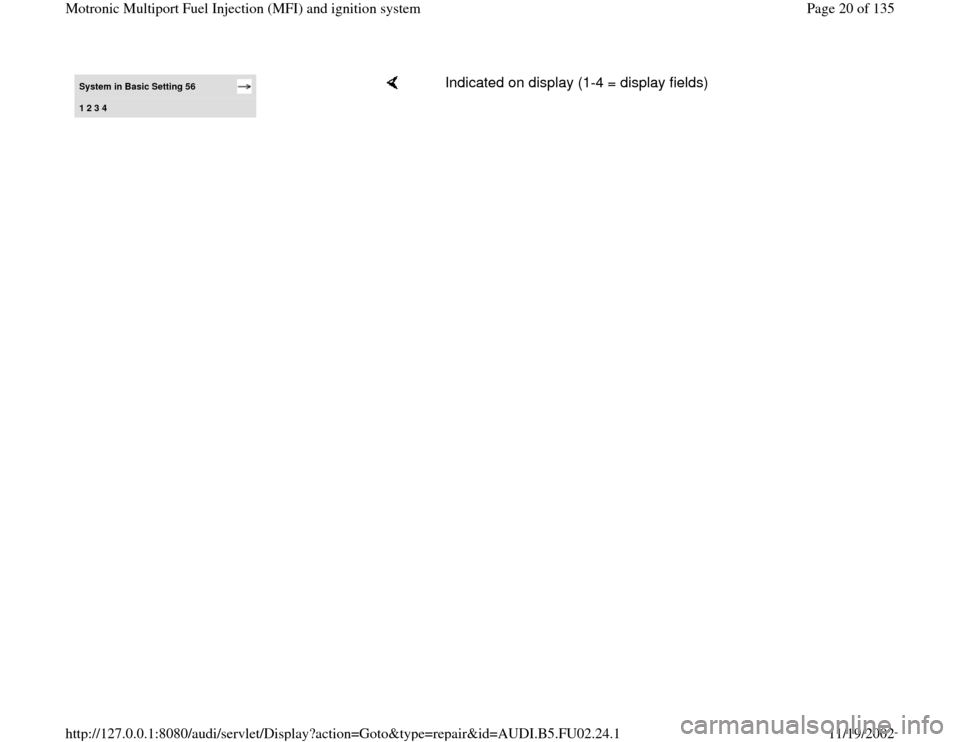

System in Basic Setting 56 1 2 3 4

Indicated on display (1-4 = display fields)
Pa
ge 20 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

24-14

- Compare display with specified values (display
fields 1-4):
Display fields

1 2 3 4 Display group 56: Engine idle speed
Display xxxx RPM xxxx RPM x.xx g/s xxxx
Indicates Engine speed
(actual) Engine
speed
(specified) Mass air flow
(idle speed control) Operating
conditions
Range 0-2550 RPM
(steps of 10 RPM) --- -2.80 to 4.17 g/s ---
Specified
value 820-900 RPM 860 RPM -1.11 to 1.11 g/s 0000

If not as specified Page 24
-99
,
Throttle valve control module,
checking
--- If not as specified Page 24
-99
,
Throttle valve control module,
checking
Explanation
Page 24
-16


-
Press button to advance program
sequence.
- Press buttons -0- and -6- to select "End Output"
function 06, and press -Q- button to confirm
input.
Pa
ge 21 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

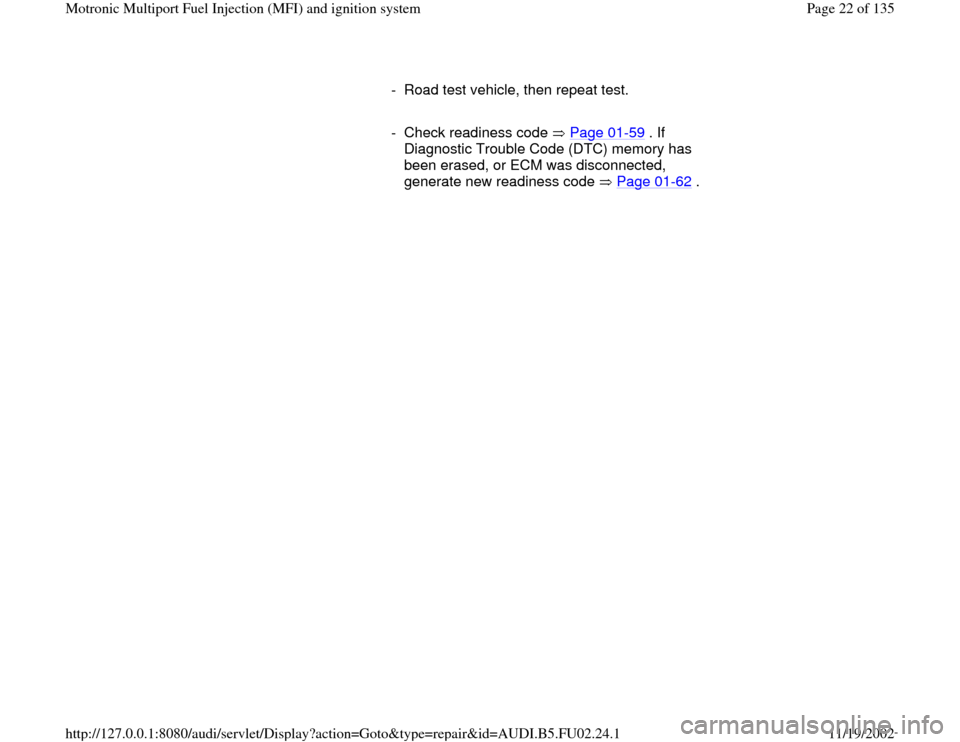

- Road test vehicle, then repeat test.

- Check readiness code Page 01
-59
. If
Diagnostic Trouble Code (DTC) memory has
been erased, or ECM was disconnected,
generate new readiness code Page 01
-62
.
Pa
ge 22 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

24-15
Evaluation of 6-digit display:

"1" = Adjustment conditions fulfilled
"0" = Adjustment conditions not fulfilled
If adjustment conditions have been fulfilled (indicated in display field 4), a series of 6 numerals ("1") will be displayed. If
one of the digits in the 6-digit display is "0," the adjustment condition has not been fulfilled. Repair the cause of the
unfulfilled condition, and repeat the test.
Explanation (display = 1)
x
x
x
x
x
x
Adjusting conditions (display group 1)
1
Engine Coolant Temperature (ECT) above 80 C
1 Engine speed less than 2000 RPM
1 Throttle valve closed
1 Oxygen sensor control active
1 Closed Throttle Position (CTP) switch closed
1 A/C compressor off
