Checkin g an d Replacin g Fuse s
If something electrical in your car stops working, the first thing you
should check for is a blown fuse.
Determine from the chart on pages 243 and 244, or the diagram on the
fuse box lid, which fuse or fuses control that component. Check those
fuses first, but check all the fuses
before deciding that a blown fuse is not the cause. Replace any blown
fuses and check the component's
operation.

1. Turn the ignition switch to LOCK(0). Make sure the headlights and
all other accessories are off.
2. Remove the cover from the fuse
box.

FUS E

3. Check each of the large fuses in
the under-hood fuse box by
looking through the top at the wire inside. Removing these fuses
requires a Phillips-head screw-
driver.
4. Check the smaller fuses in the
under-hood fuse box and all the
fuses in the interior fuse box by
pulling out each fuse with the fuse
puller provided in the interior fuse
box.

CONTINUED

Takin g Car e o f th e Unexpecte d
BLOW
N
FUS
E PULLE R

Fuse
s
5. Look for a burned wire inside thefuse. If it is burned, replace it with one of the spare fuses of the same
rating or lower.
If you cannot drive the car without
fixing the problem, and you do not have a spare fuse, take a fuse of thesame rating or a lower rating from
one of the other circuits. Make sure
you can do without that circuit temporarily (such as the cigarette
lighter or radio). If you replace the blown fuse with a
spare fuse that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
fuse with one of the correct rating as
soon as you can.

Replacing a fuse with one that has a higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a replace-
ment fuse with the proper rating for the
circuit, install one with a lower rating.

6. If the replacement fuse of the
same rating blows in a short time,
there is probably a serious electrical problem in your car.
Leave the blown fuse in that
circuit and have your car checked
by a qualified mechanic.
If the radio fuse is removed, the
audio system will disable itself. The
next time you turn on the radio you
will see "Code" in the frequency display. Use the Preset buttons to
enter the five-digit code (see page
119).

Takin g Car e o f th e Unexpecte d
NOTIC
E
BLOW
N

Fuse
s

INTERIO R FUS E BO X

* : On Canadian models

CONTINUED
Takin g Car e o f th e Unexpecte d

Fuse
s

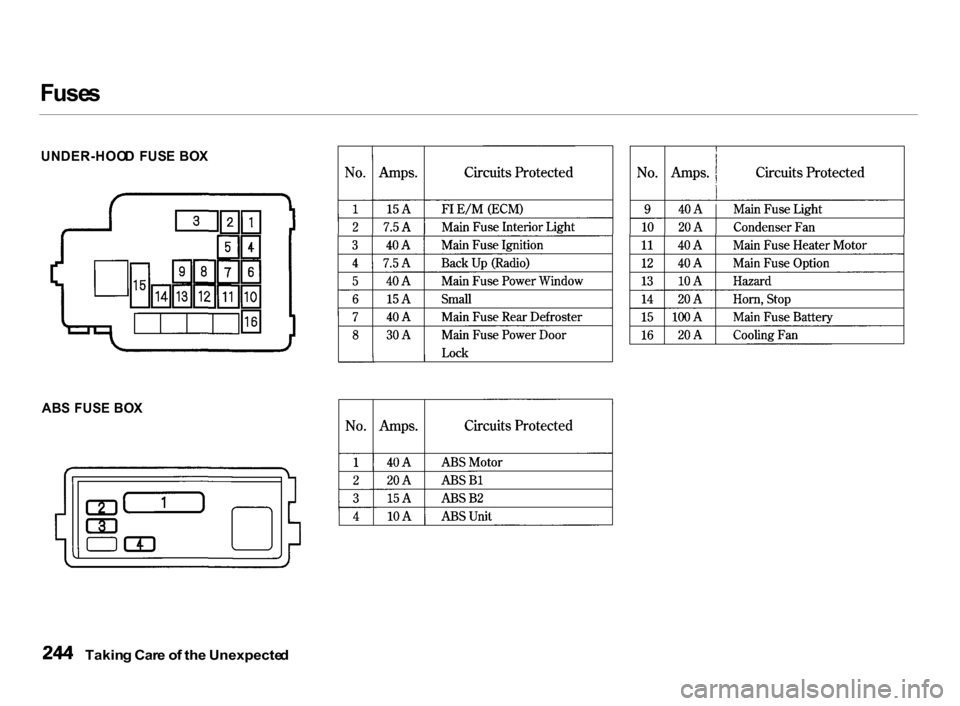

UNDER-HOO D FUS E BO X
AB S FUS E BO X

Takin g Car e o f th e Unexpecte d
