1999 TOYOTA SIENNA ESP

name. SIENNA (45403U)
13
The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing every
1 second to show the system is set.
If either of the following indicator condi-
tions occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See ”Theft deterrent
system.)
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes unsteady.Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built−in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.For vehicles sold in U.S.A.
FCC ID: MOZ RI−4BTY
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
ProCarManuals.com

name. SIENNA (45403U)
15
Driver’s side
Passenger’s side
LOCKING AND UNLOCKING WITH POW-
ER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch on the front side.
To unlock: Push the switch on the rear
side.
All the doors lock or unlock simultaneous-
ly.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
Sliding door
LOCKING AND UNLOCKING WITH KEY
(on some models)
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
ProCarManuals.com

name. SIENNA (45403U)
29
CAUTION
To avoid serious personal injury, you
must do the following.
Always make sure the head, hands
and other parts of the body of all
occupants are kept completely in-
side the vehicle before you close
the power windows. If someone’s
neck, head or hands gets caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, be sure
that they operate the windows safe-
ly.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock button to
prevent them from making unex-
pected use of the switches.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches and
get trapped in a window. Unat-
tended children can become in-
volved in serious accidents.
Power rear quarter windows
The rear quarter windows can be oper-
ated with the ”REAR VENT” switch on
the instrument panel.
The power rear quarter windows work
when the ignition switch is in the ”ON”
position. However, if both front doors are
closed, they work for 45 seconds even
after the ignition switch is turned off. They
stop working when either front door is
opened.
Both the left and the right rear quarter
windows move as long as you hold the
switch.
To open: Push the right side of the switch.
To close: Push the left side of the switch.
CAUTION
To avoid serious personal injury, you
must do the following.
Always make sure the hands and
other parts of the body of all occu-
pants are kept completely inside the
vehicle before you close the power
rear quarter windows. If someone’s
hands get caught in a closing win-
dow, it could result in a serious
injury. When anyone closes the
power rear quarter windows, make
sure that he/she operates the win-
dows safely.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power rear quarter window
switch and get trapped in a window.
Unattended children can be involved
in serious accidents.
ProCarManuals.com

name. SIENNA (45403U)
64

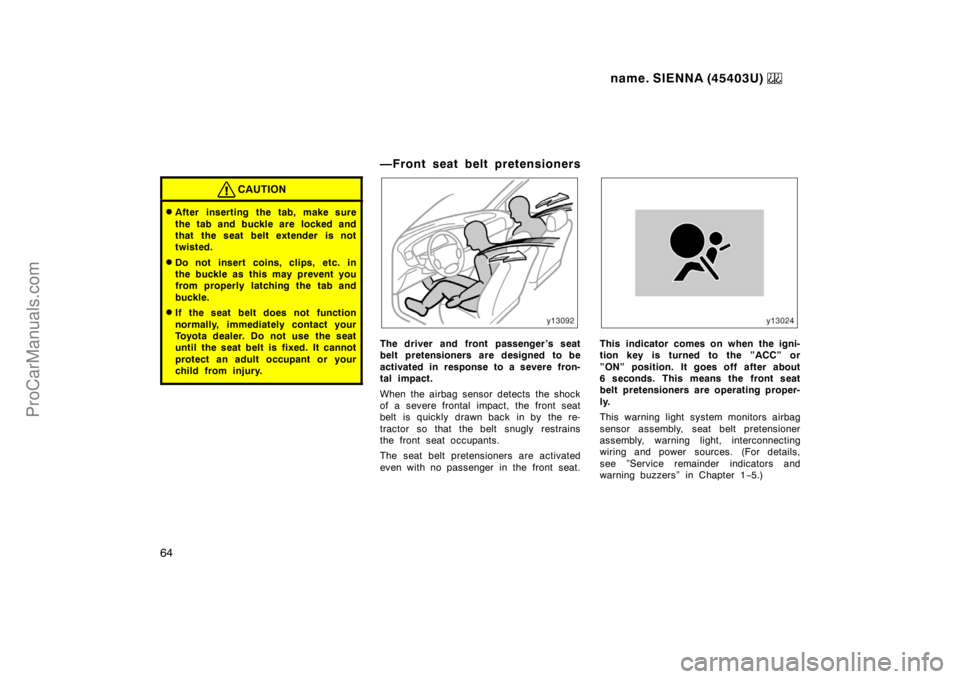

CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the seat belt extender is not
twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
—Front seat belt pretensioners
The driver and front passenger ’s seat
belt pretensioners are designed to be
activated in response to a severe fron-
tal impact.
When the airbag sensor detects the shock
of a severe frontal impact, the front seat
belt is quickly drawn back in by the re-
tractor so that the belt snugly restrains
the front seat occupants.
The seat belt pretensioners are activated
even with no passenger in the front seat.This indicator comes on when the igni-
tion key is turned to the ”ACC” or
”ON” position. It goes off after about
6 seconds. This means the front seat
belt pretensioners are operating proper-
ly.
This warning light system monitors airbag
sensor assembly, seat belt pretensioner
assembly, warning light, interconnecting
wiring and power sources. (For details,
see ”Service remainder indicators and
warning buzzers” in Chapter 1−5.)
ProCarManuals.com

name. SIENNA (45403U)
66
This front seat belt pretensioner system
has a service reminder indicator to inform
the driver of operating problems. If either
of the following conditions occurs, this
indicates a malfunction of the airbags or
pretensioners. Contact your Toyota dealer
as soon as possible to service the
vehicle.
The light does not come on when the
ignition key is turned to the ”ACC” or
”ON” position, or remains on.
The light comes on or flashes while
driving.
If either front seat belt does not retract
or can not be pulled out due to a
malfunction or activation of the preten-
sioner.
The front seat belt pretensioner assem-
bly or surrounding area has been dam-
aged.
The front part of the vehicle (shaded
in the illustration) was involved in an
accident not of the extent to cause the
seat belt pretensioners to operate.
The front seat belt pretensioner assem-
bly is scratched, cracked, or otherwise
damaged.
The SRS (Supplemental Restraint Sys-
tem) airbags are designed to provide
further protection for the driver and
front passenger when added to the pri-
mary protection provided by the seat
belts.
In response to a severe frontal impact,
the SRS airbags work together with the
seat belts to help prevent or reduce injury
by inflating, in order to decrease the likeli-
hood of the driver ’s or front passenger ’s
head or chest directly hitting the steering
wheel or dashboard. The passenger airbag
is activated even with no passenger in the
front seat.
Be sure to wear your seat belt.
SRS driver and front
passenger airbags
ProCarManuals.com

name. SIENNA (45403U)
67
CAUTION
A driver or front passenger too close
to the steering wheel or dashboard
during airbag deployment can be
killed or seriously injured. Toyota
strongly recommends that:
The driver sit as far back as pos-
sible from the steering wheel while
still maintaining control of the ve-
hicle.
The front passenger sit as far back
as possible from the dashboard.
All vehicle occupants be properly
restrained using the available seat
belts.This indicator comes on when the igni-
tion key is turned to the ”ACC” or
”ON” position. It goes off after about
6 seconds. This means the SRS airbags
are operating properly.
The SRS airbag warning light system
monitors the airbag sensor assembly, in-
flators, warning light, interconnecting wir-
ing and power sources. (For details, see
”Service reminder indicators and warning
buzzers” in Chapter 1−5.)The SRS airbag system is designed to
activate in response to a severe frontal
impact within the shaded area between
the arrows in the illustration.
There may be the case that the SRS air-
bags will not activate with such an impact
in which the occupant wearing the seat
belt correctly would not get serious injury.
The SRS airbags will deploy if the severi-
ty of the impact is above the designed
threshold level, comparable to an approxi-
mate 25 km/h (15 mph) collision when
impacting straight into a fixed barrier that
does not move or deform.
If the severity of the impact is below the
above threshold level, the SRS airbags
may not deploy.
ProCarManuals.com

name. SIENNA (45403U)
96

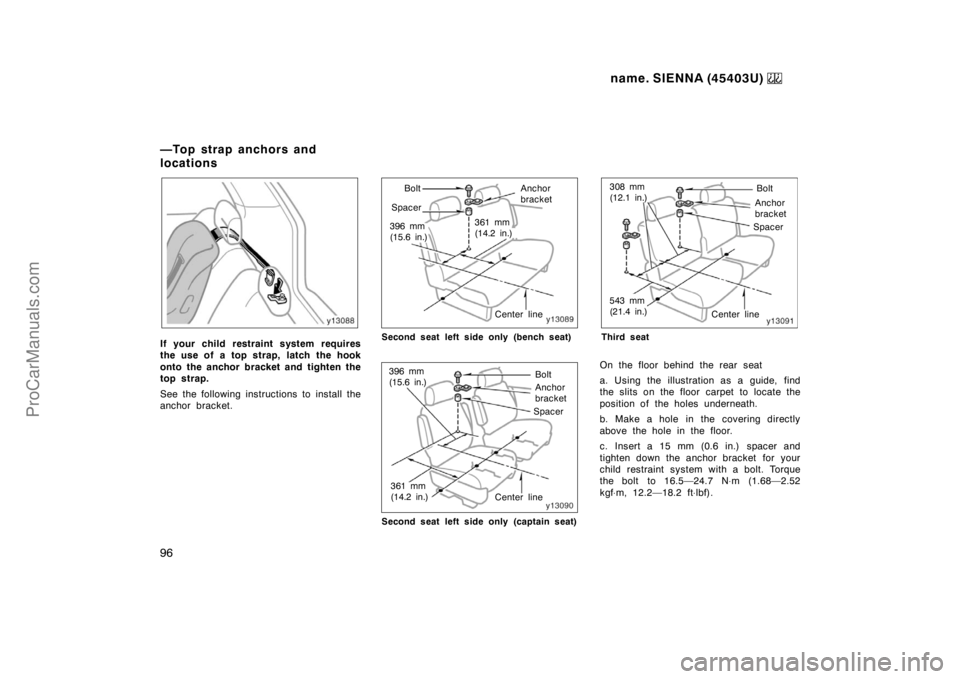

If your child restraint system requires
the use of a top strap, latch the hook
onto the anchor bracket and tighten the
top strap.
See the following instructions to install the
anchor bracket.
Center lineAnchor
bracket
396 mm
(15.6 in.)361 mm
(14.2 in.) SpacerBolt
Second seat left side only (bench seat)
396 mm
(15.6 in.)
361 mm
(14.2 in.)
Center lineSpacerAnchor
bracket Bolt
Second seat left side only (captain seat)
Center lineBolt
543 mm
(21.4 in.)SpacerAnchor
bracket
308 mm
(12.1 in.)
Third seat
On the floor behind the rear seat
a. Using the illustration as a guide, find
the slits on the floor carpet to locate the
position of the holes underneath.
b. Make a hole in the covering directly
above the hole in the floor.
c. Insert a 15 mm (0.6 in.) spacer and
tighten down the anchor bracket for your
child restraint system with a bolt. Torque
the bolt to 16.5—24.7 N⋅m (1.68—2.52
kgf⋅m, 12.2—18.2 ft⋅lbf).
—Top strap anchors and
locations
ProCarManuals.com

name. SIENNA (45403U)
11 3
CAUTION
On some models, since the mirror
surfaces can get hot, keep your
hands off them when the defogger
switch is on.
Make sure you turn the defoggers off
when the surfaces are clear. Leaving the
defoggers on for a long time could cause
the battery to discharge, especially during
stop−and−go driving. The defoggers are
not designed for drying rain water or for
melting snow.
If the outside rear view mirrors are heavi-
ly coated with ice, use a spray de−icer
before operating the switch.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires.
