1999 TOYOTA LAND CRUISER battery

New L/C100(U)83
TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position 1.
The key must be in the ºONº position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out. Emergency flashersTo turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull your vehicle as far off the
road as possible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch onlonger than necessary when the en- gine is not running.

New L/C100(U)89
Rear window defogger
To defog or defrost the back window,
push the switch.
The key must be in the ºONº position.
The thin heater wires on the inside of the
back window will quickly clear the surface.
An indicator light will illuminate to indicate
the defogger is operating.
Push the switch once again to turn the
defogger off.
The system will automatically shut off af-
ter the defogger has operated about 15
minutes.
Make sure you turn the defoggers off
when the surfaces are clear. Leaving the
defoggers on for a long time could cause
the battery to discharge, especially during
stop- and- go driving. The defoggers are
not designed for drying rain water or for
melting snow.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch ordamage the heater wires.
Outside rear view mirror heaters
To defog or defrost the outside rear
view mirrors, push the switch.
The key must be in the ºONº position.
The heater panels in the outside rear view
mirrors will quickly clear the surfaces. An
indicator light will illuminate to indicate the
mirror heaters are operating.
Push the switch once again to turn the
defoggers off.
The system will automatically shut off af-
ter the mirror heaters have operated about
15 minutes.

New L/C100(U)
90
CAUTION
Since the mirror surfaces can get hot,
keep your hands off them when the
mirror heater switch is on.
Make sure you turn the mirror heaters off
when the surfaces are clear. Leaving the
mirror heaters on for a long time could
cause the battery to discharge, especially
during stop- and- go driving. The mirror
heaters are not designed for drying rain
water or for melting snow.
If the outside rear view mirrors are heavi-
ly coated with ice, use a spray de- icer
before operating the switch.

New L/C100(U)93
NOTICE
Do not drive the vehicle with the oilpressure below the normal range untilthe cause is fixedÐit may ruin theengine.
Vo l t m e t e r
The voltmeter tells whether the battery
is charged or discharged. Check it
while the engine is runningÐthe needle
should always indicate as shown above.
If the needle reads below or above the
normal range while the engine is running,
it indicates the charging system needs im-
mediate repair.
However, it is normal for the needle to
drop below the normal range during en-
gine starting. TachometerThe tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and overrevving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator needle get
into the red zone. This may causesevere engine damage.

New L/C100(U)
96
Depressing the brake pedal repeatedly
may turn on the warning light and buzzer.
It is normal if the light goes out and the
buzzer stops sounding after a few sec-
onds.
CAUTION
Continued driving with an inoperative
brake booster is dangerous.
(b) Driver's Seat Belt Reminder Light
and Buzzer
Once the ignition key is turned to ºONº or
ºSTARTº, the reminder light flashes and
the buzzer sounds if the driver 's seat belt
is not fastened. Unless the driver fastens
the belt, the light keeps on flashing and
the buzzer sounds 4 to 8 seconds.
(c) Front Passenger 's Seat Belt Re- minder Light
Once the ignition key is turned to ºONº or
ºSTARTº, the reminder light flashes if a
passenger sits in the front passenger seat
and does not fasten the seat belt. Unless
the front passenger fastens the belt, the
light stays flashing. If luggage load is placed on the front
passenger seat, depending on its weight
and how it is placed on the seat, built- in
sensors in the seat cushion may detect
the pressure, causing the reminder light to
come on.
(d) Discharge Warning Light
This light warns that the battery is being
discharged.
If it comes on while you are driving, there
is a problem somewhere in the charging
system.
The engine ignition will continue to oper-
ate, however, until the battery is dis-
charged. Turn off the air conditioning,
blower, radio, etc., and drive directly to
the nearest Toyota dealer or repair shop.
NOTICE
Do not continue driving if the engine
drive belt is broken or loose.
(e) Malfunction Indicator Lamp
This lamp comes on in the following
cases.
a. The fuel tank is completely empty. (See
ºFuel gaugeº in Chapter 1- 5 for instruc-
tions.)
b. The fuel tank cap is not tightened se-
curely. (See ºFuel tank capº in Chapter
1- 2 for instructions.)
c. There is a problem somewhere in your
engine electrical system, automatic trans-
mission electrical system or electronic
throttle control system.
If it comes on while you are driving in
case c, have your vehicle checked/re-
paired by your Toyota dealer as soon as
possible.
(f) Low Fuel Level Warning Light
This light comes on when the fuel level
in the tank becomes nearly empty. Fill up
the tank as soon as possible.

New L/C100(U)99
Part 1
OPERATION OF
INSTRUMENTS AND
CONTROLSÐ
Chapter 1±6
Ignition switch,
Transmission and
Parking brake

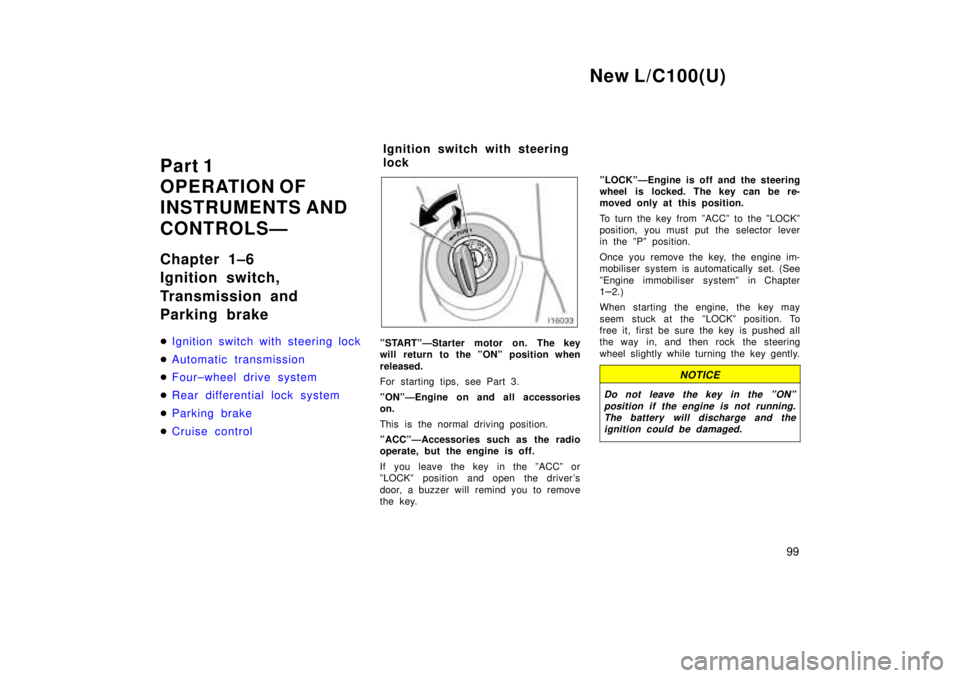

Ignition switch with steering lock
Automatic transmission
Four±wheel drive system
Rear differential lock system
P ar k ing br ak e
Cruise control
ºSTARTºÐStarter motor on. The key
will return to the ºONº position when
released.
For starting tips, see Part 3.
ºONºÐEngine on and all accessories on.
This is the normal driving position.
ºACCºÐAccessories such as the radio
operate, but the engine is off.
If you leave the key in the ºACCº or
ºLOCKº position and open the driver's
door, a buzzer will remind you to remove
the key.
ºLOCKºÐEngine is off and the steering
wheel is locked. The key can be re-
moved only at this position.
To turn the key from ºACCº to the ºLOCKº
position, you must put the selector lever
in the ºPº position.
Once you remove the key, the engine im-
mobiliser system is automatically set. (See
ºEngine immobiliser systemº in C
hapter
1 ±
2.)
When starting the engine, the key may
seem stuck at the ºLOCKº position. To
free it, first be sure the key is pushed all
the way in, and then rock the steering
wheel slightly while turning the key gently.
NOTICE
Do not leave the key in the ºONº position if the engine is not running.The battery will discharge and the ignition could be damaged.
Ignition switch with steering
lock

New L/C100(U)139
Power outlets
The power outlets are designed for
power supply for car accessories. To
use them, open the lids as shown in
the following illustrations.
The key must be in the ºACCº or ºONº
position to be used.
NOTICE
To prevent the fuse from being
blown, do not use the electricityover the total vehicle of capacity 12V/120W (all the outlets together).
To prevent the battery from beingdischarged, do not use the power outlets longer than necessary when
the engine is not running.
Close the power outlet lids whenthe power outlets are not in use.Inserting a foreign object other than plug that fits the outlet, or pouring
juice or other liquid into the outletmay cause troubles or short cir-
cuits.
Instrument panel
Center console box
Luggage compartment

New L/C100(U)171
Winter driving tips
Make sure you have a proper freeze
protection of engine coolant.
Your coolant must contain ethylene- glycol
type coolant for a proper corrosion
protection of aluminum components. Use
ºToyota Long Life Coolantº or equivalent.
See Chapter 7- 2 for details about coolant
type selection.
NOTICE
Do not use alcohol type antifreeze or
plain water alone.
When it is extremely cold, we recommend
to use 60% solution for your Toyota, to
provide protection down to about -50 5C
(- 58 5F). Do not use more than 70% solu-
tion for better coolant performance.
Check the condition of the battery and
cables.
Cold temperatures reduce the capacity of
any battery, so it must be in top shape
to provide enough power for winter start-
ing. Chapter 7- 3 tells you how to visually
inspect the battery. Your Toyota dealer
and most service stations will be pleased
to check the level of charge. Make sure the engine oil viscosity is
suitable for the cold weather.
See Chapter 7- 2 for recommended viscos-
ity. Leaving a heavy summer oil in your
vehicle during winter months may cause
harder starting. If you are not sure about
which oil to use, call your Toyota dealer±
he will be pleased to help.
Keep the door locks from freezing.
Squirt lock de- icer or glycerine into the
locks to keep them from freezing.
Use a washer fluid containing an anti-
freeze solution.
This product is available at your Toyota
dealer and most auto parts stores. Follow
the manufacturer 's directions for how
much to mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute as washer fluid be-cause it may damage your vehicle's paint.
Do not use your parking brake when
there is a possibility it could freeze.
When parking, put the transmission into
ºPº and block the front wheels. Do not
use the parking brake, or snow or water
accumulated in and around the parking
brake mechanism may freeze, making it
hard to release.
Keep ice and snow from accumulating
under the fenders.
Ice and snow built up under your fenders
can make steering difficult. During bad
winter driving, stop and check under the
fenders occasionally.
Depending on where you are driving,
we recommend you carry some emer-
gency equipment.
Some of the things you might put in the
vehicle are tire chains, window scraper,
bag of sand or salt, flares, small shovel,
jumper cables, etc.
