1999 TOYOTA 4RUNNER light

4RUNNER ()
252
ÐHeadlights
1. Open the hood. Unplug the connec-
tor. Remove the rubber cover.
If the connector is tight, wiggle it.2. Release the bulb retaining spring and remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.3. Install the rubber cover with the ºTOPº mark upward, and snuggle on
the boss. Insert the connector.
Make sure the rubber cover fits snugly on
the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.

4RUNNER ()253

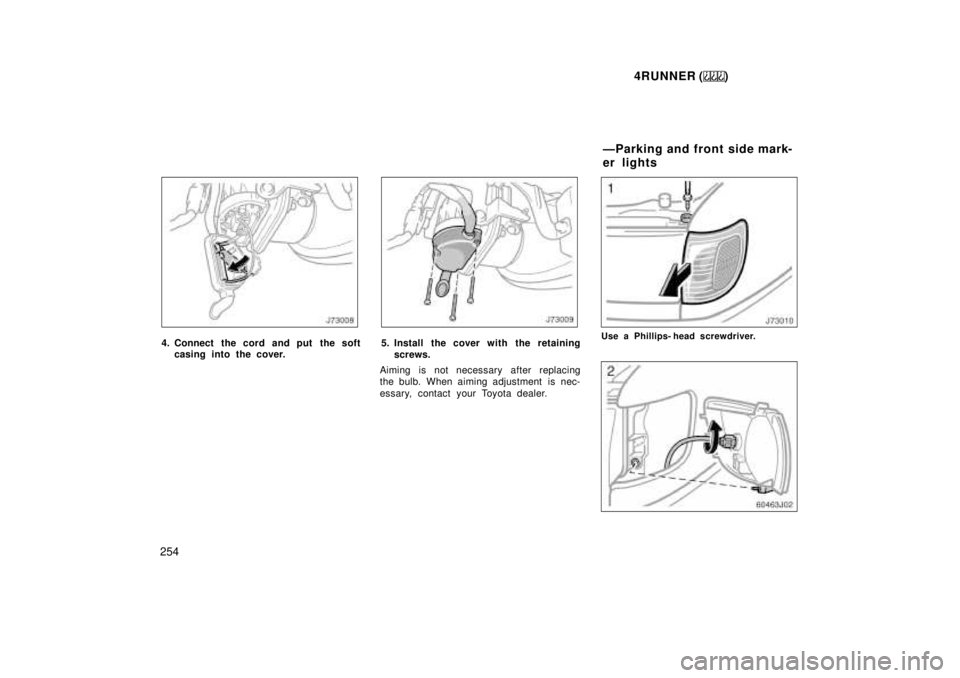

ÐFront fog lights
1. Loosen the cover retaining screws
and remove the cover.2. Lift up the soft casing and discon-nect the cords.3. Release the bulb retaining springand remove the bulb. Install a new
bulb and the bulb retaining spring.
To install the bulb, align the cutouts of the
bulb with the protrusions of the mounting
hole.

4RUNNER ()
254

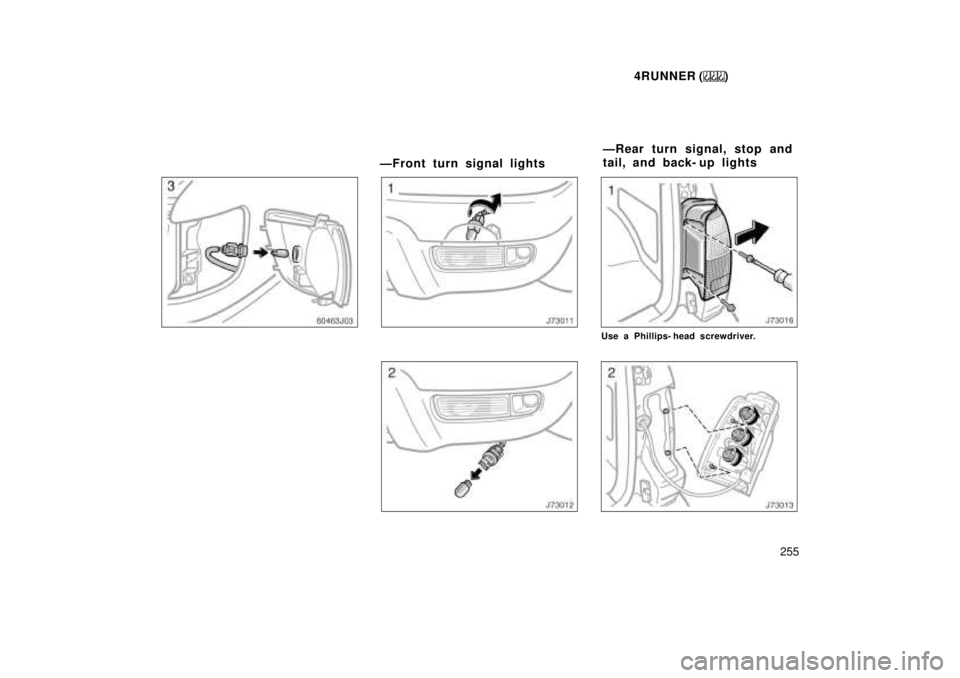

4. Connect the cord and put the soft casing into the cover.5. Install the cover with the retaining
screws.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.Use a Phillips- head screwdriver.
ÐParking and front side mark-
er lights

4RUNNER ()255
ÐFront turn signal lights
Use a Phillips- head screwdriver.

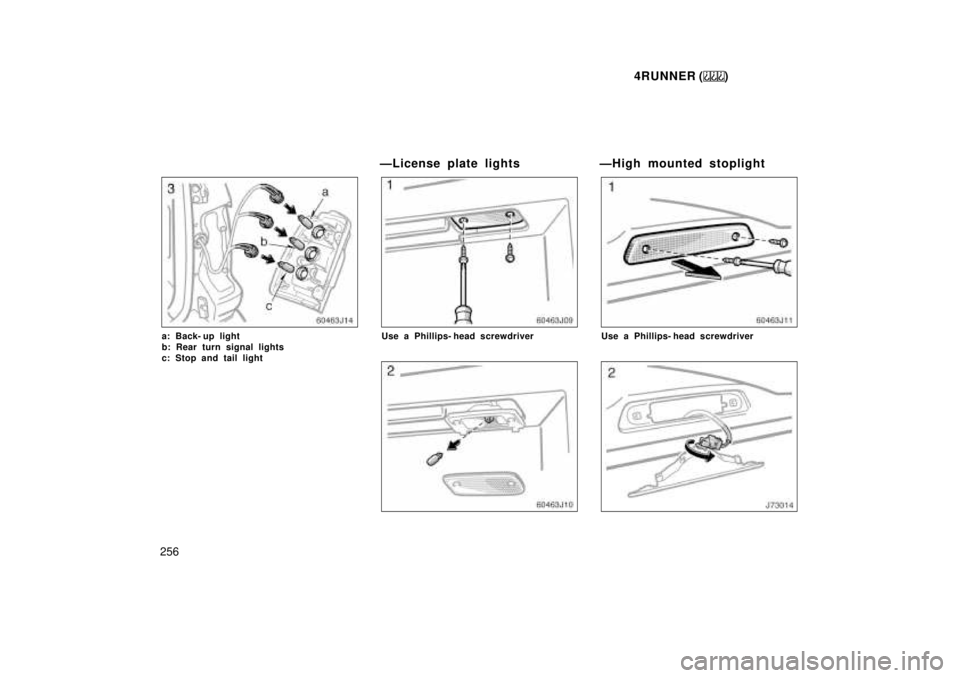

ÐRear turn signal, stop and
tail, and back- up lights

4RUNNER ()
256
a: Back- up light
b: Rear turn signal lights
c: Stop and tail light ÐLicense plate lightsUse a Phillips- head screwdriver
ÐHigh mounted stoplight
Use a Phillips- head screwdriver

4RUNNER ()261
Drive belt tension measured with Borroughs
drive belt tension gauge No. BT- 33- 73F
(used belt), Ibf:
3RZ- FE engineGenerator belt
11 5 20
Air conditioning compressor belt
100 20
Power steering pump belt
100 +25
-15
5VZ- FE engine Generator belt
100 20
Air conditioning compressor belt
100 20
Power steering pump belt
100 +20
-15
ENGINE LUBRICATION
Oil capacity (drain and ref ill),
L (qt., Imp. qt.):
3RZ- FE engineWith filter 5.4 (5.7, 4.8)
Without filter 4.7 (5.0, 4.1) 5VZ- FE engine
With filter 5.2 (5.5, 4.6)
Without filter 4.9 (5.2, 4.3)
Oil grade: API grade SJ, ºEnergy- Conservingº or
ILSAC multigrade engine oil is recom-
mended.
Recommended oil viscosity (SAE):
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.): 3RZ- FE engine With rear heater
11.0 (11.6, 9.7)
Without rear heater 10.0 (10.6, 8.8) 5VZ- FE engine
With rear heater 9.0 (9.5, 7.9)
Without rear heater 8.0 (8.5, 7.0)
Coolant type:
ºToyota Long Life Coolantº or equivalent
With ethylene- glycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or
plain water alone.
BATTERY
Open voltage *
at 20 C (68 F):
12.6Ð12.8 V Fully charged
12.2Ð12.4 V Half charged
11.8Ð12.0 V Discharged
* : Voltage that is checked 20 minutes after
the key is removed with all the lights
turned off
Charging rates: 5 A max.
CLUTCH
Pedal freeplay, mm (in.): 5Ð15 (0.2Ð0.6)
Fluid type: SAE J1703 or FMVSS No.116 DOT 3

4RUNNER ()
264
Fuses
Engine compartment (U.S.A.)
Fuses (type A) 1. ALT- S 7.5 A: Charging system
2. PWR OUTLET 15 A: Power outlets
3. RR HTR 10 A: Rear air conditioning
system
4. MPX- B 15 A: Power back window,
back door lock, back window wiper,
open door warning (back door), power
door lock control system, back window
defogger, horns, theft deterrent systemEngine compartment (Canada)
5. DOME 15 A: Interior lights, personal
lights, luggage compartment light,
clock, car audio system, gauges and
meters, ignition switch light, vanity mir-
ror light, daytime running light
6. OBD 7.5 A: On- board diagnosis sys-
tem
7. EFI 20 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
8. HEAD(RH) 10 A: Right- hand headlight,
gauges and meters
9. HEAD(LH) 10 A: Left- hand headlightInstrument panel
10. TAIL 10 A: Tail lights, license plate
lights, instrument panel lights
11. A.C 10 A: Air conditioning system
12. MIR HTR 10 A: Outside rear view mir-
ror heaters
13. DEFOG 15 A: Back window defogger
14. FOG 15 A: Front fog lights
15. DRL 7.5 A: Daytime running light sys-
tem
16. HEAD (HI RH) 10 A: Right- hand head-
light (high beam), gauges and meters

4RUNNER ()265
17. HEAD (HI LH) 10 A:
Left- hand head-
light (high beam)
18. HEAD (LO RH) 10 A: Right- hand
headlight (low beam)
19. HEAD (LO LH) 10 A: Left- hand head-
light (low beam)
20. ECU- IG 10 A: Cruise control system,
anti- lock brake system, electronically
controlled automatic transmission sys-
tem, power antenna, power window,
electric moon roof, power back window,
back window defogger, back window
wiper
21. TURN 10 A: Turn signals lights, emer-
gency flashers
22. WIPER 20 A: Windshield wipers and
washer, power door lock control sys-
tem, back window defogger, horns,
theft deterrent system
23. 4WD 20 A: A.D.D. control system,
four- wheel drive control system, rear
differential lock system
24. ACC 15 A: Car audio system, power
antenna, clock, power rear view mirror
control, cigarette lighter, SRS airbag
system, seat belt pretensi oners, elec-
tronically controlled automatic transmis-
sion system, power outlets, theft deter-
rent system 25. GAUGE 10 A:
Gauges and meters,
back window defogger, daytime running
light system, air conditioning system,
cruise control system, rear differential
lock system, electronically controlled
automatic transmission, back- up lights
26. IGN 10 A: SRS airbag system, seat
belt pretensioners, multiport fuel injec-
tion system/sequential multiport fuel in-
jection system, discharge warning light
27. ECU- B 7.5 A: Gauges and meters,
SRS airbag system, seat belt preten-
sioners
28. HORN,HAZ 15 A: Horns, emergency
flashers
29. STA 7.5 A: Starting system
30. STOP 10 A: Stop lights, high- mounted
stoplight
Fuses (type B)
31. HEATER 50 A: Air conditioning system,
all components in ºA.Cº fuse
32. AM1 40 A: Starting system, all compo-
nents in ºACCº, ºGAUGEº, ºTURNº,
ºECU- IGº, ºWIPERº, º4WDº fuses
33. J/B 50 A: All components in ºPOWERº,
ºHORN,HAZº, ºSTOPº, ºECU- Bº fuses 34. AM2 30 A:
Starting system, multiport
fuel injection system/sequential multi-
port fuel injection system, all compo-
nents in ºSTAº, ºIGNº fuses
35. POWER 30 A: Power window, power
back window, electric moon roof, power
seat, back door lock
Fuses (type C)
36. ABS 60 A: Anti- lock brake system
37. ALT 120 A: Charging system, all com-
ponents in ºAM1º, ºHEATERº, ºTAILº,
ºRR HTRº, ºALT- Sº, ºDEFOGº, ºMIR
HTRº and ºACCº fuses
