1999 OLDSMOBILE AURORA engine

yellowblue

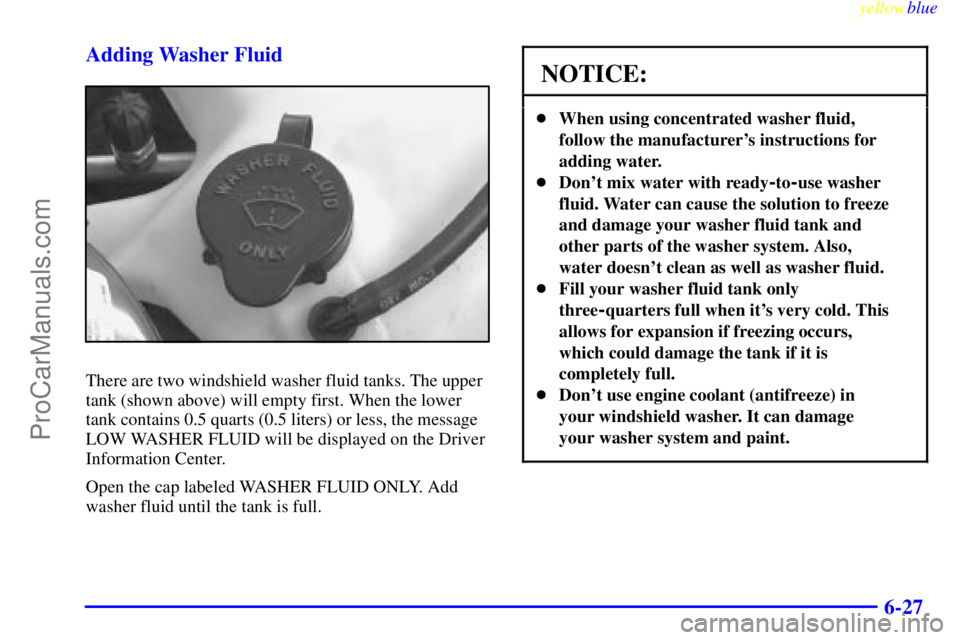

6-27 Adding Washer Fluid
There are two windshield washer fluid tanks. The upper
tank (shown above) will empty first. When the lower
tank contains 0.5 quarts (0.5 liters) or less, the message
LOW WASHER FLUID will be displayed on the Driver
Information Center.
Open the cap labeled WASHER FLUID ONLY. Add
washer fluid until the tank is full.
NOTICE:

When using concentrated washer fluid,
follow the manufacturer's instructions for
adding water.

Don't mix water with ready
-to-use washer
fluid. Water can cause the solution to freeze
and damage your washer fluid tank and
other parts of the washer system. Also,
water doesn't clean as well as washer fluid.

Fill your washer fluid tank only
three
-quarters full when it's very cold. This
allows for expansion if freezing occurs,
which could damage the tank if it is
completely full.

Don't use engine coolant (antifreeze) in
your windshield washer. It can damage
your washer system and paint.
ProCarManuals.com

yellowblue
6-28
Brakes
Brake Fluid
Your brake master cylinder reservoir is on the driver's
side of the engine compartment. It is filled with DOT
-3
brake fluid.
There are only two reasons why the brake fluid level in the
reservoir might go down. The first is that the brake fluid
goes down to an acceptable level during normal brake
lining wear. When new linings are put in, the fluid level
goes back up. The other reason is that fluid is leaking outof the brake system. If it is, you should have your brake
system fixed, since a leak means that sooner or later your
brakes won't work well, or won't work at all.
So, it isn't a good idea to ªtop offº your brake fluid.
Adding brake fluid won't correct a leak. If you add fluid
when your linings are worn, then you'll have too much
fluid when you get new brake linings. You should add
(or remove) brake fluid, as necessary, only when work is
done on the brake hydraulic system.
CAUTION:
If you have too much brake fluid, it can spill on
the engine. The fluid will burn if the engine is hot
enough. You or others could be burned, and your
vehicle could be damaged. Add brake fluid only
when work is done on the brake hydraulic
system.
When your brake fluid falls to a low level, your brake
warning light will come on. A chime will sound if you
try to drive with this warning light on. See ªBrake
System Warning Lightº in the Index.
ProCarManuals.com

yellowblue
6-29
What to Add
When you do need brake fluid, use only DOT
-3 brake
fluid. Use new brake fluid from a sealed container only.
Refer to ªRecommended Fluids and Lubricantsº in the
Maintenance Schedule.
Always clean the brake fluid reservoir cap and the area
around the cap before removing it. This will help keep
dirt from entering the reservoir.
CAUTION:
With the wrong kind of fluid in your brake
system, your brakes may not work well, or they
may not even work at all. This could cause a
crash. Always use the proper brake fluid.
NOTICE:

Using the wrong fluid can badly damage
brake system parts. For example, just a few
drops of mineral
-based oil, such as engine
oil, in your brake system can damage brake
system parts so badly that they'll have to be
replaced. Don't let someone put in the
wrong kind of fluid.

If you spill brake fluid on your vehicle's
painted surfaces, the paint finish can be
damaged. Be careful not to spill brake fluid
on your vehicle. If you do, wash it off
immediately. See ªAppearance Careº in
the Index.
ProCarManuals.com

yellowblue
6-59
Vehicle Identification Number (VIN)
This is the legal identifier for your vehicle. It appears on
a plate in the front corner of the instrument panel, on the
driver's side. You can see it if you look through the
windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates of title and registration.
Engine Identification
The 8th character in your VIN is the engine code. This
code will help you identify your engine, specifications
and replacement parts.
Service Parts Identification Label
You'll find this label on the underside of the spare tire
cover. It's very helpful if you ever need to order parts.
On this label is:

your VIN,

the model designation,

paint information and

a list of all production options and
special equipment.
Be sure that this label is not removed from the vehicle.
ProCarManuals.com

yellowblue
6-69
Engine Compartment Fuse BlockFuse Usage
1 Air Conditioning Center
2 Open
3 Open
4 Horn
5 Open
6 Fog Lamp 2
7 Cooling Fan #2
8 Cooling Fan #3
9 Cooling Fan
10 ABS Main
11 ABS Pump Motor
12 Fog Lamp
13 Horn
14 Open
ProCarManuals.com

yellowblue
6-70
Replacement Bulbs
EXTERIOR LAMPS BULB
Front
Front Turn Signal Lamps 3157NA. . . . . . . . . . . . . . . .
Halogen Headlamps
Low Beam 9006. . . . . . . . . . . . . . . . . . . . . . . . . . . .
High Beam 9005. . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear
Back
-Up Lamps 3155. . . . . . . . . . . . . . . . . . . . . . . . .
Stop/Taillamps 3057. . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Turn Signal Lamps 3057. . . . . . . . . . . . . . . . . .
INTERIOR LAMPS BULB
Overhead
Rail Courtesy/Reading Lamps 168. . . . . . . . . . . . . . .
For service information on other bulbs, contact your
dealer's service department.
Capacities and Specifications
The following approximate capacities are given in
English and metric conversions. Please refer to
ªRecommended Fluids and Lubricantsº in the Index for
more information.
Engine Code (L47) 4.0L V
-8
Automatic Transaxle (Overdrive)
When draining or replacing torque converter, more
fluid may be needed.
Pan Removal, Drain Plug
and Replacement 11.0 quarts (10.4 L). . . . . . . . . . . .
After Complete Overhaul 12.6 quarts (12.0 L). . . . . .
When performing either transaxle procedure, check
fluid level when done. More fluid may be needed.
Cooling System13.0 quarts (12.3 L) . . . . . . . . . . . . .
Engine Crankcase7.0 quarts (6.6 L) . . . . . . . . . . . .
When changing filter, up to 0.5 quart (0.5 L) more oil
may be needed.
Fuel Tank18.5 gallons (70.0 L) . . . . . . . . . . . . . . . . .
Windshield Washer
Fluid Tanks3.8 quarts (3.6 L) . . . . . . . . . . . . . . . .
ProCarManuals.com

yellowblue
6-71
Power Steering
Pump Only 1.0 pint (0.5 L). . . . . . . . . . . . . . . . . . . . .
Complete System 1.5 pints (0.7 L). . . . . . . . . . . . . . .
Tire PressuresSee Tire
-Loading Information . . . . . .
label on the rear edge of the driver's door.
Wheel Nut Torque100 lb
-ft (140 N´m) . . . . . . . . . .
Refrigerant (R
-134a),
Air ConditioningSee refrigerant charge label . . . .
under the hood.
NOTE: All capacities are approximate. When adding, be
sure to fill to the appropriate level as recommended in
this manual.
Engine Specifications
VIN Engine Code C. . . . . . . . . . . . . . . . . . . . . . . . . . .
Type V8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Displacement 4 L. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horsepower 250. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Compression Ratio 10.3:1. . . . . . . . . . . . . . . . . . . . . .
Firing Order 1
-2-7-3-4-5-6-8 . . . . . . . . . . . . . . . . . . .
Thermostat Temperature
Specification 180
F (82
C) . . . . . . . . . . . . . . . . . . .
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same. If the
air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used. If
you're not sure, ask your dealer.
Normal Maintenance
Replacement Parts
Air Cleaner Element AC Type A-1096C . . . . . . . . . .
Engine Oil Filter AC Type PF
-58 . . . . . . . . . . . . . . . .
Fuel Filter AC Type GF
-627 . . . . . . . . . . . . . . . . . . . .
Spark Plugs AC Type 41
-929 . . . . . . . . . . . . . . . . . . .
Gap: 0.050 inch (1.52 mm)
Windshield Wiper Blades
Type 6.32 Pin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Length 22.0 inches (56.0 cm). . . . . . . . . . . . . . . . . .
ProCarManuals.com

yellowblue
6-72 Vehicle Dimensions
Length 205.4 inches (522.0 cm). . . . . . . . . . . . . . . . .
Width 74.4 inches (189.0 cm). . . . . . . . . . . . . . . . . . .
Height 55.4 inches (141.0 cm). . . . . . . . . . . . . . . . . . .
Wheelbase 113.8 inches (289.1 cm). . . . . . . . . . . . . .
Front Tread 62.5 inches (159.0 cm). . . . . . . . . . . . . . .
Rear Tread 62.5 inches (159.0 cm). . . . . . . . . . . . . . .
Engine Accessory Belt Routing
The 4.0 L V8 engine uses an engine accessory belt. This
diagram shows the features connected by the belt
routing. See ªMaintenance Scheduleº in the Index for
when to check the belt.
1. Tensioner Arm Pulley
2. Power Steering Pump Pulley
3. Idler Pulley
4. Alternator Pulley
5. Air Conditioner Compressor Pulley
6. Harmonic Balancer
