1999 Mercury Mystique engine

Maintenance and care
158
SERVICE RECOMMENDATIONS
¥ We highlight do-it-yourself items
in the engine compartment for easy
location.
¥ As possible, we design parts that
can be replaced without tools.
¥ We provide you with a
maintenance guide and or service
guide which makes tracking routine
service for your vehicle easy.
If your vehicle requires
professional service, your Ford or
Lincoln/Mercury dealership can
provide necessary parts and
service. Check your ÒWarranty
GuideÓ to find out which parts and
services are covered.
Use only recommended fuels,
lubricants, fluids and service parts
conforming to specifications.
Motorcraft parts are designed and
built to provide the best
performance in your vehicle.
31MMCen 4/13/99 2:17 PM Page 158

Maintenance and care
159
Precautions when servicing
your vehicle
Be especially careful when
inspecting or servicing your
vehicle. Here are some general
precautions for your safety:
¥ Do not work on a hot engine.
The cooling fan is automatic
and may come on at any
time. Always disconnect the
negative terminal of the battery
before working near the fan.
¥ If you must work with the engine
running, avoid wearing loose
clothing or jewelry that could get
caught in moving parts. Take
precautions with long hair.
¥ Do not work on a vehicle with the
engine running in an enclosed
space, unless you are sure you have
enough ventilation.
¥ Keep all lit cigarettes, open
flames and other lit material away
from the battery and all fuel related
parts.
If you disconnect the battery, the
engine must ÒrelearnÓ its idle
conditions before your vehicle will
drive properly, as explained under
Battery in this chapter.
31MMCen 4/13/99 2:17 PM Page 159

Maintenance and care
160
Working with engine off
(manual transaxle)
1. Set the parking brake, depress
the clutch and place the gearshift
in 1 (first) or R (Reverse).
2. Turn off the engine and remove
the key.
3. Block the wheels to prevent the
vehicle from moving unexpectedly.
Working with engine off
(automatic transaxle)
1. Set the parking brake fully and
ensure the gearshift is securely
latched in P (Park).
2. Turn off the engine and remove
the key.
3. Block the wheels to prevent the
vehicle from moving unexpectedly.
31MMCen 4/13/99 2:17 PM Page 160

Maintenance and care
161
Working with engine on
(automatic transaxle)
1. Set the parking brake fully and
ensure the gearshift is securely
latched in P (Park).
2. Block the wheels to prevent the
vehicle from moving unexpectedly.
Working with engine on
(manual transaxle)
1. Set the parking brake, depress
the clutch and place the gearshift
in neutral.
2. Block the wheels to prevent the
vehicle from moving unexpectedly.
Do not start your engine
with the air cleaner removed
and do not remove it while the
engine is running.
31MMCen 4/13/99 2:17 PM Page 161

Maintenance and care
162

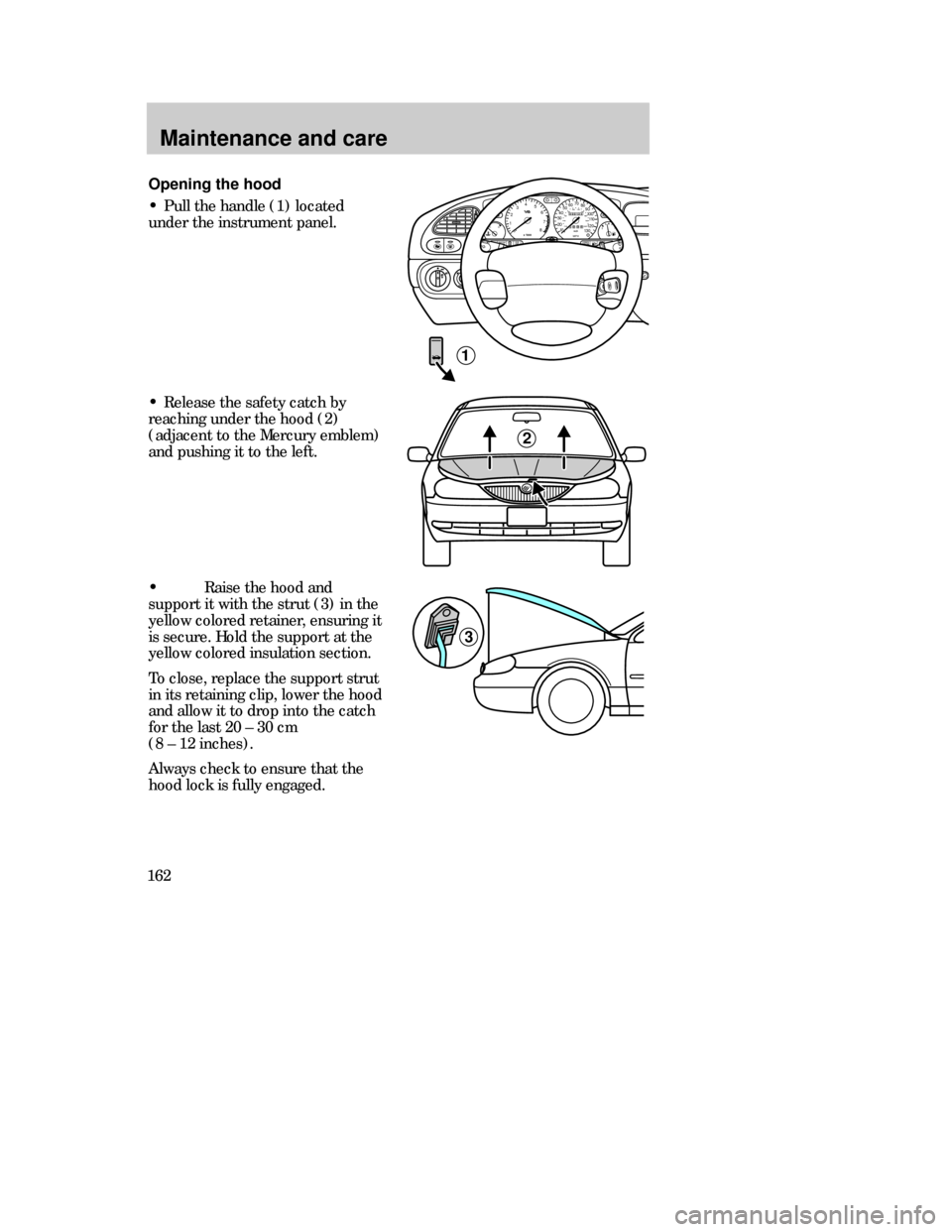

Opening the hood
¥ Pull the handle (1) located
under the instrument panel.000123000010 20 3040506070
80
90
10 0
110
120
13 0MPH20 406055
80120 10 0
14 0
160
18 0
200EF12
03x 1000
4
5
6
7
8
CHECK
ENGINE TRACTION
CONTROLO/D
OFF
MIRRORS
1
TRACTION
TROLCH
¥ Release the safety catch by
reaching under the hood (2)
(adjacent to the Mercury emblem)
and pushing it to the left.
2
3
¥ Raise the hood and
support it with the strut (3) in the
yellow colored retainer, ensuring it
is secure. Hold the support at the
yellow colored insulation section.
To close, replace the support strut
in its retaining clip, lower the hood
and allow it to drop into the catch
for the last 20 Ð 30 cm
(8 Ð 12 inches).
Always check to ensure that the
hood lock is fully engaged.
31MMCen 4/13/99 2:17 PM Page 162

Maintenance and care
163
For ease of identification, all filler caps and the engine oil dipstick are
marked yellow/black.
2.0 litre EFI-engine compartment
Power
steering
reservoirEngine
coolant
reservoirAutomatic
transaxle
dipstick
(if equipped)Brake fluid
reservoir
BatteryWindshield
washer fluid
reservoirEngine oil
dipstickPower
distribution
box
Air
cleaner
Engine oil
filler cap
31MMCen 4/13/99 2:17 PM Page 163

Maintenance and care
164
Power
steering
reservoirEngine
coolant
reservoir
2.5 litre EFI-engine compartment
For ease of identification, all filler caps and the engine oil dipstick are
marked yellow/black.
Air
cleanerBrake fluid
reservoirAutomatic
transaxle
dipstick
(if equipped)
BatteryWindshield
washer fluid
reservoirEngine oil
dipstickPower
distribution
boxEngine oil
filler cap
31MMCen 4/13/99 2:17 PM Page 164

Maintenance and care
165
ADDFULL
Engine oil
Use SAE 5W-30 motor oil
CERTIFIED FOR GASOLINE
ENGINES by the American
Petroleum Institute.
Do not use supplemental engine oil
additives, oil treatments or engine
treatments. They are unnecessary
and could, under certain
conditions, lead to engine damage
which is not covered by Ford
Warranty.
Checking the engine oil
Check the engine oil each time you
fuel your vehicle.
To check the oil:
1. Make sure the vehicle is on level
ground. If the engine is warm, turn
the engine off and wait a few
minutes for the oil to drain into the
oil pan.
2. Set the parking brake and ensure
the gearshift is securely latched in
P (Park). Put the manual gearshift
in 1 (first) or R (Reverse).
3. Open the hood. Protect yourself
from engine heat.
4. Locate and carefully remove the
engine oil dipstick.
5. Wipe the dipstick clean. Insert
the dipstick fully, then remove it
again. The oil level should be in the
range shown on the dipstick.
2.0 l DOHC
2.5 l DOHC
AMERICANPETROLEUMINSTITUTE
CERTIFIED
FOR
GASOLINE
ENGINES
AMERICANPETROLEUMINSTITUTECERTIFIEDFOR
GASOLINE
ENGINES
Motorcraft
Do not exceed MAX!
Do not exceed MAX!
