1999 Mercury Mystique engine coolant

Maintenance and care
170

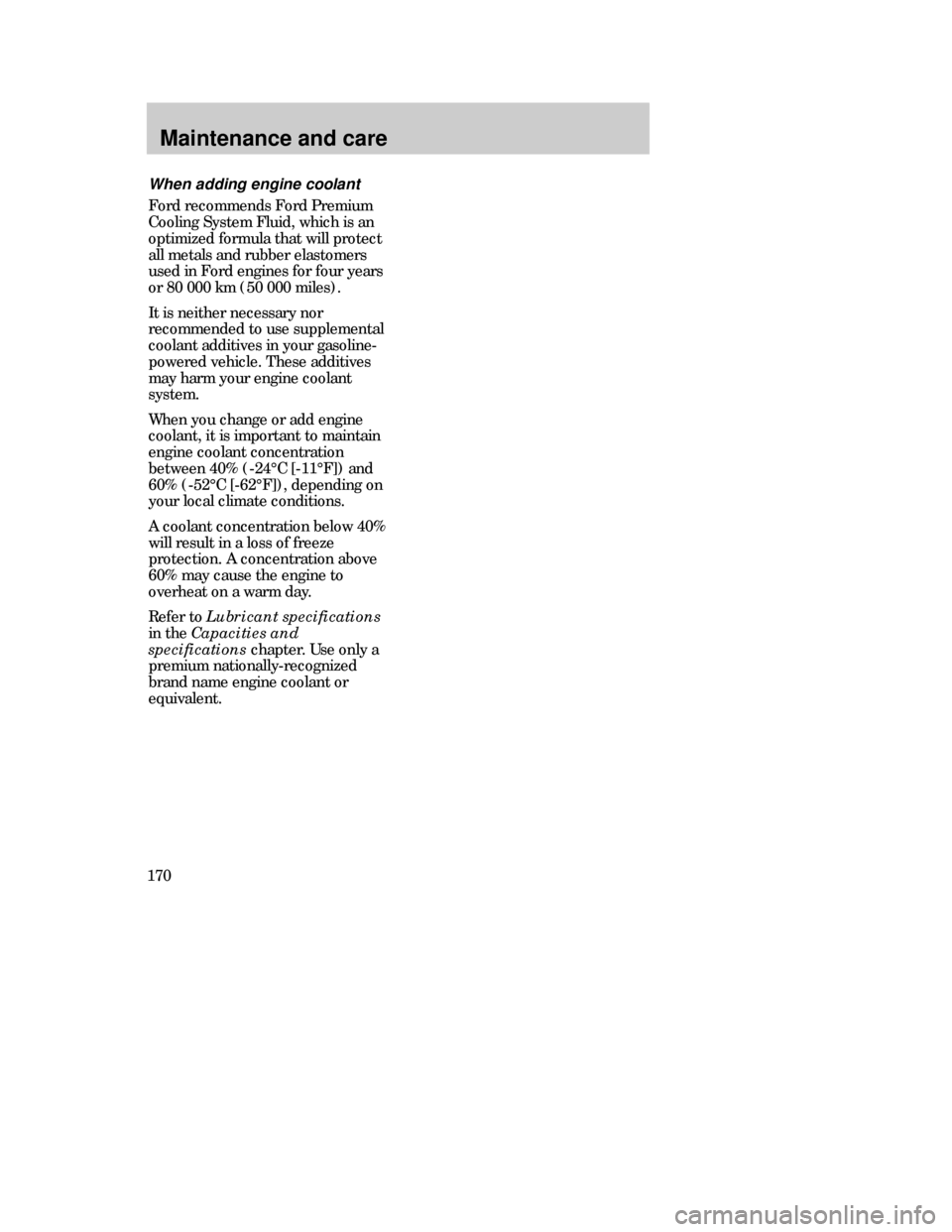

When adding engine coolant
Ford recommends Ford Premium
Cooling System Fluid, which is an
optimized formula that will protect
all metals and rubber elastomers
used in Ford engines for four years
or 80 000 km (50 000 miles).
It is neither necessary nor
recommended to use supplemental
coolant additives in your gasoline-
powered vehicle. These additives
may harm your engine coolant
system.
When you change or add engine
coolant, it is important to maintain
engine coolant concentration
between 40% (-24¡C [-11¡F]) and
60% (-52¡C [-62¡F]), depending on
your local climate conditions.
A coolant concentration below 40%
will result in a loss of freeze
protection. A concentration above
60% may cause the engine to
overheat on a warm day.
Refer to
Lubricant specifications
in theCapacities and
specifications
chapter. Use only a
premium nationally-recognized
brand name engine coolant or
equivalent.
31MMCen 4/13/99 2:17 PM Page 170

Maintenance and care
171
Always dispose of used
automotive fluids in a
responsible manner. Follow your
communityÕs standards for
recycling and disposing of
automotive fluids.
Recycled engine coolant
Ford Motor Company recommends
that Ford and Lincoln-Mercury
dealers use recycled engine coolant
produced by Ford-approved
processes. Not all coolant recycling
processes produce coolant which
meets Ford specifications ESE-
M97B44-A, and use of such coolant
may harm engine and cooling
system components.
31MMCen 4/13/99 2:17 PM Page 171

Maintenance and care
172
MAX
MIN
Adding engine coolant
1. Before removing the engine
coolant recovery cap, turn the
engine off and allow it to cool.
2. When the engine is cool, turn
and remove the cap.
¥ Step back for a moment while
the pressure in the reservoir is
released.
¥ Stand away from the reservoir
opening. Hot steam or coolant
spray may be released.
3. Add engine coolant until the
fluid level in the reservoir is
between the MAX and MIN lines on
the reservoir.
Follow the recommended service
interval for changing engine
coolant as outlined in the
maintenance guide and or service
guide. Refer to
Capacities and
specifications
for more
information on engine coolant
specifications.
Have your dealer or a qualified
service technician check the engine
coolant system for leaks if you have
to add more than a litre (quart) of
engine coolant per month.
Never remove the coolant
recovery cap while the
engine is running or hot.
31MMCen 4/13/99 2:17 PM Page 172

Maintenance and care
173
Checking and adding power
steering fluid
Switch off the engine. With the
steering system at normal
operating temperature, the fluid
level should come up to the MAX
mark.
If the fluid level drops below the
MIN mark, add the specified fluid.
Refer to the
Capacities and
specifications
chapter.
Severe winter climate
If you drive in extremely cold
climates (less than -36¡C [-34¡F]),
it may be necessary to increase the
coolant concentration above 50%.
Refer to the chart on the coolant
container to ensure the coolant
concentration in your vehicle is
such that the coolant will not
freeze at the temperature level in
which you drive during the winter
months. Never increase the engine
coolant concentration above 60%.
Leave a 50/50 mixture of engine
coolant and water in your vehicle
year-round in non-extreme
climates.
MAX
MIN
31MMCen 4/13/99 2:17 PM Page 173

Capacities and specifications
219
Lubricant Specifications
ItemFord part name
or equivalent
High performance
DOT 3 brake fluid,
DOT 4 brake fluid
or Super DOT 4
Premium engine
coolant
Motorcraft motor
oil 5W-30 super
premium
MERCON¨
power steering
fluid
Motorcraft
MERCON¨ATF*
Ultra-clear
windshield washer
concentrate
Ford
part number
C6AZ-19542-AB
for DOT 3
E2FZ-19549-AA
CXC-8-B
XO-5W30-QSP
E6AZ-19582 AA
XT-2-QDX
C9AZ-19550-AC
or
C9AZ-19550-BC
Ford
specification
ESA-M6C25-A
(DOT 3)
ESD-M6C57-A
(Super DOT 4)
ESE-M97B44-A
American Petroleum
Institute Certification
Mark and
WSS-M2C153-G
ESW-M2C33-F
MERCON¨
ESR-M17P5-A
Brake fluid
Engine coolant
Engine oil
Power steering
fluid
Transaxle fluid
automatic/
5-speed manual
Windshield
washer
fluid
* Use only MERCON¨
approved transmission/transaxle fluid. Use of any fluid approved and/or labeled
for MERCON¨
V may cause internal transaxle damage.
32MCSen 4/13/99 2:21 PM Page 219
