Maintenance

This section explains why it is important to keep your car wellmaintained and to follow basic
maintenance safety precautions.
This section also includes Maintenance Schedules for normal
driving and severe driving conditions,
a Maintenance Record, and instruc-
tions for simple maintenance tasks
you may want to take care of yourself.
If you have the skills and tools to per-form more complex maintenance
tasks on your Honda, you may want
to purchase the Service Manual. See
page 263 for information on how to obtain a copy, or see your Honda
dealer.
Maintenance Safety....................... 158
Important Safety Precautions.. 159
Maintenance Schedule.................. 160
Maintenance Record..................... 167 Owner Maintenance Checks........ 169
Fluid Locations............................... 170

Engine Oil....................................... 171
Adding Oil................................... 171

Recommended Oil..................... 171Synthetic Oil............................... 172

Additives..................................... 172
Changing the Oil and Filter...... 173

Cooling System.............................. 175
Adding Engine Coolant............. 175Replacing Engine Coolant........ 177
Windshield Washers..................... 180

Transmission Fluid........................ 180
Automatic
Transmission.......................... 180

5-speed Manual
Transmission.......................... 182

Brake and Clutch Fluid................. 182
Brake System............................. 183
Clutch System............................ 183

Power Steering............................... 184
Air Cleaner Element...................... 185 Hood Latch..................................... 186
Spark Plugs..................................... 187

Replacement............................... 187

Specifications............................. 188

Battery............................................ 189

Wiper Blades.................................. 191
Air Conditioning System............... 193 Drive Belts...................................... 194

Timing Belt..................................... 194

Tires................................................ 195 Inflation....................................... 195
Recommended Tire Pressures
for Normal Driving............ 196
Inspection................................... 197
Maintenance............................... 197
Tire Rotation.............................. 198
Replacing Tires and Wheels .... 199

Wheels and Tires....................... 200
Winter Driving........................... 200
Snow Tires.............................. 200

Tire Chains............................. 201
Lights.............................................. 202 Replacing Bulbs......................... 204

Storing Your Car............................ 212

MaintenanceMain Menu s t

Maintenance Schedule for Normal Conditions (listed by distance/time)
Service at the indicated distance or time, whichever comes first. Do the items in A, B, C as required for each distance/time interval. Follow this
schedule if the severe driving conditions described in the Severe Conditions Schedule on the next page do not apply.
Canadian owners: Follow the schedule for Severe Conditions.
# : See information on maintenance and emissions warranty, lastcolumn, page 161.
* : See Timing Belt on page 194 to determine need for replacement.

Maintenance

* 1 : U.S.: Si model, Canada: SiR model
page 198
page 181Main Menu Table of Contents s t

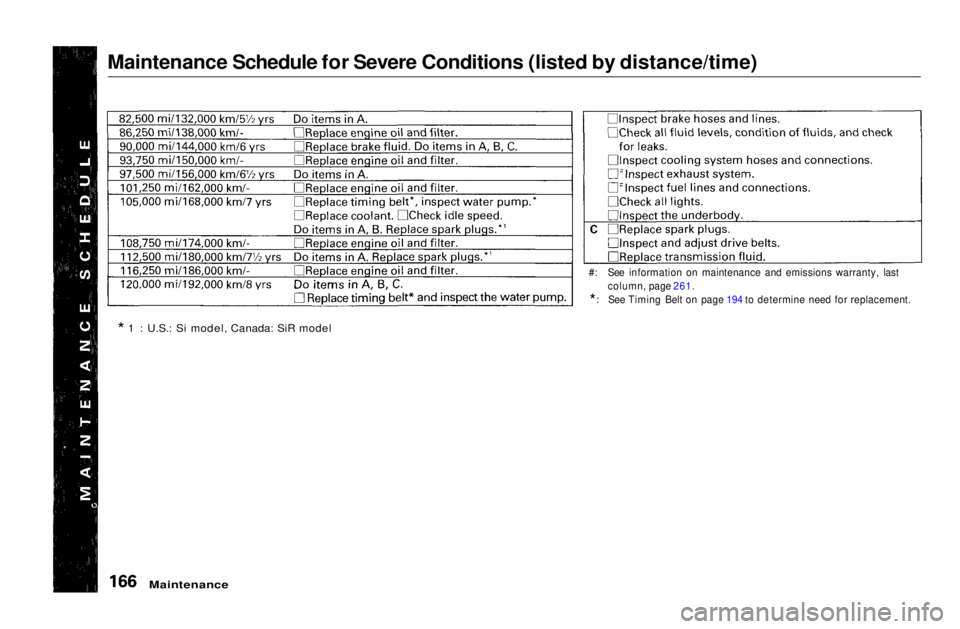

Maintenance Schedule for Severe Conditions (listed by distance/time)

Maintenance

*
1 : U.S.: Si model, Canada: SiR model
#: See information on maintenance and emissions warranty, last
column, page 261.
* : See Timing Belt on page 194 to determine need for replacement.Main Menu Table of Contents s t

Drive Belts, Timing Belt

Check the condition of the two or
three drive belts. Examine the edges
of each belt for cracks or fraying. Check the tension of each belt by
pushing on it with your thumb midway between the pulleys.
The belts should have the following

"play" or deflection.
Alternator belt:

(U.S.: DX, HX, EX, Canada: DX,
EX)

0.31 — 0.41 in (8.0 — 10.5 mm)
(U.S.: Si, Canada: SiR)

0.28 — 0.41 in (7.0 — 10.5 mm)

Power steering belt: (U.S.: DX, HX, EX, Canada: DX, EX)

0.41 — 0.55 in (10.5 — 14.0 mm)
(U.S.: Si, Canada: SiR)

0.30 — 0.43 in (7.5 — 11.0 mm)
On vehicles with Air Conditioning
System

Compressor belt: (U.S.: DX, HX, EX, Canada: DX,
EX)

0.30 — 0.37 in (7.5 — 9.5 mm)
(U.S.: Si, Canada: SiR)

0.24 — 0.37 in (6.0 — 9.5 mm)
If you see signs of wear or looseness,
have your dealer adjust or replace
the belts.

Timing Belt
The timing belt should normally be replaced at the intervals shown in
the maintenance schedule.
Replace this belt at 60,000 miles (U.S.)
or 100,000 km (Canada) if you
regularly drive your car in one or
more of these conditions:
In very high temperatures
(over 110°F,43°C).

In very low temperatures
(under — 20°F, — 29°C).

Maintenance

Drive Belts
POWER STEERING
BELT ALTERNATOR

BELT

COMPRESSOR BELTMain Menu Table of Contents s t
