1999 HONDA CIVIC COUPE flat tire

Compact Spare Tire

Your car has a compact spare tire that takes up less space. Use thisspare tire as a temporary replace-
ment only. Get your regular tire
repaired or replaced and put back on
your car as soon as you can.
Check the inflation pressure of the
compact spare tire every time you
check the other tires. It should be
inflated to: 60 psi (420 kPa , 4.2 kgf/cm2)
Follow these precautions whenever

you are using the compact spare tire:

Do not exceed 50 mph (80 km/h)

under any circumstances.

This tire gives a harsher ride and
less traction on some road sur-

faces than the regular tire. Use

greater caution while driving on

this tire.

Do not mount snow chains on the

compact spare.

The wheel of the folding spare tire is designed especially to fit your
car. Do not use your spare tire on

another car unless it is the same

make and model.
The compact spare tire has a shorter
tread life than a regular tire. Replace
it when you can see the tread wear
indicator bars. The replacementshould be the same size and design
tire, mounted on the same wheel.
The compact spare tire is not designed to be mounted on a regular
wheel, and the compact wheel is not designed for mounting a regular tire.
Taking Care of the Unexpected INDICATOR LOCATION MARK
TREAD WEAR INDICATOR BARMain Menu Table of Contents s t

Changing a Flat Tire
If you have a flat tire while driving, stop in a safe place to change it.
Stopping in traffic or on the shoulder
of a busy road is dangerous. Drive slowly along the shoulder until you
get to an exit or an area to stop that is far away from the traffic lanes.
1. Park the car on firm, level, non-slippery ground away from traffic.
Put the transmission in Park.
Apply the parking brake.
2. Turn on the hazard warning lights and turn the ignition switch to
LOCK (0). Have all the
passengers get out of the car while
you change the tire. 3. Open the trunk. Raise the trunk
floor by lifting up on the back edge.
4. Take the tool kit out of the trunk. 5. Unscrew the wing bolt and take the spare tire out of the trunk.

CONTINUED

Taking Care of the Unexpected

SPARE TIRE
TRUNK FLOOR
JACK
TOOL KIT

The car can easily roll off the

jack, seriously injuring anyone
underneath.

Follow the directions for
changing a tire exactly, and never get under the car when it
is supported only by the jack.Main Menu Table of Contents s t

Changing a Flat Tire

6. Turn the jack's end bracket
counterclockwise to loosen it, then
remove the jack. 7. Loosen the four wheel nuts 1/2
turn with the wheel wrench. 8. Locate the jacking point nearest
the tire you need to change. It ispointed to by an arrow molded into
the underside of the body. Place
the jack under the jacking point.
Turn the end bracket clockwise until the top of the jack contacts
the jacking point. Make sure the
jacking point tab is resting in the
jack notch.

Taking Care of the Unexpected

JACK

WHEEL WRENCH JACKING
POINTMain Menu Table of Contents s t

Changing a Flat Tire

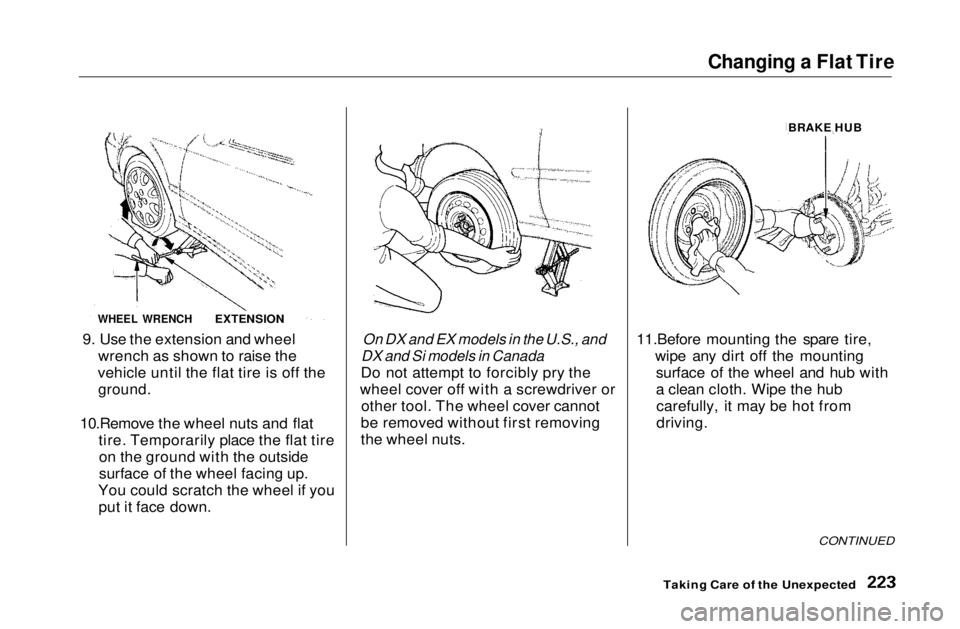

9. Use the extension and wheel wrench as shown to raise the
vehicle until the flat tire is off the
ground.

10.Remove the wheel nuts and flat tire. Temporarily place the flat tireon the ground with the outside
surface of the wheel facing up.
You could scratch the wheel if you put it face down.
On DX and EX models in the U.S., and
DX and Si models in Canada

Do not attempt to forcibly pry the
wheel cover off with a screwdriver or other tool. The wheel cover cannot
be removed without first removing
the wheel nuts. 11.Before mounting the spare tire,
wipe any dirt off the mountingsurface of the wheel and hub with
a clean cloth. Wipe the hubcarefully, it may be hot from
driving.

CONTINUED

Taking Care of the Unexpected
WHEEL WRENCH EXTENSION

BRAKE HU BMain Menu Table of Contents s t

Changing a Flat Tire

12.Put on the spare tire. Put the wheel nuts back on finger-tight,then tighten them in a crisscross
pattern with the wheel wrench
until the wheel is firmly against
the hub. Do not try to tighten
them fully.
13.Lower the car to the ground and
remove the jack.
14.Tighten the wheel nuts securely in
the same crisscross pattern. Have
the wheel nut torque checked at
the nearest automotive service
facility.
Tighten the wheel nuts to: 80 lbf.ft (108 N.m,11 kgf.m)
Taking Care of the UnexpectedMain Menu Table of Contents s t

Changing a Flat Tire

15. Remove the wheel cover or center
cap.

Place the flat tire face down in the

trunk well.
16.Remove the spacer cone from the wing bolt, turn it over, and put it
back on the bolt.
17.Secure the flat tire by screwing the wing bolt back into its hole. 18.Store the jack in the trunk with the
end bracket on the left side. Turn
the jack's end bracket to lock it in
place. Store the tool kit.
19. Store the wheel cover or center cap in the trunk. Make sure it does
not get scratched or damaged.
20. Lower the trunk floor, then close the trunk lid.
Taking Care of the Unexpected
WING BOLT

SPACER
CONE

Loose items can fly around the

interior in a crash and could

seriously injure the occupants.

Store the wheel, jack and tools

securely before driving.Main Menu Table of Contents s t

Emergency Towing

If your vehicle needs to be towed,
call a professional towing service or, if you belong to one, an
organization that provides roadside
assistance. Never tow your vehicle
behind another vehicle with just a rope or chain. It is very dangerous.
There are three popular types of
professional towing equipment.
Flat-bed Equipment — The operator loads your vehicle on the back of a
truck. This is the best way to
transport your Honda.
Wheel-Lift Equipment — The tow
truck uses two pivoting arms that
go under the tires (front or rear) and
lift them off the ground. The other
two tires remain on the ground. This is an acceptable way to tow
your Honda.
Sling-type Equipment — The tow truck uses metal cables with hooks on the ends. These hooks go around
parts of the frame or suspension and
the cables lift that end of the vehicle
off the ground. Your vehicle's suspension and body can beseriously damaged. This method of

towing is unacceptable.

If your Honda cannot be transported

by flat-bed, it should be towed by

wheel-lift equipment with the front

wheels off the ground. If due to
damage, your vehicle must be towed with the front wheels on the ground,
do the following.
5-speed Manual Transmission Release the parking brake.
Shift the transmission to Neutral.
Automatic Transmission Release the parking brake.
Start the engine.
Shift to D4, then to N.
Turn off the engine. Improper towing preparation will
damage the transmission. Followthe above procedure exactly. If youcannot shift the transmission or
start the engine (automatictransmission), your vehicle must be
transported with the front wheels
off the ground.
With the front wheels on the ground, it is best to tow the vehicleno farther than 50 miles (80 km),
and keep the speed below 35 mph
(55 km/h).
If you decide to tow your vehicle
with all four wheels on the ground,
make sure you use a properly-
designed and attached tow bar. Prepare the vehicle for towing as
described above, and leave theignition switch in Accessory (I) so
the steering wheel does not lock.
Make sure the radio and any items
Taking Care of the Unexpected

NOTICEMain Menu Table of Contents s t

Tire Information
Traction

The traction grades, from highest to lowest, are A, B, and C, and they
represent the tire's ability to stop on
wet pavement as measured under controlled conditions on specified
government test surfaces of asphaltand concrete. A tire marked C may
have poor traction performance.
Warning: The traction grade as- signed to this tire is based on brak-
ing (straight ahead) traction tests
and does not include cornering (turning) traction.
Temperature

The temperature grades are A (the highest), B, and C, representing the
tire's resistance to the generation of heat and its ability to dissipate heat
when tested under controlled conditions on a specified indoor
laboratory test wheel. Sustained high
temperature can cause the materialof the tire to degenerate and reduce
tire life, and excessive temperature can lead to sudden tire failure. The
grade C corresponds to a level of
performance which all passenger car
tires must meet under the Federal Motor Vehicle Safety Standard No. 109. Grades B and A represent
higher levels of performance on the
laboratory test wheel than the minimum required by law.
Warning: The temperature grade for

this tire is established for a tire that
is properly inflated and not over-

loaded. Excessive speed, underinfla-

tion, or excessive loading either
separately or in combination, can

cause heat build-up and possible tire

failure.
