Recreational Vehicle Towing
There may be times when you want to tow your vehicle
behind another vehicle for use at your destination.
Be sure to use the proper towing equipment designed
for recreational vehicle towing. Follow the instructions
for the towing equipment.
When towing your vehicle, turn the ignition to OFF.
To prevent your battery from draining while towing,
remove the IGN 0 fuse from the instrument panel fuse
block. Be sure to replace the fuse when you reach your
destination. See ªFuses and Circuit Breakersº in
the Index.
Two-Wheel-Drive Vehicles
Tw o-wheel-drive vehicles, should not be towed
with all four wheels on the ground. Two
-wheel-drive
transmissions have no provisions for internal lubrication
while being towed. To properly tow these vehicles, they
should be placed on a platform trailer with all four
wheels off the ground.
In rare cases when it's unavoidable that a
two
-wheel-drive vehicle is to be towed with all four
wheels on the ground, the propeller shaft to axle yoke
orientation should be marked and the propeller shaft
removed following the applicable service manual
removal/installation procedure.
Dust or dirt can enter the back of the transmission
through the opening created by removing the propeller
shaft if proper protection is not provided. Also, check
the transmission fluid level before driving the truck.

4-45 Four-Wheel-Drive Vehicles
CAUTION:
Shifting the transfer case into NEUTRAL (N) can
cause your vehicle to roll even if the transmission
is in PARK (P), for an automatic transmission.
You or others could be injured. Make sure the
parking brake is firmly set before you shift the
transfer case into NEUTRAL (N).

Firmly set the parking brake.

Shift the transmission to PARK (P).
Securely attach the vehicle being towed to
the tow vehicle.

Shift the transfer case to NEUTRAL (N).
See ªFour
-Wheel Driveº in the Index for
the proper procedure to select the NEUTRAL
position for your vehicle.

Release the parking brake only after the
vehicle being towed is firmly attached to the
towing vehicle.

Turn the ignition to OFF. The OFF position
unlocks the steering column and reduces battery
drain as long as the IGN 0 fuse is removed.
Unlocking the steering column will allow the
proper movement of the front wheels and tires
during towing.

4-48
Your warranty does not cover parts or components that
fail because of overloading.
The label will help you decide how much cargo and
installed equipment your truck can carry.
Using heavier suspension components to get added
durability might not change your weight ratings. Ask
your dealer to help you load your vehicle the right way.
If you put things inside your vehicle
-- like suitcases,
tools, packages, or anything else
-- they go as fast as
the vehicle goes. If you have to stop or turn quickly, or
if there is a crash, they'll keep going.
CAUTION:
Things you put inside your vehicle can strike
and injure people in a sudden stop or turn,
or in a crash.

Put things in the cargo area of your vehicle.
Try to spread the weight evenly.

Never stack heavier things, like suitcases,
inside the vehicle so that some of them are
above the tops of the seats.

Don't leave an unsecured child restraint in
your vehicle.

When you carry something inside the
vehicle, secure it whenever you can.

Don't leave a seat folded down unless you
need to.
There's also important loading information for off-road
driving in this manual. See ªLoading Your Vehicle for
Off
-Road Drivingº in the Index.

4-50
For example, adding a 700 lb. ( 318 kg) snow plow
adds more than 700 lb. ( 318 kg) to the front axle.
Using the formula, if the snow plow is 4 ft. (122 cm)
in front of the front axle and the wheel base is
10 ft. (305 cm), then:
W= 700 lb. ( 318 kg), A= 4 ft. (122 cm) and
W.B.= 10 ft. (305 cm)
(W x (A+W.B.)) / W.B. = (700 x (4ft. + 10 ft.)) /
10 ft. = 980 lbs.
So, if your truck's front axle reserve capacity is more
than 980 lbs. (445 kg), you could add this snow plow
without exceeding the front GAWR.
You can add heavier equipment on the front of the
vehicle if you compensate for it by carrying fewer
passengers, less cargo or by positioning cargo more
towards the rear. This has the effect of reducing the
load on the front. However, the front GAWR, rear
GAWR and the GVWR must never be exceeded.Total Vehicle Reserve Capacity
This is the difference between your GVWR and the
weight of your truck with full fuel and passengers.
It is the amount of weight you can add to your vehicle
before reaching your GVWR.
The reserve capacity numbers are intended as a guide
when selecting the amount of equipment or cargo your
truck can carry. If you are unsure of your truck's front,
rear or total weight, go to a weigh station and weigh
your vehicle. Your dealer can help you with this.
Trailer Recommendations
You must subtract your hitch loads from the CWR
for your vehicle. Weigh your vehicle with the trailer
attached, so that you won't go over the GVWR or
GAWR. If you are using a weight
-distributing hitch,
weigh the vehicle without the equalizer bars in place.
You'll get the best performance if you spread out the
weight of your load the right way, and if you choose the
correct hitch and trailer brakes.
For more information, see ªTrailer Towingº in the Index.

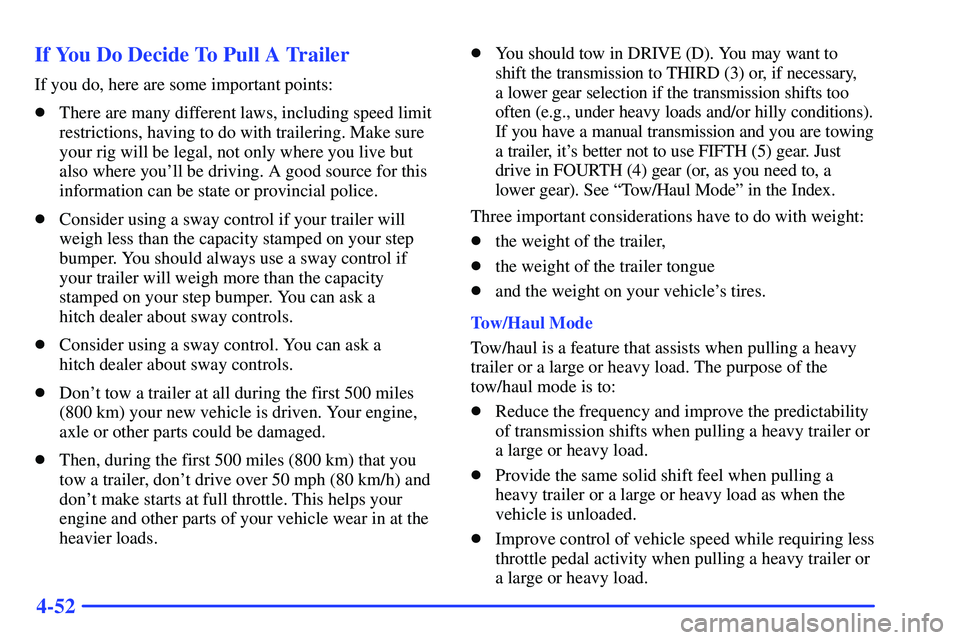

4-52 If You Do Decide To Pull A Trailer
If you do, here are some important points:

There are many different laws, including speed limit
restrictions, having to do with trailering. Make sure
your rig will be legal, not only where you live but
also where you'll be driving. A good source for this
information can be state or provincial police.

Consider using a sway control if your trailer will
weigh less than the capacity stamped on your step
bumper. You should always use a sway control if
your trailer will weigh more than the capacity
stamped on your step bumper. You can ask a
hitch dealer about sway controls.

Consider using a sway control. You can ask a
hitch dealer about sway controls.

Don't tow a trailer at all during the first 500 miles
(800 km) your new vehicle is driven. Your engine,
axle or other parts could be damaged.

Then, during the first 500 miles (800 km) that you
tow a trailer, don't drive over 50 mph (80 km/h) and
don't make starts at full throttle. This helps your
engine and other parts of your vehicle wear in at the
heavier loads.
You should tow in DRIVE (D). You may want to
shift the transmission to THIRD (3) or, if necessary,
a lower gear selection if the transmission shifts too
often (e.g., under heavy loads and/or hilly conditions).
If you have a manual transmission and you are towing
a trailer, it's better not to use FIFTH (5) gear. Just
drive in FOURTH (4) gear (or, as you need to, a
lower gear). See ªTow/Haul Modeº in the Index.
Three important considerations have to do with weight:

the weight of the trailer,

the weight of the trailer tongue

and the weight on your vehicle's tires.
Tow/Haul Mode
Tow/haul is a feature that assists when pulling a heavy
trailer or a large or heavy load. The purpose of the
tow/haul mode is to:

Reduce the frequency and improve the predictability
of transmission shifts when pulling a heavy trailer or
a large or heavy load.

Provide the same solid shift feel when pulling a
heavy trailer or a large or heavy load as when the
vehicle is unloaded.

Improve control of vehicle speed while requiring less
throttle pedal activity when pulling a heavy trailer or
a large or heavy load.

4-53
Your vehicle is equipped with a button at the end of
the shift lever which, when pressed, enables tow/haul.
Your vehicle may be equipped with Autoride which
further improves your vehicle's ride while towing.
See ªAutorideº in the Index for more information.
When the button is pressed, a light on the instrument
panel will illuminate to indicate that tow/haul has been
selected. Tow/haul may be turned off by pressing the
button again, at which time the indicator light on
the instrument panel will turn off. The vehicle will
automatically turn off tow/haul every time it is started.
Tow/haul is designed to be most effective when the vehicle
and trailer combined weight is at least 75% of the vehicle's
Gross Combined Weight Rating (GCWR). Tow/haul is
most useful under the following driving conditions:

When pulling a heavy trailer or a large or heavy load
through rolling terrain.

When pulling a heavy trailer or a large or heavy load
in stop and go traffic.

When pulling a heavy trailer or a large or heavy load
in busy parking lots where improved low speed
control of the vehicle is desired.
Operating the vehicle in tow/haul when lightly loaded
or with no trailer at all will not cause damage. However,
there is no benefit to the selection of tow/haul when the
vehicle is unloaded. Such a selection when unloaded may result in
unpleasant engine and transmission driving
characteristics and reduced fuel economy. Tow/haul is
recommended only when pulling a heavy trailer or a
large or heavy load.
Weight of the Trailer
How heavy can a trailer safely be?
It depends on how you plan to use your rig. For example,
speed, altitude, road grades, outside temperature and
how much your vehicle is used to pull a trailer are all
important. And, it can also depend on any special
equipment that you have on your vehicle.
Use one of the following charts to determine how much
your vehicle can weigh, based upon your vehicle model
and options.
Maximum trailer weight is calculated assuming only the
driver is in the tow vehicle and it has all the required
trailering equipment. The weight of additional optional
equipment, passengers and cargo in the tow vehicle
must be subtracted from the maximum trailer weight.
The engine oil cooler and the heavy
-duty trailering
package is required on C/K
-2500 models with the
VORTEC 6000 engine.

4-56 Weight of the Trailer Tongue
The tongue load (A) of any trailer is an important
weight to measure because it affects the total or gross
weight of your vehicle. The Gross Vehicle Weight
(GVW) includes the curb weight of the vehicle, any
cargo you may carry in it, and the people who will be
riding in the vehicle. And if you will tow a trailer, you
must add the tongue load to the GVW because your
vehicle will be carrying that weight, too. See ªLoading
Your Vehicleº in the Index for more information about
your vehicle's maximum load capacity.
If you're using a weight-carrying or a weight-distributing
hitch, the trailer tongue weight (A) should be 10 percent
to 15 percent of the total loaded trailer weight (B).
Do not exceed the maximum allowable tongue weight
for your vehicle.
After you've loaded your trailer, weigh the trailer and
then the tongue, separately, to see if the weights are
proper. If they aren't, you may be able to get them
right simply by moving some items around in the trailer.
Total Weight on Your Vehicle's Tires
Be sure your vehicle's tires are inflated to the upper
limit for cold tires. You'll find these numbers on the
Certification label at the rear edge of the driver's door or
see ªTire Loadingº in the Index. Then be sure you
don't go over the GVW limit for your vehicle, including
the weight of the trailer tongue.

4-58 Trailer Brakes
If your trailer weighs more than 2,000 lbs. (900 kg)
loaded, then it needs its own brakes
-- and they must be
adequate. Be sure to read and follow the instructions for
the trailer brakes so you'll be able to install, adjust and
maintain them properly.
Your trailer brake system can tap into the vehicle's
hydraulic brake system only if:

The trailer parts can withstand 3,000 psi
(20 650 kPa) of pressure.

The trailer's brake system will use less than
0.02 cubic inches (0.3 cc) of fluid from your
vehicle's master cylinder. Otherwise, both braking
systems won't work well. You could even lose
your brakes.
If everything checks out this far, make the brake tap
at the port on the master cylinder that sends the fluid
to the rear brakes. But don't use copper tubing for this.
If you do, it will bend and finally break off. Use steel
brake tubing.
Driving with a Trailer
CAUTION:
If you have a rear-most window open and you pull
a trailer with your vehicle, carbon monoxide (CO)
could come into your vehicle. You can't see or
smell CO. It can cause unconsciousness or death.
(See ªEngine Exhaustº in the Index.) To maximize
your safety when towing a trailer:

Have your exhaust system inspected for
leaks, and make necessary repairs before
starting on your trip.

Keep the rear
-most windows closed.

If exhaust does come into your vehicle
through a window in the rear or another
opening, drive with your front, main heating
or cooling system on and with the fan on any
speed. This will bring fresh, outside air into
your vehicle. Do not use MAX A/C because it
only recirculates the air inside your vehicle.
(See ªComfort Controlsº in the Index.)
