1999 GMC SUBURBAN index

6-64
Capacities and Specifications
Please refer to ªRecommended Fluids and Lubricantsº in the Index for more information. See refrigerant charge label
under the hood for charge capacity information and requirements.
Engine Type VIN Code Spark Plug Gap
VORTEC 4800 V8 V 0.060 inches (1.52 mm)
VORTEC 5300 V8 T 0.060 inches (1.52 mm)
VORTEC 6000 V8 U 0.060 inches (1.52 mm)
Wheels and Tires
Model Description Torque
C/K 1500 6 bolts (14 mm)
140 lb
-ft (190 N´m)
C/K 2500 8 bolts (14 mm)
140 lb
-ft (190 N´m)
Tire Pressure See the Certification/Tire label on the rear edge of the driver's door,
or the incomplete vehicle document in the cab.

6-65 Cooling System Capacity (Approximate)
After refill, the level must be rechecked. See ªCooling Systemº in the Index.
Engine Transmission Quantity
VORTEC 4800 V8 Automatic with front A/C 14.4 quarts (13.7 L)
VORTEC 4800 V8 Automatic with front and rear A/C 15.8 quarts (15.0 L)
VORTEC 5300 V8 Automatic with front A/C 14.4 quarts (13.7 L)
VORTEC 5300 V8* Automatic with front and rear A/C 15.8 quarts (15.0 L)
VORTEC 6000 V8 Automatic 15.8 quarts (15.0 L)
VORTEC 6000 V8** Automatic with engine oil cooler 15.4 quarts (14.6 L)
* Vehicles equipped with the optional air conditioner.
** Vehicles equipped with the optional engine oil cooler.
Add one liter if equipped with rear heating for all engines.

6-66 Crankcase Capacity (Approximate)
After refill, the level must be rechecked. Add enough engine oil so that the fluid is within the proper operating range.
See ªEngine Oilº in the Index.
Engine VIN
Quantity with Filter

VORTEC 4800 V8 V 6.0 quarts (5.7 L)
VORTEC 5300 V8 T 6.0 quarts (5.7 L)
VORTEC 6000 V8 U 6.0 quarts (5.7 L)

Oil filter should be changed at every oil change.
Fuel Tank Capacity (Approximate)
Type Quantity
4 Door Utility 26.0 U.S. gallons (98.4 L)
Suburban/Yukon XL (1500 Series) 32.5 U.S. gallons (123.0 L)
Suburban/Yukon XL (2500 Series) 38.5 U.S. gallons (147.6 L)

7-3 How This Section is Organized
This maintenance schedule is divided into five parts:
ªPart A: Scheduled Maintenance Servicesº shows
what to have done and how often. Some of these
services can be complex, so unless you are technically
qualified and have the necessary equipment, you should
let your dealer's service department or another qualified
service center do these jobs.
CAUTION:
Performing maintenance work on a vehicle can
be dangerous. In trying to do some jobs, you can
be seriously injured. Do your own maintenance
work only if you have the required know
-how
and the proper tools and equipment for the job.
If you have any doubt, have a qualified
technician do the work.
If you want to get the service information, see ªService
and Owner Publicationsº in the Index.ªPart B: Owner Checks and Servicesº tells you
what should be checked and when. It also explains
what you can easily do to help keep your vehicle in
good condition.
ªPart C: Periodic Maintenance Inspectionsº
explains important inspections that your dealer's
service department or another qualified service center
should perform.
ªPart D: Recommended Fluids and Lubricantsº lists
some recommended products necessary to help keep
your vehicle properly maintained. These products, or
their equivalents, should be used whether you do the
work yourself or have it done.
ªPart E: Maintenance Recordº is a place for you
to record and keep track of the maintenance performed
on your vehicle. Keep your maintenance receipts.
They may be needed to qualify your vehicle for
warranty repairs.

7-4
Part A: Scheduled
Maintenance Services
Using Your Maintenance Schedule
We at General Motors want to help you keep your
vehicle in good working condition. But we don't know
exactly how you'll drive it. You may drive very short
distances only a few times a week. Or you may drive
long distances all the time in very hot, dusty weather.
You may use your vehicle in making deliveries.
Or you may drive it to work, to do errands or in
many other ways.
Because of all the different ways people use their
vehicles, maintenance needs vary. You may need more
frequent checks and replacements. So please read the
following and note how you drive. If you have any
questions on how to keep your vehicle in good
condition, see your dealer.This part tells you the maintenance services you should
have done and when you should schedule them. If you
go to your dealer for your service needs, you'll know
that GM
-trained and supported service people will
perform the work using genuine GM parts.
The proper fluids and lubricants to use are listed in
Part D. Make sure whoever services your vehicle
uses these. All parts should be replaced and all
necessary repairs done before you or anyone else
drives the vehicle.
This schedule is for vehicles that:

carry passengers and cargo within recommended
limits. You will find these limits on your vehicle's
Certification/Tire label. See ªLoading Your Vehicleº
in the Index.

are driven on reasonable road surfaces within legal
driving limits.

are driven off
-road in the recommended manner. See
ªOff
-Road Driving With Your Four-Wheel-Drive
Vehicleº in the Index.

use the recommended fuel. See ªFuelº in the Index.

Scheduled Maintenance
7-6Engine Oil and Chassis Lubrication
Scheduled Maintenance
Change engine oil and filter as indicated by
the GM Oil Life System (or every 12 months,
whichever occurs first). Reset the system. The system
will show you when to change the oil
-- usually between
3,000 miles (5 000 km) and 7,500 miles (12 500 km)
since your last oil change. Under severe conditions, the
indicator may come on before 3,000 miles (5 000 km).
Never drive your vehicle more than 7,500 miles
(12 500 km) or 12 months without an oil and
filter change.The system won't detect dust in the oil. So if you
drive in a dusty area, be sure to change your oil and
filter every 3,000 miles (5 000 km) or sooner if the
CHANGE ENGINE OIL message appears. Remember
to reset the Oil Life System when the oil and filter have
been changed. See ªOil Life Systemº in the Index for
information on resetting.
An Emission Control Service.
Lubricate chassis components with each engine oil and
filter change. Lubricate the front suspension, ball joints,
steering linkage, transmission shift linkage, transfer case
shift linkage, parking brake cable guides, and brake
front axle. Ball joints should not be lubricated unless
their temperature is 10
F (
-12
C) or higher, or they
could be damaged.

Scheduled Maintenance
7-9

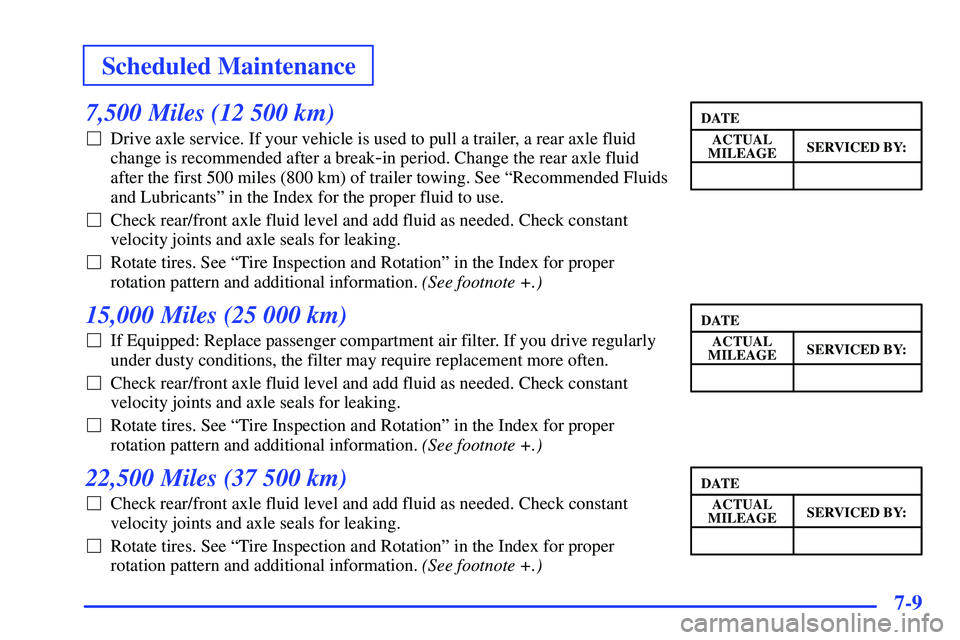

7,500 Miles (12 500 km)

Drive axle service. If your vehicle is used to pull a trailer, a rear axle fluid
change is recommended after a break
-in period. Change the rear axle fluid
after the first 500 miles (800 km) of trailer towing. See ªRecommended Fluids
and Lubricantsº in the Index for the proper fluid to use.

Check rear/front axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking.

Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
15,000 Miles (25 000 km)

If Equipped: Replace passenger compartment air filter. If you drive regularly
under dusty conditions, the filter may require replacement more often.

Check rear/front axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking.

Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
22,500 Miles (37 500 km)

Check rear/front axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking.

Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE

Scheduled Maintenance
7-10
30,000 Miles (50 000 km)

If Equipped: Replace passenger compartment air filter. If you drive regularly
under dusty conditions, the filter may require replacement more often.

Check rear/front axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking.

Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)

Replace fuel filter.
An Emission Control Service. (See footnote
.)
37,500 Miles (62 500 km)
Check rear/front axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking.
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
45,000 Miles (75 000 km)
If Equipped: Replace passenger compartment air filter. If you drive regularly
under dusty conditions, the filter may require replacement more often.
Check rear/front axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking.
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE
