Fig. 7: Cruise Control System Wiring Diagram (Ram Pickup)
Page 406 of 1691
Fig. 8: Cruise Control System Wiring Diagram (Ram Van & Ram Wagon)
Page 838 of 1691
Removal (Dakota, Durango & Ram Pickup)
1) Vacuum reservoir is located in engine compartment, under
cowl plenum cover. Disconnect negative battery cable. With hood open,
unsnap and remove wiper arm pivot cover. Remove wiper arm nut. Mark
wiper arm and pivot for installation reference. Using battery terminal
puller, remove wiper arms.
2) Remove weatherstrip along front edge of cowl plenum cover
and cowl plenum panel. Remove plastic nuts, plastic rivets, and
plastic push-in retainers from cowl plenum cover. Unsnap slotted
center hole from adhesive backed snap fastener. Ensure not to remove
fastener from cowl side panel.
3) Lift cowl plenum cover enough to access windshield washer
nozzle and vacuum plumbing. Disconnect vacuum supply hose from vacuum
reservoir. Remove cowl plenum cover. Remove bolts and vacuum
reservoir.
Installation
To install, reverse removal procedure. Ensure all hoses are
clear and not pinched. Tighten wiper arm nuts to specification. See
TORQUE SPECIFICATIONS .
TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS \
\
\
\
\
\
\
Application Ft. Lbs. (N.m)\
Wiper Arm Nuts (Dakota & Pickup) ........................... 18 (24\
)
Steering Column Toe Plate Nuts (Pickup) .................... 17 (23\
)
INCH Lbs. (N.m)
ACM Mounting Bolts ......................................... 97 (11)\
Instrument Panel
Pivot Bolts ............................................. 106 (12)\
Upper Mounting Screws ................................... 28 (3.2)\
Steering Column
Bracket Nuts ............................................ 106 (12)\
Multifunction Switch Connector Screw ...................... 18 (2)\
Shroud Screws ............................................. 18 (2)\
\
\
\
\
\
\
\
VACUUM DIAGRAMS
Page 842 of 1691

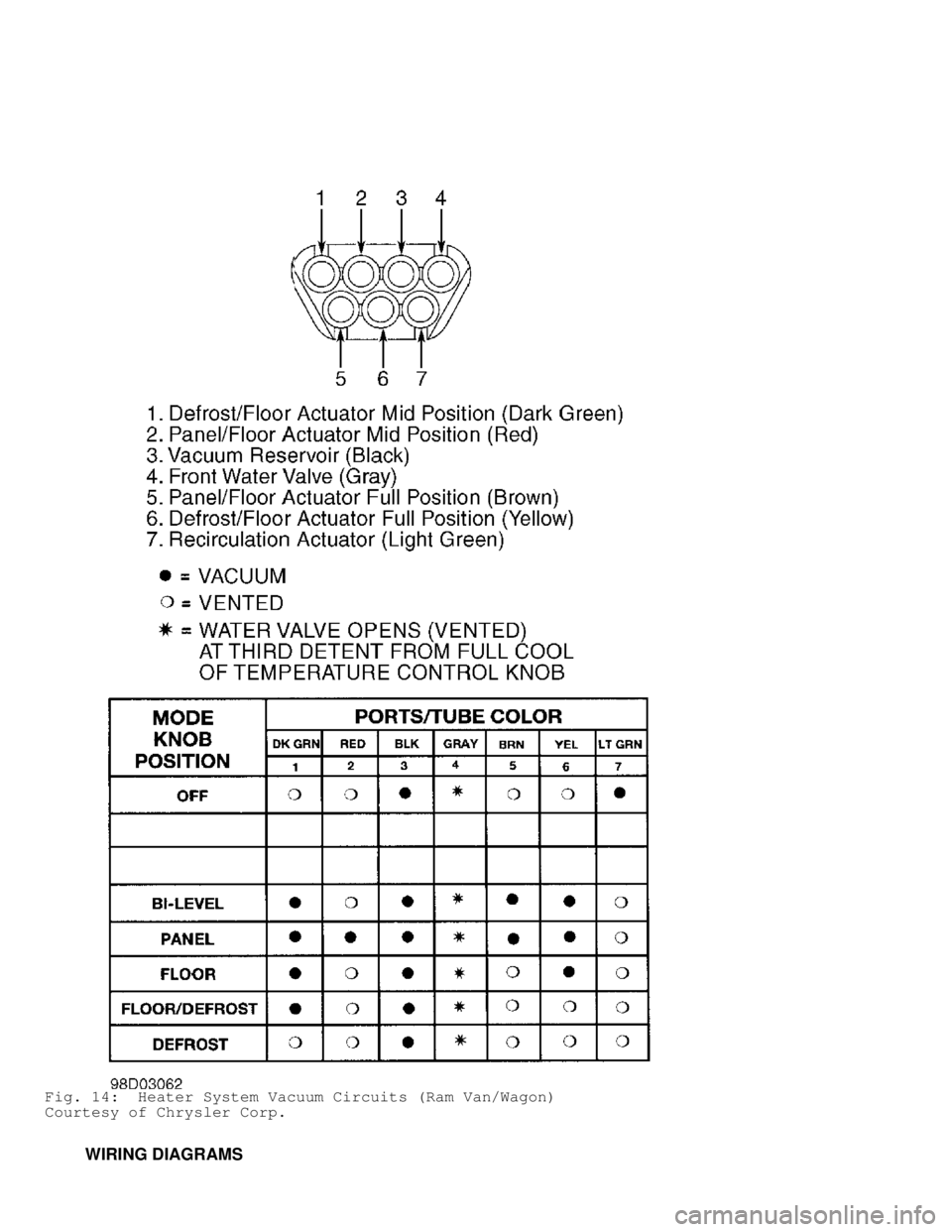

Fig. 14: Heater System Vacuum Circuits (Ram Van/Wagon)
Courtesy of Chrysler Corp.
WIRING DIAGRAMS
Page 843 of 1691

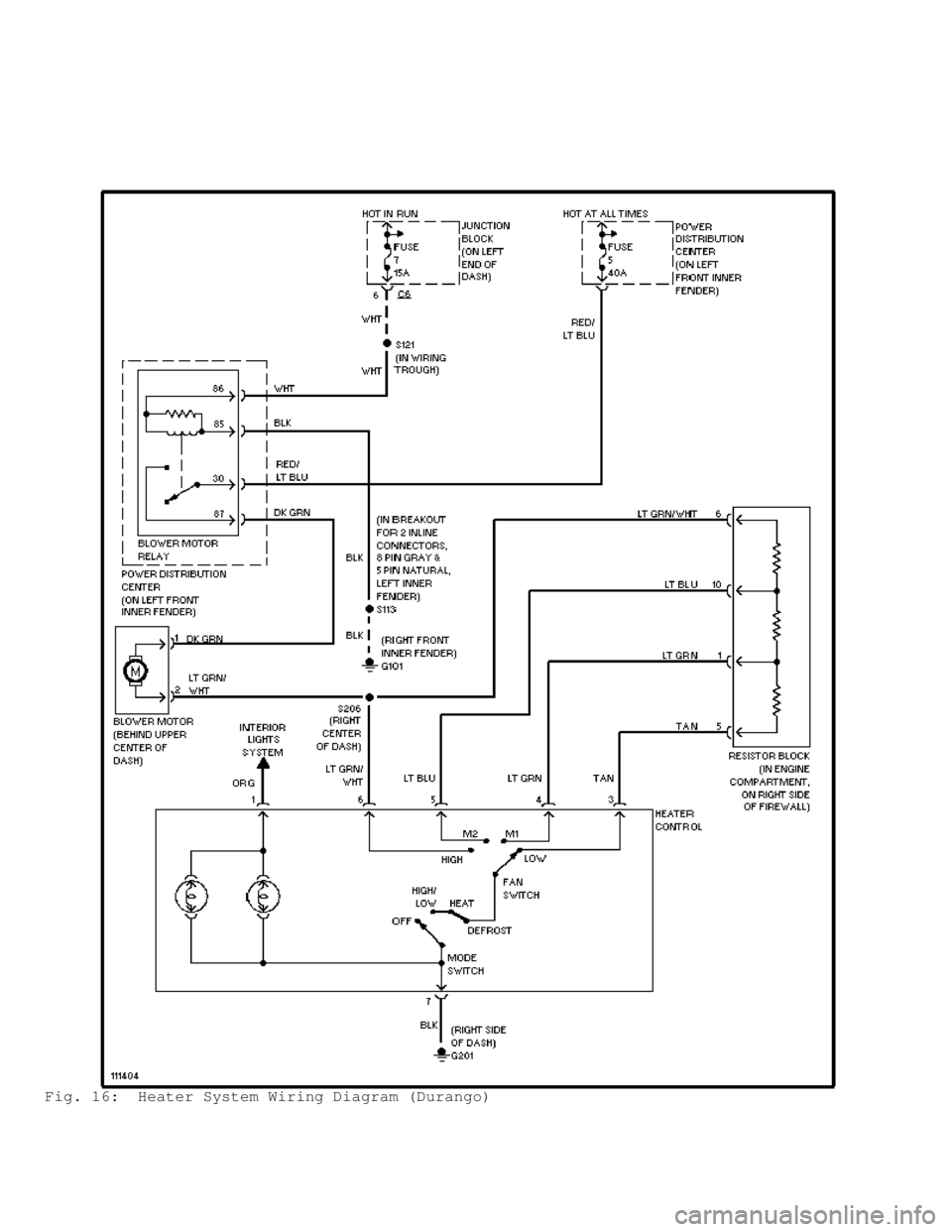

Fig. 15: Heater System Wiring Diagram (Dakota)
Page 844 of 1691

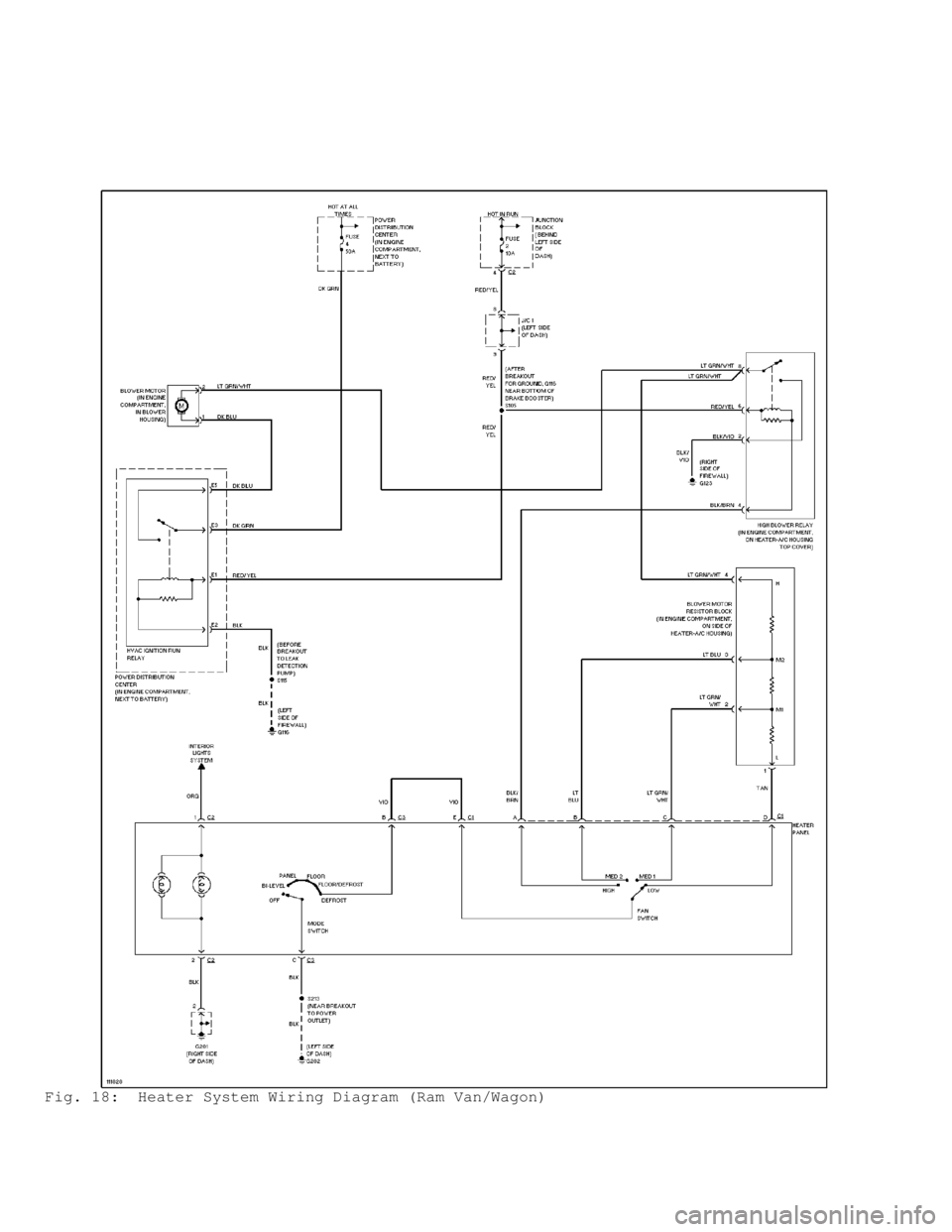

Fig. 16: Heater System Wiring Diagram (Durango)
Page 845 of 1691

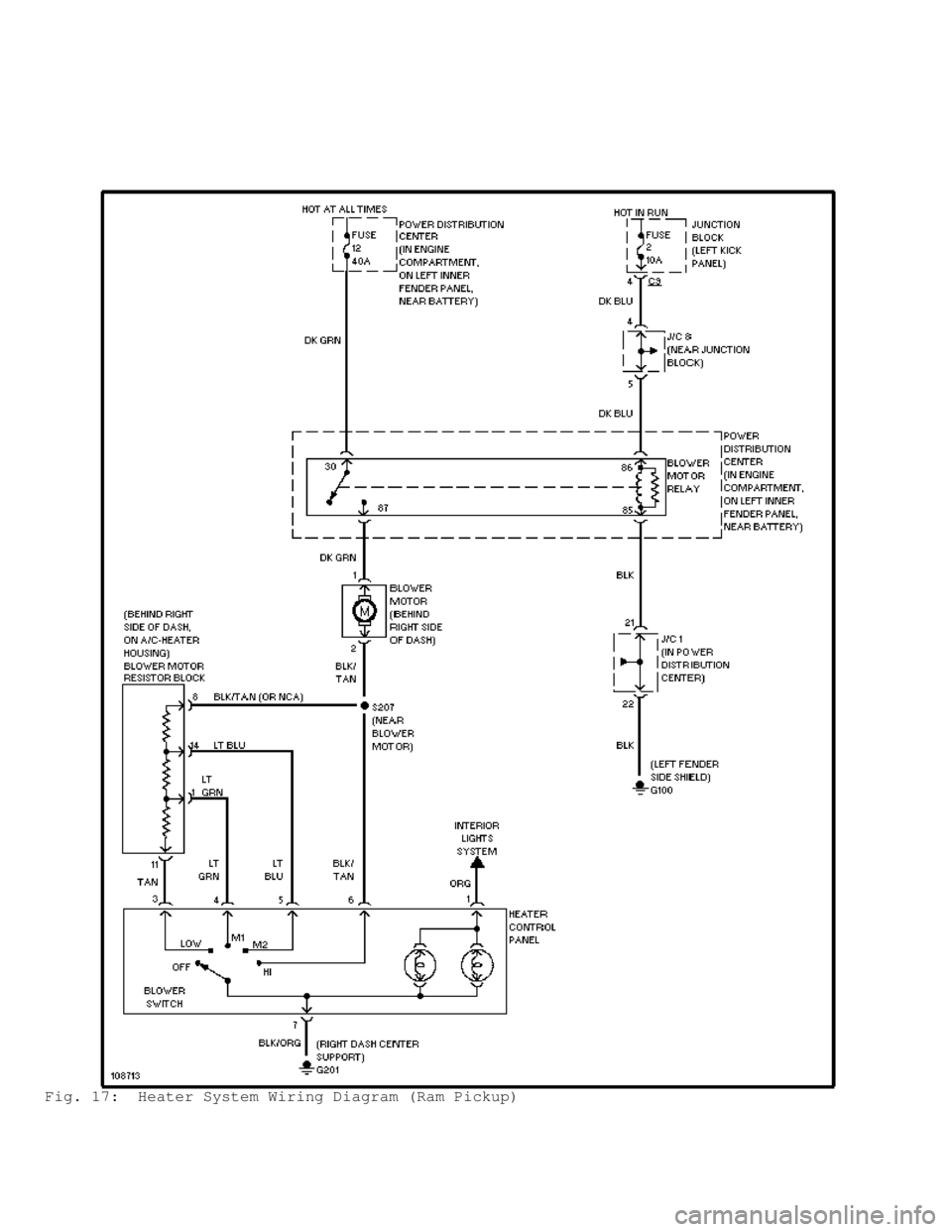

Fig. 17: Heater System Wiring Diagram (Ram Pickup)
Page 846 of 1691

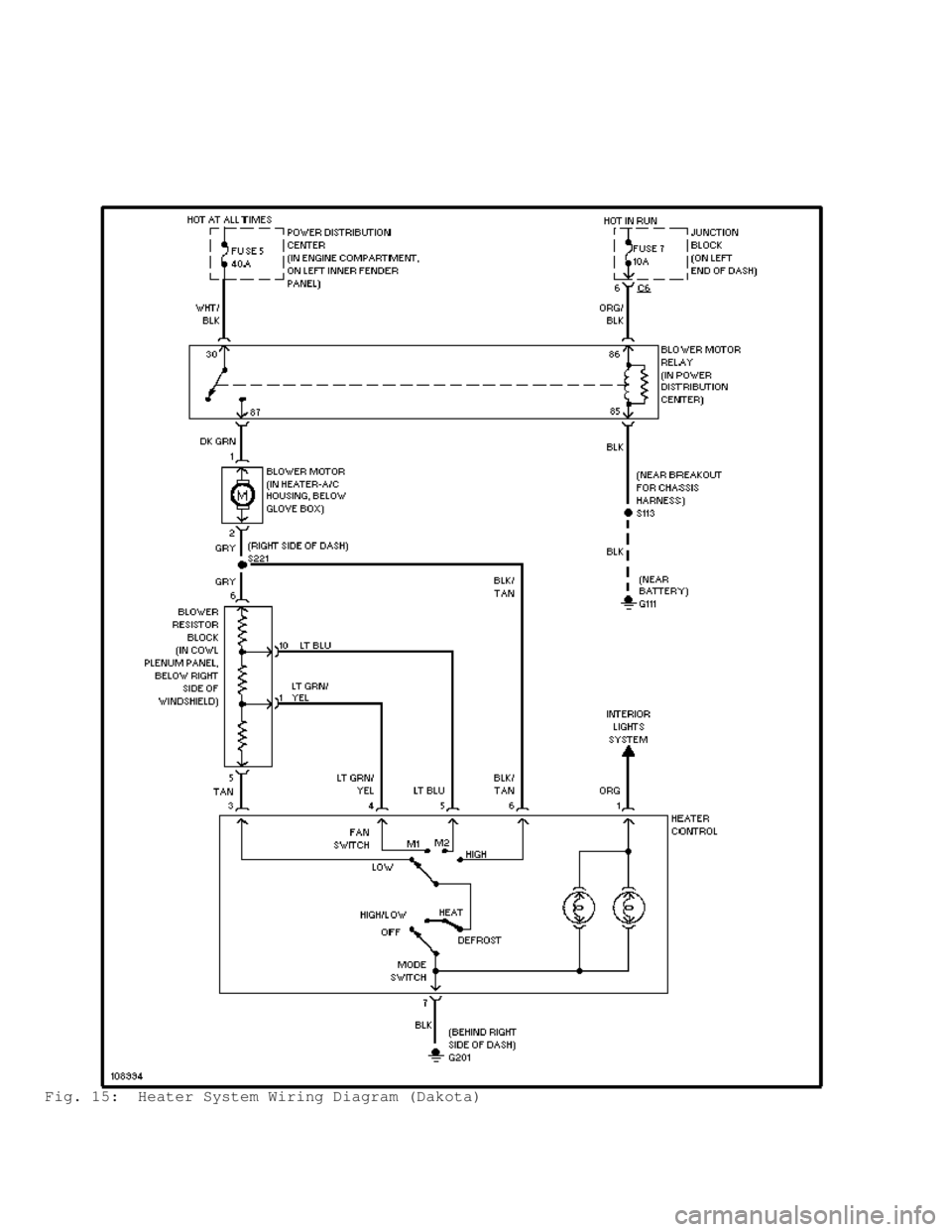

Fig. 18: Heater System Wiring Diagram (Ram Van/Wagon)
