3) Using DRB, read stored codes. If DRB displays stored
codes, perform appropriate diagnostic test. If DRB does not display
any stored codes, system is operating properly at this time.
COMPONENT VERIFICATION TEST
Reconnect all previously disconnected components and
connectors. Turn ignition on (engine off). Fully operate system that
was malfunctioning. If system operates properly, repair is complete.
If system does not operate properly, go to appropriate diagnostic
test.
VEHICLE COMMUNICATIONS
VEHICLE COMMUNICATION PROBLEMS
NOTE: Use this test only when instructed to do so by another
diagnostic test. Due to manufacturer changes in wire
colors, use terminal identification whenever possible.
DRB Blank Screen
If DRB Screen is blank, disconnect DRB from data link
connector. Ensure good ground exists at data link connector terminal
No. 4 (Black/Tan wire). Ensure 12-volts exists at data link connector
terminal No. 16 (Pink wire). If 12-volts does not exist, check for
blown fuse No. 12 located in power distribution center. If no problems
can be found, try a different DRB cable and/or a different DRB.
No Response Condition
If no response condition from Air Bag Control Module (ACM)
exists, go to NO RESPONSE FROM AIR BAG CONTROL MODULE .
NO RESPONSE FROM AIR BAG CONTROL MODULE
NOTE: Perform COMPONENT VERIFICATION TEST under DIAGNOSTIC TESTS
after all repairs. Each time a connector is disconnected,
inspect it to ensure it is in good condition. Always focus on
circuit being tested. Dirt, water and corrosion, are most
common problems in connectors. Due to manufacturer changes in
wire colors, use terminal identification whenever possible.
1) Remove and inspect fuse No. 19. If fuse is blown, go to
OPEN FUSED IGNITION SWITCH OUTPUT (RUN/START) CKT . If not, go to next
step.
2) Using a voltmeter, measure ignition switch output
RUN/START at fuse No. 19. See WIRING DIAGRAMS. If voltage is more than
10 volts, go to next step. If voltage is less than 10 volts, repair
open ignition switch output RUN/START circuit.
3) Turn ignition off and wait 2 minutes. Disconnect ACM
connector. Reinstall fuse No. 19. Turn ignition on (engine off). Using\
a voltmeter, check voltage at ACM connector terminal No. 14 (Light
Green/Yellow wire). If voltage is more than 10 volts, go to next step.
If voltage is less than 10 volts, repair open in Light Green/Yellow
wire.
4) Turn ignition off. Using DRB in ohmmeter mode, check
resistance at ACM connector terminal No. 4 (Black/Pink wire). If
resistance is more than 5 ohms, repair open in Black/Pink wire. If
resistance is less than 5 ohms, go to next step.
5) Turn ignition on (engine off). Using DRB in voltmeter
mode, check voltage at ACM connector terminal No. 21 (Violet/Brown
wire). If voltage is 1.8-2.6 volts, go to next step. If voltage is not
1.8-2.6 volts, repair open in Violet/Brown wire.

WIRING DIAGRAMS

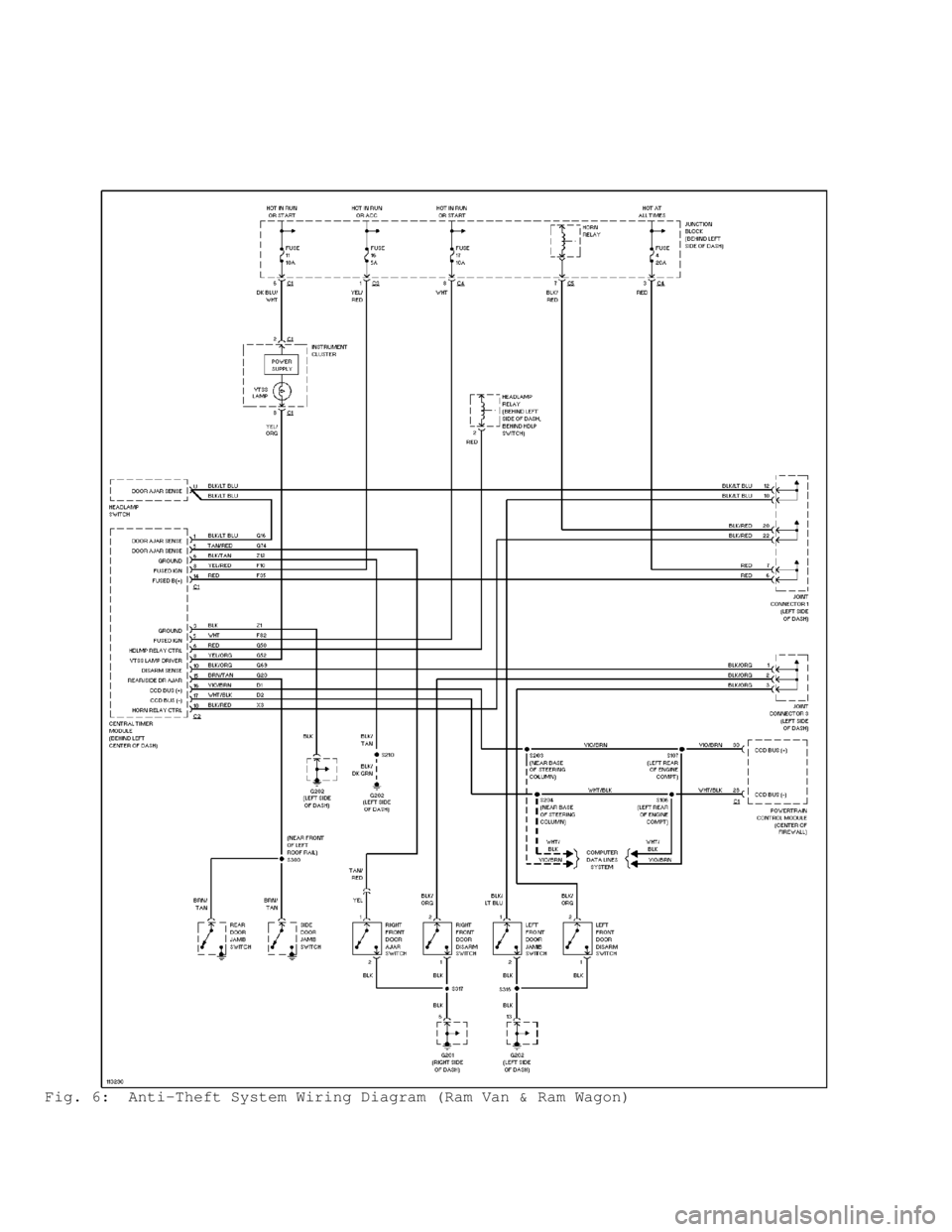

Fig. 20: Air Bag System Wiring Diagram

CTM has remote keyless entry receiver and control logic incorporated.
COMPONENT TESTS
RELAYS
NOTE: Headlight relay may also be referred to as the security
relay. On Ram Pickup, the headlight relay is located in Power
Distribution Center (PDC) in engine compartment. On Ram Van
and Ram Wagon, the headlight relay is taped to headlight
switch harness. On Ram Pickup, the horn relay is located in
Power Distribution Center (PDC) in engine compartment. On Ram\
Van and Ram Wagon, the horn relay is located in junction
block under left side of instrument panel. For circuit
testing, see WIRING DIAGRAMS.
Headlight Relay & Horn Relay
Remove relay to be tested. Measure resistance between
appropriate relay terminals with relay de-energized and energized. See
RELAY TEST SPECIFICATIONS table. See Fig. 1. If continuity or
resistance is not as specified, replace relay.
RELAY TEST SPECIFICATIONS









\









\









\









\









\









\









\







Terminals Condition
De-Energized
87A & 30 .............................................. Continuity
87 & 30 ............................................ No Continuity
85 & 86 .................................... 70-80 Ohms Resistance
Energized ( 1)
87 & 30 ............................................... Continuity
87A & 30 ........................................... No Continuity
( 1) - Apply position battery voltage to terminal No. 85 and ground
terminal No. 86.









\









\









\









\









\









\









\







Fig. 1: Identifying Relay Connector Terminals
Courtesy of Chrysler Corp.
SYSTEM TESTS

door lock cylinder switch pigtail retainers and remove door lock
cylinder switch. To install, reverse removal procedure.
Removal & Installation (Ram Van & Ram Wagon)
Disconnect negative battery cable. Remove inside door panel.
Disconnect door lock cylinder harness connector. Disengage door lock
cylinder switch from back of door lock cylinder. Remove door lock
cylinder switch pigtail retainers and remove door lock cylinder
switch. To install, reverse removal procedure.
Fig. 4: Identifying Door Lock Cylinder Switch (Ram Pickup)
Courtesy of Chrysler Corp.
WIRING DIAGRAMS

Fig. 5: Anti-Theft System Wiring Diagram (Ram Pickup)

Fig. 6: Anti-Theft System Wiring Diagram (Ram Van & Ram Wagon)

Box (DRB) scan tool with appropriate cartridge for system
diagnosis. Other after-market scan tools may be used for
system diagnosis. The following procedure is for DRB scan
tool usage. Use scan tool manufacturer's instruction for
operating scan tool.
NOTE: Ensure battery is fully charged before proceeding with test.
1) Ensure ignition is off. Connect DRB to Data Link Connector
(DLC) located under driver's side of instrument panel. Using scan
tool, display all Diagnostic Trouble Codes (DTCs). Identify DTCs once
retrieved. See DIAGNOSTIC TROUBLE CODES (DTC) & DRB MESSAGES table.
2) If scan tool will not power up, check for loose cable
connections or faulty cable. If cable connections and cable are okay,
check voltage at DLC terminal No. 16. Voltage should be at least 11
volts. If voltage is not as specified, check wiring circuit and
necessary fuses. See WIRING DIAGRAMS.
3) If scan tool displays an error message, RAM TEST FAILURE,
CARTRIDGE ERROR, KEY PAD TEST FAILURE, or LOW OR HIGH BATTERY, this
indicates a scan tool failure.
4) If DTCs are displayed, perform appropriate test(s). See
DIAGNOSTIC TROUBLE CODES (DTC) & DRB MESSAGES table. If no DTCs are
displayed, see TROUBLE SHOOTING in appropriate AUTOMATIC TRANSMISSION
OVERHAUL article.
DIAGNOSTIC TROUBLE CODES (DTC) & DRB MESSAGES









\









\









\









\









\









\









\







DTC DRB-III Scan Tool Message
P0711 .................. TRANS TEMP SENSOR, NO TEMP RISE AFTER START
P0712 ............................. TRANS TEMP SENSOR VOLTAGE TO LOW
P0713 ............................ TRANS TEMP SENSOR VOLTAGE TO HIGH
P0720 ..................... LOW OUTPUT SPEED SENSOR RPM ABOVE 15 MPH
P0740 .................... TORQ CONVERTER CLU, NO RPM DROP AT LOCKUP
P0743 ........ TORQUE CONVERTER CLUTCH SOLENOID/TRANS RELAY CIRCUITS
P0748 ........... GOVERNOR PRESSURE SOL CONTROL/TRANS RELAY CIRCUITS
P0751 ....................... OD SWITCH PRESSED (LO) MORE THAN 5 MIN\
P0753 ................ TRANS 3-4 SHIFT SOLENOID/TRANS RELAY CIRCUITS
P0783 ....................... 3-4 SHIFT SOL, NO RPM DROP @ 3-4 SHIFT
P1740 (1) .......................... TCC OR O/D SOLENOID PERFORMANCE
P1756 .................... GOV PRESS NOT EQUAL TO TARGET @ 15-20 PSI
P1757 ...................... GOV PRES ABOVE 3 PSI IN GEAR WITH 0 MPH
P1762 .................... GOV PRESS SEN OFFSET VOLTS TO LOW OR HIGH
P1763 ....................... GOVERNOR PRESSURE SENSOR VOLTS TO HIGH
P1763B ...................... GOVERNOR PRESSURE SENSOR VOLTS TO HIGH
P1764 ........................ GOVERNOR PRESSURE SENSOR VOLTS TO LOW
P1765 ..................... TRANS 12 VOLT SUPPLY RELAY CNTRL CIRCUIT
P1899 .......................... P/N SWITCH STUCK IN PARK OR ON GEAR
( 1) - BR body only.









\









\









\









\









\









\









\







CLEARING DIAGNOSTIC TROUBLE CODES
After repairs have been performed, clear DTCs from PCM memory
using scan tool, following scan tool manufacturer's instructions.
NOTE: If malfunction is no longer present after DTC is stored in
PCM memory, the PCM will erase DTC after ignition has been
cycled at least 50 times. DTC may be cleared by using scan
tool. Follow scan tool manufacturer's instructions. DTCs may
also be cleared by disconnecting negative battery cable for a
period of time, but other vehicle control modules may also be

affected.
INACTIVE DTC CONDITION
This procedure applies if you have been sent here from a
diagnostic test and/or have just attempted to simulate the condition
that initially set the DTC. The following additional checks may assist
in identifying a possible intermittent problem:
* Visually inspect related wiring harness connectors for
broken, bent, pushed out or corroded terminals.
* Visually inspect related wiring harnesses for chafed, pierced
or partially broken wires.
* Check for Technical Service Bulletins (TSBs) relating to the
problem.
NOTE: For circuit description and wire color information, see
WIRING DIAGRAMS.
CONNECTOR IDENTIFICATION
CONNECTOR IDENTIFICATION DIRECTORY








\









\









\









\









\









\









\







Connector Figure
Data Link Connector (DLC) ............................... See Fig. 2
Overdrive (O/D) Off Switch
AN, BR & DN Bodies .................................... See Fig. 3
WJ Body ............................................... See Fig. 4
Park/Neutral Position (PNP) Switch ...................... See Fig. 5
Powertrain Control Module (PCM) ......................... See Fig. 6
Transmission Control Relay
AB Body ............................................... See Fig. 7
AN, BR, DN & WJ Bodies ................................ See Fig. 8
Transmission Governor Pressure Sensor ................... See Fig. 9
Transmission Output Shaft Speed Sensor
AB, BR & WJ - 4.0L Bodies ............................ See Fig. 10
AN & DN Bodies ....................................... See Fig. 11
Transmission Solenoid .................................. See Fig. 12









\









\









\









\









\









\









\
