1999 CHEVROLET TRACKER fuse box

Second Printing for Chevrolet Tracker Owner's Manual ± 1999
yellowblue
6-11 1.6L Engine
When you open the hood, you'll see the following:
JE±16±0006±X
A. Main Fuse Box
B. Engine Air Cleaner/Filter
C. Battery
D. Engine Oil DipstickE. Radiator Pressure Cap
F. Engine Oil Fill Cap
G. Power Steering Fluid ReservoirH. Brake Fluid Reservoir
I. Engine Coolant Reservoir
J. Windshield Washer Reservoir

Second Printing for Chevrolet Tracker Owner's Manual ± 1999
yellowblue

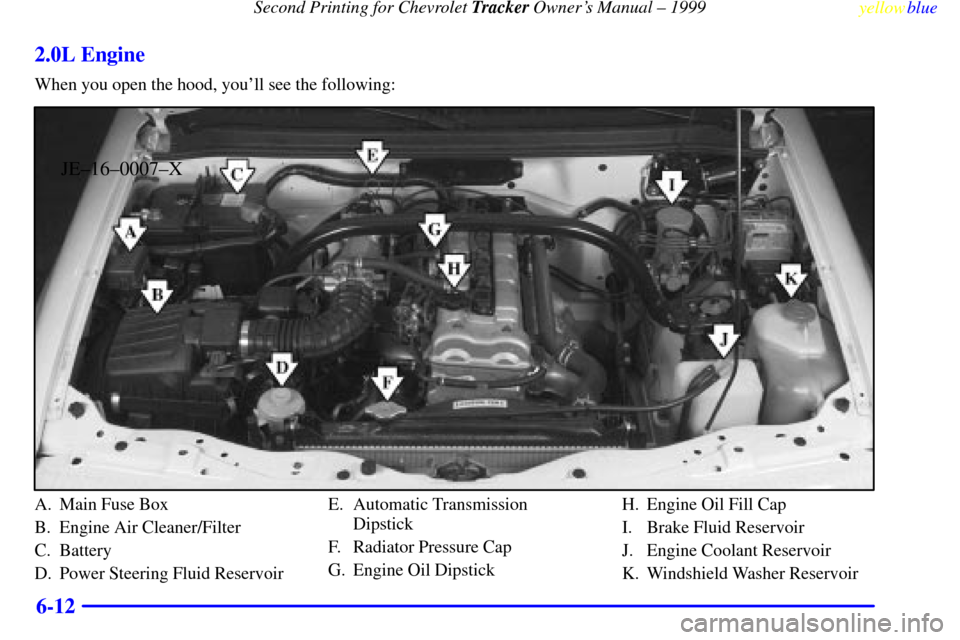

6-12 2.0L Engine
When you open the hood, you'll see the following:
JE±16±0007±X
A. Main Fuse Box
B. Engine Air Cleaner/Filter
C. Battery
D. Power Steering Fluid ReservoirE. Automatic Transmission
Dipstick
F. Radiator Pressure Cap
G. Engine Oil DipstickH. Engine Oil Fill Cap
I. Brake Fluid Reservoir
J. Engine Coolant Reservoir
K. Windshield Washer Reservoir

Second Printing for Chevrolet Tracker Owner's Manual ± 1999
yellowblue
6-61 Instrument Panel Fuse Block
JE±16±0019±X
This fuse box is under the left side of the instrument
panel. The fuses here protect each separate circuit
including headlamps. If you have electrical failure,
check here first.
JE±16±0022±X
Fuse Usage
P/W Power Windows
DOM Dome Light
TAIL License Plate Light, Clearance/Marker
Lights, Instrument Panel Illumination
HAZ Hazard Lights
IG O
2 Sensor Heater, Cruise Control,
Ignition Coil, Meter, G Sensor

Second Printing for Chevrolet Tracker Owner's Manual ± 1999
yellowblue
6-62
Fuse Usage
CIG Cigar Lighter, Radio, Power Mirror
D/L Door Locks
STP Brake Light, Horn, Center High
-Mounted
Stop Lamp
FOG Not Used
DEF Rear Window Defogger, DRL
S/H Not Used
TRN Turn Signal, Back
-Up Light
WIP Windshield Wiper/Washer, Rear Window
Wiper/Washer
Please note, fuses for the air bags are located next to the
instrument panel fuse block.
Engine Compartment Fuse Block
JE±16±0020±X
The main fuse box in your engine compartment protects
all electrical loads.
For access to the main fuses, pull off the cover. A spare
fuse is also inside the fuse box.
