1999 CHEVROLET CAVALIER headlamp

yellowblue
4-29
CAUTION:
Snow can trap exhaust gases under your vehicle.
This can cause deadly CO (carbon monoxide) gas
to get inside. CO could overcome you and kill
you. You can't see it or smell it, so you might not
know it is in your vehicle. Clear away snow from
around the base of your vehicle, especially any
that is blocking your exhaust pipe. And check
around again from time to time to be sure snow
doesn't collect there.
Open a window just a little on the side of the
vehicle that's away from the wind. This will help
keep CO out.
Run your engine only as long as you must. This saves
fuel. When you run the engine, make it go a little faster
than just idle. That is, push the accelerator slightly. This
uses less fuel for the heat that you get and it keeps the
battery charged. You will need a well
-charged battery to
restart the vehicle, and possibly for signaling later on
with your headlamps. Let the heater run for a while.
Then, shut the engine off and close the window almost
all the way to preserve the heat. Start the engine again
and repeat this only when you feel really uncomfortable
from the cold. But do it as little as possible. Preserve the
fuel as long as you can. To help keep warm, you can get
out of the vehicle and do some fairly vigorous exercises
every half hour or so until help comes.
Recreational Vehicle Towing
You can tow your vehicle behind another vehicle for use
at your destination. Be sure to use the proper towing
equipment designed for recreational towing. Follow the
instructions for towing equipment.

yellowblue
6-36 Headlamps

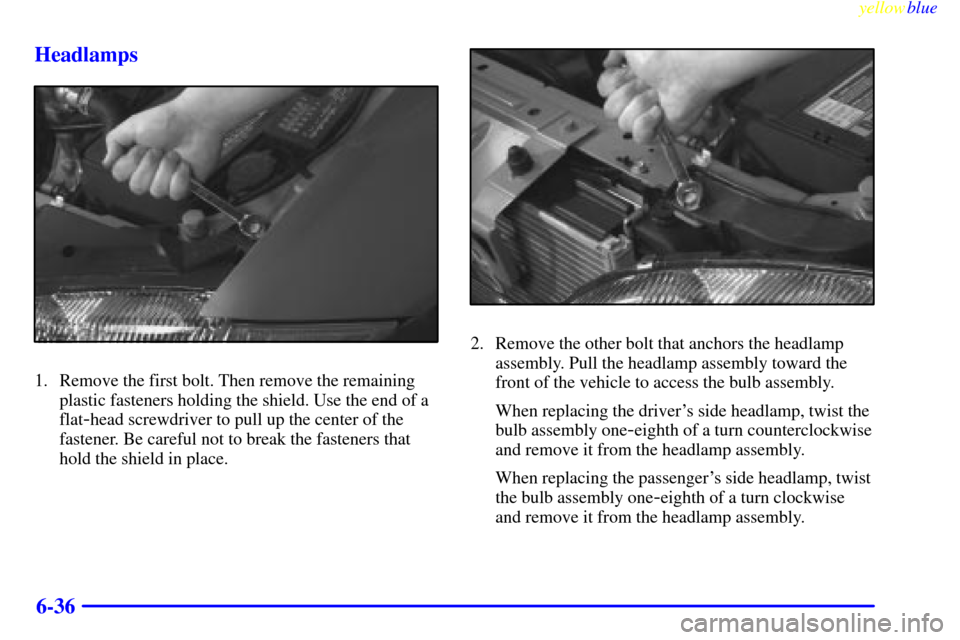

1. Remove the first bolt. Then remove the remaining
plastic fasteners holding the shield. Use the end of a
flat
-head screwdriver to pull up the center of the
fastener. Be careful not to break the fasteners that
hold the shield in place.
2. Remove the other bolt that anchors the headlamp
assembly. Pull the headlamp assembly toward the
front of the vehicle to access the bulb assembly.
When replacing the driver's side headlamp, twist the
bulb assembly one
-eighth of a turn counterclockwise
and remove it from the headlamp assembly.
When replacing the passenger's side headlamp, twist
the bulb assembly one
-eighth of a turn clockwise
and remove it from the headlamp assembly.

yellowblue
6-37
3. Disconnect the bulb base from the socket by lifting
the plastic locking tab.
4. Snap a new bulb into the socket.
5. Replace the bulb assembly by reversing Steps 1
through 3, making sure the lower leg of the
headlamp bracket is properly seated into the
wedge
-shaped retainer.
Center High-Mounted Stoplamp
(Models Without a Spoiler)
To change the bulb, do the following:
1. Open the trunk and view the access hole under the
rear shelf.
2. Remove the bulb sockets by turning and pull down.
3. Remove the bulb and replace.
4. Re
-install the new bulb and socket into the CHMSL.
Center High-Mounted Stoplamp
(Models With a Spoiler)
To change the bulb, do the following:
1. Use a TORX

screwdriver to unscrew the bulb
assembly from the spoiler.
2. Gently pull out the bulb assembly.
3. Remove the bulb(s) by gently wiggling the bulb
from the assembly.
4. Replace the bulb(s) and reverse these steps to replace
the bulb assembly.

yellowblue
6-47
CAUTION:
Using the wrong replacement wheels, wheel bolts
or wheel nuts on your vehicle can be dangerous.
It could affect the braking and handling of your
vehicle, make your tires lose air and make you
lose control. You could have a collision in which
you or others could be injured. Always use the
correct wheel, wheel bolts and wheel nuts for
replacement.
NOTICE:
The wrong wheel can also cause problems with
bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper
height, vehicle ground clearance and tire or tire
chain clearance to the body and chassis.
See ªChanging a Flat Tireº in the Index for
more information.Used Replacement Wheels
CAUTION:
Putting a used wheel on your vehicle is
dangerous. You can't know how it's been used or
how far it's been driven. It could fail suddenly
and cause an accident. If you have to replace a
wheel, use a new GM original equipment wheel.
Tire Chains
NOTICE:
If your vehicle has P195/65R15 or P205/55R16
size tires, don't use tire chains. They can
damage your vehicle because there's not
enough clearance.
NOTICE: (Continued)

yellowblue
6-58 Headlamp Wiring
The headlamp wiring is protected by fuses. Should your
headlamps fail to function, have your headlamp system
checked right away.
Windshield Wiper Fuse
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools. If
the overload is caused by some electrical problem, have
it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is fixed.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses, circuit breakers
and fusible thermal links. This greatly reduces the
chance of damage caused by electrical problems.
Look at the silver
-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical size
and rating.
If you ever have a problem on the road and don't have a
spare fuse, you can ªborrowº one that has the same
amperage. Just pick some feature of your vehicle that
you can get along without
-- like the radio or cigarette
lighter
-- and use its fuse if it is the correct amperage.
Replace it as soon as you can.
There are two fuse blocks in your vehicle: the
instrument panel fuse block and the engine compartment
fuse block.

yellowblue
6-60
Fuse Usage
O
2 HTR Rear O2 Sensor Heater
WIPER Windshield Wipers,
Windshield Washers
ERLS Automatic Transaxle, Brake
Transaxle Shift Interlock (BTSI),
A/C Compressor, Cruise Control,
Multiport Fuel Injection
AIR BAG Supplemental Inflatable Restraint
(SIR) System
PWR ACC Power Door Locks, Convertible
Top (Convertible Model Only)
EXT LAMP Exterior Lamps, Instrument
Panel Lights
HVAC Heater and A/C Control, Engine
Cooling Fan
RADIO Radio, Remote Keyless Entry
ALARM Alarm Module, Interior Lamps,
Warning Chimes
CRUISE Cruise Control
STOP HAZ Exterior Lamps, Anti
-Lock Brake
System, Cruise Control,
Turn SignalsFuse Usage
CIG Cigarette Lighter
INST LPS Instrument Panel Lights,
Warning Chimes
PCM/IGN Powertrain Control Module
L HDLP Left Headlamp, Fog Lamp
(Z
-24 Model Only)
INT LAMP Alarm Module: Illuminated Entry,
Warning Chimes, Overhead
Lamps, Map/Reading Lamps,
Glove Box Lamp, Trunk Lamp,
Radio, Power Mirrors, Remote
Keyless Entry
IGN Engine Ignition
R HDLP Right Headlamp, Fog Lamp
(Z
-24 Model Only)
HORN Horn, Diagnostic Connector
PWR WDO/SRF Power Windows, Power Sunroof,
Convertible Top Controls
(Convertible Model Only)
(Circuit Breaker)
DRL Daytime Running Lamps (Relay)

yellowblue
6-62
Replacement Bulbs
Lamps Bulb Number. . . . . . . . . . . . . . . . . . . . . . . . .
Back
-Up Lamps 3057. . . . . . . . . . . . . . . . . . . . . . . . .
Front Parking/Turn Signal Lamps
Base Model 3357. . . . . . . . . . . . . . . . . . . . . . . . . . .
Z
-24 Model 3357NA. . . . . . . . . . . . . . . . . . . . . . . . .
Center High
-Mount Stoplamp
With Spoiler 912. . . . . . . . . . . . . . . . . . . . . . . . . . .
Without Spoiler 1141. . . . . . . . . . . . . . . . . . . . . . . .
Halogen Headlamps, High/Low Beam 9005/6. . . . . .
Tail/Turn Signal Lamps 3057. . . . . . . . . . . . . . . . . . .
Dome/Reading Lamps (If Equipped)
Base Model 912. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Up
-Level Model 168 & 906. . . . . . . . . . . . . . . . . . .
Capacities and Specifications
The following approximate capacities are given in
English and metric conversions. Please refer to
ªRecommended Fluids and Lubricantsº in the Index for
more information.Engine Crankcase4.0 quarts (3.8 L) . . . . . . . . . . . .
Automatic Transaxle (3
-Speed)
Pan Removal and Replacement 4.0 quarts (3.8 L). . .
After Complete Overhaul 6.9 quarts (6.5 L). . . . . . . .
When draining or replacing torque converter, more fluid
may be needed.
Automatic Transaxle
(4
-Speed)Not Owner Serviceable . . . . . . . . . . . . . .
Manual Transaxle
Complete Drain and Refill 2.0 quarts (1.9 L). . . . . . .
Cooling System
2.2L 10.3 quarts (9.7 L). . . . . . . . . . . . . . . . . . . . . . .
2.4L 10.7 quarts (10.1 L). . . . . . . . . . . . . . . . . . . . . .
Refrigerant (R
-134a),
Air ConditioningSee refrigerant . . . . . . . . . . . . . . .
charge label under hood.
Fuel Tank15.0 gallons (56.8 L) . . . . . . . . . . . . . . . . .
Tire Pressures, SizesSee Tire
-Loading . . . . . . . . . . .
Information label on driver's door.
Wheel Nut Torque100 lb
-ft (140 N´m) . . . . . . . . . .
NOTE: All capacities are approximate. When adding, be
sure to fill to the appropriate level, as recommended in
this manual.

yellowblue
9-2
Brake
Adjustment 6-34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fluid 6-31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Master Cylinder 6-31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking 2-28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pedal Travel 6-34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing System Parts 6-34 . . . . . . . . . . . . . . . . . . . . . . . .
System Warning Light 2-67 . . . . . . . . . . . . . . . . . . . . . . . . .
Trailer 4-38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transaxle Shift Interlock Check 7-33 . . . . . . . . . . . . . . . . . .
Wear 6-33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brakes, Anti-Lock 4-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Braking 4-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Braking in Emergencies 4-10 . . . . . . . . . . . . . . . . . . . . . . . . . .
Break-In, New Vehicle 2-13 . . . . . . . . . . . . . . . . . . . . . . . . . .
BTSI Check 7-33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bulb Replacement 6-35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back-Up Lamps 6-39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Center High-Mounted Stoplamp 6-37 . . . . . . . . . . . . . . . . .
Dome Lamp 6-39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlamps 6-36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Turn Signal 6-38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Taillamp 6-38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bypass Switch, Convertible Top 2-57 . . . . . . . . . . . . . . . . . . .
Canadian Roadside Assistance 8-7 . . . . . . . . . . . . . . . . . . . .
Capacities and Specifications 6-62 . . . . . . . . . . . . . . . . . . . . . .
Carbon Monoxide 2-10, 2-32, 2-33, 4-29, 4-37 . . . . . . . . . .
Cassette Deck Service 7-30 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cassette Tape Player 3-9, 3-11 . . . . . . . . . . . . . . . . . . . . . . . .
Care 3-23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CD Adapter Kit 3
-11, 3-15 . . . . . . . . . . . . . . . . . . . . . . . . . . .
CD Care 3-24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CD Player 3-16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft-Deterrent Feature 3-19 . . . . . . . . . . . . . . . . . . . . . . . .
Center Console Storage Area 2-47 . . . . . . . . . . . . . . . . . . . . . .
Center High-Mounted Stoplamp Bulb Replacement 6-37 . . . .
Center Passenger Position 1-36 . . . . . . . . . . . . . . . . . . . . . . . .
Certification Label 4-32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chains, Safety 4-38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chains, Tire 6-47 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing a Flat Tire 5-19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Check Engine Light 2-70 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Check Gages Light 2-75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking Your Restraint Systems 1-55 . . . . . . . . . . . . . . . . . .
Chemical Paint Spotting 6-55 . . . . . . . . . . . . . . . . . . . . . . . . . .
Child Restraints 1-40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Securing in a Rear Outside Seat Position 1-46 . . . . . . . . . . .
Securing in the Center Rear Seat Position 1-48 . . . . . . . . . .
Securing in the Right Front Seat Position 1-50 . . . . . . . . . .
Top Strap 1-45 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Where to Put 1-44 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette Lighter 2-47 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Breakers and Fuses 6-58 . . . . . . . . . . . . . . . . . . . . . . .
Cleaner, Air 6-17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning
Aluminum Wheels 6
-54 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Convertible Top 6-53 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exterior Lamps/Lenses 6-52 . . . . . . . . . . . . . . . . . . . . . . . .
Fabric/Carpet 6-49 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glass 6-51 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inside of Your Vehicle 6-49 . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument Panel 6-50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
