1999 CHEVROLET CAMARO clock

yellowblue
6-39 Headlamps
Before replacing a headlamp bulb that does not light,
check to make sure that the wiring connector is securely
fastened to it.
See ªReplacement Bulbsº in the Index to check the type
of headlamp bulb you need to use before you begin to
replace the headlamp bulb. You must replace a
headlamp bulb with one that is exactly the same.
1. Open the hood.
2. Locate the headlamp bulb that needs to be replaced.
3. Press and turn the base one-quarter turn
counterclockwise. (See arrows).
4. Remove the socket with the burned lamp.
5. Replace the bulb and insert the socket into
the headlamp.
Front Parking and Turn Signal
1. Using a screwdriver, remove the plastic screws from
the access panel under the vehicle. Move the access
panel out of the way.
2. Turn the bulb and socket counterclockwise.
3. Pull out the bulb.
4. Reverse the steps with a new bulb.

yellowblue
6-40 Center High-Mounted Stoplamp
1. Remove the two screws in the stoplamp lens.
2. Gently pull the assembly out, turn the bulb
counterclockwise and remove the bulb from the back
of the assembly.
3. Reverse the steps with a new bulb.
Rear Lamps
To change any rear bulb, you have to remove the
entire housing.
1. Remove the trim panel from the side that you are
replacing the bulb.
2. Pull the carpet back.
3. Remove the wing nuts.

yellowblue
6-41
4. Pull the assembly off from the outside.
5. To remove a socket with a tab, press the tab and turn
the socket counterclockwise. To remove a socket
without a tab, turn the socket counterclockwise.
6. Pull the bulb from the socket.
7. Reverse the steps with a new bulb.
Rear Sidemarker
Replacing a rear sidemarker bulb:
1. Remove the screw from the sidemarker assembly.
2. To pull out the bulb housing, tilt the housing to
remove the tabbed end.

yellowblue
6-42
3. Turn the bulb and socket counterclockwise and
gently pull out.
4. Reverse the steps with a new bulb.

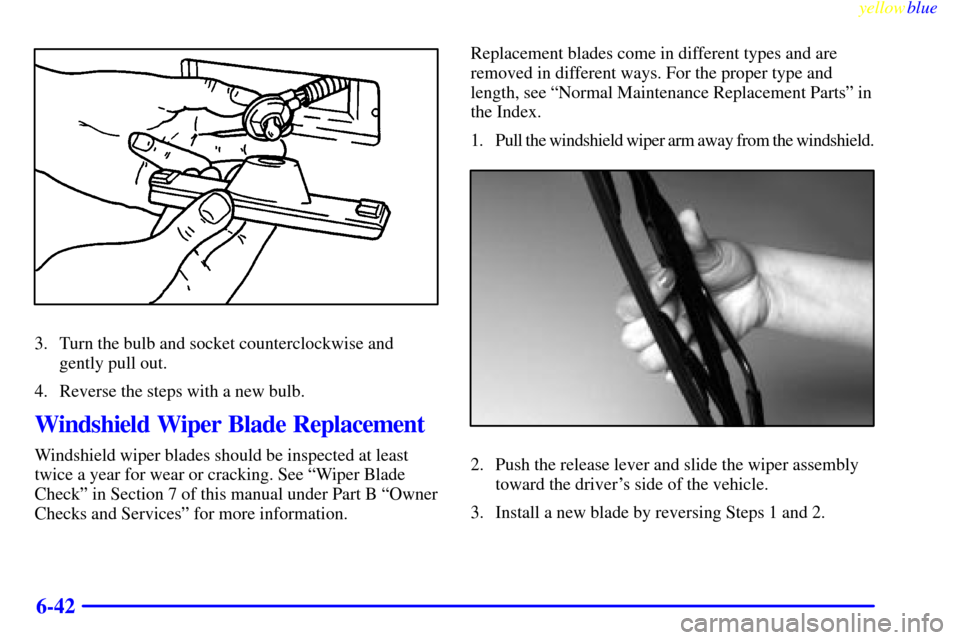

Windshield Wiper Blade Replacement
Windshield wiper blades should be inspected at least
twice a year for wear or cracking. See ªWiper Blade
Checkº in Section 7 of this manual under Part B ªOwner
Checks and Servicesº for more information.Replacement blades come in different types and are
removed in different ways. For the proper type and
length, see ªNormal Maintenance Replacement Partsº in
the Index.
1. Pull the windshield wiper arm away from the windshield.2. Push the release lever and slide the wiper assembly
toward the driver's side of the vehicle.
3. Install a new blade by reversing Steps 1 and 2.

Second Printing for Chevrolet Camaro Owner's Manual ± 1999
yellowblue
9-3
Chemical Paint Spotting 6-60 . . . . . . . . . . . . . . . . . . . . . . . . . .
Child Restraints 1-33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Securing in a Rear Seat Position 1-40 . . . . . . . . . . . . . . . . .
Securing in the Right Front Seat Position 1-42 . . . . . . . . . .
Where to Put 1-37 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chrome-Plated Wheels, Cleaning 6-59 . . . . . . . . . . . . . . . . . .
Cigarette Lighter 2-56 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Breakers and Fuses 6-63 . . . . . . . . . . . . . . . . . . . . . . .
Cleaner, Air 6-18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning
Aluminum Wheels 6
-59 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chrome-Plated Wheels 6-59 . . . . . . . . . . . . . . . . . . . . . . . .
Convertible Top 6-58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exterior Lamps/Lenses 6-57 . . . . . . . . . . . . . . . . . . . . . . . .
Fabric/Carpet 6-53 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glass Surfaces 6-56 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inside of Your Vehicle 6-53 . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument Panel 6-55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior Plastic Components 6-55 . . . . . . . . . . . . . . . . . . . . .
Leather 6-55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside of Your Vehicle 6-57 . . . . . . . . . . . . . . . . . . . . . . . .
Removable Roof Panel 6-57 . . . . . . . . . . . . . . . . . . . . . . . . .
Special Problems 6-54 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stains 6-54 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tires 6-59 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vinyl 6-55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wheels 6-59 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield and Wiper Blades 6-56 . . . . . . . . . . . . . . . . . . .
Clock, Setting the 3-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Comfort Controls 3-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Compact Disc Care 3-27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Compact Disc Player 3
-14 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Care 3-27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Errors 3-17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk-Mounted CD Changer 3-18 . . . . . . . . . . . . . . . . . . . .
Compact Spare Tire 5-34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Content Theft-Deterrent/Alarm System 2-13 . . . . . . . . . . . . .
Control
Loss Of 4
-15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle 4-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Convertible Top 2-65 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning 6-58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Boot Cover 2-67 . . . . . . . . . . . . . . . . . . . . . . .
Lowering 2-65 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Raising 2-70 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removing the Boot Cover 2-68 . . . . . . . . . . . . . . . . . . . . . .
Convex Outside Mirror 2-54 . . . . . . . . . . . . . . . . . . . . . . . . . .
Coolant 6-28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding 6-30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking 6-30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Heater, Engine 2-28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recovery Tank 5-13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Temperature Gage 2-81 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
What to Use 6-29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cooling System 5-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Courtesy Lamps 2-52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Courtesy Transportation 8-8 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise Control 2-47 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Customer Assistance for Text Telephone Users 8-4 . . . . . . . . .
Customer Assistance Information 8-1 . . . . . . . . . . . . . . . . . . .
Customer Satisfaction Procedure 8-2 . . . . . . . . . . . . . . . . . . . .
