1999 CADILLAC CATERA charging

yellowblue
vii
For example,
these symbols
are used on an
original battery:
CAUTION
POSSIBLE
INJURY
PROTECT
EYES BY
SHIELDING
CAUSTIC
BATTERY
ACID COULD
CAUSE
BURNS
AVOID
SPARKS OR
FLAMES
SPARK OR
FLAME
COULD
EXPLODE
BATTERY
These symbols
are important
for you and
your passengers
whenever your
vehicle is
driven:
DOOR LOCK
UNLOCK
FASTEN
SEAT
BELTS
POWER
WINDOW
AIR BAG
These symbols
have to do with
your lamps:
MASTER
LIGHTING
SWITCH
TURN
SIGNALS
PARKING
LAMPS
HAZARD
WARNING
FLASHER
DAYTIME
RUNNING
LAMPS
FOG LAMPS
These symbols
are on some of
your controls:
WINDSHIELD
WIPER
WINDSHIELD
WASHER
WINDSHIELD
DEFROSTER
REAR
WINDOW
DEFOGGER
VENTILATING
FAN
These symbols
are used on
warning and
indicator lights:
ENGINE
COOLANT
TEMP
BATTERY
CHARGING
SYSTEM
BRAKE
COOLANT
ENGINE OIL
PRESSURE
ANTI-LOCK
BRAKES
Here are some
other symbols
you may see:
FUSE
LIGHTER
HORN
SPEAKER
FUEL
Vehicle Symbols
These are some of the symbols you may find on your vehicle.

yellowblue
2-56

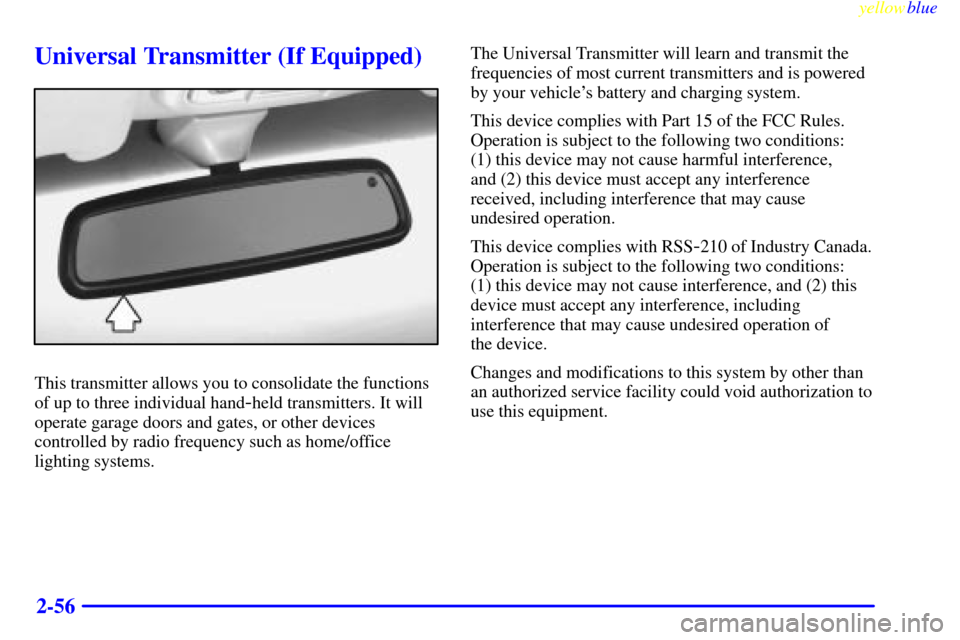

Universal Transmitter (If Equipped)
This transmitter allows you to consolidate the functions
of up to three individual hand
-held transmitters. It will
operate garage doors and gates, or other devices
controlled by radio frequency such as home/office
lighting systems.The Universal Transmitter will learn and transmit the
frequencies of most current transmitters and is powered
by your vehicle's battery and charging system.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired operation of
the device.
Changes and modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.

yellowblue
2-65
This light will come on
when you start your engine,
and it will flash for a few
seconds. Then the light
should go out. This means
the system is ready.
If the air bag readiness light stays on after you start the
engine or comes on when you are driving, your air bag
system may not work properly. Have your vehicle
serviced right away.
The air bag readiness light should flash for a few
seconds when you turn the ignition key to ON. If the
light doesn't come on then, have it fixed so it will be
ready to warn you if there is a problem.Charging System Indicator Light
When you turn the key to
START, this light will come
on briefly to show that the
generator and battery
charging systems
are working.
If this light stays on, you need service and you should
take your vehicle to the dealer at once. To save the
battery until you get there, turn off all accessories.
Voltmeter
You can read battery
voltage on the voltmeter. If
it reads less than 12 volts or
more than 16 volts while the
engine is running, and it
stays there, you may have a
problem with the electrical
charging system.

yellowblue
2-66
Have it checked right away. Driving with the voltmeter
reading in the lower warning zone could drain or
damage the battery. Driving with the voltmeter reading
in the upper warning zone could cause bulbs to burn out
(especially headlamp bulbs), various vehicle modules to
shut down (due to overload protection) and the
possibility of a battery acid leak.
If you idle the engine for a while, the voltmeter reading
might move into the red zone. If the reading stays in the
red zone while you are driving, you may have a problem
with the electrical charging system. Have it checked.
While the voltmeter reads in the red zone, the battery
may not be able to power certain electrical accessories,
like ABS. (If this happens, the ABS light will come on.
See ªAnti
-Lock Brakes System Warning Lightº in
this section.)
If you must drive a short distance with the voltmeter
reading in a warning zone, turn off all the accessories,
including the comfort controls and the audio system.
Brake System Warning Light
Your vehicle's hydraulic brake system is divided into
two parts. If one part isn't working, the other part can
still work and stop you. For good braking, though, you
need both parts working well.
If the warning light comes on, there is a brake problem.
Have your brake system inspected right away.
United States Canada
This light should come on briefly when you turn the
ignition key to ON. If it doesn't come on then, have it
fixed so it will be ready to warn you if there's
a problem.
If the light comes on while you are driving, pull off the
road and stop carefully. You may notice that the pedal is
harder to push. Or, the pedal may go closer to the floor.
It may take longer to stop. If the light is still on, have the
vehicle towed for service. (See ªTowing Your Vehicleº
in the Index.)

yellowblue
8-2
Brake
Adjustment 6-28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fluid 6-26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Master Cylinder 6-26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pad Wear Indicator Light 2-76 . . . . . . . . . . . . . . . . . . . . . . .
Parking 2-25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pedal Travel 6-28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing System Parts 6-29 . . . . . . . . . . . . . . . . . . . . . . . .
System Warning Light 2-66 . . . . . . . . . . . . . . . . . . . . . . . . .
To Shift Light 2-73 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transmission Shift Interlock (BTSI) 2-28 . . . . . . . . . . . . . .
Wear 6-27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brakes 6-26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Anti-Lock 4-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trailer 4-34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Braking 4-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Braking in Emergencies 4-10 . . . . . . . . . . . . . . . . . . . . . . . . . .
Break-In, New Vehicle 2-16 . . . . . . . . . . . . . . . . . . . . . . . . . .
Brightness Control 2-46 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bulb Replacement 6-30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Capacities and Specifications 6-62 . . . . . . . . . . . . . . . . . . . .
Carbon Monoxide 2-11, 2-30, 2-31, 4-28 . . . . . . . . . . . . . . .
Care of Your Cassette Tape Player 3-29 . . . . . . . . . . . . . . . . . .
Care of Your Compact Disc Player 3-31 . . . . . . . . . . . . . . . . .
Care of Your Compact Discs 3-30 . . . . . . . . . . . . . . . . . . . . . .
Carpet Cleaning 6-46 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cassette Tape Player Errors 3-11, 3-19 . . . . . . . . . . . . . . . . . .
CD Adapter Kits 3-23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CD Changer 3-23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cellular Telephone 2
-52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Center Console Storage Area 2-50 . . . . . . . . . . . . . . . . . . . . . .
Center High-Mounted Stoplamp (CHMSL),
Bulb Replacement 6-34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Central Door Unlocking System 2-4 . . . . . . . . . . . . . . . . . . . .
Certification Label 4-29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chains, Safety 4-34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chains, Tire 6-45 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing a Flat Tire 5-18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Charging System Indicator Light 2-65 . . . . . . . . . . . . . . . . . . .
Check Engine Light 2-70 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Check Oil Light 2-73 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking Things Under the Hood 6-8 . . . . . . . . . . . . . . . . . . .
Checking Your Restraint Systems 1-52 . . . . . . . . . . . . . . . . . .
Chemical Paint Spotting 6-52 . . . . . . . . . . . . . . . . . . . . . . . . . .
Child Restraints 1-39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Securing in a Rear Seat Position 1-44 . . . . . . . . . . . . . . . . .
Securing in the Right Front Seat Position 1-46 . . . . . . . . . .
Top Strap 1-44 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Where to Put 1-43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Children (Safety Belts) 1-36 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chrome-Plated Wheels, Cleaning 6-51 . . . . . . . . . . . . . . . . . .
Cigarette Lighter 2-50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaner, Air 6-15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning
Aluminum or Chrome
-Plated Wheels 6-51 . . . . . . . . . . . . .
Exterior Lamps/Lenses 6-50 . . . . . . . . . . . . . . . . . . . . . . . .
Fabric/Carpet 6-46 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glass Surfaces 6-48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inside of Your Vehicle 6-46 . . . . . . . . . . . . . . . . . . . . . . . . .
Interior Plastic Components 6-48 . . . . . . . . . . . . . . . . . . . . .

yellowblue
8-6
Inflation, Tire Pressure 6-38 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument Panel 2-60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brightness Control 2-46 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning the Top 6-47 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cluster 2-62 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Block 6-57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior Lamps 2-46 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior Plastic Components, Cleaning 6-48 . . . . . . . . . . . . . .
Jack, Tire 5-20, 5-21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jump Starting 5-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Keyless Entry System, Remote 2-7 . . . . . . . . . . . . . . . . . . . .
Keys 2-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Labels
Certification 4-29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Parts Identification 6-54 . . . . . . . . . . . . . . . . . . . . .
Tire-Loading Information 4-29 . . . . . . . . . . . . . . . . . . . . . .
Vehicle Identification Number (VIN) 6-54 . . . . . . . . . . . . .
Lamps
Exterior 2
-40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior 2-46 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map 2-47 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
On Reminder 2-42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Panel 2-46 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Reading 2-46 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lap-Shoulder Belt 1-16, 1-33 . . . . . . . . . . . . . . . . . . . . . . . . .
Leaving Your Vehicle 2-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Leaving Your Vehicle with the Engine Running 2-27 . . . . . . . Leveling Indicator Light 2
-76 . . . . . . . . . . . . . . . . . . . . . . . . .
Light Sensor, Twilight Sentinel
2-44 . . . . . . . . . . . . . . . . . . .
Lighter 2-50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lighting, Perimeter 2-42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lights
Air Bag Readiness 1
-27, 2-64 . . . . . . . . . . . . . . . . . . . . . . .
Anti-Lock Brake System Warning 2-67, 4-7 . . . . . . . . . . . .
Automatic Transmission Warning 2-76 . . . . . . . . . . . . . . . .
Brake Pad Wear Indicator 2-76 . . . . . . . . . . . . . . . . . . . . . .
Brake System Warning 2-66 . . . . . . . . . . . . . . . . . . . . . . . . .
Brake To Shift 2-73 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Charging System Indicator 2-65 . . . . . . . . . . . . . . . . . . . . . .
Check Engine 2-70 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Check Oil 2-73 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise Control 2-74 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Coolant Temperature Warning 2-68 . . . . . . . . . . . . .
Fuel Cap Indicator 2-75 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Leveling Indicator 2-76 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Low Coolant Warning 2-69 . . . . . . . . . . . . . . . . . . . . . . . . .
Low Fuel 2-75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Low Washer Fluid Warning 2-74 . . . . . . . . . . . . . . . . . . . . .
Oil Pressure 2-72 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Belt Reminder 1-11, 2-64 . . . . . . . . . . . . . . . . . . . . .
Traction Control System Warning 2-68, 4-9 . . . . . . . . . . . .
Trunk Ajar 2-74 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading Your Vehicle 4-29 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Locks
Anti
-Lockout Feature 2-7 . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic Door 2-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Door 2-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Door 6-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
