1999 CADILLAC CATERA adding oil

yellowblue
2-72
Are you low on fuel?
As your engine starts to run out of fuel, your engine may
not run as efficiently as designed since small amounts of
air are sucked into the fuel line causing a misfire. The
system can detect this. Adding fuel should correct this
condition. Make sure to install the fuel cap properly. See
ªFilling Your Tankº in the Index. It will take a few
driving trips to turn the light off.
Have you recently changed brands of fuel?
If so, be sure to fuel your vehicle with quality fuel (see
ªFuelº in the Index). Poor fuel quality will cause your
engine not to run as efficiently as designed. You may
notice this as stalling after start
-up, stalling when you
put the vehicle into gear, misfiring, hesitation on
acceleration or stumbling on acceleration. (These
conditions may go away once the engine is warmed up.)
This will be detected by the system and cause the light
to turn on.
If you experience one or more of these conditions,
change the fuel brand you use. It will require at least one
full tank of the proper fuel to turn the light off.
If none of the above steps have made the light turn off,
have your dealer or qualified service center check the
vehicle. Your dealer has the proper test equipment and
diagnostic tools to fix any mechanical or electrical
problems that may have developed.
Oil Pressure Light/Gage
The light and gage tell you if there could be a problem
with the engine oil pressure.
The gage shows the engine
oil pressure in pounds per
square inch (psi). Canadian
vehicles show pressure in
kilopascals (kPa).
The oil light goes on when
you turn the key to ON or
START. It goes off once you
start the engine. That's a
check to be sure the
light works.
If it doesn't come on, be sure to have it fixed so it will
be there to warn you if something goes wrong.

yellowblue
5-14

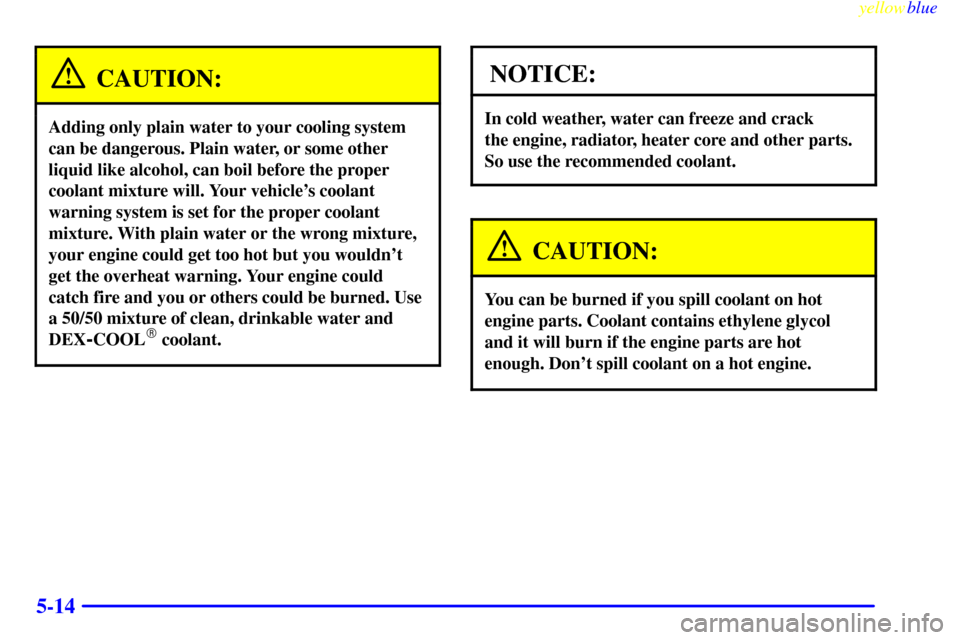

CAUTION:
Adding only plain water to your cooling system
can be dangerous. Plain water, or some other
liquid like alcohol, can boil before the proper
coolant mixture will. Your vehicle's coolant
warning system is set for the proper coolant
mixture. With plain water or the wrong mixture,
your engine could get too hot but you wouldn't
get the overheat warning. Your engine could
catch fire and you or others could be burned. Use
a 50/50 mixture of clean, drinkable water and
DEX
-COOL
coolant.
NOTICE:
In cold weather, water can freeze and crack
the engine, radiator, heater core and other parts.
So use the recommended coolant.
CAUTION:
You can be burned if you spill coolant on hot
engine parts. Coolant contains ethylene glycol
and it will burn if the engine parts are hot
enough. Don't spill coolant on a hot engine.

yellowblue
6-21
NOTICE:
When adding coolant, it is important that you use
only DEX
-COOL
(silicate-free) coolant.
If coolant other than DEX-COOL is added to the
system, premature engine, heater core or
radiator corrosion may result. In addition, the
engine coolant will require change sooner
-- at
30,000 miles (50 000 km) or 24 months,
whichever occurs first. Damage caused by the use
of coolant other than DEX
-COOL
is not
covered by your new vehicle warranty.
What to Use
Use a mixture of one-half clean, drinkable water and
one
-half DEX-COOL
coolant which won't damage
aluminum parts. If you use this coolant mixture, you
don't need to add anything else.
CAUTION:
Adding only plain water to your cooling system
can be dangerous. Plain water, or some other
liquid like alcohol, can boil before the proper
coolant mixture will. Your vehicle's coolant
warning system is set for the proper coolant
mixture. With plain water or the wrong mixture,
your engine could get too hot but you wouldn't
get the overheat warning. Your engine could
catch fire and you or others could be burned. Use
a 50/50 mixture of clean, drinkable water and
DEX
-COOL
coolant.

yellowblue
6-62
Fuse/Relay Usage
6 Fan Control Relay (K87)
7 Fan Control Relay (K26)
8 Fuse 50
9 Fan Control Relay (K28)
10 Engine Controls Power Relay (K43)
12 Fuse 40
15 Fuse 52
16 Connector C110
17 Coolant Fan Test Connector
Fan Control
18 Fuse 42 (A), Fuse 49 (B)
19 Fan Control Relay (K52)
20 Fuel Pump Relay (K44)
29 Fuse 43Replacement Bulbs
Application Bulb Number
Composite Headlamps
Inner High Beam 90512338. . . . . . . . . . . . . . . . . . .
Outer Low Beam 90512338. . . . . . . . . . . . . . . . . . .
Front Turn Signal Lamp 90487485. . . . . . . . . . . . . . .
Rear Turn Signal Lamp and Taillamp 90002521. . . .
Capacities and Specifications
The following approximate capacities are given in
English and metric conversions. Please refer to
ªRecommended Fluids and Lubricantsº in the
Maintenance Schedule booklet for more information.
Transmission 7.0 quarts (6.6 L). . . . . . . . . . . . . . . . .
Engine Crankcase
Oil Change With Filter 6.0 quarts (5.75 L). . . . . . .
Engine Cooling System 10.57 quarts (10.0 L). . . . . .
Fuel Tank 16.0 gallons (60.56 L). . . . . . . . . . . . . . . . .
R
-134a Refrigerant 2.09 lbs. (0.95 kg). . . . . . . . . . . .
NOTE: All capacities are approximate. When adding, be
sure to fill to the approximate level, as recommended in
this manual. Recheck fluid level after filling.

yellowblue
8-4
Driving (Continued)
Night 4-15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
On Curves 4-10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
On Grades While Towing a Trailer 4-36 . . . . . . . . . . . . . . .
On Hill and Mountain Roads 4-23 . . . . . . . . . . . . . . . . . . . .
On Snow or Ice 4-25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Through Deep Standing Water 4-19 . . . . . . . . . . . . . . . . . . .
Winter 4-24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
With a Trailer 4-34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Equipment, Adding 2-19 . . . . . . . . . . . . . . . . . . . .
Electrical System 6-55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrochromic Day/Night Rearview Mirror 2-47 . . . . . . . . . .
Electronic Climate Control (ECC) 3-2 . . . . . . . . . . . . . . . . . . .
Electronic Level Control 4-30 . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency Trunk Release 2-12 . . . . . . . . . . . . . . . . . . . . . . . .
Engine 6-10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air Cleaner/Filter 6-15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Compartment Relay Center 6-61 . . . . . . . . . . . . . . . . . . . . .
Coolant 6-20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Coolant Heater 2-19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Coolant Temperature Gage 2-69 . . . . . . . . . . . . . . . . . . . . .
Coolant Temperature Warning Light 2-68 . . . . . . . . . . . . . .
Cooling When Trailer Towing 4-37 . . . . . . . . . . . . . . . . . . .
Exhaust 2-11, 2-30, 2-31, 4-28 . . . . . . . . . . . . . . . . . . . . . .
Identification 6-54 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overheating 5-9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Running While You're Parked 2-31 . . . . . . . . . . . . . . . . . . .
Specifications 6-63 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speed Limiter 2-63 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting Your 2-18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Engine Oil 6
-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Additives 6-14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking 6-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
What Kind to Use 6-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
What to do with Used 6-14 . . . . . . . . . . . . . . . . . . . . . . . . . .
When to Add 6-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
When to Change 6-14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
English/Metric Display 3-3 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ethanol 6-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exhaust, Engine 2-11, 2-30, 2-31, 4-28 . . . . . . . . . . . . . . . . .
Extender, Safety Belts 1-52 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exterior Lamps 2-40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fan Button, Climate Control System 3-2 . . . . . . . . . . . . . . . .
Features and Controls 2-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Filling a Portable Fuel Container 6-8 . . . . . . . . . . . . . . . . . . . .
Filling Your Tank 6-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Filter, Air 6-15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Filter Replacement, Passenger Compartment Air 6-17 . . . . . .
Finish Care 6-50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Finish Damage 6-52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FIRST (1) Gear, Automatic Transmission 2-23 . . . . . . . . . . . .
Flashers, Hazard Warning 5-2 . . . . . . . . . . . . . . . . . . . . . . . . .
Flash-To-Pass 2-35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Flat Tire, Changing 5-18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Floor Mats 2-52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fluid
Brake 6
-26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Steering 6-24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield Washer 6-25 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fog Lamps 2-44 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
