1999 BUICK REGAL turn signal bulb

yellowblue
2-36
Turn Signal/Multifunction Lever
The lever on the left side of the steering column
includes your:

Turn Signal and Lane Change Indicator

Headlamp High/Low Beam Changer

Windshield Wipers

Windshield Washer

Cruise Control (If Equipped)

Flash
-to-Pass
Turn Signal and Lane Change Indicator
The turn signal has the following positions: two upward
(for right) and two downward (for left). These positions
allow you to signal a turn or a lane change.
To signal a turn, move the lever all the way up
or down. When the turn is finished, the lever will
return automatically.
An arrow on the instrument
panel will flash in the
direction of the turn or
lane change.
To signal a lane change, just raise or lower the lever
until the arrow starts to flash. Hold it there until you
complete your lane change. The lever will return by
itself when you release it.
If the arrow flashes faster than normal as you signal a
turn or a lane change, a signal bulb may be burned out
and other drivers won't see your turn signal.
ProCarManuals.com

yellowblue
2-37
If a bulb is burned out, replace it to help avoid an
accident. If the arrows don't go on at all when you
signal a turn, check for burned
-out bulbs and then check
the fuse (see ªFuses and Circuit Breakersº in the Index).
A chime will sound if you leave your turn signal on for
more than 3/4 mile (1.2 km).
Headlamp High/Low Beam Changer
To change your headlamps
from low beams to high
beams, or high to low, pull
the multifunction lever all
the way toward you. Then
release it.
When the high beams are on, this light on the instrument
panel also will be on.
Flash-to-Pass Feature
This feature lets you use your high-beam headlamps to
signal the driver in front of you that you want to pass. It
works even if your headlamps are off.
To use it, pull the turn signal lever toward you a little,
but not so far that you hear a click.
If your headlamps are off or on low beam, your
high
-beam headlamps will turn on. They'll stay on as
long as you hold the lever toward you and the
high
-beam indicator on the dash will come on. Release
the lever to turn the high
-beam headlampsªflashº off.
ProCarManuals.com

yellowblue
4-38 Turn Signals When Towing a Trailer
When you tow a trailer, your vehicle may need a different
turn signal flasher and/or extra wiring. Check with your
dealer. The arrows on your instrument panel will flash
whenever you signal a turn or lane change. Properly
hooked up, the trailer lamps will also flash, telling other
drivers you're about to turn, change lanes or stop.
When towing a trailer, the arrows on your instrument
panel will flash for turns even if the bulbs on the trailer
are burned out. Thus, you may think drivers behind you
are seeing your signal when they are not. It's important
to check occasionally to be sure the trailer bulbs are
still working.
Driving On Grades
Reduce speed and shift to a lower gear before you start
down a long or steep downgrade. If you don't shift
down, you might have to use your brakes so much that
they would get hot and no longer work well.
On a long uphill grade, shift down and reduce your
speed to around 45 mph (70 km/h) to reduce the
possibility of engine and transaxle overheating.
If you are towing a trailer, you may want to drive in
DRIVE (D) instead of AUTOMATIC OVERDRIVE (
)
(or, as you need to, a lower gear).
Parking on Hills
CAUTION:
You really should not park your vehicle, with a
trailer attached, on a hill. If something goes
wrong, your rig could start to move. People can
be injured, and both your vehicle and the trailer
can be damaged.
But if you ever have to park your rig on a hill, here's
how to do it:
1. Apply your regular brakes, but don't shift into
PARK (P) yet.
2. Have someone place chocks under the
trailer's wheels.
3. When the wheel chocks are in place, release the
regular brakes until the chocks absorb the load.
4. Reapply the regular brakes. Then apply your parking
brake, and shift to PARK (P).
5. Release the regular brakes.
ProCarManuals.com

yellowblue
6-39

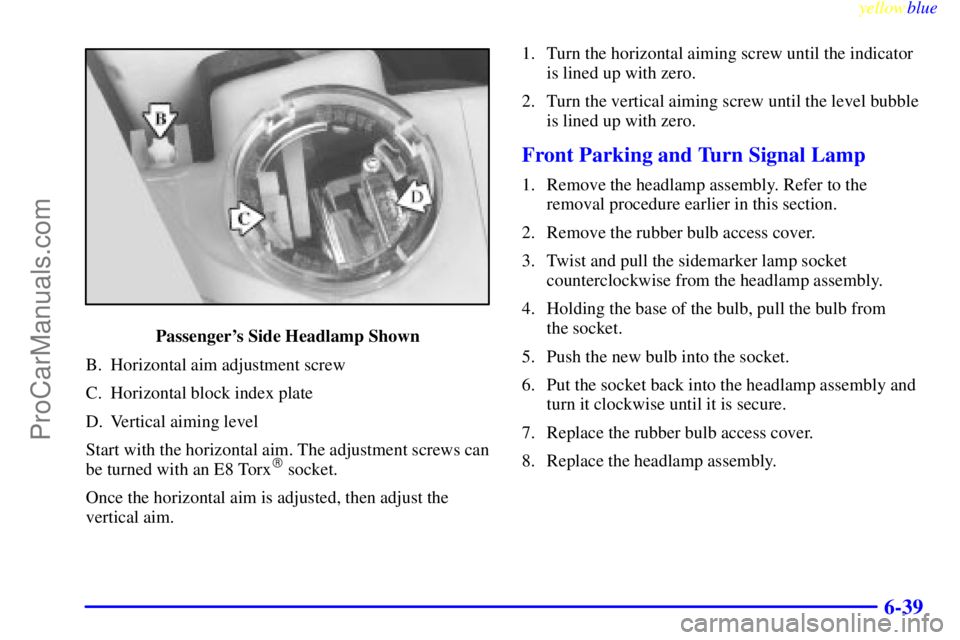

Passenger's Side Headlamp Shown
B. Horizontal aim adjustment screw
C. Horizontal block index plate
D. Vertical aiming level
Start with the horizontal aim. The adjustment screws can
be turned with an E8 Torx

socket.
Once the horizontal aim is adjusted, then adjust the
vertical aim.1. Turn the horizontal aiming screw until the indicator
is lined up with zero.
2. Turn the vertical aiming screw until the level bubble
is lined up with zero.
Front Parking and Turn Signal Lamp
1. Remove the headlamp assembly. Refer to the
removal procedure earlier in this section.
2. Remove the rubber bulb access cover.
3. Twist and pull the sidemarker lamp socket
counterclockwise from the headlamp assembly.
4. Holding the base of the bulb, pull the bulb from
the socket.
5. Push the new bulb into the socket.
6. Put the socket back into the headlamp assembly and
turn it clockwise until it is secure.
7. Replace the rubber bulb access cover.
8. Replace the headlamp assembly.
ProCarManuals.com

yellowblue
6-41 Tail/Stop/Turn Signal Lamp
1. Remove the three plastic wing nuts (A). (Pliers may
be required to remove the wing nuts.)2. Pull the taillamp housing (B) away from the body
of the vehicle.
3. Squeeze the tab on the socket and turn the
socket counterclockwise.
4. Pull out the socket.
5. Pull the bulb out of the socket. (There are two bulbs
on each taillamp.)
6. Push in a new bulb.
7. Replace the socket into the housing and
turn clockwise.
8. Replace the taillamp housing to the body of
the vehicle.
9. Install and tighten the three plastic wing nuts.
ProCarManuals.com

yellowblue
6-71
Replacement Bulbs
Exterior Lamps Bulb Number
Back
-Up 1156. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Center High
-Mounted Stop 3155. . . . . . . . . . . . . . . .
Front Parking/Turn Signal 4175 NAK. . . . . . . . . . . . .
Headlamp, High Beam 9005. . . . . . . . . . . . . . . . . . . .
Headlamp, Low Beam 9006. . . . . . . . . . . . . . . . . . . .
Stop/Tail/Turn Signal 3057. . . . . . . . . . . . . . . . . . . . .
Tail (Applique) 194. . . . . . . . . . . . . . . . . . . . . . . . . . .
Inside Lamps BulbNumber
Dome Lamp 9425542. . . . . . . . . . . . . . . . . . . . . . . . .
*For service information on these bulbs, contact your
dealer service department.
Capacities and Specifications
4T65E:
Automatic Transaxle
Pan Removal and Replacement 7.4 quarts (7.0 L). .
After Complete Overhaul 10.0 quarts (9.5 L). . . . .
* When draining/replacing converter, more fluid will
be needed.
Cooling System Including Reservoir
3800 (Code K) V6 12.3 quarts (11.6 L). . . . . . . . . . .
3800 Supercharged (Code 1) V6 12.3 quarts (11.6 L)
Refrigerant (R
-134a), Air Conditioning*1.88 lbs.
(0.85 kg)
*See ªAir Conditioning Refrigerantsº later in this
section.
Engine Crankcase
Oil and Filter Change 4.5 quarts (4.3 L). . . . . . . . . . .
Wheel Nut Torque100 lb
-ft (140 N´m) . . . . . . . . . .
Fuel Tank17.5 gallons (66.2 L) . . . . . . . . . . . . . . . . .
*Note: All capacities are approximate. When adding, be
sure to fill to the approximate level, as recommended in
this manual. See ªRecommended Fluids and Lubricantsº
in the Index.
ProCarManuals.com

yellowblue
9-5
