513-3
Interior ~rirnl
The console between the two front seats starts behind the shifler housing. It houses the parking brake handle, optional
telephone and oddments storage tray. The rear portion of the
console houses the ashtray and covers the emergency brake
cable ends.
NOTE-
The accompanying photos illustrate a model with automatic
transmission. Manual transmission models are similar.
Center console, removing and installing
4 Remove shift knob by pulling straight up (arrow).
Gently pry shift bezel
harness (arrow). up
out of console and disconnect wiring
Models equipped with automatic transmission remove neu-
tral safety switch fasteners (arrows) and remove bezel with
switch.

Downloaded from www.Manualslib.com manuals search engine
51 3-4
/Interior Trim
Carefully pry cup holder (arrow) out of console,
4 Pry air vent down to release locking clips and remove.
< Remove screws (arrows) at base of front seat armrest and
slide armrest forward to remove.
4 Remove console glove box (A).
Remove rear trim panel fasteners (B).

Downloaded from www.Manualslib.com manuals search engine
Interior iriml
4 Carefully pry out 4-way hazard flasher switch (A)
Disconnect wiring harness (B).
Remove trim panel fastener (arrow) under 4 way flasher
switch.
4 Remove console trim panel retaining fasteners (arrow) at
rear of trim panel.
Remove front console trim fasteners
(arrows) and carefully
remove trim panel.

Downloaded from www.Manualslib.com manuals search engine
51 3-6
Interior Trim
Remove parking bralte lever side cover fasteners (arrows)
4 Unclip trim boot for parking brake lever and pull boot and
handle forward off brake lever. Remove parking
bralte cover
fastener
(arrow) and remove cover.
4 Remove fasteners at rear of console (arrows).
4 With left and right seats in lowest position, remove side con-
sole fasteners
(arrow).
- Remove left and right side console trim covers. See Lower
- Remove center console.
- Installation is reverse of removal.

Downloaded from www.Manualslib.com manuals search engine
Interior Trim
The E39 dashboard assembly includes the instrument clus-
ter, passenger side
airbag, glove compartment, fuse and re-
lay panel, radio. IHKA control panel oron-board monitor (if
equipped with GPS). The dash is made up of an upper and
lower sections. The lower section must be remove before the
upper section can be removed.
Dashboard removal is a complex operation. Read the proce-
dures through before starting work.
Lower dash panel assembly, removing and
installing
- Disconnect negative (-) cable from battery and cover termi-
nal with
insulating material.
--7
CAUTION-
Prior to disconnecting the battery, read the battery discon-
nectioncautionsgiven atthe irontin001 General Warnings
and Cautions.
- Place steering column in down and extended position.
4 Remove left side foot well panel fasteners (A and B).
< Using a plastic trim tool, gently pry left and right steering col-
umn trim panels (white arrow) to remove and release snap
clip on column boot
(black arrow).
I 1 < Remove instrument cluster trim panel fasteners (arrows).
Pull trim panel out and disconnect harnesses for light
switches.
- Remove radio volume control knob.

Downloaded from www.Manualslib.com manuals search engine
I Interior Trim
Insert allen wrench into slot approximately 1 mm and turn
through
90".
Disconnect wiring harnesses from radio.
Remove radio.
4 Remove left and right locking clips (arrow) from glove com-
partment straps.
4 Carefully pry left and right dashboard trim out to remove
4 Remove right side lower dash support screws (A)

Downloaded from www.Manualslib.com manuals search engine
Interior Trim

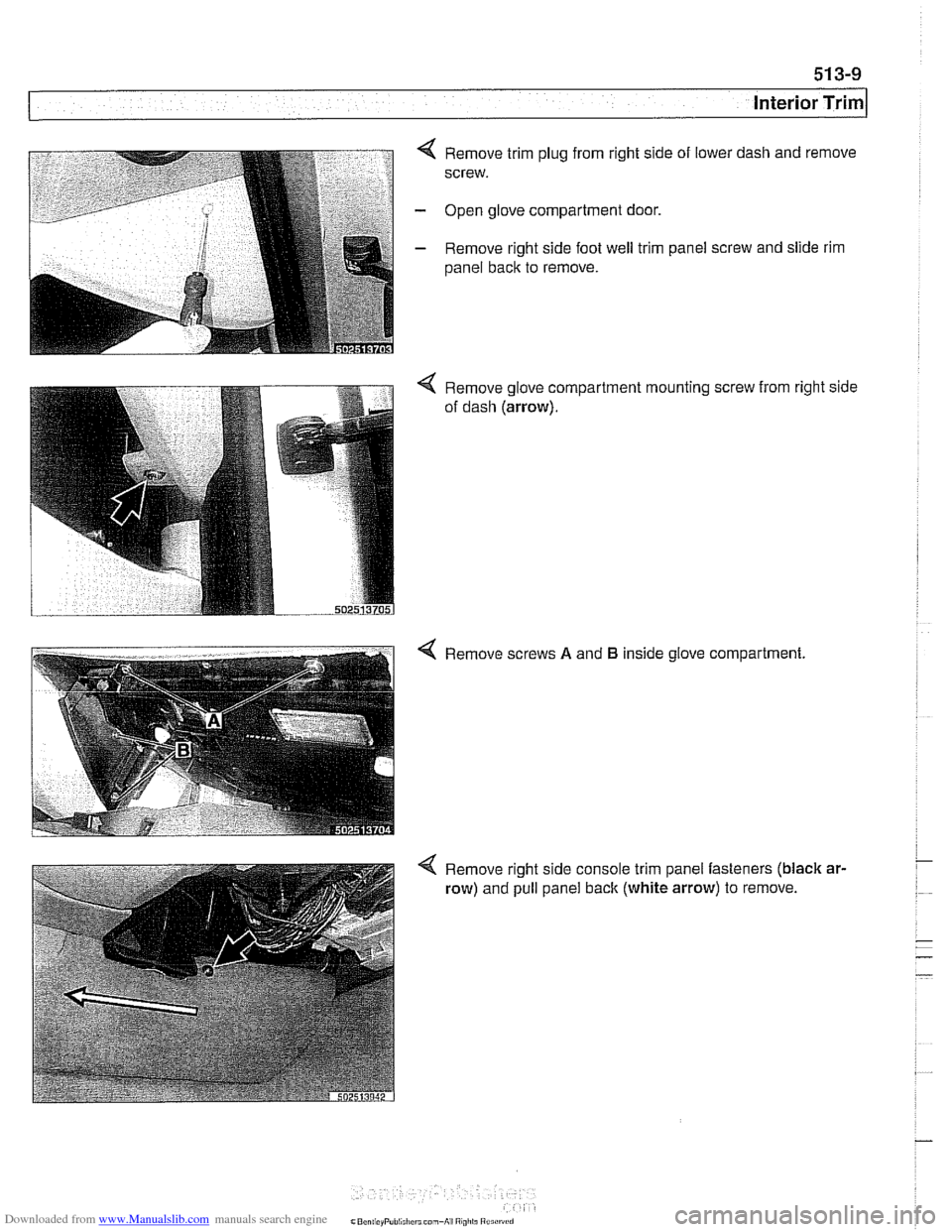

4 Remove trim plug from right side of lower dash and remove
screw.
- Open glove compartment door.
- Remove right side foot well trim panel screw and slide rim
panel back to remove.
4 Remove glove compartment mounting screw from right side
of dash (arrow).
Remove right side console trim panel fasteners (black ar-
row) and pull panel back
(white arrow) to remove.

Downloaded from www.Manualslib.com manuals search engine
interior Trim
Remove right side lower dash fastener (arrow)
< Remove left side console trim panel fasteners (black arrow)
and slide panel backward (white arrow) to remove.
4 Remove left slde lower dash fastener (arrow)
4 Remove upper dash fastener (arrow).
- Pull bottom of lower dash out to remove
- Installation is reverse of removal, noting the following:
Instrument cluster harness connector
loclting levers must
be in up position before installing connectors.
If replacing instrument cluster with new unit,
recode new
cluster using
BMW scan tool DISplus, MoDiC or equiva-
lent.
