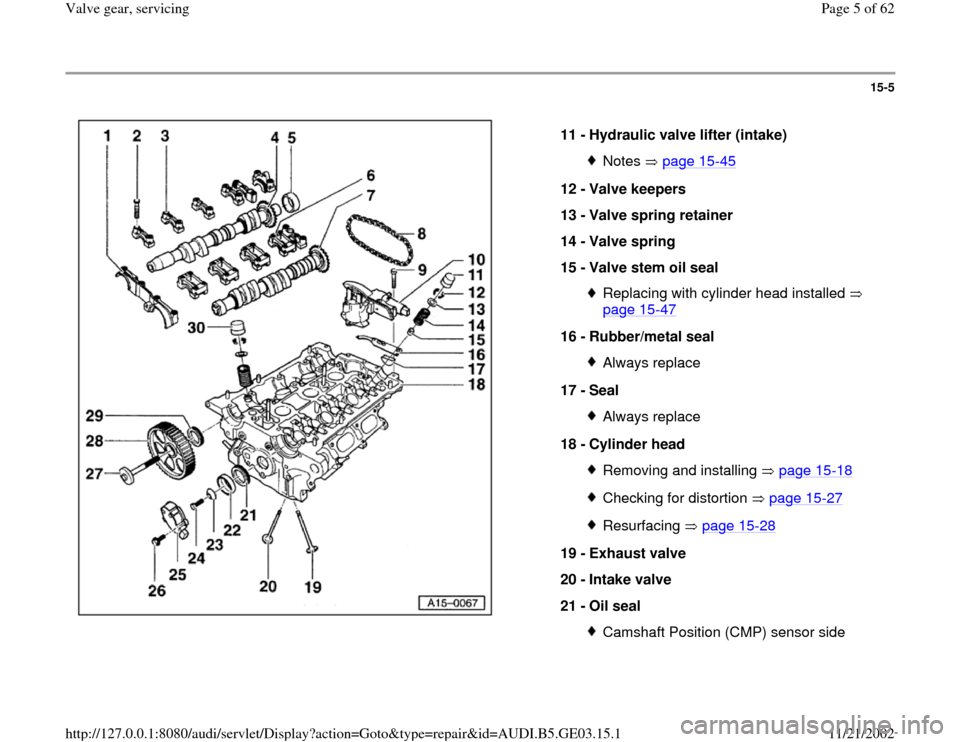

Hydraulic valve lifter (intake)
Notes page 15
-45
12 -
Valve keepers
13 -
Valve spring retainer
14 -
Valve spring
15 -
Valve stem oil seal
Replacing with cylinder head installed
page 15
-47

16 -
Rubber/metal seal
Always replace
17 -
Seal Always replace
18 -
Cylinder head Removing and installing page 15
-18
Checking for distortion page 15
-27
Resurfacing page 15
-28
19 -
Exhaust valve
20 -
Intake valve
21 -
Oil seal
Camshaft Position (CMP) sensor side
Pa
ge 5 of 62 Valve
gear, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE03.15.1

15-6

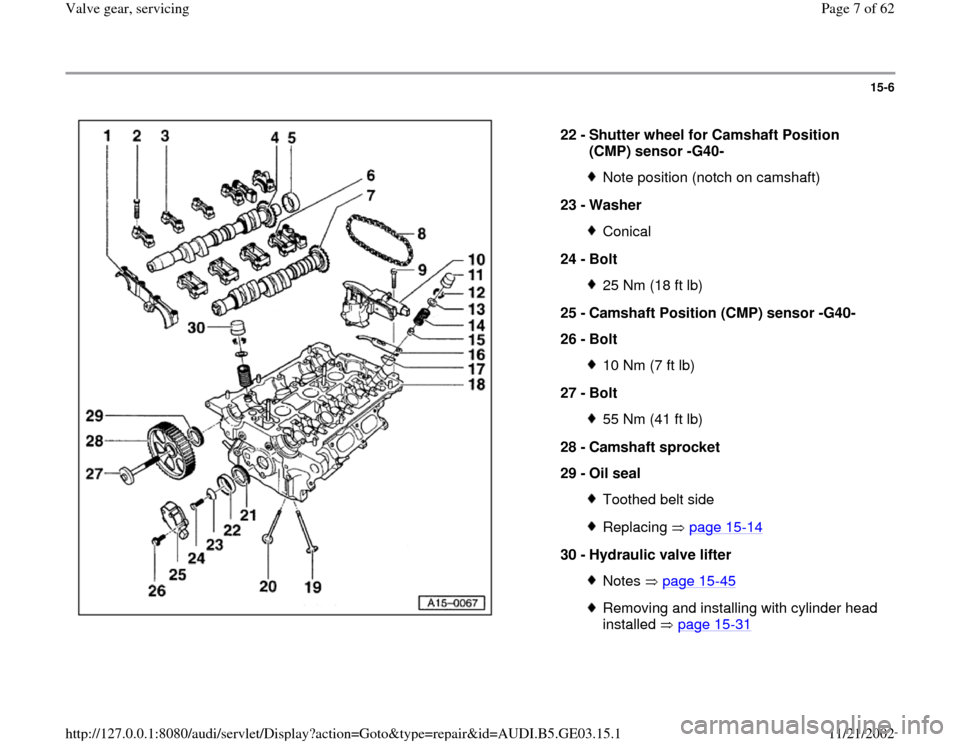

22 -
Shutter wheel for Camshaft Position
(CMP) sensor -G40-
Note position (notch on camshaft)
23 -
Washer Conical
24 -
Bolt 25 Nm (18 ft lb)
25 -
Camshaft Position (CMP) sensor -G40-
26 -
Bolt 10 Nm (7 ft lb)
27 -
Bolt 55 Nm (41 ft lb)
28 -
Camshaft sprocket
29 -
Oil seal Toothed belt sideReplacing page 15
-14
30 -
Hydraulic valve lifter
Notes page 15
-45
Removing and installing with cylinder head
installed page 15
-31

Pa
ge 7 of 62 Valve
gear, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE03.15.1

15-10


15 -

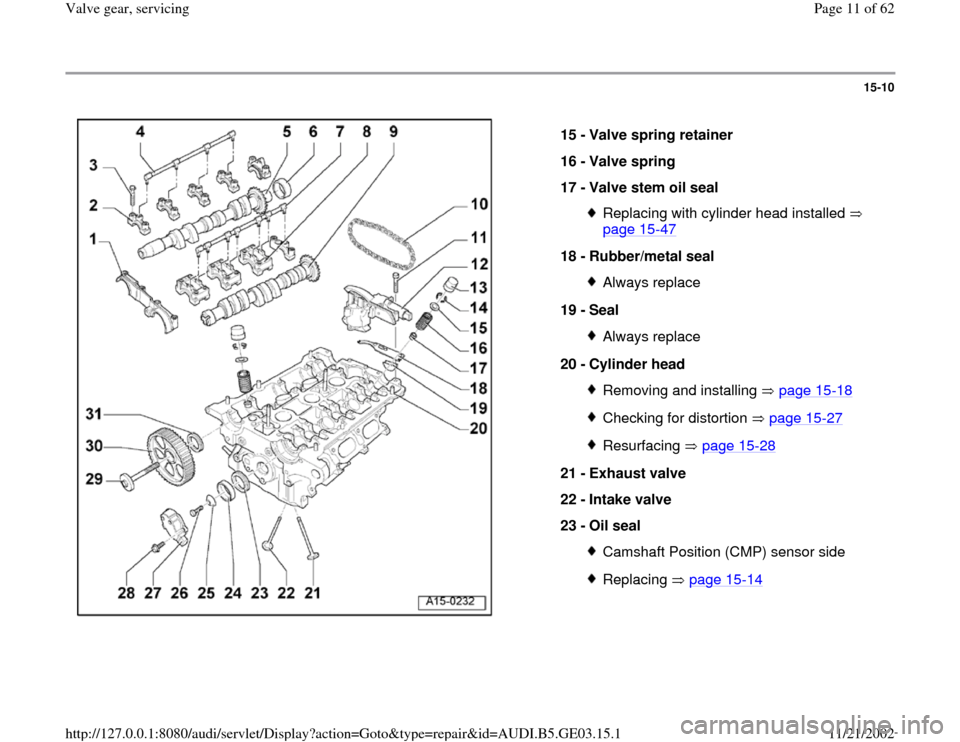

Valve spring retainer
16 -
Valve spring
17 -
Valve stem oil seal
Replacing with cylinder head installed
page 15
-47

18 -
Rubber/metal seal
Always replace
19 -
Seal Always replace
20 -
Cylinder head Removing and installing page 15
-18
Checking for distortion page 15
-27
Resurfacing page 15
-28
21 -
Exhaust valve
22 -
Intake valve
23 -
Oil seal
Camshaft Position (CMP) sensor sideReplacing page 15
-14
Pa
ge 11 of 62 Valve
gear, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE03.15.1

15-11

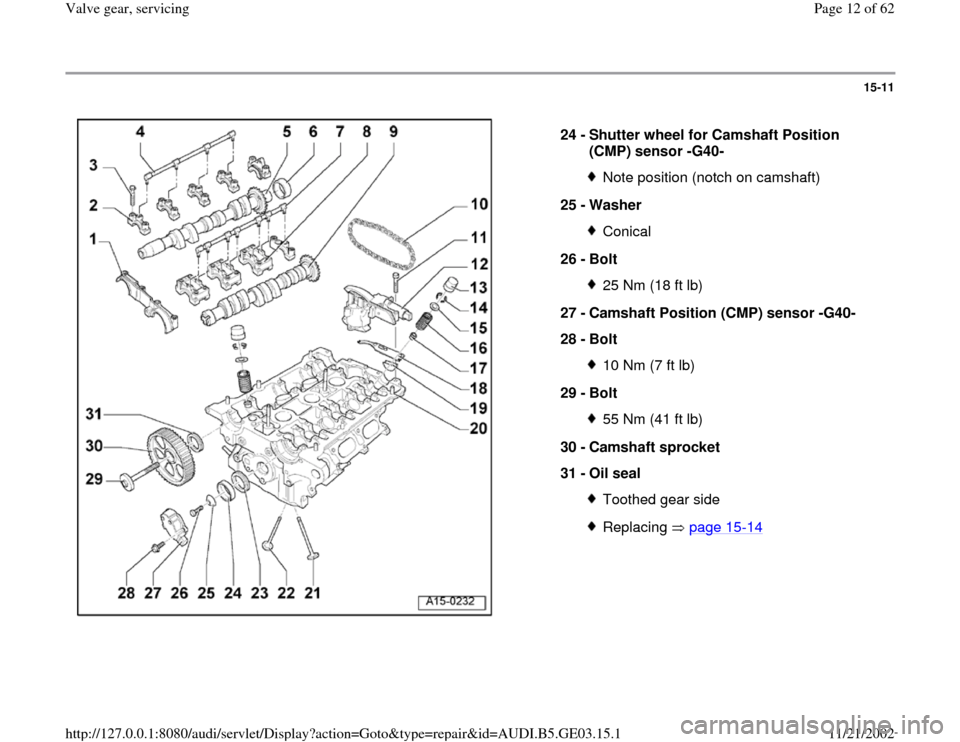

24 -
Shutter wheel for Camshaft Position
(CMP) sensor -G40-
Note position (notch on camshaft)
25 -
Washer Conical
26 -
Bolt 25 Nm (18 ft lb)
27 -
Camshaft Position (CMP) sensor -G40-
28 -
Bolt 10 Nm (7 ft lb)
29 -
Bolt 55 Nm (41 ft lb)
30 -
Camshaft sprocket
31 -
Oil seal Toothed gear sideReplacing page 15
-14
Pa
ge 12 of 62 Valve
gear, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE03.15.1

15-15

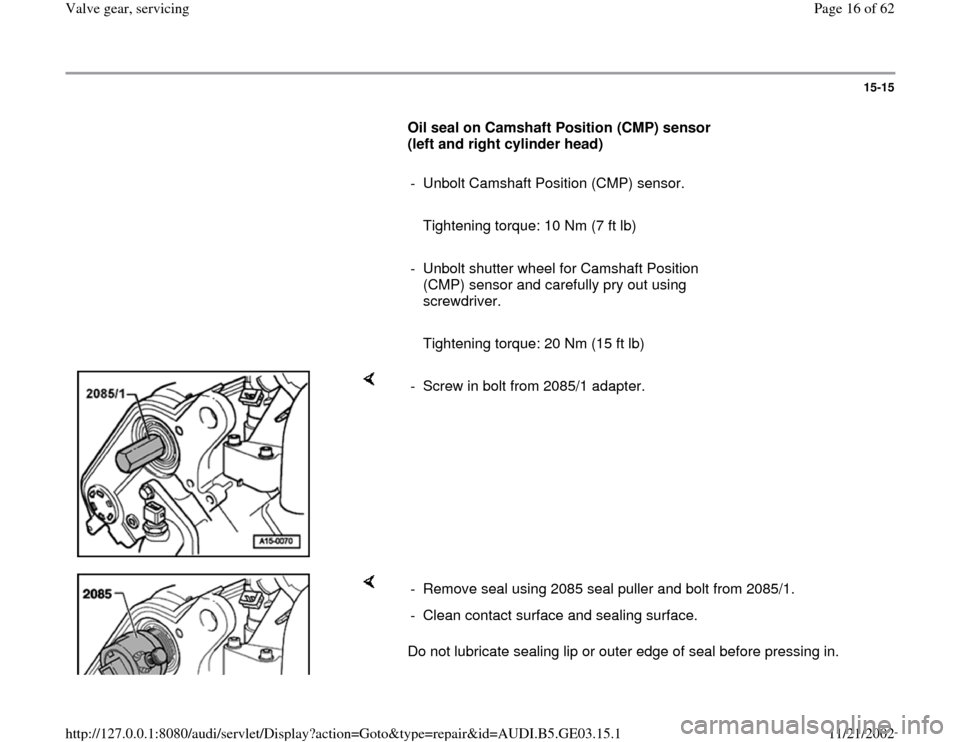

Oil seal on Camshaft Position (CMP) sensor
(left and right cylinder head)

- Unbolt Camshaft Position (CMP) sensor.

Tightening torque: 10 Nm (7 ft lb)

- Unbolt shutter wheel for Camshaft Position
(CMP) sensor and carefully pry out using
screwdriver.

Tightening torque: 20 Nm (15 ft lb)

- Screw in bolt from 2085/1 adapter.

Do not lubricate sealing lip or outer edge of seal before pressing in. - Remove seal using 2085 seal puller and bolt from 2085/1.
- Clean contact surface and sealing surface.
Pa
ge 16 of 62 Valve
gear, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE03.15.1

15-16


Rear sealing flange (left cylinder head)
The sealing flange and rear oil seal on the left cylinder head must be
replaced together as follows: - Press seal flush using 3241/1 press sleeve and 3241/3 bolt.
- Unbolt engine coolant expansion tank from bracket.
- Remove crankshaft ventilation line from cylinder head cover.
- Unbolt Camshaft Position (CMP) sensor.
Tightening torque: 10 Nm (7 ft lb)
- Unbolt shutter wheel for Camshaft Position (CMP) sensor G40 and
carefully pry out using screwdriver.
- Remove cylinder head cover.

- Remove double bearing cap (arrows).
- Remove seal and sealing flange.
- Clean running and sealing surfaces as well as contact surface of
double bearing cap.
Pa
ge 18 of 62 Valve
gear, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE03.15.1

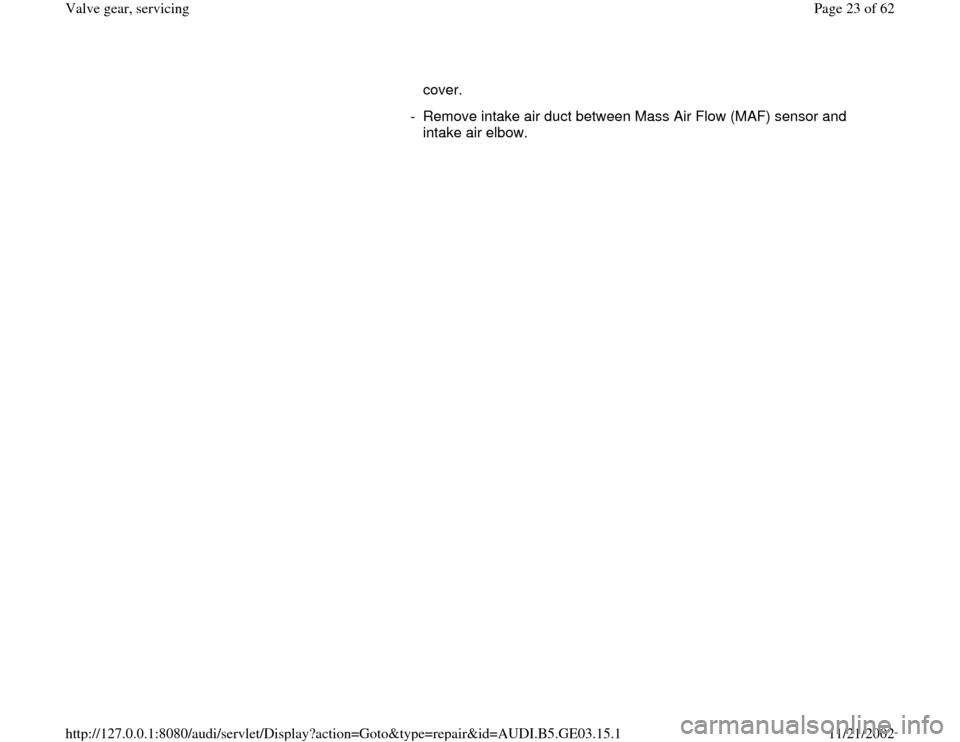

cover.
