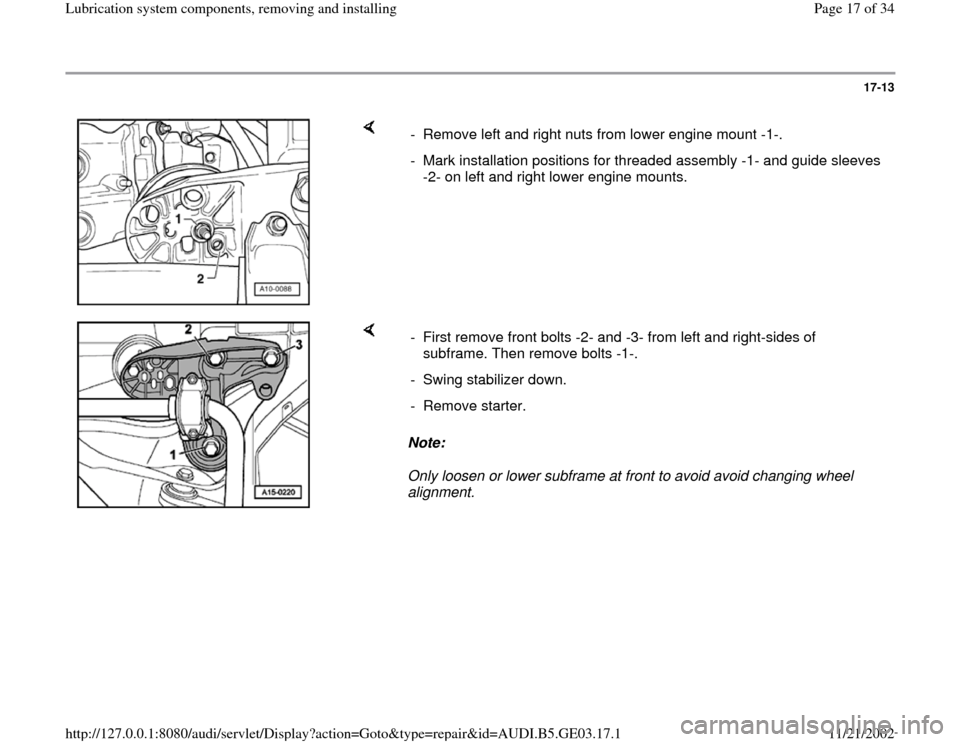

17-13
- Remove left and right nuts from lower engine mount -1-.
- Mark installation positions for threaded assembly -1- and guide sleeves
-2- on left and right lower engine mounts.
Note:
Only loosen or lower subframe at front to avoid avoid changing wheel
alignment. - First remove front bolts -2- and -3- from left and right-sides of
subframe. Then remove bolts -1-.
- Swing stabilizer down.
- Remove starter.
Pa
ge 17 of 34 Lubrication s
ystem com
ponents, removin
g and installin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE03.17.1

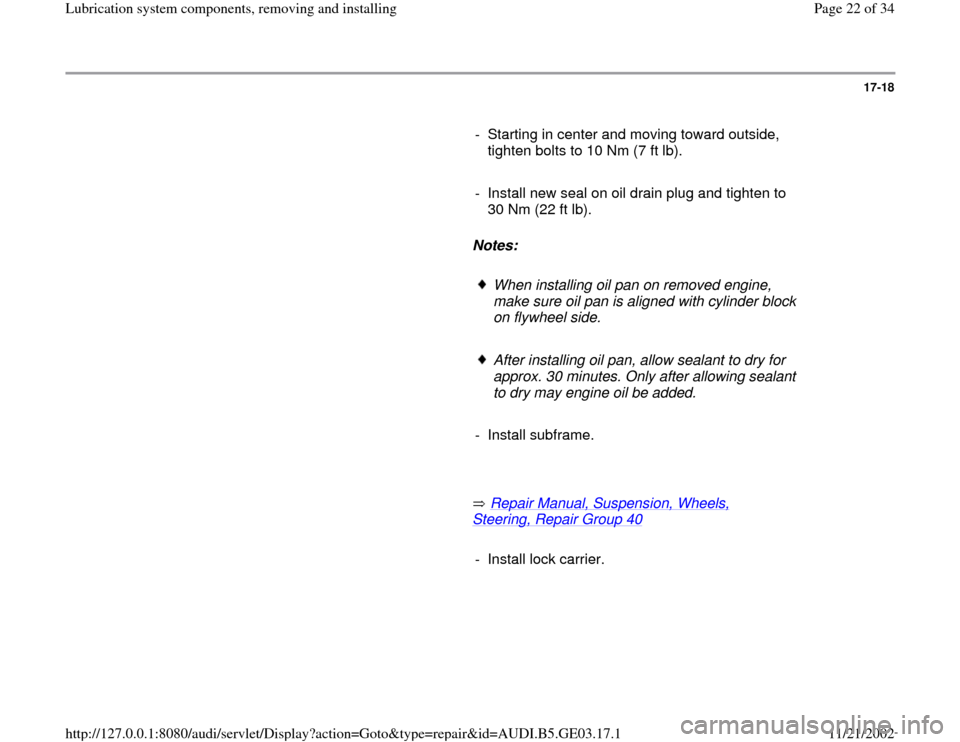

17-18
- Starting in center and moving toward outside,
tighten bolts to 10 Nm (7 ft lb).
- Install new seal on oil drain plug and tighten to
30 Nm (22 ft lb).
Notes:
When installing oil pan on removed engine,
make sure oil pan is aligned with cylinder block
on flywheel side.
After installing oil pan, allow sealant to dry for
approx. 30 minutes. Only after allowing sealant
to dry may engine oil be added.
- Install subframe.
Repair Manual, Suspension, Wheels,
Steering, Repair Group 40
- Install lock carrier.
Pa
ge 22 of 34 Lubrication s
ystem com
ponents, removin
g and installin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE03.17.1
