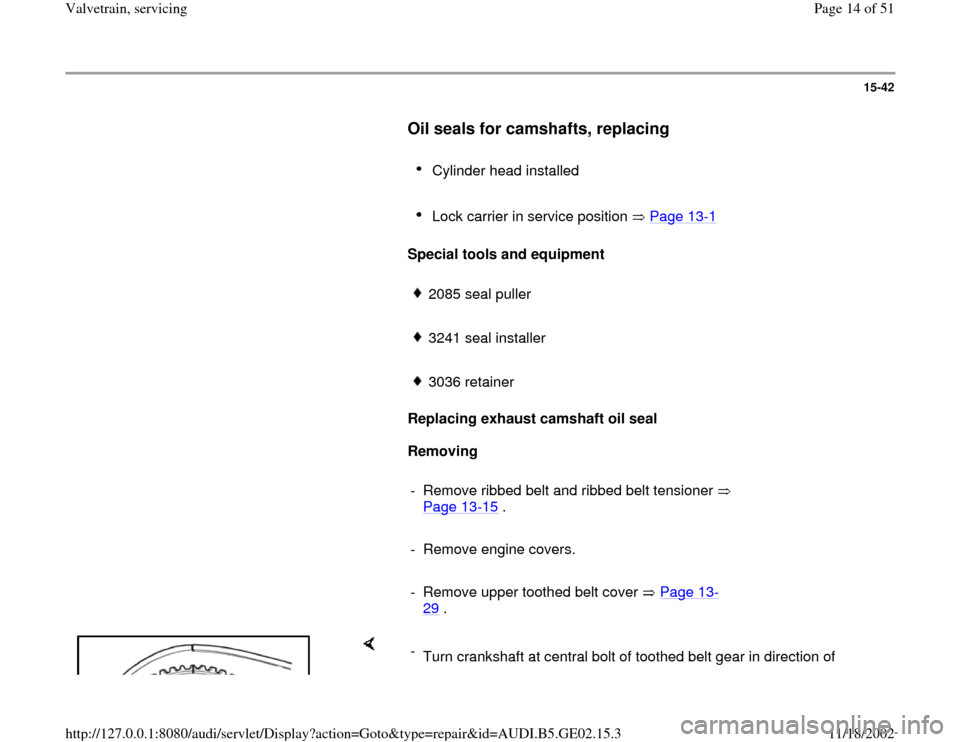

AUDI A6 1999 C5 / 2.G AEB ATW Engines Valvetrain Servicing Workshop Manual 15-42 Oil seals for camshafts, replacing Cylinder head installed Lock carrier in service position Page 13 -1 Special tools and equipment 2085 seal puller 324

Page 16 of 51

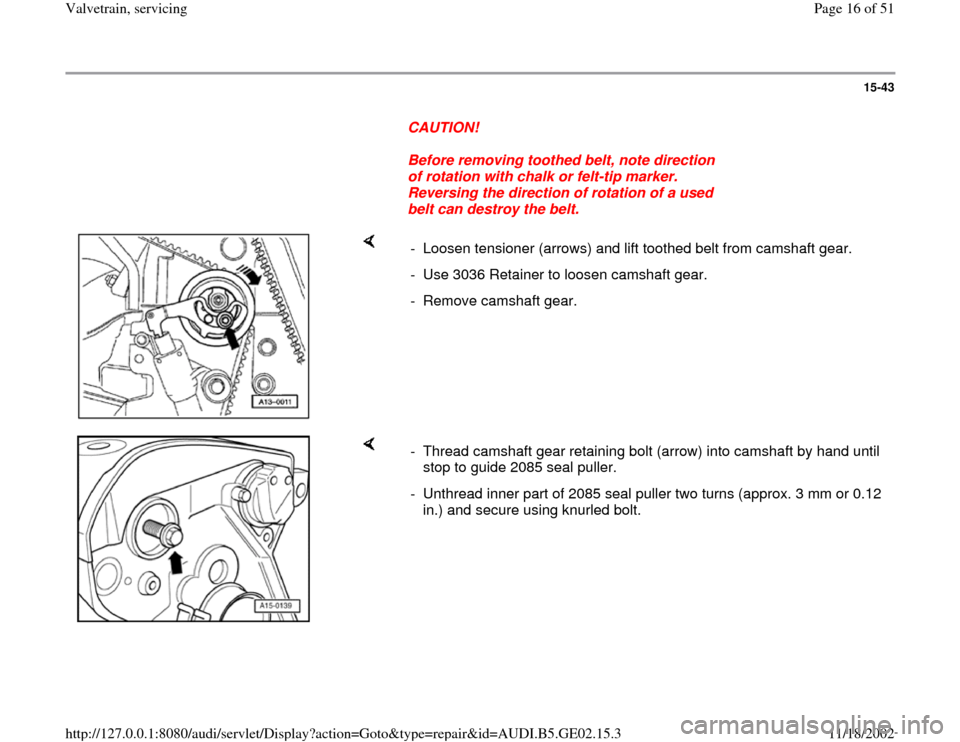

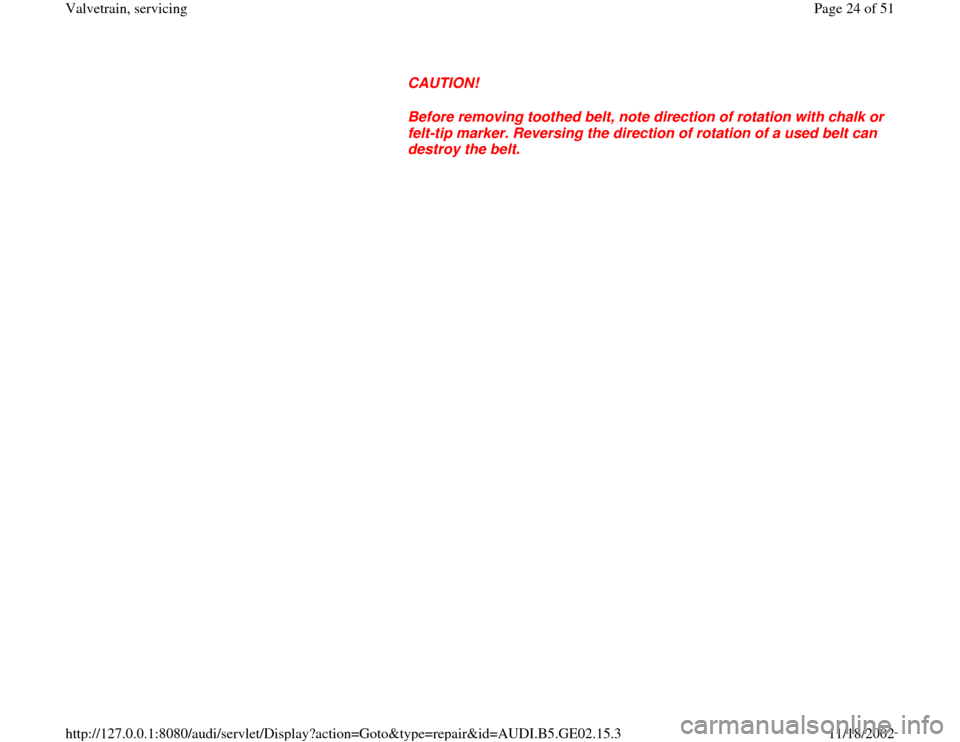

AUDI A6 1999 C5 / 2.G AEB ATW Engines Valvetrain Servicing Workshop Manual 15-43 CAUTION! Before removing toothed belt, note direction of rotation with chalk or felt-tip marker. Reversing the direction of rotation of a used belt can destroy the belt. -

Page 19 of 51

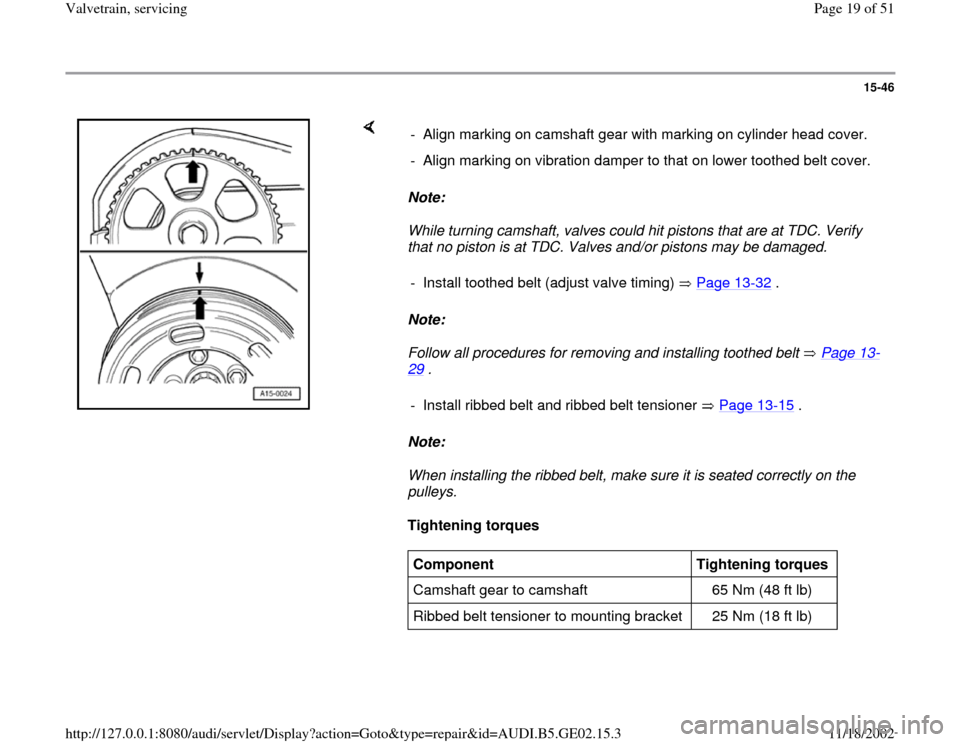

AUDI A6 1999 C5 / 2.G AEB ATW Engines Valvetrain Servicing Workshop Manual 15-46 Note: While turning camshaft, valves could hit pistons that are at TDC. Verify that no piston is at TDC. Valves and/or pistons may be damaged. Note: Follow all procedures for removi

Page 20 of 51

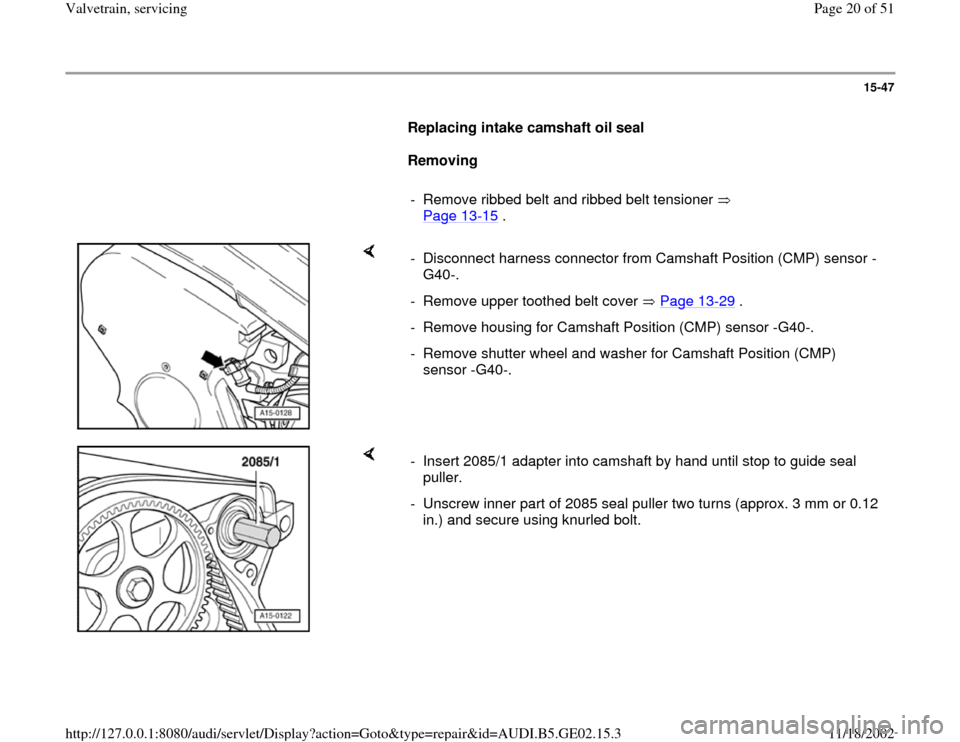

AUDI A6 1999 C5 / 2.G AEB ATW Engines Valvetrain Servicing Workshop Manual 15-47 Replacing intake camshaft oil seal Removing - Remove ribbed belt and ribbed belt tensioner Page 13 -15 . - Disconnect harness connector from Camshaft Position (

Page 22 of 51

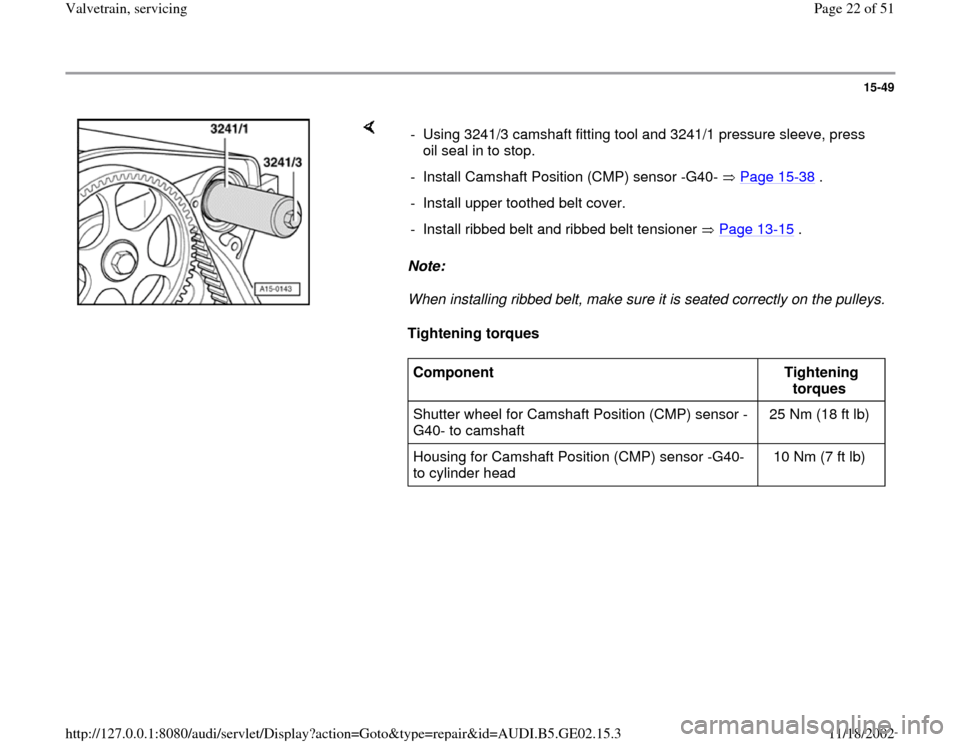

AUDI A6 1999 C5 / 2.G AEB ATW Engines Valvetrain Servicing Workshop Manual 15-49 Note: When installing ribbed belt, make sure it is seated correctly on the pulleys. Tightening torques - Using 3241/3 camshaft fitting tool and 3241/1 pressure sleeve, press oil se

Page 23 of 51

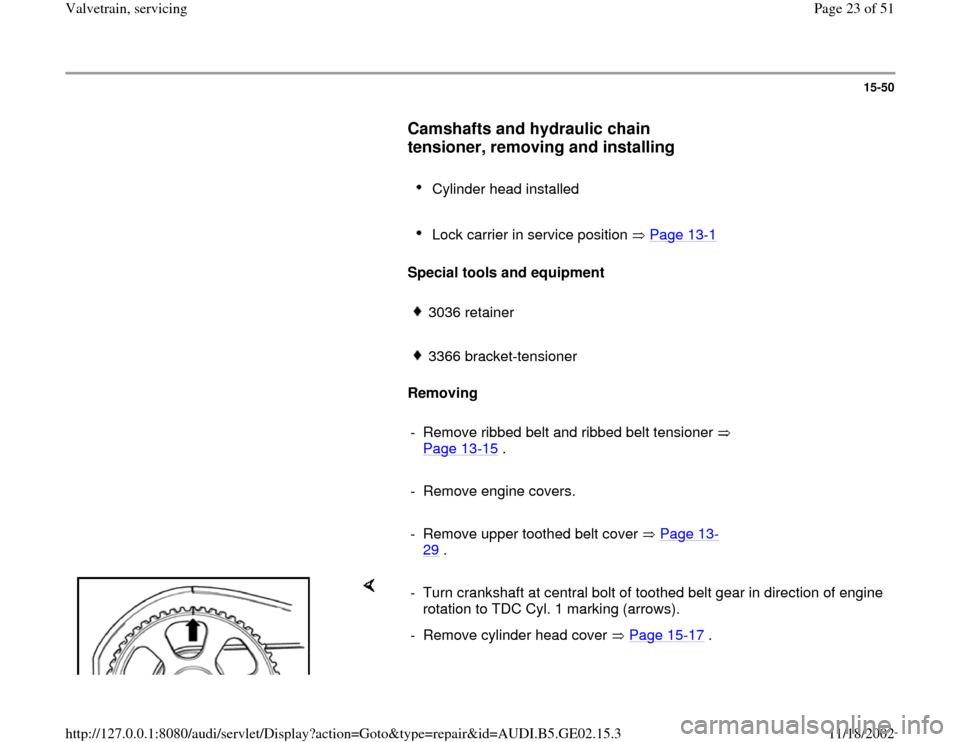

AUDI A6 1999 C5 / 2.G AEB ATW Engines Valvetrain Servicing Workshop Manual 15-50 Camshafts and hydraulic chain tensioner, removing and installing Cylinder head installed Lock carrier in service position Page 13 -1 Special tools and equipment

Page 24 of 51

AUDI A6 1999 C5 / 2.G AEB ATW Engines Valvetrain Servicing Workshop Manual CAUTION! Before removing toothed belt, note direction of rotation with chalk or felt-tip marker. Reversing the direction of rotation of a used belt can destroy the belt. Pa ge 24 of 51 Valvetrain,

Page 25 of 51

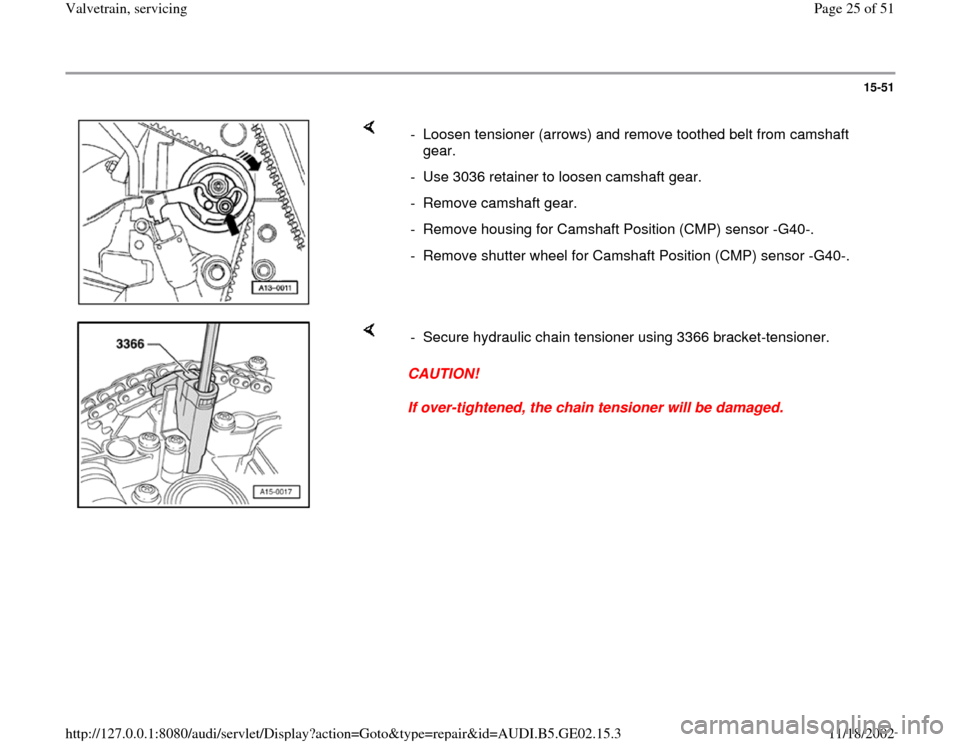

AUDI A6 1999 C5 / 2.G AEB ATW Engines Valvetrain Servicing Workshop Manual 15-51 - Loosen tensioner (arrows) and remove toothed belt from camshaft gear. - Use 3036 retainer to loosen camshaft gear. - Remove camshaft gear. - Remove housing for Camshaft Position (
