01-189
Overview of selectable display group numbers for transmission with hydraulic control -E17- Indicated on display (example)
Display fields:
1 2 3 4
J J J
Display group no.
Display field
Description
Read measuring value block 1
0 RPM 0 RPM 0 RPM 4
001 1
2
3
4 Engine speed (RPM)
Sensor for Transmission RPM -G182-
Transmission Vehicle Speed Sensor -G38-
Driving range selected
Read measuring value block 2
0 0 % 0 RPM 4 002 1
2
3
4 Dynamic code number
Throttle valve value
Transmission Vehicle Speed Sensor -G38-
Driving range selected
Read measuring value block 3
PN active 0 km/h 12.8 V 003 1
2
3
4 Brake
"P" "N" lock
Speed
Supply voltage pin 54, 55
Pa
ge 3 of 49 Read Measurin
g Value Block
(scan tool function 08
) for transmissions with h
ydraulic control -E17-
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT02.01.13

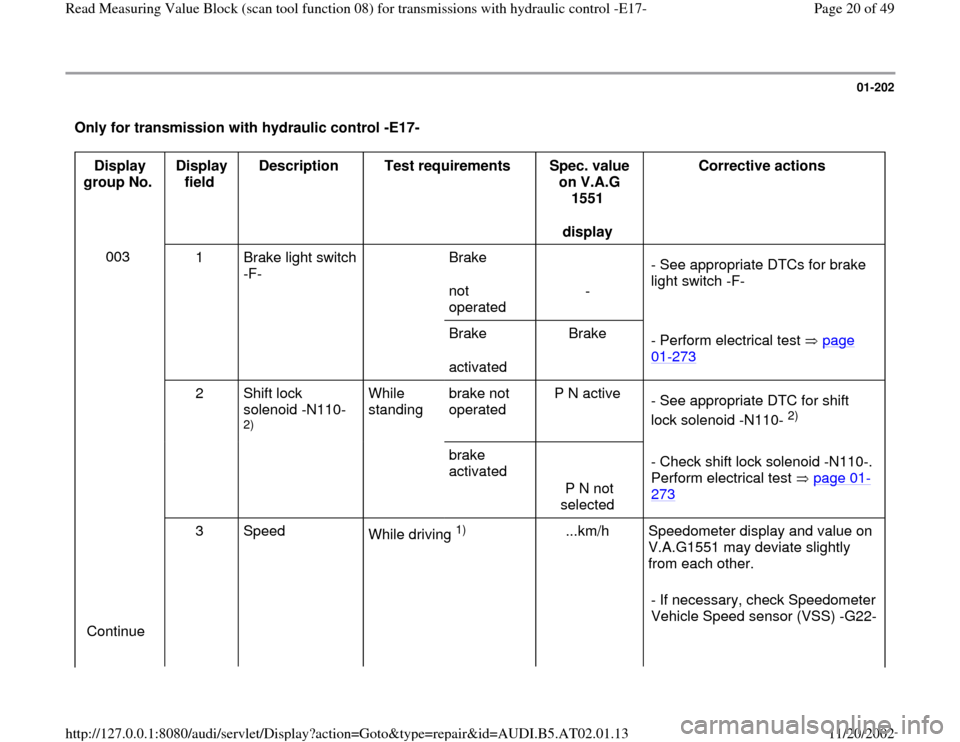

01-202
Only for transmission with hydraulic control -E17-
Display
group No. Display
field Description
Test requirements
Spec. value
on V.A.G
1551
display Corrective actions
003
1 Brake light switch
-F- Brake
not
operated
- - See appropriate DTCs for brake
light switch -F-
Brake
activated Brake
- Perform electrical test page
01
-273
2 Shift lock
solenoid -N110-
2) While
standing brake not
operated P N active
- See appropriate DTC for shift
lock solenoid -N110-
2)
brake
activated
P N not
selected - Check shift lock solenoid -N110-.
Perform electrical test page 01
-
273
Continue 3 Speed
While driving
1)
...km/h Speedometer display and value on
V.A.G1551 may deviate slightly
from each other.
- If necessary, check Speedometer
Vehicle Speed sensor (VSS) -G22-
Pa
ge 20 of 49 Read Measurin
g Value Block
(scan tool function 08
) for transmissions with h
ydraulic control -E17-
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT02.01.13
01-220
Only for transmission with hydraulic control E17
Display
group
number Display
field Description
Test requirements
Spec. value on
V.A.G 1551
display Corrective actions
008
4 Signal for
deceleration/engine under
load While
driving
1) Deceleration
mode Deceleration For declines or delay
(engine brake)
Engine under
load
- Engine is under load in
normal driving
conditions.
1) While driving, a second mechanic is required to read specifications. 2) Only for vehicles with CAN-bus For information on which vehicles are equipped with CAN-bus
Repair Manual, 5 Spd. Automatic Transmission 01V, Repair Group 00, engine codes, unit allocation, ratios, equipment
3) Only for vehicles without CAN-bus For information on which vehicles are equipped with CAN-bus
Repair Manual, 5 Spd. Automatic Transmission 01V, Repair Group 00, engine codes, unit allocation, ratios, equipment
