69-15

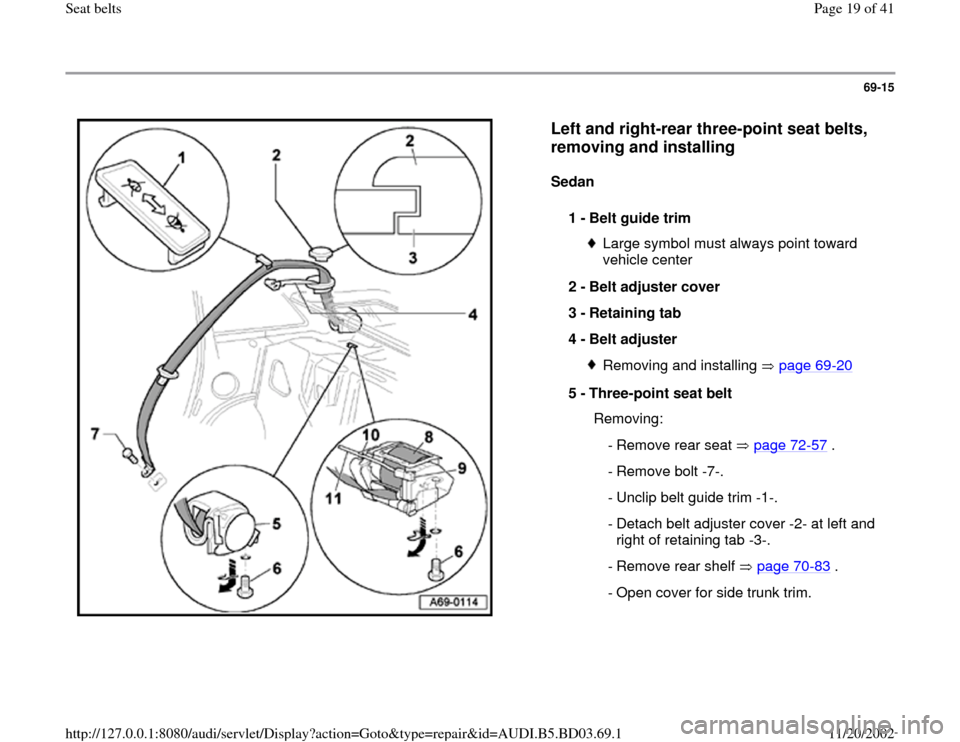

Left and right-rear three-point seat belts,
removing and installing
Sedan
1 -
Belt guide trim
Large symbol must always point toward
vehicle center
2 -
Belt adjuster cover
3 -
Retaining tab
4 -
Belt adjuster Removing and installing page 69
-20
5 -
Three-point seat belt
Removing:
- Remove rear seat page 72
-57
.
- Remove bolt -7-.
- Unclip belt guide trim -1-.
- Detach belt adjuster cover -2- at left and
right of retaining tab -3-.
- Remove rear shelf page 70
-83
.
- Open cover for side trunk trim.
Pa
ge 19 of 41 Seat belts11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.69.1
69-21

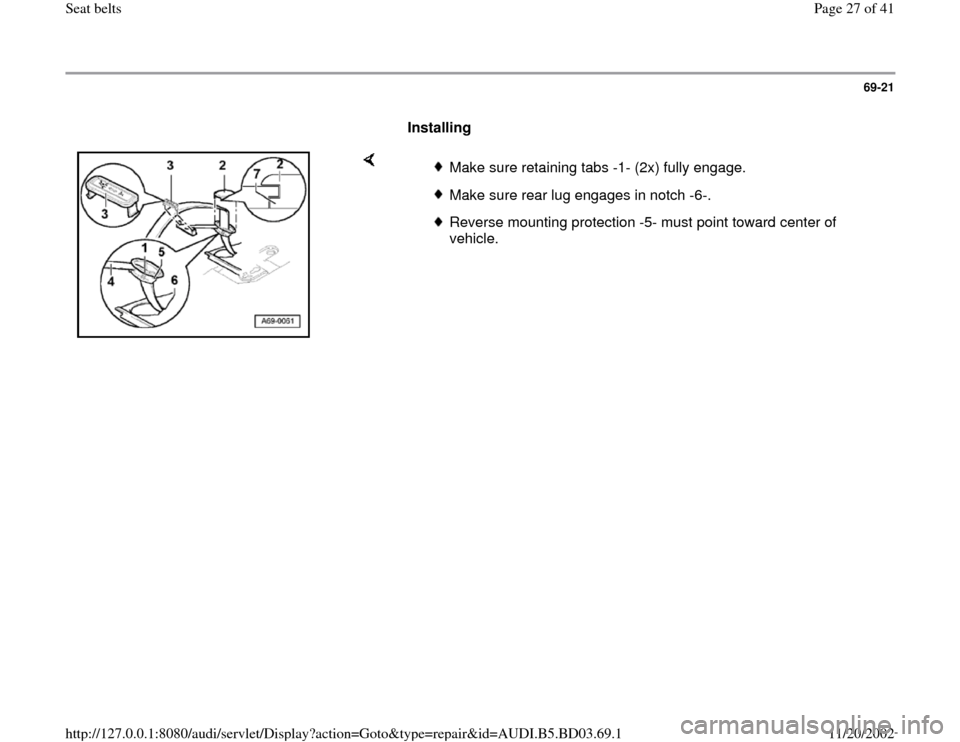

Installing
Make sure retaining tabs -1- (2x) fully engage.
Make sure rear lug engages in notch -6-.
Reverse mounting protection -5- must point toward center of
vehicle.
