Inspection service:

- Always consider brake pad wear when checking
brake fluid level. When driving, a slight drop in
brake fluid level results from normal wear and
automatic adjustment of brake pads.

- If brake fluid level is at minimum marking or
slightly above, brake pads are close to wear
limit, it is not necessary to add fluid.

- If brake pads are new or well away from wear
limit, brake fluid level must be between min. and
max. markings.

- If brake fluid level has dropped below min.
marking, check brake system before adding
brake fluid.
Pa
ge 54 of 111 Descri
ption of wor
k
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.ME01.01.6

68

Headlights, aiming using Hella Universal
Beamsetter IV


Service
Align vehicle headlamps using the VAS 5107
(Hella Universal Beamsetter IV) and the following
procedure:
Additional instructions and diagrams
Instruction Manual for the Hella Beamsetter
Series IV

Have a second technician sit in the driver's seat while aligning the
headlights. - Position vehicle on a flat floor surface that meets the following (ISO
10640) specifications:

0.5mm or less slant from front wheel to back wheel of the
Beamsetter -A-.
1mm or less slant per meter for the length of the vehicle -B-.
- Clean headlight lenses.
- Adjust vehicle tire pressure to specifications.
- Bounce front and rear of vehicle up and down several times to settle
vehicle suspension.
Pa
ge 68 of 111 Descri
ption of wor
k
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.ME01.01.6

80

Service Reminder Indicator (SRI),
resetting


Vehicles up to model year 1997
If service date has been reached, service event
which is due appears as a flashing display after
ignition is turned ON. Flashing continues for a
few seconds after engine is started.
The following displays are possible:

OIL Engine oil change
In 1 Inspection service
In 2 Inspection service with additional work
A service event which is due is already displayed
1000 km (620 mi.) or 10 days before.
Service Reminder Indicator (SRI) must be
matched during Delivery Inspection or during
each Inspection Service to the km and time
specifications until next service event with help of
Scan Tool (ST) VAG 1551.

- Select adaptation channels individually and
enter relevant specified values.
Pa
ge 81 of 111 Descri
ption of wor
k
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.ME01.01.6

81

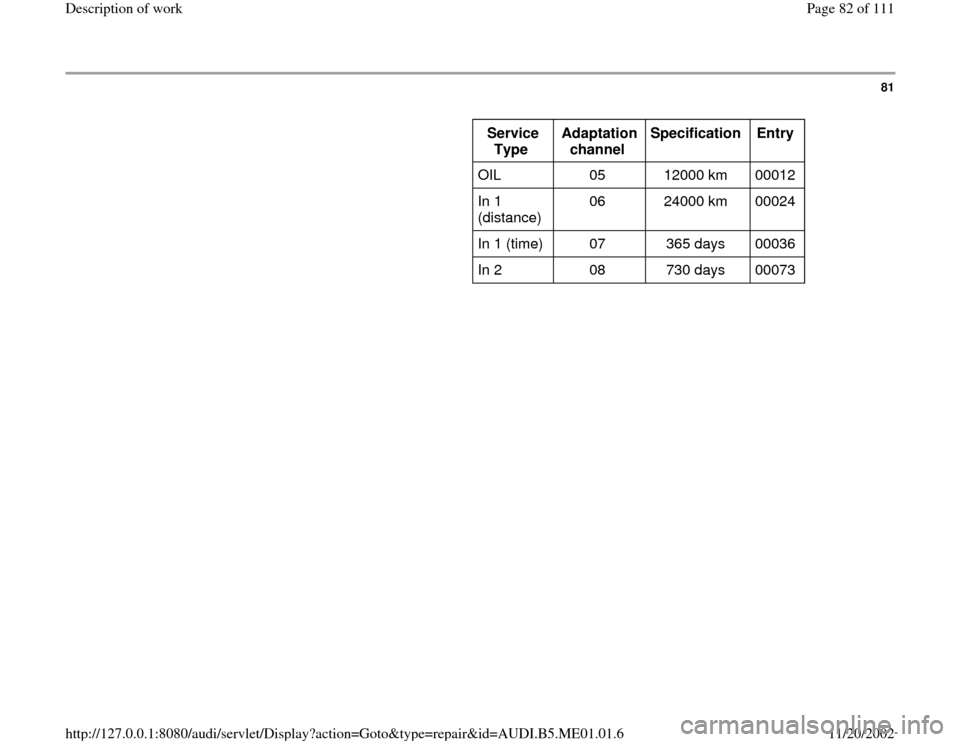

Service
Type Adaptation
channel Specification
Entry
OIL 05 12000 km 00012
In 1
(distance) 06 24000 km 00024
In 1 (time) 07 365 days 00036
In 2 08 730 days 00073
Pa
ge 82 of 111 Descri
ption of wor
k
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.ME01.01.6

82
The following service types should be adapted
depending on the inspections performed.

Inspection
performed Service type to
be adapted Adaptation
channel
Delivery
Inspection OIL
In 1 (distance)
In 1 (time)
In 2 05
06
07
08
OIL OIL 05
In 1 OIL
In 1 (distance)
In 1 (time) 05
06
07
In 2 OIL
In 1 (distance)
In 1 (time)
in 2 05
06
07
08
Pa
ge 83 of 111 Descri
ption of wor
k
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.ME01.01.6

83

Scan Tool (ST) VAG 1551 Connecting

- Move shift lever into position "P" or "N" and
apply parking brake (vehicles with Automatic
Transmissions).

- Open rear ashtray (center console) and remove Data Link Connector
(DLC) cover.

Service Reminder Indicator (SRI) Programming - With ignition turned OFF connect Scan Tool (ST) VAG 1551 to DLC
with Adapter Harness VAG 1551/3.
- Turn ignition ON.
- Press key -1- for "Rapid Data Transfer" mode.
- Press keys -1- and -7- for address word "Dash Panel Insert"; confirm
with key -Q-.
-
Advance program with key.- Press keys -1- and -0- for "Adaptation" function; confirm with key -Q-.
