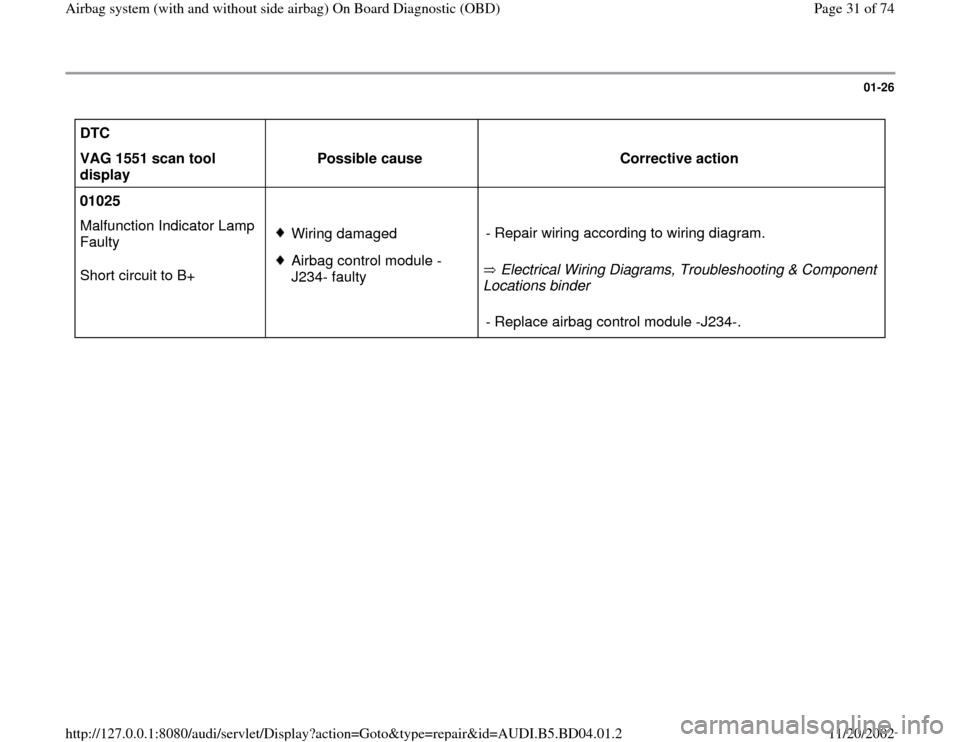

1999 AUDI A4 display

01-26

DTC


VAG 1551 scan tool
display Possible cause
Corrective action
01025
Malfunction Indicator Lamp
Faulty
Short circuit to B+
Wiring damaged
Airbag control module -
J234- faulty Electrical Wiring Diagrams, Troubleshooting & Component
Locations binder - Repair wiring according to wiring diagram.
- Replace airbag control module -J234-.
Pa
ge 31 of 74 Airba
g system
(with and without side airba
g)
On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.2

01-27
Vehicles 1997 : DTC


VAG 1551 scan tool display
Possible cause
Corrective action
01211
Igniter for Belt Tens., Rr., Driver-N196
(sensor for lateral acceleration)
Resistance value too large
Wiring damagedSeat belt tensioner
igniter -N196- faulty Airbag control module -
J234- faulty Electrical Wiring Diagrams, Troubleshooting &
Component Locations binder - Repair wiring according to wiring diagram.
- Replace seat belt tensioner igniter -N196-.
- Replace airbag control module -J234-.
01211
Igniter for Belt Tens., Rr., Driver-N196
Resistance value too small
Wiring damagedSeat belt tensioner
igniter -N196- faulty Airbag control module -
J234- faulty Electrical Wiring Diagrams, Troubleshooting &
Component Locations binder - Repair wiring according to wiring diagram.
- Replace seat belt tensioner igniter -N196-
- Replace airbag control module -J234-.
Pa
ge 32 of 74 Airba
g system
(with and without side airba
g)
On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.2

01-28

DTC


VAG 1551 scan tool
display Possible cause
Corrective action
01211
Igniter for Belt Tens., Rr.,
Driver-N196
Short circuit to B+
Wiring damaged
Airbag control module -J234-
faulty Electrical Wiring Diagrams, Troubleshooting &
Component Locations binder - Repair wiring according to wiring diagram.
- Replace airbag control module -J234-.
01211
Igniter for Belt Tens., Rr.,
Driver-N196
Short circuit to Ground
Wiring damaged
Seat belt tensioner igniter -
N196- faulty
Airbag control module -J234-
faulty Electrical Wiring Diagrams, Troubleshooting &
Component Locations binder - Repair wiring according to wiring diagram.
- Replace seat belt tensioner igniter -N196-.
- Replace airbag control module -J234-.
01211
Igniter for Belt Tens., Rr.,
Driver-N196
Open circuit
Wiring damaged
Seat belt tensioner igniter -
N196- faulty
Airbag control module -J234-
faulty Electrical Wiring Diagrams, Troubleshooting &
Component Locations binder - Repair wiring according to wiring diagram.
- Replace seat belt tensioner igniter -N196-.
Pa
ge 33 of 74 Airba
g system
(with and without side airba
g)
On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.2

01-29

DTC


VAG 1551 scan tool
display Possible cause
Corrective action
01212
Igniter for Belt Tens., Rr.,
Pass.-N197
Resistance value too large
Wiring damaged
Seat belt tensioner igniter -
N197- faulty
Airbag control module -J234-
faulty Electrical Wiring Diagrams, Troubleshooting &
Component Locations binder - Repair wiring according to wiring diagram.
- Replace seat belt tensioner igniter -N197-.
- Replace airbag control module -J234-.
01212
Igniter for Belt Tens., Rr.,
Pass.-N197
Resistance value too small
Wiring damaged
Seat belt tensioner igniter -
N197- faulty
Airbag control module -J234-
faulty Electrical Wiring Diagrams, Troubleshooting &
Component Locations binder - Repair wiring according to wiring diagram.
- Replace seat belt tensioner igniter -N197-.
- Replace airbag control module -J234-.
01212
Igniter for Belt Tens., Rr.,
Pass.-N197
Short circuit to B+
Wiring damaged
Airbag control module -J234-
faulty Electrical Wiring Diagrams, Troubleshooting &
Component Locations binder - Repair wiring according to wiring diagram.
Pa
ge 35 of 74 Airba
g system
(with and without side airba
g)
On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.2

01-30

DTC


VAG 1551 scan tool
display Possible cause
Corrective action
01212
Igniter for Belt Tens., Rr.,
Pass.-N197
Short circuit to Ground
Wiring damaged
Seat belt tensioner igniter -
N197- faulty
Airbag control module -J234-
faulty Electrical Wiring Diagrams, Troubleshooting &
Component Locations binder - Repair wiring according to wiring diagram.
- Replace seat belt tensioner igniter -N197-.
- Replace airbag control module -J234-.
01212
Igniter for Belt Tens., Rr.,
Pass.-N197
Open circuit
Wiring damaged
Seat belt tensioner igniter -
N197- faulty
Airbag control module -J234-
faulty Electrical Wiring Diagrams, Troubleshooting &
Component Locations binder - Repair wiring according to wiring diagram.
- Replace seat belt tensioner igniter -N197-.
- Replace airbag control module -J234-.
Pa
ge 37 of 74 Airba
g system
(with and without side airba
g)
On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.2

01-31

DTC


VAG 1551 scan tool
display Possible cause
Corrective action
01213
Igniter for Belt Tens., Rr.,
Ctr.-N198
Resistance value too large
Wiring damaged
Seat belt tensioner igniter -
N198- faulty
Airbag control module -J234-
faulty Electrical Wiring Diagrams, Troubleshooting &
Component Locations binder - Repair wiring according to wiring diagram.
- Replace seat belt tensioner igniter -N198-.
- Replace airbag control module -J234-.
01213
Igniter for Belt Tens., Rr.,
Ctr.-N198
Resistance value too small
Wiring damaged
Seat belt tensioner igniter -
N198- faulty
Airbag control module -J234-
faulty Electrical Wiring Diagrams, Troubleshooting &
Component Locations binder - Repair wiring according to wiring diagram.
- Replace seat belt tensioner igniter -N198-.
- Replace airbag control module -J234-.
01213
Igniter for Belt Tens., Rr.,
Ctr.-N198
Short circuit to B+
Wiring damaged
Airbag control module -J234-
faulty Electrical Wiring Diagrams, Troubleshooting &
Component Locations binder - Repair wiring according to wiring diagram.
Pa
ge 38 of 74 Airba
g system
(with and without side airba
g)
On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.2

01-32

DTC


VAG 1551 scan tool
display Possible cause
Corrective action
01213
Igniter for Belt Tens., Rr.,
Ctr.-N198
Short circuit to Ground
Wiring damaged
Seat belt tensioner igniter -
N198- faulty
Airbag control module -J234-
faulty Electrical Wiring Diagrams, Troubleshooting &
Component Locations binder - Repair wiring according to wiring diagram.
- Replace seat belt tensioner igniter -N198-.
- Replace airbag control module -J234-.
01213
Igniter for Belt Tens., Rr.,
Ctr.-N198
Open circuit
Wiring damaged
Seat belt tensioner igniter -
N198- faulty
Airbag control module -J234-
faulty Electrical Wiring Diagrams, Troubleshooting &
Component Locations binder - Repair wiring according to wiring diagram.
- Replace seat belt tensioner igniter -N198-.
- Replace airbag control module -J234-.
Pa
ge 40 of 74 Airba
g system
(with and without side airba
g)
On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.2

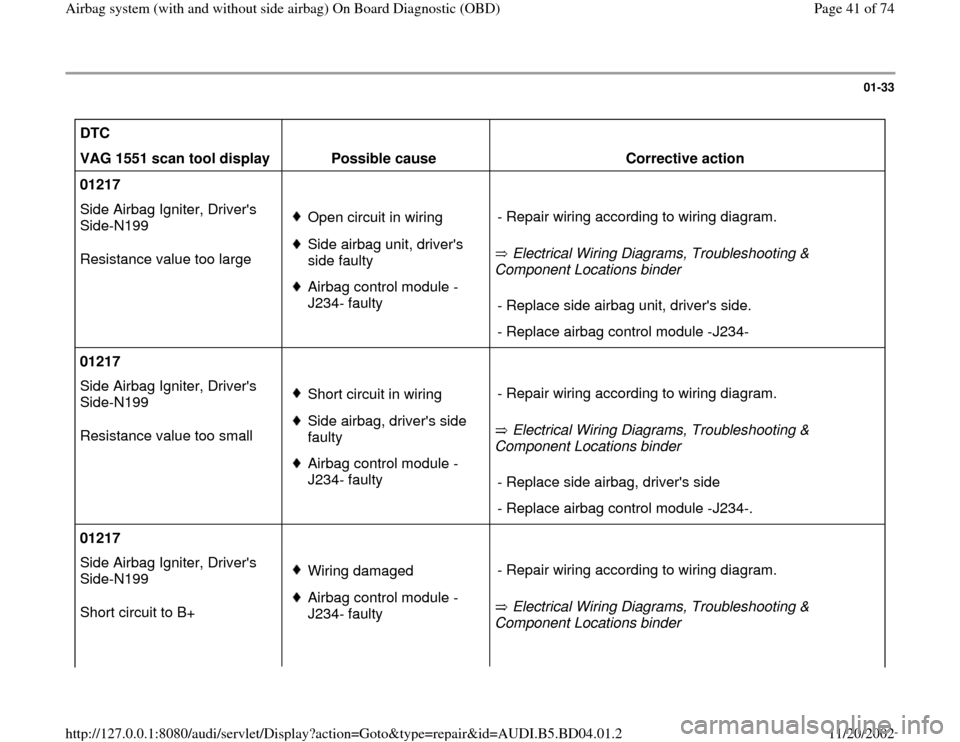

01-33

DTC


VAG 1551 scan tool display
Possible cause
Corrective action
01217
Side Airbag Igniter, Driver's
Side-N199
Resistance value too large
Open circuit in wiringSide airbag unit, driver's
side faulty Airbag control module -
J234- faulty Electrical Wiring Diagrams, Troubleshooting &
Component Locations binder - Repair wiring according to wiring diagram.
- Replace side airbag unit, driver's side.
- Replace airbag control module -J234-
01217
Side Airbag Igniter, Driver's
Side-N199
Resistance value too small
Short circuit in wiringSide airbag, driver's side
faulty Airbag control module -
J234- faulty Electrical Wiring Diagrams, Troubleshooting &
Component Locations binder - Repair wiring according to wiring diagram.
- Replace side airbag, driver's side
- Replace airbag control module -J234-.
01217
Side Airbag Igniter, Driver's
Side-N199
Short circuit to B+
Wiring damagedAirbag control module -
J234- faulty Electrical Wiring Diagrams, Troubleshooting &
Component Locations binder - Repair wiring according to wiring diagram.
Pa
ge 41 of 74 Airba
g system
(with and without side airba
g)
On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.2
