Display group number 63: zero compensation
of Sensor for transverse acceleration -G200-

Note:
All functions which could previously be
performed with V.A.G 1551 can now also be
carried out with the tester VAS 5051.

Position vehicle on a flat level surface.

- Connect V.A.G 1551 scan tool and select
(address word 03) brake electronics control
module with ignition switched on; Page 01
-
163 .

- Check specifications with help of function 08
"Read measured value block" Page 01
-240 ,
Display group number 004.
First perform function 11 "Login procedure"
successfully using V.A.G 1551 scan tool
Page 01
-287
Rapid data transfer HELP
Enter address word XX Indicated on display:
- Press keys 0 and 4. (The function "Initiating
basic setting" is selected with 04).
Стр. 117из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-281

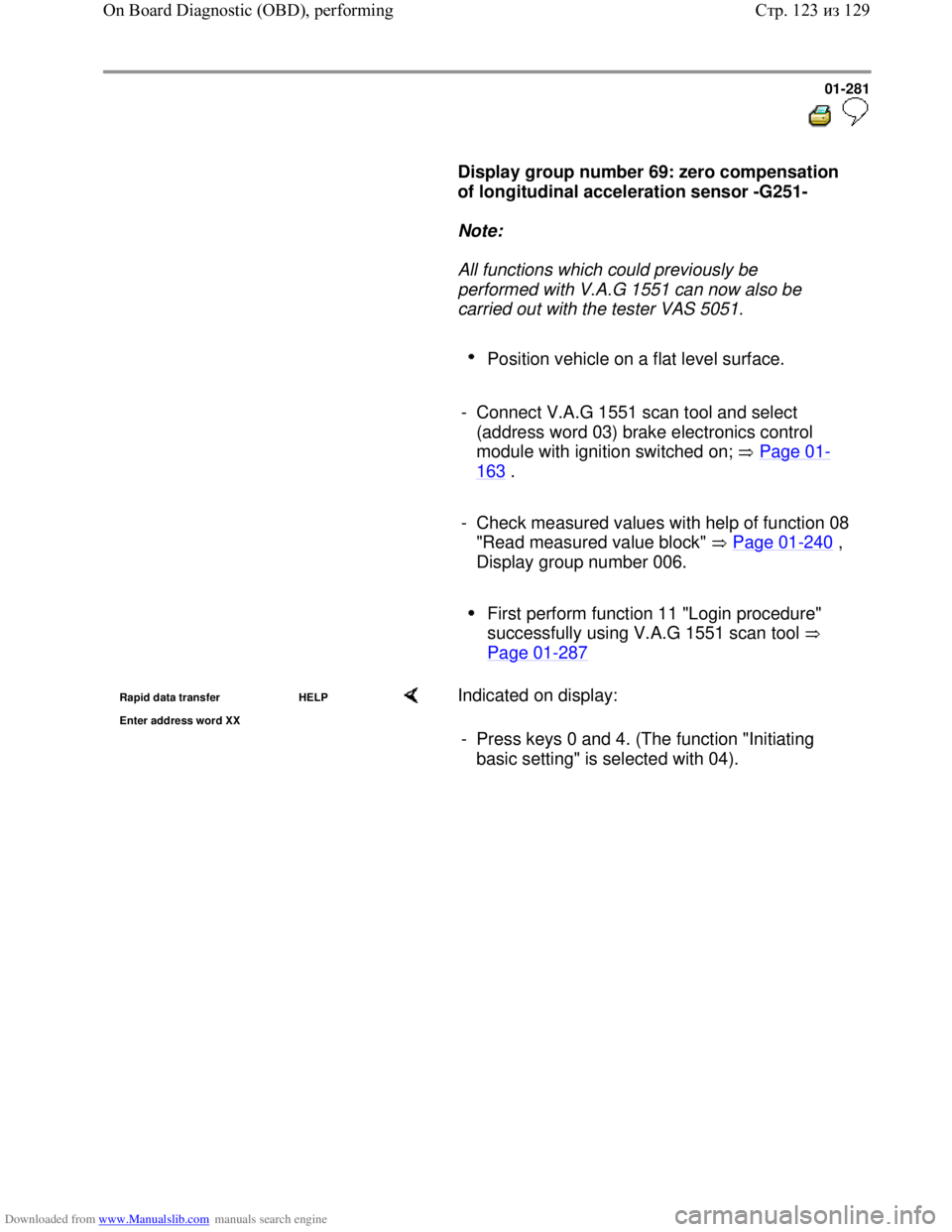

Display group number 69: zero compensation
of longitudinal acceleration sensor -G251-

Note:
All functions which could previously be
performed with V.A.G 1551 can now also be
carried out with the tester VAS 5051.

Position vehicle on a flat level surface.

- Connect V.A.G 1551 scan tool and select
(address word 03) brake electronics control
module with ignition switched on; Page 01
-
163 .

- Check measured values with help of function 08
"Read measured value block" Page 01
-240 ,
Display group number 006.
First perform function 11 "Login procedure"
successfully using V.A.G 1551 scan tool
Page 01
-287
Rapid data transfer HELP
Enter address word XX Indicated on display:
- Press keys 0 and 4. (The function "Initiating
basic setting" is selected with 04).
Стр. 123из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-284



Display group number 93: activation of ESP
driving test
The ESP driving test is used to check the
plausibility of the signals from sensor for
transverse acceleration -G200-, sender for
rotation rate -G202- and sender 1 for brake
booster -G201-.
The ESP driving test should be performed each
time parts of the ESP system are removed or
replaced.

- Connect V.A.G 1551 scan tool and select
(address word 03) brake electronics control
module (address word 03) with ignition switched
on; Page 01
-163 .
Rapid data transfer HELP
Enter address word XX Indicated on display:
- Press keys 0 and 4. (The function "Initiating
basic setting" is selected with 04).
Rapid data transfer Q
04 - Basic settin
g
Indicated on display:
- Confirm entry with key Q.
Basic setting HELP
Enter displa
y group number XXX
Indicated on display:
- Press keys 0, 9 and 3
Стр. 126из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine
01-293


Contact
Wiring connection to component ...
1
Voltage supply fr om battery +
2
Connector T16/7, K wire
3

Longitudinal acceleration sens or -G251- sensor wire(4MOTION vehicles only)
Vacant (4MOTION vehicles with ESP-sensor unit -G419, vehicles from 11.01)
4
Voltage supply from igni tion/starter switch
5

Longitudinal acceleration se nsor -G251- Ground(4MOTION vehicles only)
Vacant (4MOTION vehicles with ESP-sensor unit -G419- , vehicles from 11.01)
6

Sensor for transverse acceleration -G200-
Voltage supply for ESP-sensor unit -G419-, vehicles from 02.02
7

Longitudinal acceleration se nsor -G251- voltage supply(4MOTION vehicles
only)
Vacant (4MOTION vehicles with ESP-sensor unit -G419- , vehicles from 11.01)
8
Vehicles with navi gation system only
9
Coding bridge to contact 12 (vehicle s with ABS/EDL/ASR/ESP 4MOTION
only)
10
Vehicles with navi gation system only
11
Data bus wire Wiring diagrams
12
Coding bridge to contact 9 (vehicles with ABS/EDL/ASR/ESP 4MOTION only)
Coding bridge to contact 38 (vehicles with ABS/EDL/ASR/ESP front wheel
drive only)
