01 - On Board Diagnostic (OBD)
ABS ITT Mark 20 IE On Board Diagnostic (OBD)

Function

Identifying characteristics

Technical data

Safety precautions

On Board Diagnostic (OBD) with V.A.G 1551 Scan Tool or Tester VAS 5051 (flow chart)


Electrical/electronic co mponents and locations

Diagnostic Trouble Codes (DTC) displayed by warning lights
-K14-, -K47- and -K118-

ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

V.A.G 1551 Scan Tool, connecting and selecting function

Diagnostic Trouble Code (DTC), memory

Automatic test sequence

Vehicle Diagnosis, Testing and Information Sy stem VAS 5051, connecting and selecting ABS
control module
Diagnostic Trouble Code (DTC) table

Diagnostic Trouble Code (DTC) memory, erasing and ending output

ABS control module, coding

Measured value block, reading

Safety precautions

Output Diagnostic Test Mode (DTM)

Basic setting, initiating


ABS, ABS/EDL and ABS/EDL/ASR IT T Mark 20 IE, electrical check

Multi
-pin connector with contact assignment
Test table

Brake light switch, adjusting


ABS Mark 60 On Board Diagnostic (OBD), vehicles from my 10.00

Function

Arrangement of ABS MARK 60

Technical data

Safety precautions and fundamental points regarding troubleshooting

Troubleshooting with V.A.G 1551 scan tool or tester VAS 5051 on ABS Mark 60 (flow chart)


Electrical/electronic compon ents and installing locations


Diagnostic Trouble Codes (DTCs) displayed by warning lights
-K47-, -K118- and -K155-

On Board Diagnostic (OBD), performing

Test prerequisites for OBD

Safety precautions

Scan tool, connecting

V.A.G 1551 scan tool, connecting and selecting function

List of selectable functions

Automatic test sequence

Diagnostic Trouble Code (DTC) memory, checking

Output Diagnosic Test Mode (DTM)

Diagnostic Trouble Code (DTC) table

Diagnostic Trouble Code (DTC) memory, erasing and ending output

ABS control module, coding

Vehicle data label

Measured value block, reading

Output Diagnosic Test Mode (DTM)

Basic setting, initiating

Login procedure


Electrical check of Mark 60

Multi
-pin connector with contact assignments
Test table (test steps 1
- 16)
Test table (test steps 17
- 23)

Definitions


Volkswagen Golf 4 / Bora (1998-2005), GTI / Jetta (1998-2005), R32
(A4)

Downloaded from www.Manualslib.com manuals search engine 01-1


ABS ITT Mark 20 IE On Board
Diagnostic (OBD)
Function
Since the control modules are interconnected
with CAN-bus, always begin OBD by checking
the Diagnostic Trouble Code (DTC) memories
of all the control modules in the vehicle.
This occurs in the Automatic test sequence and
is activated with key function 00.
When doing this, check to see if there are
DTCs stored which may influence the ABS.
On Board Diagnostic (OBD) relates to the
electrical/electronic part of the ABS, i.e. only
malfunctions via the electrical connection to the
control module are recognized (e.g. speed
sensor open circuit).
The 25-pin ABS Control Module (w/EDL) -J104-
forms with the hydraulic unit a compact unit.
The unit is located on the left in the engine
compartment. The control module is equipped
with a DTC memory. The diagnostic connection
is located in the center console below the
heating/air conditioning controls.
The control module recognizes malfunctions
during vehicle operation and stores them in a
permanent memory, the contents of which
remain even during periods of no battery
voltage.
Стр. 1из 8 ABS ITT Mark 20 IE On Board Diagnostic (OBD)

Downloaded from www.Manualslib.com manuals search engine 01-2


Sporadic (isolated) malfunctions will also be
recognized and stored. But if these malfunctions
do not occur again within the next 50 vehicle
starts and driving off sequences then, with the
exception of "control module inoperative", the
DTC memory will be erased.
After switching on the ignition and/or starting the
engine the ABS warning light -K47- and the
warning light for brake system -K118- light up for
approx. 2 seconds.
During this period a test sequence (self-check) is
run in the control module for the following
functions:

To check if the supply voltage is at least 10.0
Volt

To check control module including the valve
windings

To check the coding of the control module

A static check of the speed sensor (no speed
signal)

If after driving off and exceeding a speed of
approx. 20 km/h (approx. 13 mph) the speed
signal is not OK. The ABS warning light -K47-
will light up again.
Стр. 2из 8 ABS ITT Mark 20 IE On Board Diagnostic (OBD)

Downloaded from www.Manualslib.com manuals search engine 01-3

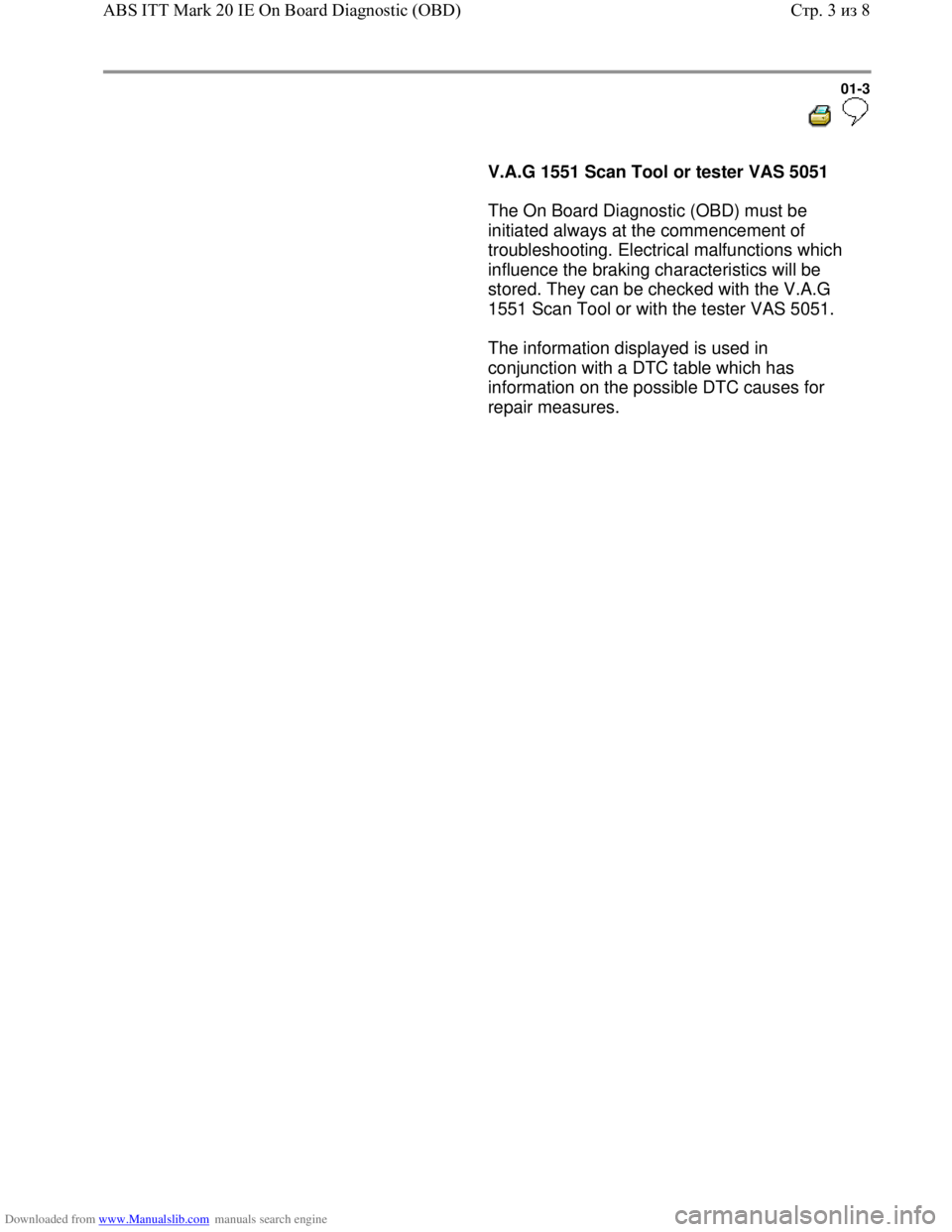

V.A.G 1551 Scan Tool or tester VAS 5051
The On Board Diagnostic (OBD) must be
initiated always at the commencement of
troubleshooting. Electrical malfunctions which
influence the braking characteristics will be
stored. They can be checked with the V.A.G
1551 Scan Tool or with the tester VAS 5051.
The information displayed is used in
conjunction with a DTC table which has
information on the possible DTC causes for
repair measures.
Стр. 3из 8 ABS ITT Mark 20 IE On Board Diagnostic (OBD)

Downloaded from www.Manualslib.com manuals search engine 01-6


Safety precautions

The ABS is a vehicle safety system; the
appropriate knowledge is necessary to work on
the system.

In order to check complaints and to be able to
carry out pin-pointed troubleshooting, the
Diagnostic Trouble Code (DTC) memory must
be checked before beginning work on the ABS
system.

Only separate connectors when the ignition is
switched off.

Observe the appropriate instructions regarding
the handling of brake fluid.
Repair Manual, Brake System, Repair Group
47
ABS malfunctions are indicated by the ABS
warning light illuminating. Certain malfunctions
will only be recognized at speeds above 20
km/h (approx. 13 mph) (carry out road test).

If the ABS Warning Light -K47- and the warning
light for brake system -K118- do not light up,
but the brake system is not functioning correctly
then the malfunction must be sought in the
conventional braking system.
Repair Manual, Brake System; Repair Group
45
Стр. 6из 8 ABS ITT Mark 20 IE On Board Diagnostic (OBD)

Downloaded from www.Manualslib.com manuals search engine 01-7

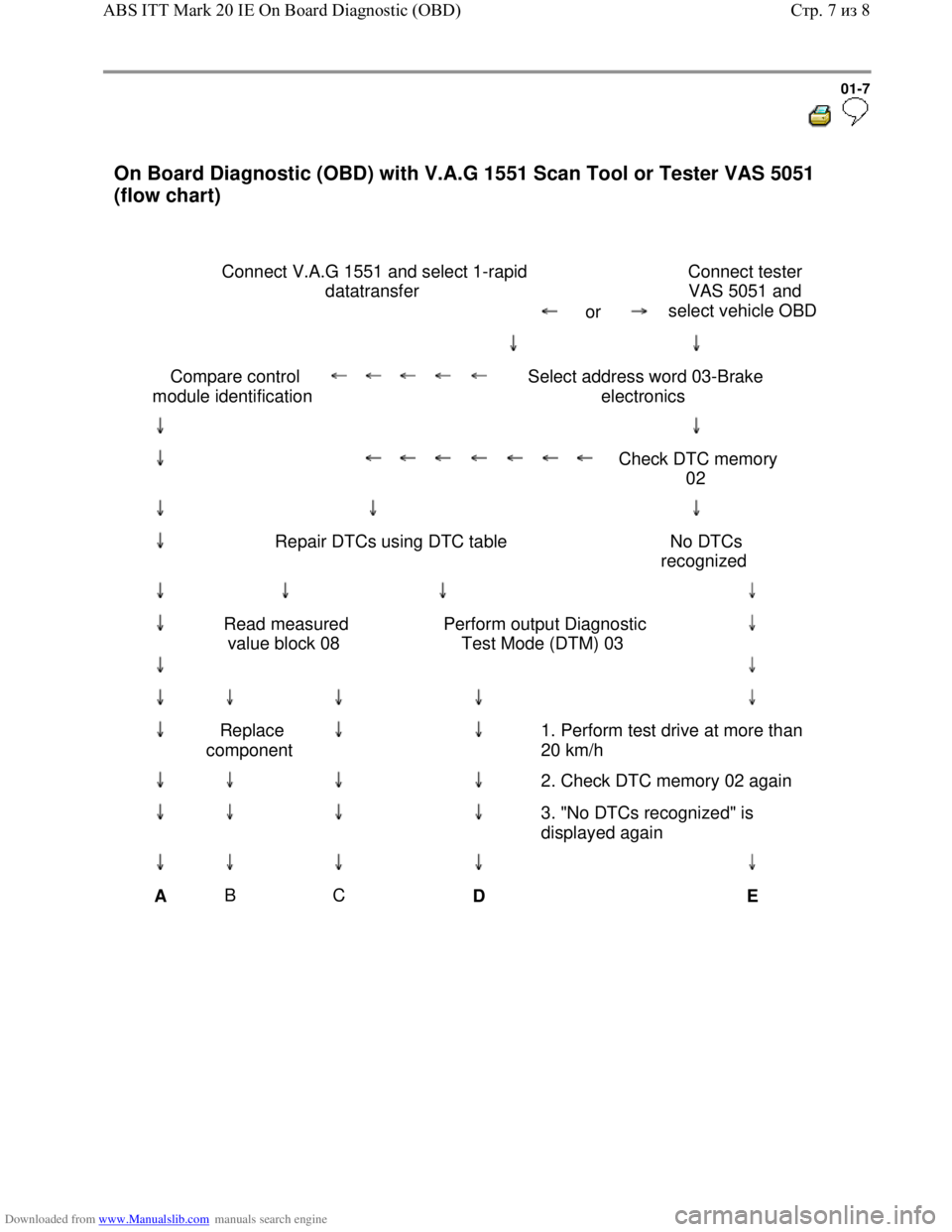

On Board Diagnostic (OBD) with V.A.G 1551 Scan Tool or Tester VAS 5051
(flow chart)


Connect V.A.G 1551 and select 1-rapid
datatransfer


or
Connect tester
VAS 5051 and
select vehicle OBD




Compare control
module identification
Select address word 03-Brake
electronics







Check DTC memory
02







Repair DTCs using DTC table No DTCs
recognized









Read measured
value block 08 Perform output Diagnostic
Test Mode (DTM) 03












Replace
component

1. Perform test drive at more than
20 km/h





2. Check DTC memory 02 again





3. "No DTCs recognized" is
displayed again








A B
C
D
E
Стр. 7из 8 ABS ITT Mark 20 IE On Board Diagnostic (OBD)

Downloaded from www.Manualslib.com manuals search engine 01-8

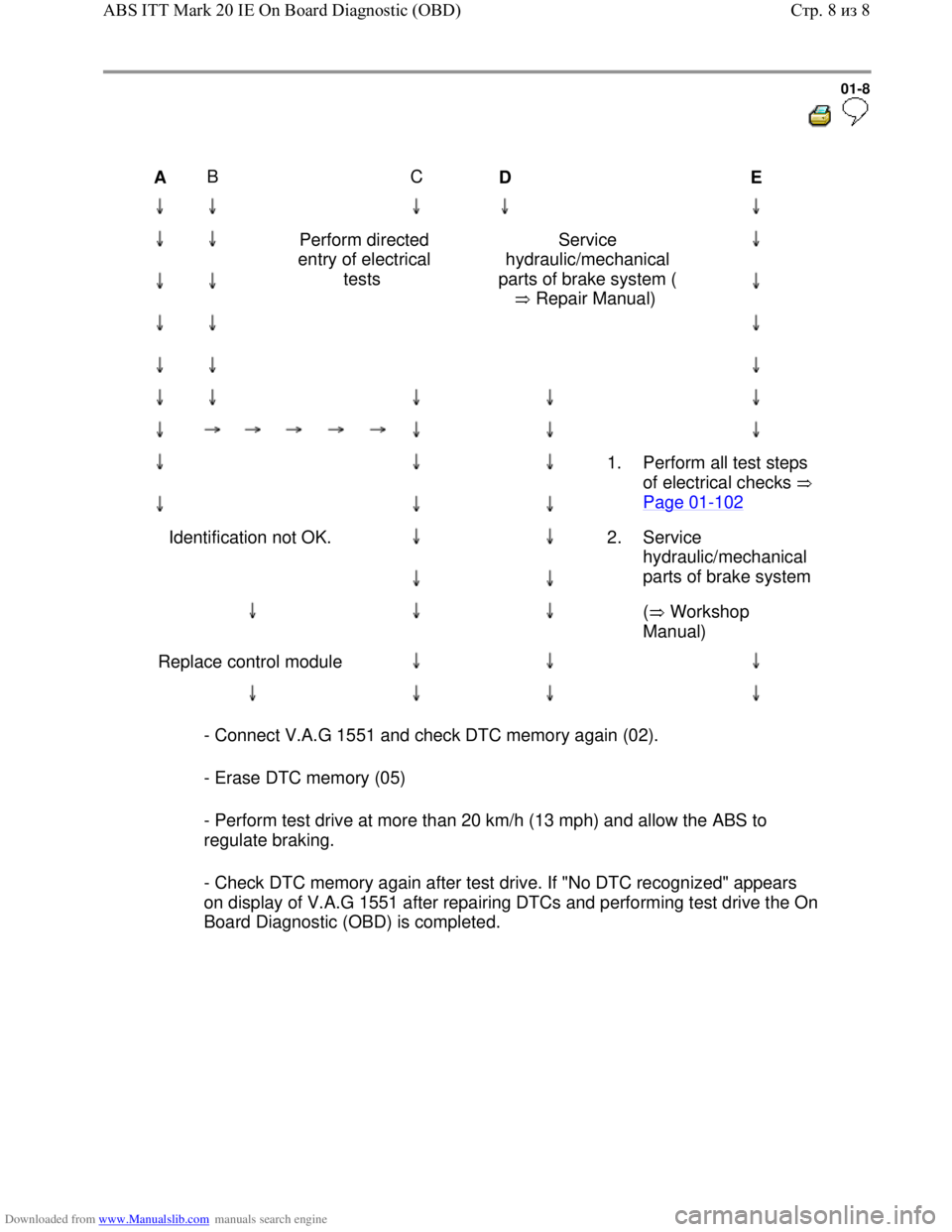

A B
C
D

E
















Perform directed
entry of electrical
tests Service
hydraulic/mechanical
parts of brake system (
Repair Manual)
























1. Perform all test steps
of electrical checks
Page 01
-102

Identification not OK.




2. Service
hydraulic/mechanical
parts of brake system




( Workshop
Manual)
Replace control module











- Connect V.A.G 1551 and check DTC memory again (02).

- Erase DTC memory (05)

- Perform test drive at more than 20 km/h (13 mph) and allow the ABS to
regulate braking.

- Check DTC memory again after test drive. If "No DTC recognized" appears
on display of V.A.G 1551 after repairing DTCs and performing test drive the On
Board Diagnostic (OBD) is completed.







Стр. 8из 8 ABS ITT Mark 20 IE On Board Diagnostic (OBD)

Downloaded from www.Manualslib.com manuals search engine

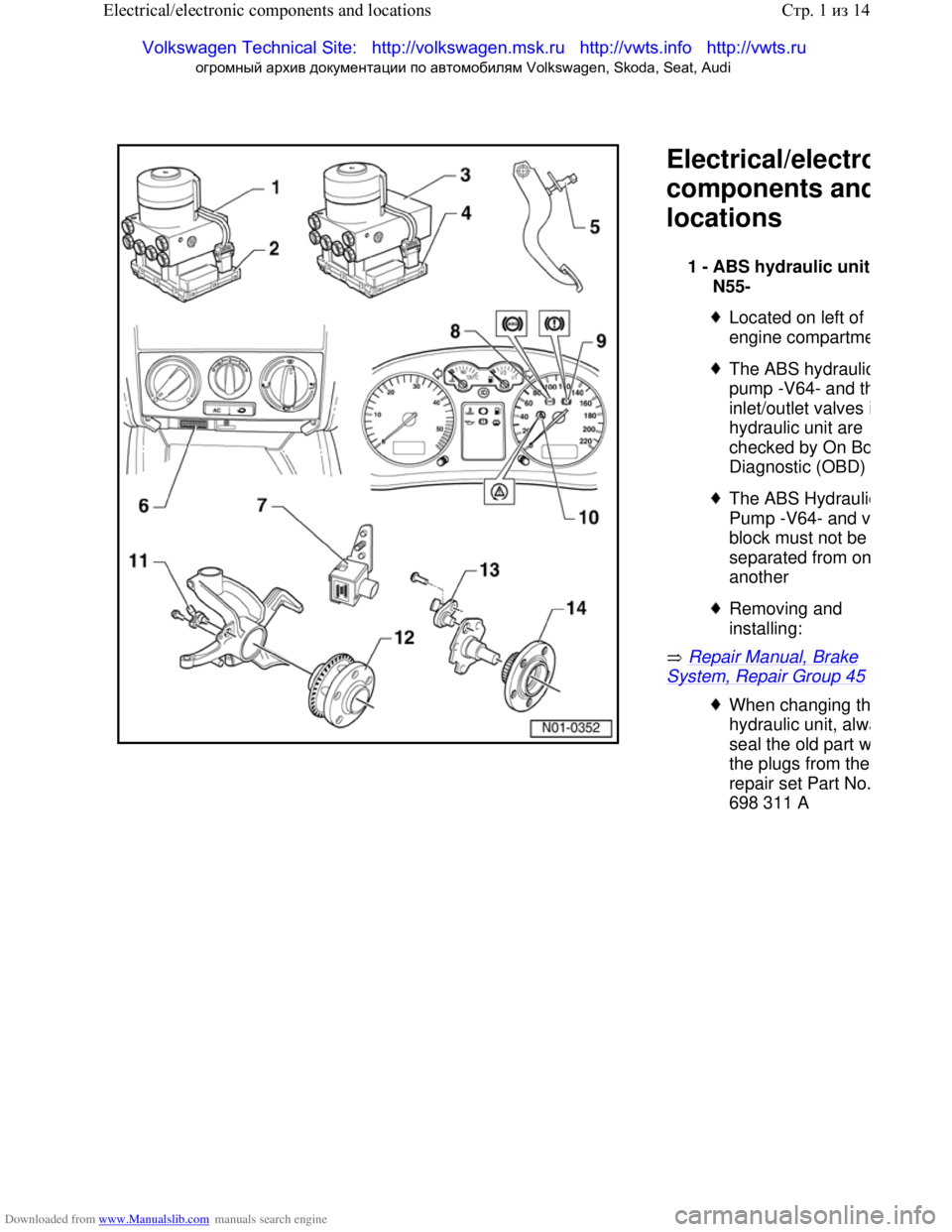

Electrical/electro
components and
locations
Repair Manual, Brake
System, Repair Group 45
1 -

ABS hydraulic unit
N55-

Located on left of
engine compartm
e
The ABS hydraulic
pump -V64- and th
inlet/outlet valves i
hydraulic unit are
checked by On B
o
Diagnostic (OBD)

The ABS Hydraulic
Pump -V64- and v
block must not be
separated from o
n
another

Removing and
installing:
When changing th
hydraulic unit, alw
a
seal the old part w
the plugs from the
repair set Part No.
698 311 A
Стр. 1 из 14
Electrical/electronic components and locations
