1998 OPEL FRONTERA bulb

LIGHTING SYSTEM8A–9

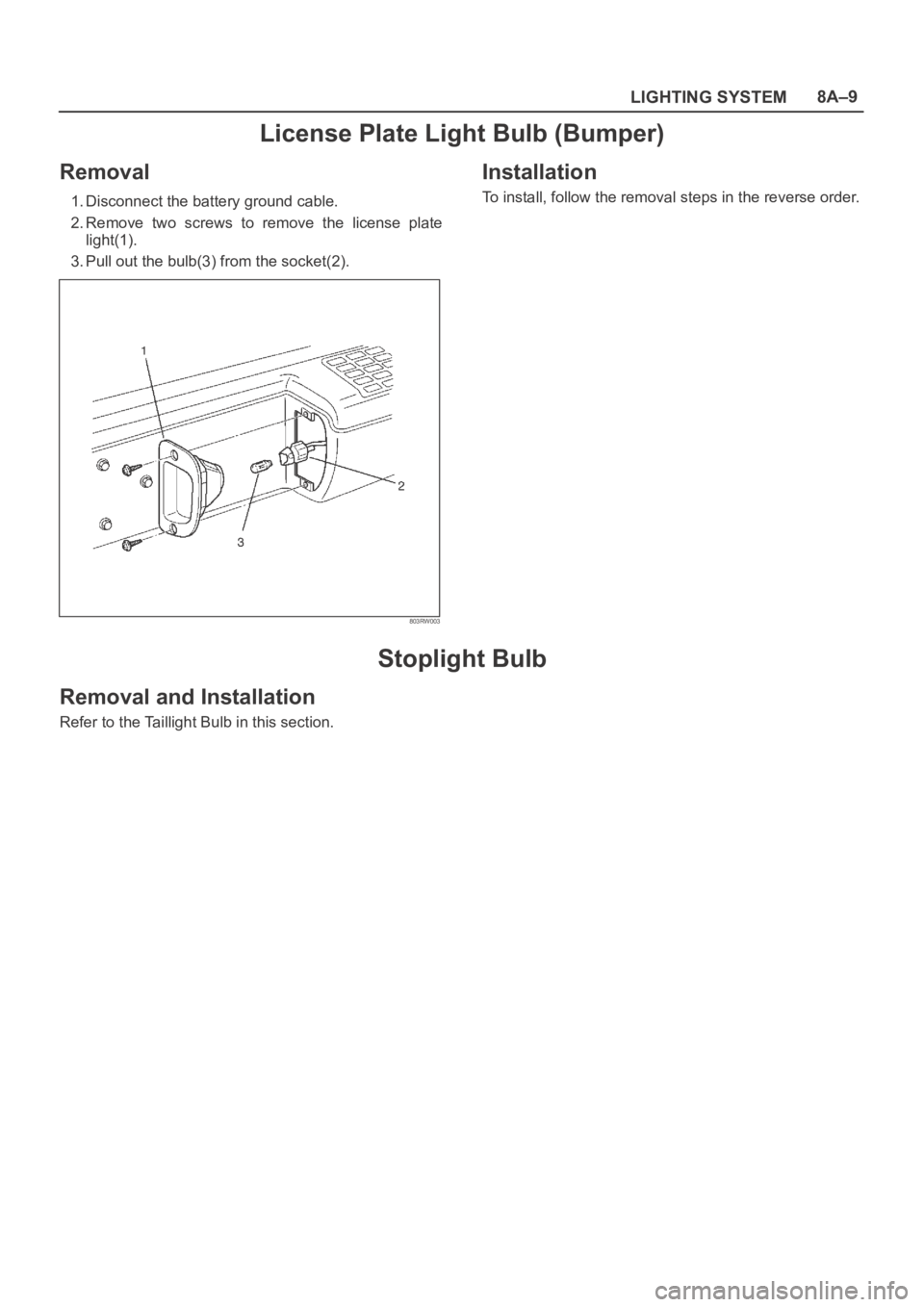

License Plate Light Bulb (Bumper)
Removal
1. Disconnect the battery ground cable.
2. Remove two screws to remove the license plate
light(1).
3. Pull out the bulb(3) from the socket(2).
803RW003
Installation
To install, follow the removal steps in the reverse order.
Stoplight Bulb
Removal and Installation
Refer to the Taillight Bulb in this section.

8A–10LIGHTING SYSTEM
High Mount Stoplight
Removal
1. Disconnect the battery ground cable.
2. Remove the clips(2).
3. Pull out the high mount stoplight(1).
4. Remove the connector.
5. Remove the high mount stoplight.
803RS003
Installation
1. Insert the clips(1)(3) into the high mount stoplight(2).
2. Reconnect the connector.
3. Install the high mount stoplight.
803RS004
Front Turn Signal Light Bulb
Removal
1. Disconnect the battery ground cable.
2. Remove the screw at the upper portion of the light
bracket, and remove the bracket from the fender.
3. Remove the front combination light(1).
4. Remove the turn signal light socket(3) by turning it
counterclockwise.
5. Remove the bulb(2) by turning it counterclockwise
while pushing it at the same time.
801RS002
Installation
To install, follow the removal steps in the reverse order.

LIGHTING SYSTEM8A–11
Side Turn Signal Light Bulb
Removal
1. Disconnect the battery ground cable.
2. Pull the light/bulb(1) toward you while pushing the
light housing in the rear direction of the vehicle to
release its lock.
3. Remove the bulb by turning it counterclockwise while
pushing it at the same time.
801RW013
Installation
To install, follow the removal steps in the reverse order.
Rear Turn Signal Light Bulb
Removal
1. Disconnect the battery ground cable.
2. Remove the three screws and release the lock at two
positions.
3. Remove the rear combination light(3).
4. Remove the turn signal light socket/bulb(1) by turning
it counterclockwise.
5. Remove the bulb(2) by turning it counterclockwise
while pushing it at the same time.
803RS002
Installation
To install, follow the removal steps in the reverse order.

8A–12LIGHTING SYSTEM
Backup Light Bulb
Removal
1. Disconnect the battery ground cable.
2. Remove three screws and release the lock at two
positions.
3. Remove the rear combination light(3).
4. Remove the backup light socket/bulb(1) by turning it
counterclockwise.
5. Remove the bulb(2) by turning it counterclockwise
while pushing it at the same time.
803RS001
Installation
To install, follow the removal steps in the reverse order.
Dome Light Bulb
Removal
1. Disconnect the battery ground cable.
2. Remove the lens(2) by releasing the locks at three
locations.
3. Remove the bulb(1).
805RS005
Installation
To install, follow the removal steps in the reverse order.

LIGHTING SYSTEM8A–13

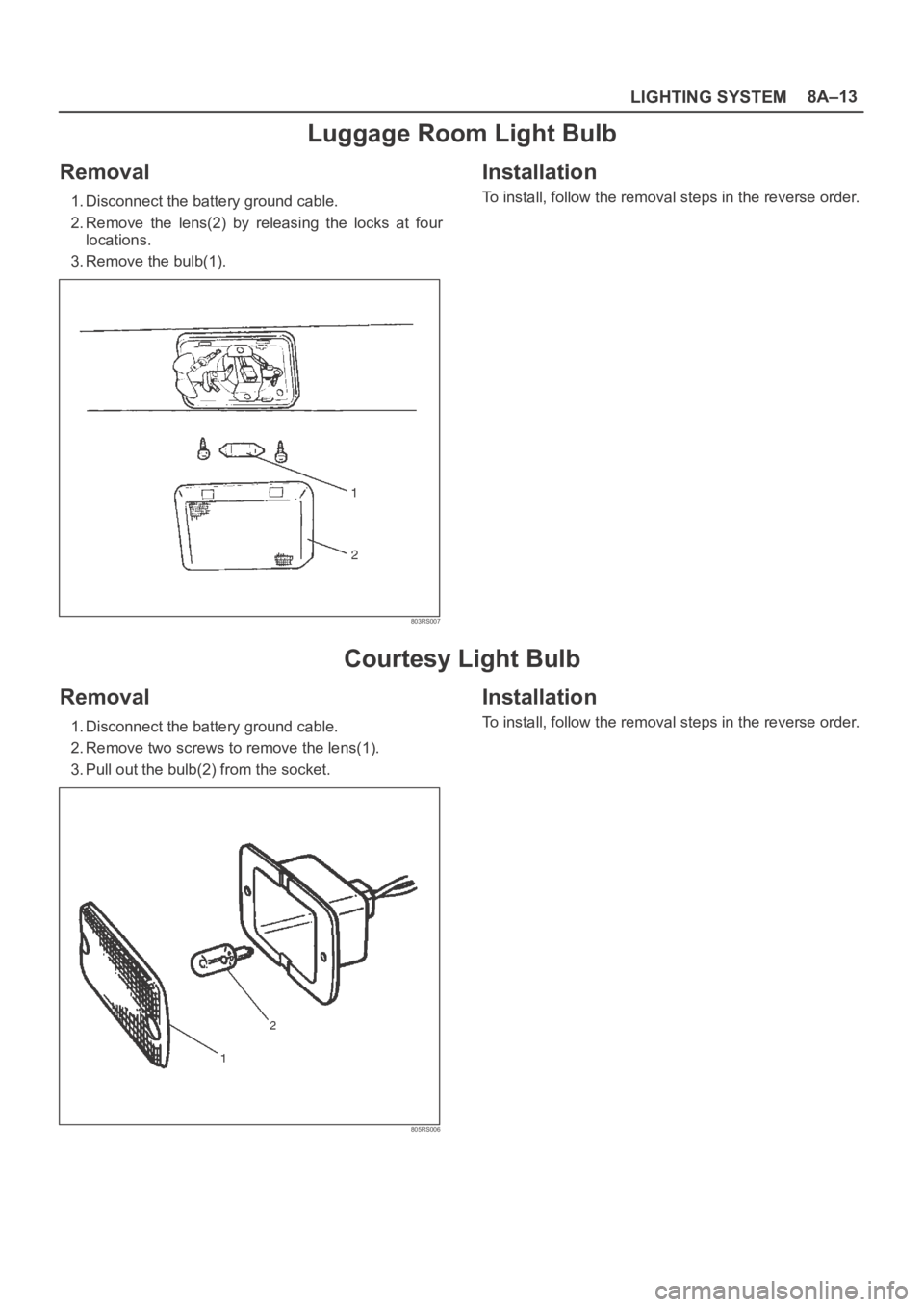

Luggage Room Light Bulb
Removal
1. Disconnect the battery ground cable.
2. Remove the lens(2) by releasing the locks at four
locations.
3. Remove the bulb(1).
803RS007
Installation
To install, follow the removal steps in the reverse order.
Courtesy Light Bulb
Removal
1. Disconnect the battery ground cable.
2. Remove two screws to remove the lens(1).
3. Pull out the bulb(2) from the socket.
805RS006
Installation
To install, follow the removal steps in the reverse order.

8A–14LIGHTING SYSTEM
Map Light Switch/Bulb
Removal
1. Disconnect the battery ground cable.
2. Pull the map light body downward to release the lock.
3. Disconnect the connectors of the map light and the
sun roof switch.
4. Remove the map light switch.
5. Turn the socket counterclockwise to remove it.
6. Pull out the bulb from the socket.
805RS008
Installation
To install, follow the removal steps in the reverse order.
Cigarette Lighter Illumination Bulb
Removal
1. Disconnect the battery ground cable.
2. Remove eight screws to remove the instrument
cluster panel(2).
3. Turn the socket counterclockwise to remove it then
pull out the bulb(1).
826RS013
Installation
To install, follow the removal steps in the reverse order.

LIGHTING SYSTEM8A–15
Ashtray Illumination Bulb
Removal
1. Disconnect the battery ground cable.
2. Removal eight screws to remove the instrument
cluster panel(1).
3. Remove the ashtray(5).
4. Remove four screws to remove the audio box(4).
5. Remove two screws to remove the ashtray guide(2).
6. Turn the socket counterclockwise to remove it then
pull out the bulb(3).
742RS001
Installation
To install, follow the removal steps in the reverse order.
Glove Box Illumination Bulb
Removal
1. Disconnect the battery ground cable.
2. Open the glove box lid, and then pull out the bulb(1).
805RS004
Installation
To install, follow the removal steps in the reverse order.

8A–16LIGHTING SYSTEM
Vanity Mirror Illumination Bulb
Removal
1. Disconnect the battery ground cable.
2. Remove the lens(2).
3. Remove the bulb(1).
743RW007
Installation
To install, follow the removal steps in the reverse order.
