1998 OLDSMOBILE INTRIGUE windshield wipers

Ignition Positions
A
hB
Your ignition switch is located on the instrument panel.
With the ignition key
in the switch, you can turn the
switch to four positions:
OFF (A): Before you put the key into the ignition switch,
the switch is in OFF. It’s also the only position from which
you can remove your
key. This position locks your
ignition and transaxle. It’s a theft-deterrent feature.
ACC (B): This position lets you use things like the
radio and windshield wipers when the engine is off.
Your steering wheel will unlock. Use
ACC if you must
have your vehicle pushed
or towed. This position lets
you turn off the ignition.
ON (C): This position is where the key returns after you
start the vehicle. With the engine
off, you can use ON to
display some of your warning and indicator lights.
START (D): This position starts your engine.
A warning chime will sound if you open the driver’s
door when the ignition is in OFF, ACC or ON and the
key is in the ignition.
NOTICE:
If your key seems stuck in OFF and you can’t
turn it, be sure you are using the correct key; if
so, is it all the way in? Turn the key only with
your hand. Using
a tool to force it could break
the key
or the ignition switch. If none of this
works, then your vehicle needs service.
2-16
ProCarManuals.com

Windshield Wipers
You can control the windshield wipers by turning the
band with the wiper symbol on it. This lever is located
on the right-hand side of the steering wheel. For
a single wiping cycle, turn the band to MIST. Hold
it there until the wipers start, then let go. the wipers will
stop after one cycle. If you want more cycles, hold the
band on MIST longer.
You can set the wiper speed for a long delay or short
delay between wipes. This can be very useful in light
rain or snow. Push the lever up to INT (intermittent),
then turn the band, located on the lever,
to adjust the
delay time. Rotate the band down for a longer delay,
up
for a shorter delay. The wiper speed can only be
adjusted when the lever is in INT position, not in HI
or
LO.
Be sure to clear the ice and snow from the wiper blades
before using them.
If they’re frozen to the windshield,
carefully loosen or thaw them.
If your blades do become
damaged, get new blades or blade inserts.
Heavy snow or ice can overload your wipers.
A circuit
breaker will
stop them until the motor cools. Clear away
snow or ice to prevent an overload.
2-33
ProCarManuals.com

Windshield Washer At the end of the right-hand lever on the steering wheel,
there
is a wiper symbol. To spray washer fluid on the
windshield, push the button
on the end of the lever. The
wipers will run
for several sweeps and then either stop
or return to your preset speed.
I-
CAUTION:
In freezing weather, don’t use your washer until
the windshield is warmed. Otherwise the washer
fluid can form ice on the windshield, blocking
your vision.
2-34
ProCarManuals.com

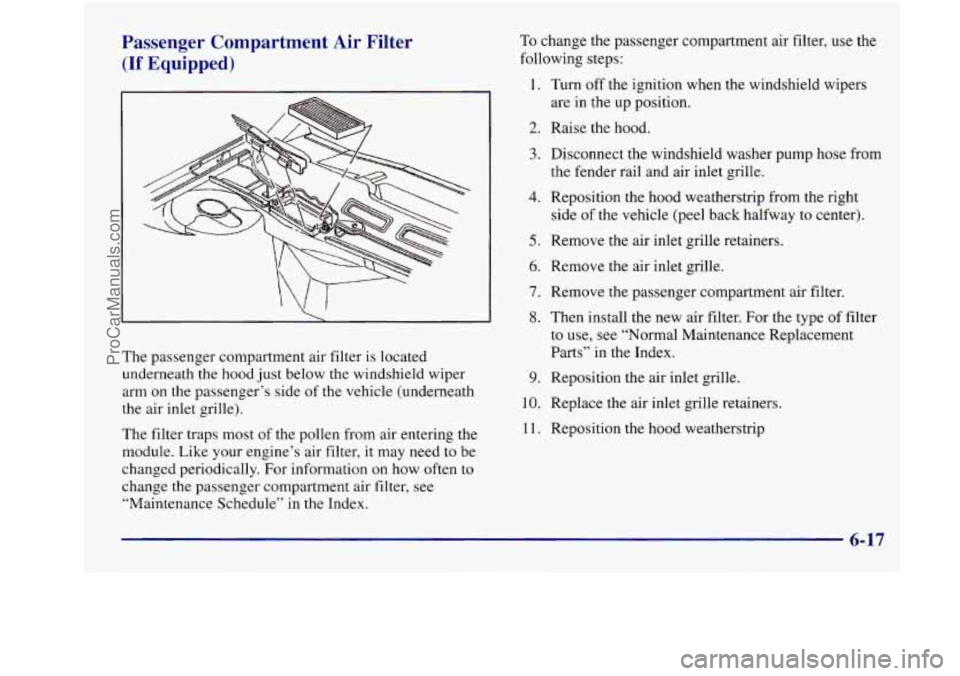

Passenger Compartment Air Filter
(If Equipped)
The passenger compartment air filter is located
underneath the hood just below the windshield wiper
arm on the passenger’s side of
the vehicle (underneath
the air inlet grille).
The filter traps most of the pollen from air entering the
module. Like your engine’s air filter, it may
need to be
changed periodically. For information
on how often to
change the passenger compartment air filter, see
“Maintenance Schedule” in the Index.
To change the passenger compartment air filter, use the
following steps:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Turn off the ignition when the windshield wipers
are
in the up position.
Raise the hood.
Disconnect the windshield washer pump hose from
the fender rail and air inlet grille.
Reposition the hood weatherstrip from the right
side of the vehicle (peel back halfway to center).
Remove the air inlet grille retainers.
Remove the air inlet grille.
Remove
the passenger compartment air filter.
Then install the new air filter. For the type of filter
to use, see “Normal Maintenance Replacement
Parts” in the Index.
Reposition the air inlet grille.
Replace the air inlet grille retainers.
Reposition the hood weatherstrip
6-17
ProCarManuals.com

12. Reconnect the windshield washer pump hose to the
the fender rail and air inlet grille.
13. Close the hood.
14. Return the windshield wipers to the park position.
Automatic Transaxle Fluid
When to Check and Change
A good time to check your automatic transaxle fluid
level
is when the engine oil is changed.
Change both the fluid and filter every
50,000 miles
(83 000 km) if the vehicle is mainly driven under one or
more
of these conditions:
In heavy city traffic where the outside temperature
regularly reaches
90°F (32°C) or higher.
0 In hilly or mountainous terrain.
0 When doing frequent trailer towing.
0 Uses such as found in taxi, police or delivery service.
If you
do not use your vehicle under any of these
conditions, the fluid and filter do not require changing.
See “Scheduled Maintenance Services” in the Index.
How to Check
Because this operation can be a little difficult, you may
choose to have this done at your Oldsmobile retail
facility Service Department.
If you do it yourself, be sure to follow all the instructions
here, or you could get a false reading on the dipstick.
I
I NOTICE:
Too much or too little fluid can damage your
transaxle.
Too much can mean that some of the
fluid could come out
and fall on hot engine parts
or exhaust system parts, starting a fire. Be sure to
get an accurate reading if
you check your
transaxle fluid.
Wait at least 30 minutes before checking the transaxle
fluid level
if you have been driving:
0 When outside temperatures are above 90°F (32°C).
0 At high speed for quite a while.
0 In heavy traffic -- especially in hot weather.
0 While pulling a trailer.
6-18
ProCarManuals.com

Electrical System
Add-on Electrical Equipment
NOTICE:
Don’t add anything electrical to your vehicle
unless you check with your retailer first. Some
electrical equipment can damage your vehicle
and the damage wouldn’t be covered
by your
warranty. Some add-on electrical equipment
can keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your vehicle, see “Servicing
Your Air Bag-Equipped Vehicle” in the Index.
Headlamp Wiring
The headlamp wiring is protected by separate left and
right headlamp fuses in the underhood electrical center.
An electrical overload will cause a lamp to go off and
remain off.
If this happens, have your headlamp system
checked right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and a fuse.
If the motor overheats due to heavy
snow, etc., the wiper will stop
until the motor cools. If
the overload is caused by some electrical problem, have
it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is fixed.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination
of fuses, circuit breakers
and fusible thermal links in the wiring itself. This
greatly reduces the chance of fires caused by
electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with
a new one of the identical size
and rating.
6-56
ProCarManuals.com

Trunk. Remote Release .......................... 2- 13
TrunkLock .................................... 2-13
Trunk Mounted CD Changer
...................... 3-20
TTYUsers
..................................... 8-4
Turn Signal and Lane Change Indicator
............. 2-3 1
Turn Signal On Chime
........................... 2-32
Turn SignalMultifunction Lever
................... 2-3 1
Turn Signals When Towing a Trailer
................ 4-36
Underbody Flushing Service
..................... 7- 16
Underbody Maintenance ......................... 6-53
Vehicle Control
...................................... 4-6
Damage Warnings
.............................. iv
Dimensions ................................. 6-63
Identification Number
......................... 6-55
Loading
.................................... 4-29
Storage
..................................... 6-30
Ventilation System
............................... 3-8
Visor Vanity Mirrors
............................ 2-48
warning Devices
............................... 5-2
Warning Lights. Gages and Indicators
............... 2-55
Warranty Information
............................. 8-8
Washer Fluid
Adding
..................................... 6-26
What to Use
................................. 6-26
Windshield
.................................. 6-26
Washing Your Vehicle
........................... 6-51
Weatherstrips
.................................. 6-50
What to
Do with Used Oil ........................ 6-15
Wheel Alignment
.................................. 6-45
NutTorque
.................................. 5-32
Replacement
................................. 6-45
Used Replacement
............................ 6-46
Wrench
..................................... 5-27
Windows
..................................... 2-29
Auto-Down
................................. 2-29
Lock Out Switch
............................. 2-30
Power
...................................... 2-29
Windshield Washer
............................. 2-34
Fluid
.................................. 2-34. 6-26
Fluid Level Check
............................ 7-13
Windshield Wipers
.............................. 2-33
Windshield Wiper Blade Replacement
.............. 6-38
Windshield Wipers Wiring
........................ 6-56
Winter Driving
................................. 4-25
Wiper Blade Check
............................. 7-14
Wiring. Headlarnp .............................. 6-56
WreckerTowing
................................. 5-9
Wrench. Wheel
................................. 5-27
