1998 OLDSMOBILE INTRIGUE CD player

TONE: Press this button to select a tone while playing
a compact disc. The tone will be automatically set
whenever you play a compact disc. (This button is not
available
on the Bose radio.)
SEEK: Press the down arrow to go to the start of the
current track if more than eight seconds have played.
Press the up arrow to go to the next track.
If you hold
the button or press it more than once, the player will
continue moving rearward or forward through the disc.
SCAN: Press this button to listen to each selection for a
few seconds. The disc will
go to the next selection, stop
for a few seconds, then go on to the next selection. Press
this button again to stop scanning. The sound will mute
while scanning, SCAN will appear
on the display.
RCL: Press this button to see which track is playing.
Press
it again within five seconds to see how long it has
been playing.
To change what is normally shown on the
display (track or elapsed time), press
the button until
you
see the display you want, then hold the button
until the display flashes. While elapsed time is showing,
EL TM will appear on the display.
AM-FM: Press this button to play the radio when a disc
is in the player.
TAPE-CD: Press this button to change to the tape or
disc function when the radio is on and either a tape or
CD is inserted. Press AM-FM to return to the radio
while a CD or tape is playing. The inactive tape or CD
will remain safely inside the radio for future listening.
If
you have the optional CD changer and the CD changer
is loaded, the TAPE-CD button will activate the changer
and a box will be lighted around CDC in the display.
EJECT Press this button to remove the compact disc or
cassette tape. The icon with the box around
it on the
display will eject and the radio will play. EJECT may be
activated with either the ignition or radio off. Cassettes
and compact discs may be loaded with the radio and
ignition off if this button is pressed first.
ProCarManuals.com

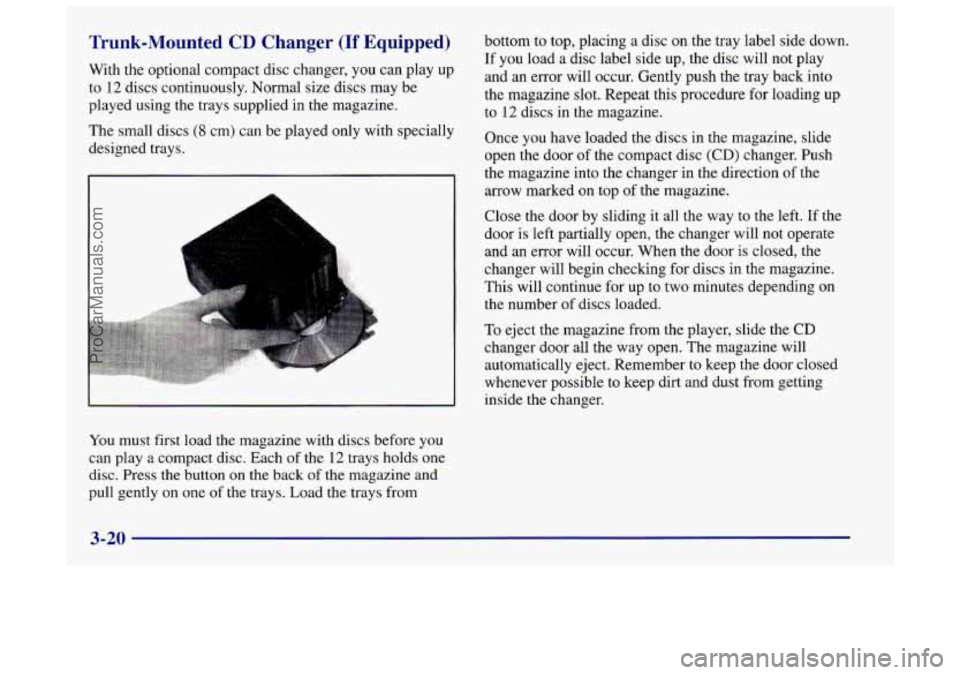

Trunk-Mounted CD Changer (If Equipped)
With the optional compact disc changer, you can play up
to 12 discs continuously. Normal size discs may be
played using the trays supplied in the magazine.
The small discs
(8 cm) can be played only with specially
designed trays.
You must first load the magazine with discs before you
can play a compact disc. Each of the
12 trays holds one
disc. Press the button
on the back of the magazine and
pull gently on one
of the trays. Load the trays from bottom
to top, placing a disc on the tray label side down.
If you load a disc label side up, the disc will not play
and an error will occur. Gently push the tray back into
the magazine slot. Repeat this procedure for loading up
to
12 discs in the magazine.
Once you have loaded the discs in the magazine, slide
open the door
of the compact disc (CD) changer. Push
the magazine into the changer in the direction
of the
arrow marked on top
of the magazine.
Close the door by sliding it all the way to the left.
If the
door is left partially open, the changer will
not operate
and an error will occur. When the door is closed, the
changer will begin checking for discs in the magazine.
This will continue for up to two minutes depending
on
the number of discs loaded.
To eject the magazine from the player, slide the CD
changer door all the way open. The magazine will
automatically eject. Remember to keep the door closed
whenever possible to keep dirt and dust from getting
inside the changer.
3-20
ProCarManuals.com

All of the CD functions are controlled by the radio
buttons except for ejecting the magazine. Whenever a
CD magazine with discs is loaded in the changer, the
compact disc symbol (CDC) will appear on the radio
display. If the CD changer is checking the magazine for
CDs, the (CDC) symbol will flash on the display until
the changer
is ready to play. When a CD begins playing,
a disc and track number will be displayed. The disc
numbers are listed on the front of
the magazine.
For your convenience, a storage cavity for a spare
magazine or CDs is located below the CD changer. To
retain stored items, the attached elastic cord may be
pulled downward and secured along the bottom edge
of
the opening near the center.
Compact Disc Errors
If E and a number appear on the display, an error has
occurred and the compact disc temporarily cannot play.
The CD changer will send an error message to the
receiver to indicate:
0 E30: Disc Label Side Up
If the error occurred while trying to play a CD in the
compact disc player or changer, the following conditions
may have caused the error:
The road is too rough. The disc should play when the
road is smoother.
The disc is dirty, scratched or wet.
The disc is label side up. If so, load the disc label
side down.
The air is very humid. If so, wait about an hour and
try again.
The CD changer door is open. Completely close the
door to restore normal operation.
An empty magazine is inserted in the CD changer.
Try the magazine again with a disc loaded on one
of
the trays.
If any error occurs repeatedly or if an error cannot be
corrected, please contact your retailer. If your radio
displays an error number, write it down and provide it to
your retailer when reporting the problem.
0 E34: CD Changer Door Open
0 E35: CD Changer Cartridge Empty
3-21
ProCarManuals.com

Tips About Your Audio System
Hearing damage from loud noise is almost undetectable
until it
is too late. Your hearing can adapt to higher
volumes
of sound. Sound that seems normal can be loud
and harmful to your hearing. Take precautions by
adjusting the volume control on your radio to a safe
sound level before your hearing adapts to it.
To help avoid hearing loss or damage:
0 Adjust the volume control to the lowest setting.
0 Increase volume slowly until you hear comfortably
and clearly.
NOTICE:
Before you add any sound equipment to your
vehicle
-- like a tape player, CB radio, mobile
telephone or two-way radio
-- be sure you can
add what you want. If you can, it’s very
important to do it properly. Added sound
equipment may interfere with the operation
01
your vehicle’s engine, Delco Electronics radio or
other systems, and even damage them. Your
vehicle’s systems may interfere with the
operation of sound equipment that has been
added improperly.
So, before adding sound equipment, check with
your retailer and be sure to check Federal rules
covering mobile radio and telephone units.
3-26
ProCarManuals.com

Care of Your Cassette Tape Player
A tape player that is not cleaned regularly can cause
reduced sound quality, ruined cassettes or a damaged
mechanism. Cassette tapes should be stored in their
cases away from contaminants, direct sunlight and
extreme heat. If they aren’t, they may not operate
properly
or may cause failure of the tape player.
Your tape player should be cleaned regularly after every
50 hours of use. Your radio may display CLN to indicate
that you have used your tape player for
50 hours without
resetting the tape clean timer. If this message appears on
the display, your cassette tape player needs to be
cleaned. It will still play tapes, but you should clean it as
soon as possible to prevent damage to your tapes and
player. If you notice a reduction in sound quality, try a
known good cassette to
see if it is the tape or the tape
player at fault. If this other cassette has no improvement
in sound quality, clean the tape player.
The recommended cleaning method for your cassette
tape player is the use of a scrubbing action,
non-abrasive cleaning cassette with pads which scrub
the tape head as the hubs of the cleaner cassette turn.
The recommended cleaning cassette is available through
your retail facility
(GM Part No. 12344789).
When using a scrubbing action, non-abrasive cleaning
cassette, it is normal for the cassette to eject because
your unit is equipped with
a cut tape detection feature
and a cleaning cassette may appear as a broken tape.
If
the cleaning cassette ejects, insert the cassette at least
three times to ensure thorough cleaning.
You may also choose a non-scrubbing action, wet-type
cleaner which uses a cassette with a fabric belt to clean
the tape head. This type of cleaning cassette will not
eject on
its own. A non-scrubbing action cleaner may
not clean as thoroughly
as the scrubbing type cleaner.
The use of a non-scrubbing action, dry-type cleaning
cassette
is not recommended.
After you clean the player, press and hold EJECT for
five seconds
to reset the CLN indicator. The radio will
display
--- to show the indicator was reset.
Cassettes
are subject to wear and the sound quality
may degrade over time. Always make sure the cassette
tape is in good condition before you have your tape
player serviced.
3-27
ProCarManuals.com

Care of Your Compact Discs
Handle discs carefully. Store them in their original cases
or other protective cases and away from direct sunlight
and dust. If the surface of a disc is soiled, dampen a
clean, soft cloth in a mild, neutral detergent solution and
clean
it, wiping from the center to the edge.
Be sure never to touch the signal surface when handling
discs. Pick up discs by grasping the outer edges or the
edge
of the hole and the outer edge.
Care of Your Compact Disc Player
The use of CD lens cleaner discs is not advised, due to
the risk of contaminating the lens
of the CD optics with
lubricants internal to the
CD mechanism.
Backglass Antenna (If Equipped)
Your AM-FM antenna is integrated with your rear
window defogger, located in the rear window. Be sure
that the inside surface of the rear window
is not
scratched and that the lines on the glass are not
damaged.
If the inside surface is damaged, it could
interfere with radio reception.
NOTICE:
Do not try to clear frost or other material from
the inside of the rear window with a
razor blade
or anything else that is sharp. This may damage
the rear defogger grid and affect your radio’s
ability to pick up stations clearly. The repairs
wouldn’t be covered by your warranty.
Because this antenna is built into your rear window,
there is a reduced risk of damage caused by car washes
and vandals.
If you choose to add a cellular telephone to your vehicle,
and the antenna needs to be attached
to the glass, be sure
that
you do not damage the grid lines for the AM-FM
antenna. There is enough space between the lines to
attach a cellular telephone antenna without interfering
with radio reception.
3-28
ProCarManuals.com

Brake (Continued) Replacing System Parts
........................ 6-30
System Warning Light
......................... 2-56
Trailer
...................................... 4-34
Transaxle Shift Interlock
.................. 2-27, 7-15
Transaxle Shift Interlock Check
.................. 7-15
Brakes, Anti-Lock
............................... 4-7
Braking in Emergencies
.......................... 4- 10
Break-In, New Vehicle
.......................... 2-15
BTSI
.................................... 2-27, 7-15
Bulb Replacement
.............................. 6-3 1
Center High-Mounted ......................... 6-36
Front Parking and Turn Signal Lamp
.............. 6-36
Tail/Stop/Turn Signal Lamp
..................... 6-37
Bulbs, Replacement Numbers
..................... 6-62
Wear
....................................... 6-29
WhattoAdd
................................. 6-28
Braking
........................................ 4-6
BTSICheck
................................... 7-15
Headlamps
.................................. 6-31
Capacities and Specifications
.................... 6-63
Carbon Monoxide
............... 2.13.2.28.4.28. 4.34
Care of Your Cassette Tape Player
.................. 3-27
Care of Your Compact Disc Player
................. 3-28
Care of Your Compact Discs
...................... 3-28
Cassette Deck Service
........................... 7-13
Cassette Tape Player
....................... 3.10. 3.14
CD Player
..................................... 3-14
CD Player Theft-Deterrent Feature
................. 3-23
Center Console
................................. 2-47
Center Passenger Position
........................ 1-32
CareofYourTapePlayer
......................... 3-27 Certification
Label
.............................. 4-30
Chains. Safety
................................. 4-34
Chains. Tire
................................... 6-46
Change Oil Light
............................... 2-64
Changing a Flat Tire
............................. 5-25
Charging System Light
.......................... 2-56
Checking Your Restraint Systems
.................. 1-51
Chemical Paint Spotting .......................... 6-53
Child Restraints
................................ 1-37
Securing in a Rear Outside Seat Position
........... 1-42
Securing
in the Center Rear Seat Position .......... 1-44
Securing in the Right Front Seat Position .......... 1-46
TopStrap
................................... 1-42
WheretoPut
..........,..................... l-41
Children ,,...........,........................ l-34
Cleaner. Air ................................... 6-16
Cleaning Circuit
Breakers and Fuses
....................... 6-56
Interior Plastic Components
..................... 6-49
Exterior Lamphnses
......................... 6-51
Glass
....................................... 6-50
Inside of
Your Vehicle ......................... 6-47
Instrument Panel
............................. 6-49
Outside
of Your Vehicle ........................ 6-50
Special Problems ............................. 6-48
Vinyl
....................................... 6-49
Windshield and Wiper Blades
................... 6-50
AluminumWheels
............................ 6-52
Fabric
...................................... 6-48
Leather
..................................... 6-49
Tires
....................................... 6-52
Wheels
..................................... 6-52
9-2
ProCarManuals.com

Clock. Setting the ................................ 3-9
Comfort Controls
................................ 3-2
Compact Disc Player
............................ 3-14
Compact Spare Tire
............................. 5-35
Compass Calibration
............................ 2-45
Compass Variance
.............................. 2-44
Control of a Vehicle
.............................. 4-6
Convenience Net
............................... 2-48
Convex Outside Mirror
.......................... 2-46
Coolant
....................................... 6-21
Adding
..................................... 6-23
Checking
................................... 6-23
Heater. Engine
............................... 2-18
HOW to Add
............................ 5.19. 5.21
RecoveryTank
............................... 5-19
To Use Engine Heater ......................... 2-19
Whattouse
................................. 6-22
Cooling System
................................ 5-17
Courtesy Lamps ................................ 2-40
Courtesy Transportation
........................... 8-6
Cruise Control
................................. 2-35
Ending
...................................... 2-37
Increasing Speed While Using
................... 2-36
Light
....................................... 2-64
Passing Another Vehicle While Using
............. 2-37
ResumingaSetSpeed
......................... 2-36
Setting
..................................... 2-35
Cupholder, Center Console
....................... 2-47
Customer Assistance for Text Telephone Users
......... 8-4
Customer Assistance Information
................... 8-1
Customer Satisfaction Procedure
.................... 8-2
UsingonHills
............................... 2-37
Cupholder, Rear Console
......................... 2-47 Damage,
Finish
............................... 6-53
Damage. Sheet Metal
............................ 6-53
Daytime Running
Lamps ......................... 2-39
Defects. Reporting Safety
......................... 8-8
Defensive Driving
............................... 4-2
Defogger. Rear Window
.......................... 3-9
Defogging
..................................... 3-4
Defrosting
..................................... 3-4
Delayed Illumination
............................ 2-41
Dimen ions. Vehicle
............................ 6-63
Dolby
B Noise Reduction 3-13. 3-17
DoorLocks
..................................... 2-4
Drive. Automatic Transaxle
....................... 2-22
DriverPosition
................................. 1-11
Driving Caught
In a Blizzard .......................... 4-27
DeadBattery
................................... 5-3
8 ..................
City ........................................ 4-20
Defensive
.................................... 4-2
Drunken
..................................... 4-3
Freeway
.................................... 4-21
InaBlizzard
................................. 4-27
IntheRain
.................................. 4-17
Night
...................................... 4-16
On Curves .................................. 4-11
On Grades While Towing a Trailer
............... 4-36
On
Hill and Mountain Roads .................... 4-23
On Snow or Ice
.............................. 4-26
Throughwater
............................... 4-19
WetRoads
.................................. 4-17
In
Foreign Countries
........................... 6-5
9-3
ProCarManuals.com
