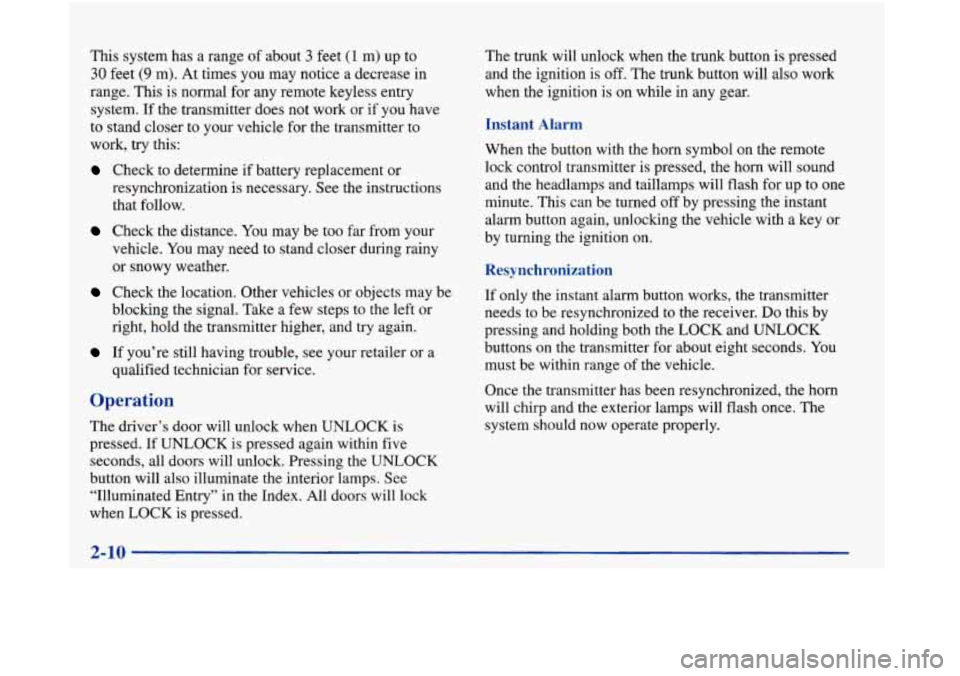

This system has a range of about 3 feet (1 m) up to
30 feet (9 m). At times you may notice a decrease in
range. This is normal for any remote keyless entry
system. If the transmitter does not work or if you have
to stand closer to your vehicle for the transmitter to
work, try this:
Check to determine if battery replacement or
resynchronization
is necessary. See the instructions
that follow.
Check the distance. You may be too far from your
vehicle.
You may need to stand closer during rainy
or snowy weather.
Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps
to the left or
right, hold the transmitter higher, and try again.
If you’re still having trouble, see your retailer or a
qualified technician for service.
Operation
The driver’s door will unlock when UNLOCK is
pressed. If UNLOCK is pressed again within five
seconds, all doors will unlock. Pressing the UNLOCK
button will also illuminate the interior lamps. See
“Illuminated Entry” in the Index. All doors will lock
when LOCK is pressed. The trunk
will unlock when the trunk button is pressed
and the ignition is off. The trunk button will also work
when the ignition is on while in any gear.
Instant Alarm
When the button with the horn symbol on the remote
lock control transmitter is pressed, the horn will sound
and the headlamps and taillamps will flash for up to one
minute. This can be turned off by pressing the instant
alarm button again, unlocking the vehicle with a key or
by turning the ignition on.
Resynchronization
If only the instant alarm button works, the transmitter
needs to be resynchronized to the receiver.
Do this by
pressing and holding both the LOCK and UNLOCK
buttons on the transmitter for about eight seconds.
You
must be within range of the vehicle.
Once the transmitter has been resynchronized, the horn
will chirp and the exterior lamps will flash once. The
system should now operate properly.
2-10
Exhaust Systems ............................. 7- 18
Front-Wheel-Drive Axle Boot and Seal
........... 7- 18
Steering
.................................... 7-18
Suspension
.................................. 7-18
Throttle System
.............................. 7- 19
InstrumentPanel ............................... 2-60
Brightness Control
............................ 2-45
Cleaning
.................................... 6-53
Cluster
..................................... 2-62
FuseBlock
.................................. 6-62
Interior Lamps
................................. 2-45
Bulb Replacement
............................ 6-42
.................................... J ack. Tire 5-26
Jump Starting
................................... 5-3
Key Lock Cylinders Service ..................... 7-15
Key Reminder Warning .......................... 2-21
Keyless Entry
................................... 2-9
Keys
.......................................... 2-2
Labels Certification
................................. 4-30
Service Parts Identification
..................... 6-59
Tire-Loading Information
...................... 4-29
Vehicle Identification Number
................... 6-59
Lamps
........................................ 2-42
Cornering
................................... 2-44
Courtesy
.................................... 2-45
Interior
..................................... 2-45 OnReminder
................................ 2-36
Panel
....................................... 2-45
Leaving Your Vehicle
............................. 2-9
Level Control. Electronic
......................... 4-31
Light Sensor. Twilight Sentinel
.................... 2-44
Lighter ....................................... 2-54
Lights Air Bag Readiness
....................... 1-22. 2-65
Battery Warning
.............................. 2-66
Brake System Warning
......................... 2-66
Engine Oil Pressure Light
...................... 2-73
Interior
..................................... 2-45
Parking Brake Indicator
........................ 2-67
Safety Belt Reminder
...................... 1.8. 2.65
Service Engine Soon
.......................... 2-71
Traction Active
................................ 4-9
Traction Control System Active
.............. 2.69. 4.9
Traction Off Warning
........................... 4-9
Loading Your Vehicle
........................... 4-29
Anti-Lockout Feature
.......................... 2-9
Automatic Door
............................... 2-5
Cylinders ................................... 7-15
DelayedLocking .............................. 2-6
Door
........................................ 2-4
Ignition Transaxle Lock Check
.................. 7-17
Key Lock Cylinder Service
..................... 7-15
Memory Door ............................ 2.5. 2.11
PowerDoor
.................................. 2-5
Leaving Your Vehicle with the Engine Running ....... 2-29
Anti-Lock Brake System Warning
............ 2.68. 4.7
Traction Control System Warning
............ 2.68. 4.9
Locks
......................................... 2-4
