Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained
are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2-2
2-4
2-6 2-10
2-11
2- 12
2-13
2-13
2- 14
2-
17
2-18
2-23
2-24 2-26 Keys
Door Locks
Remote
Lock Control
(If Equipped)
Trunk
Theft
Passlock@
New Vehicle “Break-In”
Ignition Positions”
Starting Your Engine
Engine Coolant Heater (If Equipped)
Automatic Transaxle Operation
Parking Brake
Shifting Into PARK (P)
Shifting Out of PARK (P) 2-26
2-27
2-27
2-28
2-29 2-29
2-30
2-37
2-39
2-42
2-43 2-45
2-46
2-50 Parking Over
Things That
Burn
Engine Exhaust
Running Your Engine While You’re Parked
Windows
Horn
Tilt Wheel
Turn Signal/Multifunction Lever
Exterior Lamps
Interior Lamps
Mirrors Storage Compartments
Accessory Power Outlet
Instrument Panel
Warning Lights, Gages and Indicators
2-1

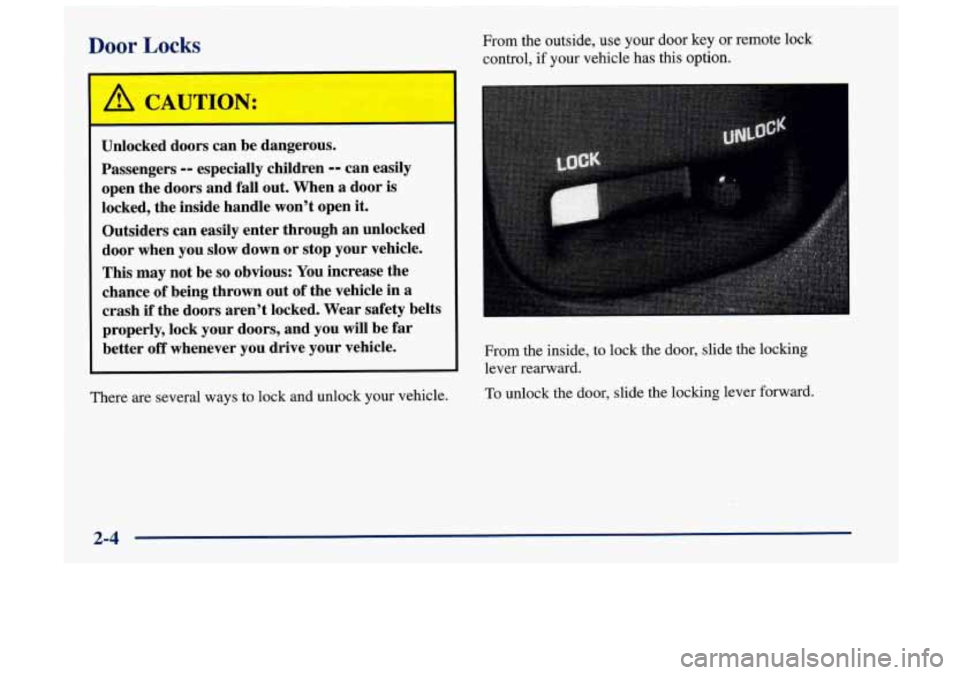

Door Locks
Unlocked doors can be dangerous.
Passengers
-- especially children -- can easily
open the doors and fall out. When
a door is
locked, the inside handle won’t open it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
This may not be
so obvious: You increase the
chance of being thrown out of the vehicle in a
crash
if the doors aren’t locked. Wear safety belts
properly, lock your doors, and you
will be far
better
off whenever you drive your vehicle.
There are several ways to lock and unlock your vehicle. From the outside,
use
your door key or remote lock
control, if your vehicle has this
option.
From the inside, to lock the door, slide the locking
lever rearward.
To unlock the door, slide the locking lever forward.
2-4

The rear doors of your vehicle cannot be opened from
inside when this feature is in
use. If you want to open a
rear door when the security lock
is on:
1. Unlock the door from the inside.
2. Then open the door from the outside.
If you don’t cancel the security lock feature, adults or
older children who ride in the rear won’t be able to open
the rear door from the inside.
You should let adults and
older children know how these security locks work, and
how to cancel the locks.
Remote Lock Control (If Equipped)
If your vehicle has this option, you can lock and unlock
your doors or unlock your trunk from about
3 feet (1 m)
up to 30 feet (9 m) away using the remote lock control
transmitter supplied with your vehicle.
In addition, the system illuminates the interior lights for
a set period of time. The Remote Lock Control system
consists
of a receiver, which is located in the vehicle,
and two hand-held transmitters.
To cancel the rear door locks:
1. Unlock the door from the inside and open the door
from the outside.
2. Use a key to move the lock all the way down.
3. Do the same for the other rear door.
The rear door locks will now work normally.
Leaving Your Vehicle
If you are leaving the vehicle, open your door and set
the locks from inside, then get out and close the door. Your
Remote Lock
Control operates on a
radio frequency subject to
Federal Communications Commission
(FCC) Rules
and with Industry Canada.
2-6

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with
RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.
Changes or modifications to this system by other than
an authorized service facility could void authorization
to use this equipment.
This system has a range of about
3 feet (1 m) up to
30 feet (9 m). At times you may notice a decrease in
range, This
is normal for any remote keyless entry
system. If the transmitter does not work or if you have
to stand closer to your vehicle for
the transmitter to
work, try this:
Check to determine if battery replacement or
synchronization is necessary. See
the instructions
that follow.
Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.
Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.
If you’re still having trouble, see your retailer or a
qualified technician for service.
Operation
The following functions are available with the Remote
Lock Control system:
LOCK: All doors will automatically lock when
the
LOCK button on the transmitter is pressed. The interior
lamps stay on for a few seconds after all of the doors
are closed.
UNLOCK: The driver’s door will unlock automatically
when the UNLOCK button on the transmitter is pressed.
If the UNLOCK button
is pressed again within five
seconds, all remaining doors will unlock. The interior
lamps will stay on for
40 seconds or until the ignition is
turned
on.
2-7

Trunk Release: The trunk will unlock anytime the
vehicle symbol on the transmitter is pressed and
the ignition is
OFF. If the ignition is on, the trunk
will unlock if the gear selector is in PARK
(P) or
NEUTRAL
(N) . The interior lamps will come on
for
40 seconds or until the ignition switch is turned
to the
ON position.
Matching Transmitter(s) To Your Vehicle
Each remote lock control transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your retailer. Remember to bring any
remaining transmitters with you when you go to your
retailer. When the retailer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your retailer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle, Each vehicle can have only two transmitters
matched to
it.
You can match your transmitter to as many 1998
General Motors vehicles as you own, as long as they
have the same Remote Lock Control system. Contact
your retailer for assistance with this.
Battery Replacement
Under normal use, the battery in your remote lock
control transmitter should last about two years.
You can tell the battery is weak if the transmitter won’t
work at the normal range in any location.
If you have to
get close to your vehicle before the transmitter works,
it’s probably time to change the battery.
I NOTICE:
When replacing the battery, use care not to
touch any
of the circuitry. Static from your
body transferred to these surfaces may damage
the transmitter.
2-8

To replace the battery in the remote lock control:
1. Use a small coin or flathead screwdriver to separate
the bottom half from the top half of the transmitter.
one. Make sure
the positive (+) side of the battery
faces down. Use one,
3 volt, CR2032, or equivalent,
type battery.
2. Remove the battery and replace it with the new
3. Put the two halves back together. Make sure the
cover
is on tightly, so water won’t get in.
4. Check the operation of the transmitter with your
vehicle. If the transmitter does not
work, try
synchronizing the transmitter with the receiver.
Synchronization
Your Remote Lock Control system is equipped with a
security system that prevents anyone from recording
and playing back your signal. The transmitter does not
send the same signal twice to the receiver. The receiver
will not respond to a signal that has been sent to it more
than once.
To resynchronize your transmitter and receiver, follow
these directions:
1.
2.
3.
Stand close to your vehicle.
Press and hold the
LOCK and UNLOCK buttons on
the transmitter at the same time.
Hold the buttons for five seconds. In this time, the
doors should lock and unlock once. This confirms
the resynchronization. If the doors do not lock and
unlock, see your retailer for service.
2-9

Trunk
’
i To unlock the trunk from the outside, insert the door key
and
turn the trunk lock cylinder.
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You can’t see or smell
CO.
It can cause unconsciousness and even death.
If you must drive with the trunk lid open or if
electrical wiring or other cable connections must
pass through the seal between the body and the
trunk lid:
Make sure all windows are shut.
’hrn the fan on your heating or cooling
system to
its highest speed with the setting on
VENT. That
will force outside air into your
vehicle. See
“Comfort Controls” in the Index.
instrument panel, open them all the way.
If you have air outlets on or under the
See “Engine Exhaust” in the Index.
Remote Trunk Release
Pull up on the remote release handle, located on the
floor near the left side of the driver’s seat, to release the
trunk lid. Make sure the lockout feature is not activated.
2-10

Remote Trunk Release Lockout (If Equipped)
Your remote trunk release may be equipped with a
lockout feature to help prevent unauthorized entry into
the trunk when leaving the vehicle unattended. The
switch is located on the inside of the trunk lid, mounted
to the trunk lid latch.
To turn the lockout on, slide
the switch all the way to the
right. To turn the lockout
off, slide the switch all the
way
to the left.
When the lockout is on, the remote trunk release,
located in the vehicle, will not release the trunk lid.
However, the trunk lid can still be opened with the key.
If you have the optional Remote Lock Control feature,
your vehicle is not equipped with the
trunk lockout switch.
Theft
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number
of theft-deterrent
features, we know that nothing we put on it can make
it impossible to steal. However, there are ways you
can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it’s an
easy target for joy riders or professional thieves
-- so
don’t do it.
When you park your vehicle and open the driver’s door,
you’ll hear a chime reminding you to remove your key
from the ignition and take it with you. Always do this.
And remember to lock
the doors.
Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out of sight.
Put them in a storage area, or take them with you.
2- 11
