For detailed information, refer to the description given in each section.
PICTORIAL INDEX
ix
Page
1
Engine coolant temperature gauge 34
. . . . . . . . . . . . . . . . .
2 Tachometer 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3 Turn signal indicator light 24
. . . . . . . . . . . . . . . . . . . . . . . .
4 Headlight indicator light 22
. . . . . . . . . . . . . . . . . . . . . . . . .
5 Headlight high beam indicator light 24
. . . . . . . . . . . . . . . .
6 Automatic transmission indicator lights 160
. . . . . . . . . . . .
7 Fuel gauge 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8 Low fuel level warning light 40
. . . . . . . . . . . . . . . . . . . . . .
9 Cruise control indicator light 168
. . . . . . . . . . . . . . . . . . . . .
10 Height control indicator light 172
. . . . . . . . . . . . . . . . . . . .
11 Power mode indicator light 167
. . . . . . . . . . . . . . . . . . . . . .
12 Snow mode indicator light 167
. . . . . . . . . . . . . . . . . . . . . . .
13 Antilock brake system warning light 39
. . . . . . . . . . . . . . . Page
14 Vehicle skid control system off
indicator light 173
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15 Malfunction indicator lamp 39
. . . . . . . . . . . . . . . . . . . . . . .
16 Slip indicator light 173
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17 Multi information display 41
. . . . . . . . . . . . . . . . . . . . . . . .
18 Odometer and trip meter 36
. . . . . . . . . . . . . . . . . . . . . . . . .
19 Brake system warning light 37
. . . . . . . . . . . . . . . . . . . . . . .
20 SRS warning light 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21 Open door warning light 39
. . . . . . . . . . . . . . . . . . . . . . . . .
22 Driver’s seat belt reminder light 38
. . . . . . . . . . . . . . . . . . .
23 Discharge warning light 39
. . . . . . . . . . . . . . . . . . . . . . . . . .
24 Instrument panel light control 46
. . . . . . . . . . . . . . . . . . . . .
25 ODO/TRIP RESET button 36
. . . . . . . . . . . . . . . . . . . . . . . .

For detailed information, refer to the description given in each section.
PICTORIAL INDEX
xi
Page
1
Engine coolant temperature gauge 34
. . . . . . . . . . . . . . . . .
2 Tachometer 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3 Turn signal indicator light 24
. . . . . . . . . . . . . . . . . . . . . . . .
4 Tail light indicator light 22
. . . . . . . . . . . . . . . . . . . . . . . . . .
5 Headlight high beam indicator light 24
. . . . . . . . . . . . . . . .
6 Automatic transmission indicator lights 160
. . . . . . . . . . . .
7 Fuel gauge 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8 Low fuel level warning light 40
. . . . . . . . . . . . . . . . . . . . . .
9 Cruise control indicator light 168
. . . . . . . . . . . . . . . . . . . . .
10 Power mode indicator light 167
. . . . . . . . . . . . . . . . . . . . . .
11 Snow mode indicator light 167
. . . . . . . . . . . . . . . . . . . . . . .
12 Antilock brake system warning light 39
. . . . . . . . . . . . . . . Page
13 Vehicle skid control system
off indicator light 173
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14 Malfunction indicator lamp 39
. . . . . . . . . . . . . . . . . . . . . . .
15 Slip indicator light 173
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16 Multi information display 41
. . . . . . . . . . . . . . . . . . . . . . . .
17 Odometer and trip meter 36
. . . . . . . . . . . . . . . . . . . . . . . . .
18 Brake system warning light 37
. . . . . . . . . . . . . . . . . . . . . . .
19 SRS warning light 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20 Open door warning light 39
. . . . . . . . . . . . . . . . . . . . . . . . .
21 Driver’s seat belt reminder light 38
. . . . . . . . . . . . . . . . . . .
22 Discharge warning light 39
. . . . . . . . . . . . . . . . . . . . . . . . . .
23 Instrument panel light control 46
. . . . . . . . . . . . . . . . . . . . .
24 ODO/TRIP RESET button 46
. . . . . . . . . . . . . . . . . . . . . . . .

GAUGES, METERS AND SERVICE REMINDER INDICATORS
36
ODOMETER AND TRIP METER
13L0041
This meter displays the odometer and two trip meters. To
change the mode indication, push the ”ODO/TRIP” button.
The odometer records the total distance the vehicle has been
driven. The twin trip meter records two different distances
independently.
For example, you can use one meter to calculate the fuel economy
and the other to measure the distance on each trip.
To change the trip meter indication from one trip to the other,
push the ”ODO/TRIP” button. To set the A trip meter to zero,
display the A meter reading, then push the ”RESET” button.
The same applies for the B trip meter.
The data of trip meters will be cancelled if the electrical power
source is disconnected.
SERVICE REMINDER INDICATORS
AND WARNING BUZZERS
IF THIS INDICATOR
OR BUZZER COMES
ON ...DO THIS.
(a) If parking brake is off,
stop and check.
(b) Fasten driver’s seat belt.

(Indicator and buzzer)
(c) Fasten front passenger’s
seat belt.
(Under the center vent)
(d) Take vehicle to Lexus
dealer immediately.
(e) Stop and check.

or

GAUGES, METERS AND SERVICE REMINDER INDICATORS
42
(a) Cruise information
13L0491
The following information is shown with the ignition switch
turned on. Each time you push the ”MODE” button, the
displayed information is changed.
Available driving distance
Average fuel consumption
Current fuel consumption
Average fuel consumption after being refueled
Driving distance after being refueled
Elapsed time
Average vehicle speed
The displayed values of cruise information indicate the general
driving condition, so those may not show precise and actual
condition.
Available driving distance
W24
When the fuel gauge indicates around ”F”
W25W25
When the fuel gauge indicates around middle
W26
When the fuel gauge indicates around ”E”
Available driving distance with the remaining fuel is calculated
and displayed depending on the amount of remaining fuel.
Average fuel consumption
W27
W27
The average fuel consumption is calculated and displayed based
on the total driving distance and the total fuel consumption with
the engine running.
The value is updated every 10 seconds.
To calculate from the beginning, push the ”RESET” button.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
43
Current fuel consumption
W28
W28
The current fuel consumption is calculated and displayed based
on the driving distance and the fuel consumption for 2 seconds
with the engine running.
The value is updated every 2 seconds.
If you are driving at low speeds just before stopping, the accurate
figure may not be shown.
Average fuel consumption after being refueled
W29
W29
The average fuel consumption after being refueled is calculated
and displayed based on the total driving distance and the total
fuel consumption after being refueled.
The value is updated every 10 seconds.
To calculate from the beginning, push the ”RESET” button.
Driving distance after being refueled
W30
W30
The driving distance after being refueled is displayed.
Elapsed time
W31
W31
The total time during the engine running is displayed.
When the engine is started again after the ignition is off, the driving
time is added to the previous value. Up to 99 hours 59 minutes can
be displayed. When the driving time exceeds 99 hours 59 minutes,
the display returns to 0 and recounting starts.
To count from the beginning, push the ”RESET” button.
Average vehicle speed
W32
W32
The average vehicle speed is calculated and displayed based on
the total driving distance and the total driving time with the
engine running.
The displayed value is updated every 10 seconds.
To calculate from the beginning, push the ”RESET” button.

INTERIOR EQUIPMENT
51
CLOCK
14L46
The digital clock indicates the time with the ignition key at the
”ACC” or ”ON” position. To reset the hour, press the ”H”
button. To reset the minutes, press the ”M” button. To adjust
the time to the nearest hour, press the ”:00” button.
For example, if the ”:00” button is pressed when the time is between
9:30 9:59 or between 10:01 10:29, the time will change to 10:00.
Once the electrical power source has been disconnected from the
clock, the time is automatically set to 1:00.
For vehicles equipped with Navigation System, refer to the
separate ”Owner’s Manual for Navigation System”.
OUTSIDE TEMPERATURE DISPLAY
14L026-4
This display shows the outside temperature when the ignition
switch is on.
The displayed temperature ranges from 30C (22F) up to 50C
(122F). If the temperature does not appear on the display or it
shows ” ”, take your vehicle to your Lexus dealer.

AIR CONDITIONING AND AUDIO
133
1
Turning the system on and adjusting volume
(See page 134 for details.)
2
Stopping and ejecting a cassette tape
(See page 140 for details.)
3
Function buttons
1 6:Station selector buttons
(See page 138 for details.)
SCAN:Scan tuning
(See page 139 for details.)
P. SCAN: Preset scan tuning
(See page 139 for details.)
4
Display of functions in TAPE mode

:
Side change
(See page 141 for details.)
:DOLBY NR
(See page 140 for details.)
:Rewinding
(See page 141 for details.)

:Fast forwarding
(See page 141 for details.)
RPT:Automatic repeat
(See page 141 for details.)
SKIP:Automatic skip of blank portions of tape
(See page 141 for details.)
SCAN:Scan selection
(See page 142 for details.)
4
Display of functions in CD mode
:Disc selection
(See page 146 for details.)
:Reversing
(See page 147 for details.)

:Fast forwarding
(See page 147 for details.)
RPT:Automatic repeat
(See page 148 for details.)
RAND:Random access
(See page 148 for details.)
SCAN:Scan selection
(See page 146 for details.)
5
Mode selectors
(See page 134 for details.)
6
Cassette tape slot
(See page 140 for details.)
7
Automatic sound levelizer
(See page 136 for details.)
8
Tone and balance knobs
(See page 135 for details.)
9
Radio mode:Frequency tuning
(See page 137 or 139 for details.)
TAPE mode:Direct access to a desired program
(See page 142 for details.)
CD mode:Direct access to a desired program
(See page 147 for details.)

AIR CONDITIONING AND AUDIO
138
20L0461

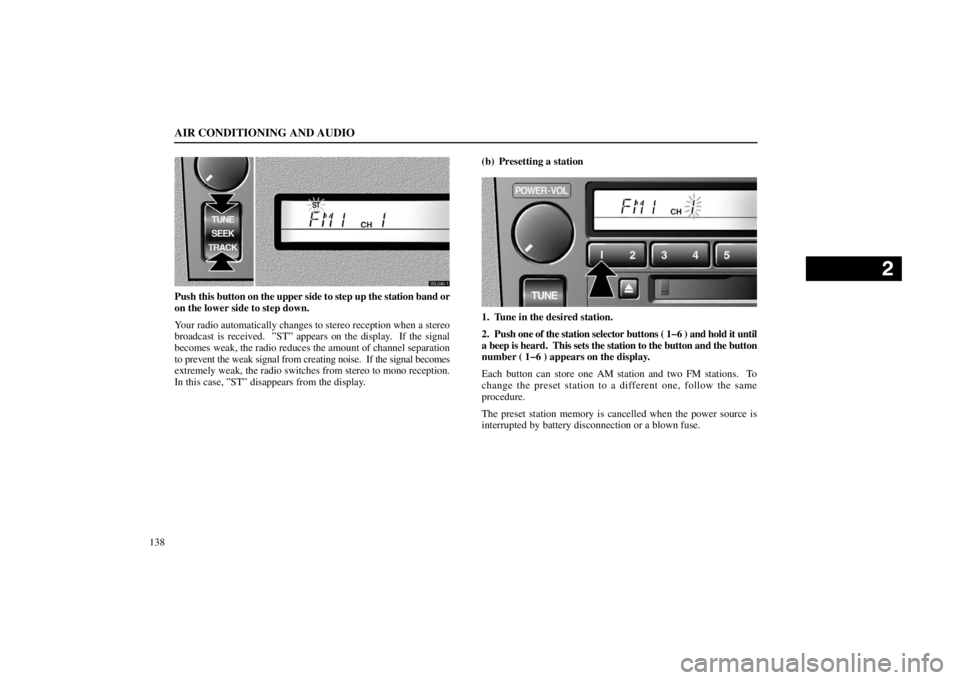

Push this button on the upper side to step up the station band or
on the lower side to step down.
Your radio automatically changes to stereo reception when a stereo
broadcast is received. ”ST” appears on the display. If the signal
becomes weak, the radio reduces the amount of channel separation
to prevent the weak signal from creating noise. If the signal becomes
extremely weak, the radio switches from stereo to mono reception.
In this case, ”ST” disappears from the display.(b) Presetting a station
20L047-1
1. Tune in the desired station.
2. Push one of the station selector buttons ( 16 ) and hold it until
a beep is heard. This sets the station to the button and the button
number ( 16 ) appears on the display.
Each button can store one AM station and two FM stations. To
change the preset station to a different one, follow the same
procedure.
The preset station memory is cancelled when the power source is
interrupted by battery disconnection or a blown fuse.
