Checking the headlight aim. . . . . . . . . . . . . . . . . . . . . . . . . .
428
Replacing light bulbs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
431

ELECTRICAL COMPONENTS
431
64G022

1

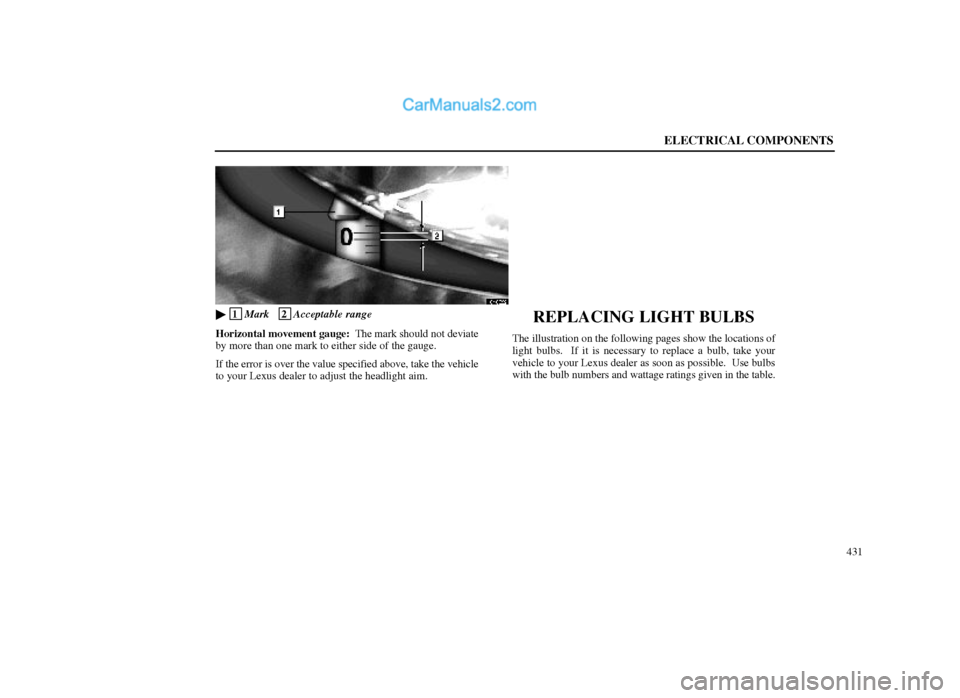

Mark 2
Acceptable range
Horizontal movement gauge: The mark should not deviate
by more than one mark to either side of the gauge.
If the error is over the value specified above, take the vehicle
to your Lexus dealer to adjust the headlight aim.REPLACING LIGHT BULBS
The illustration on the following pages show the locations of
light bulbs. If it is necessary to replace a bulb, take your
vehicle to your Lexus dealer as soon as possible. Use bulbs
with the bulb numbers and wattage ratings given in the table.

ELECTRICAL COMPONENTS
432
CAUTION
Do not disassemble, repair or take apart the low beam
headlight bulbs, connector, power supply circuits and
rotated components. Or you may be injured by electric
shocks. Call your dealer when the headlights fail to work
or have to be replaced or disposed of.
Halogen bulbs have pressurized gas inside and require
special handling. They can burst or shatter if scratched or
dropped. Hold a bulb only by its plastic or metal case. Do
not touch the glass part of a bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
LIGHT LOCATION
64G023±1

ELECTRICAL COMPONENTS
433 Light Bulbs Bulb No. W T
ype
1 Headlight (Low beam)
Discharge bulb D2R 35
B
Halogen bulb HB4 51
C
2 Front turn signal light 1156 21
D
3 Headlight (High beam) HB3 60
A
4 Parking light ±±± 5
D
5 Fog light HB4 51
C
6 Front side marker light 194 3.8
D
