1998 GMC SIERRA ECU

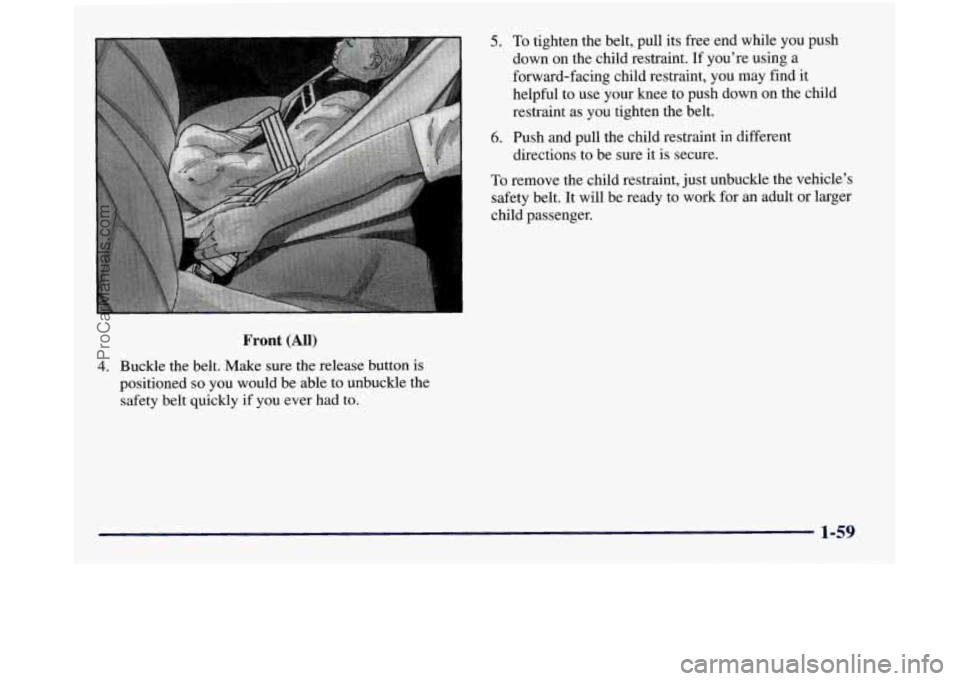

Front (All)
4. Buckle the belt. Make sure the release button is
positioned
so you would be able to unbuckle the
safety belt quickly
if you ever had to.
5. To tighten the belt, pull its free end while you push
down on the child restraint. If you’re using a
forward-facing child restraint, you may find it
helpful to use your knee to push down on the child
restraint as
you tighten the belt.
6. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt. It will be ready to work for an adult or larger
child passenger.
1-59
ProCarManuals.com

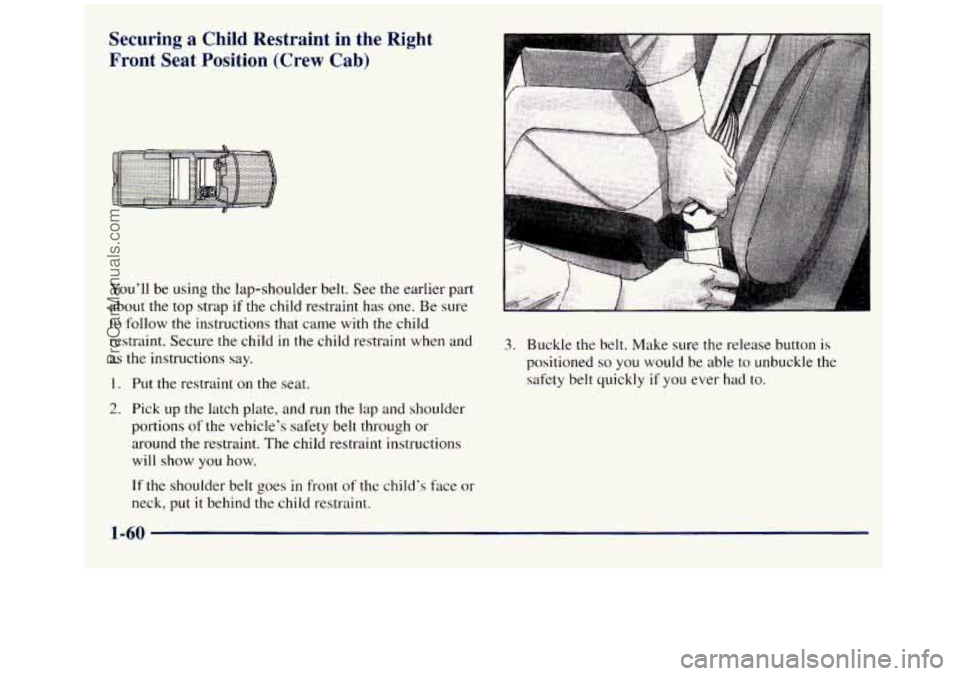

Securing a Child Restraint in the Right
Front Seat Position (Crew Cab)
You’ll be using the lap-shoulder belt. See the earlier part
about the top strap
if the child restraint has one. Be sure
to follow the instructions that came with the child
restraint. Secure the child
in the child restraint when and
as the instructions say.
1. Put the restraint on the seat.
2. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show
you how.
If the shoulder belt goes in front of the child’s face or
neck, put
it behind the child restraint. 3.
Buckle the belt. Make sure the release button
is
positioned so you would be able to unbuckle the
safety belt quickly
if you ever had to.
1-60
ProCarManuals.com

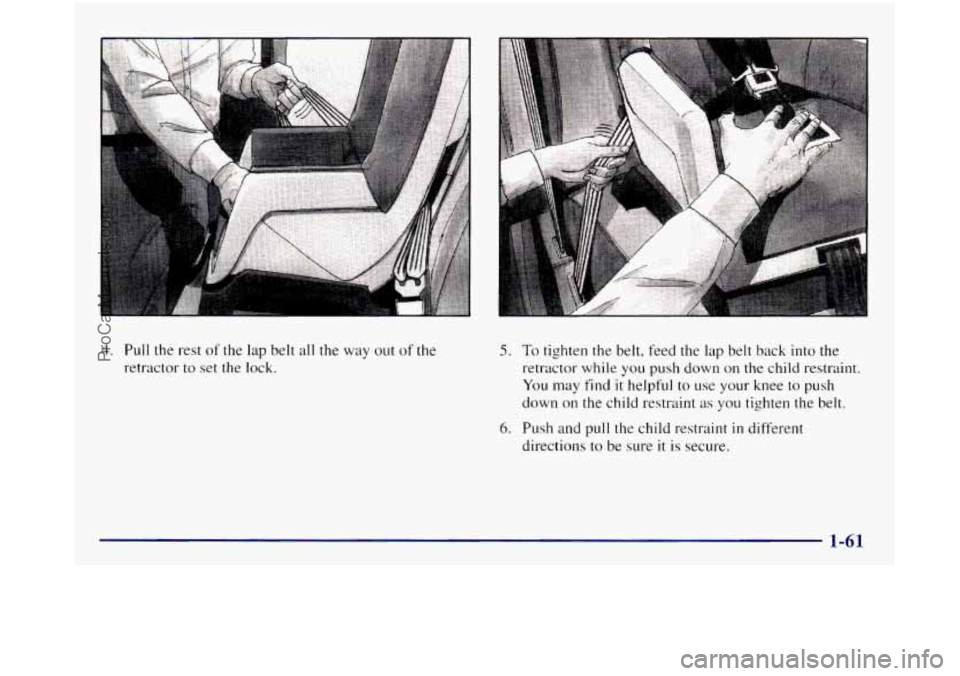

4. Pull the rest of the lap belt all the way out of the
retractor to set the
lock.
5. To tighten the belt, feed the lap belt back into the
retractor
while you push down on the child restraint.
You may find it helpful to use your knee to push
down on the child restraint as you tighten the belt.
6. Push and pull the child restraint in different
directions to be sure
it is secure.
1-61
ProCarManuals.com

To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it
go back all the way. The safety belt
will move freely again and be ready to work for an adult
or larger child passenger.

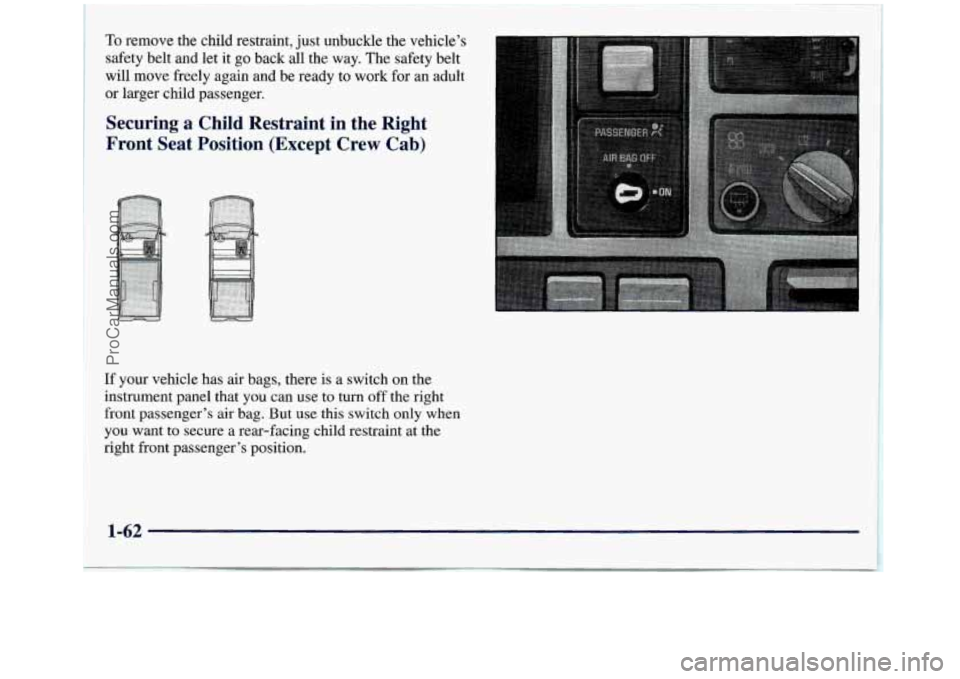

Securing a Child Restraint in the Right
Front Seat Position (Except Crew Cab)
If your vehicle has air bags, there is a switch on the
instrument panel that you can use to
turn off the right
front passenger’s air bag. But use this switch only when
you want to secure a rear-facing child restraint at the
right front passenger’s position.
1-62
ProCarManuals.com

If the air bag readiness light ever comes on when
you have turned
off the air bag, it means that
something may be wrong with the air bag system.
The right front passenger’s air bag could inflate
even though the switch is off.
If this ever
happens, don’t secure a rear-facing child
restraint in your vehicle until you have your
vehicle serviced.
You’ll be using
the lap-shoulder belt. See the earlier part
about
the top strap if the child restraint has one. Be sure
to follow
the instructions that came with the child
restraint. Secure the child in the child restraint when and
as the instructions say.
1. If your vehicle has air bags and you are using a
rear-facing child restraint in this seat, make sure the
air bag
is turned off. If your child restraint is
forward-fixing, always move the seat as far back as
it will go before securing it in this seat. (See “Seats”
in the Index.)
2. Put the restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder
portions of
the vehicle’s safety belt through or
around the restraint. The. child restraint instructions
will show
you how.
If the shoulder belt goes in front of the child’s face or
neck, put
it behind the child restraint.
4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly
if you ever had to.
1-64
ProCarManuals.com

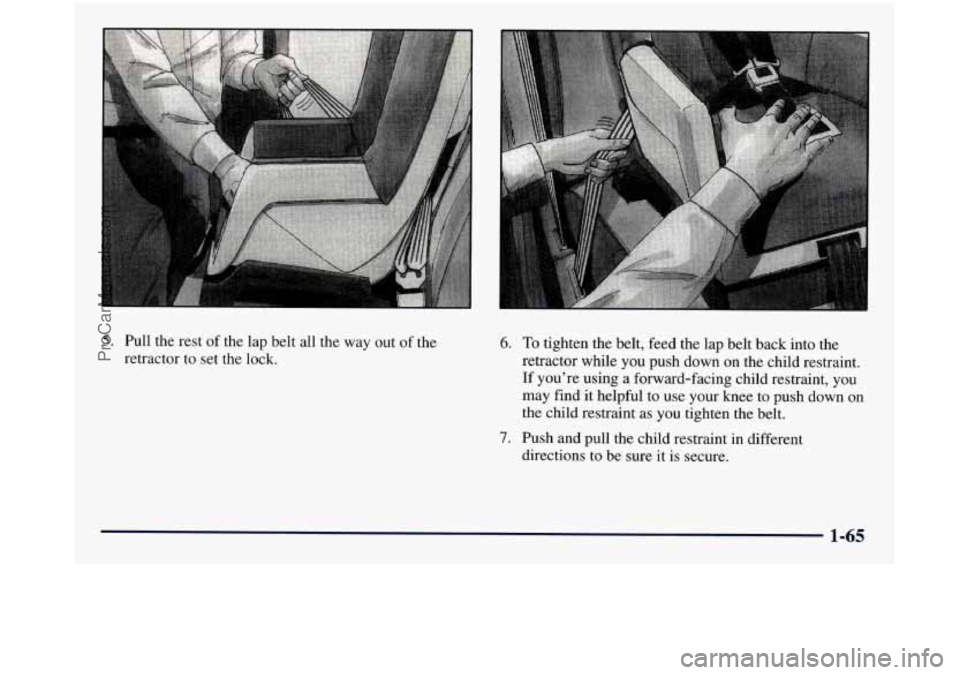

5. Pull the rest of the lap belt all the way out of the
retractor to set the lock. 6. To tighten the belt, feed the lap belt back into the
retractor while you push down on the child restraint.
If you’re using a forward-facing child restraint, you
may find it helpful to use your knee to push down on
the child restraint as
you tighten the belt.
7. Push and pull the child restraint in different
directions to be sure it is secure.
1-65
ProCarManuals.com

Your vehicle has one
double-sided key for the
ignition and all door locks.
If you ever lose your keys, your dealer will be able to
assist you with obtaining new ones. Tailgate
You can open the tailgate by lifting up on its handle
while pulling the tailgate toward you.
To shut the tailgate, firmly push it away from you into
the latch.
After you put the tailgate back up, pull it back toward
you,
to be sure that it latches securely.
Tailgate Removal
The tailgate on your vehicle can be removed to allow for
different loading situations. Although the tailgate can be
removed without assistance, you may want someone to
assist you with the removal to avoid possible damage to
the vehicle.
NOTICE:
' Your vehicle has a number of new features that
can help prevent theft.
You can have a lot of
trouble getting into your vehicle if you ever lock
your key inside.
You may even have to damage
your vehicle to get in.
So be sure you have an
extra key.
~. _~- -- . ~. - ~
2-3
ProCarManuals.com

To remove the tailgate:
2.
Raise the tailgate
slightly and release both
retaining cable clips.
To
release the retaining
cable clips, pull the
retaining cable clip away
from the cable end. Lift
the cable
so it points
straight out and push the
cable clips forward.
With the tailgate at a
slight upward angle.
pull back on the tailgate
at the right edge
and
then move the tailgate
to the right
to release
the left edge.
Re.verse the above procedure
to reinsla
tailgate is secure. dl. Make sure t :he
Third Door (If Equipped)
Your vehicle may be equipped with a third door that
allows easier access
to the rear area of an extended cab.
To open the third door, first open the passenger’s side
front door. Then, use the handle located on the front
edge
of the third door to open it.
You must close and latch the third
door before you can
close the front passenger door.
2-4
ProCarManuals.com
