1998 GMC SAVANA CD player

Remote Compact Disc Player (If Equipped)
If you have this option, you can play one compact disc
(CD) at a time.
To load a CD into the player, hold the disc with the label
side up and insert it carefully into the player
(approximately halfway). The disc will automatically be
pulled into the player. If the radio is off and
the ignition
is
on when a CD is inserted, the radio will turn on and
begin playing the
CD. It is possible to load and unload
CDs with the ignition off. To load a disc with the
ignition off, press the EJECT button
on the remote
player and then insert the disc.
To remove the disc, press
the EJECT button and remove
the disc from the player.
A disc that has been ejected but is still sitting in the
remote
CD player will be pulled back into the player
after approximately
30 seconds. This protects the disc
and player from damage. The disc will
not start playing.
To remove the disc, press the EJECT button and remove
the disc from the player.
All of the compact disc functions are controlled by the
radio buttons except
for EJECT. When a disc is in the
player, a CD symbol will appear on the display. When a
disc
is playing, the letters CD will appear next to the CD
symbol
in the bottom left corner. The track number will
also be displayed.
If
the disc comes back out and ERR appears on the
display, it could be that:
The disc is upside down.
It is dirty, scratched or wet.
0 There’s too much moisture in the air. (Wait about an
hour and try again.)
You are driving on a very rough road.
Please contact your dealership if any error recurs or
cannot be corrected.
PREV (1): Press this button to go back to the start of the
current track if more than eight seconds have played.
Press
PREV again to go to the previous track on the disc.
NEXT (3): Press this button to advance to the next track
on the disc.
3-20
ProCarManuals.com

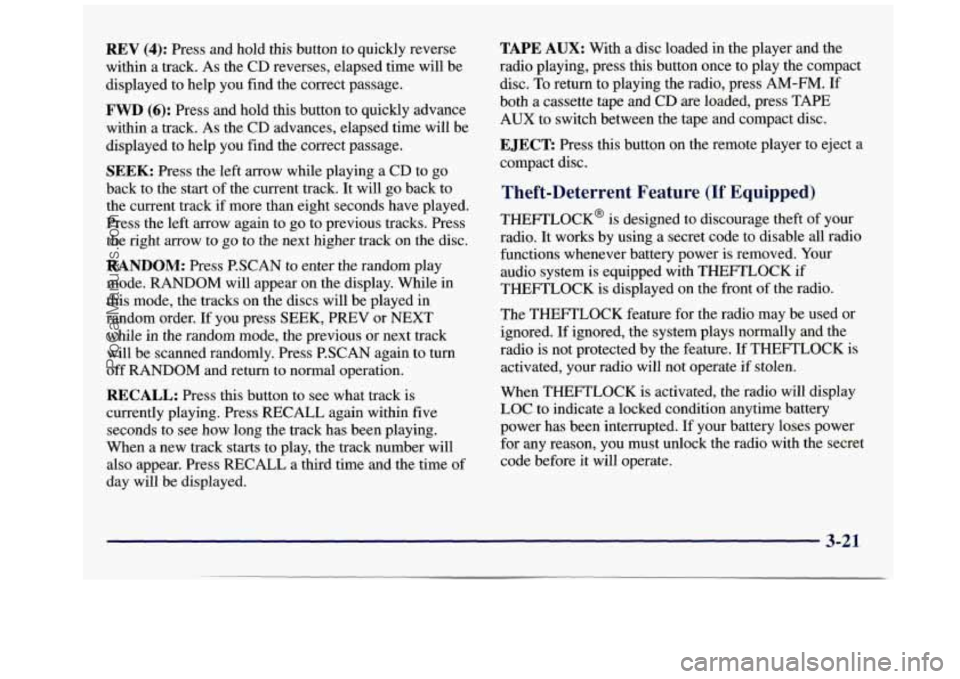

REV (4): Press and hold this button to quickly reverse
within a track. As the CD reverses, elapsed time will be
displayed to help you find the correct passage.
FWD (6): Press and hold this button to quickly advance
within a track.
As the CD advances, elapsed time will be
displayed to help you find the correct passage.
SEEK: Press the left arrow while playing a CD to go
back to the start
of the current track. It will go back to
the current track
if more than eight seconds have played.
Press the
left arrow again to go to previous tracks. Press
the right arrow to go to the next higher track on the disc.
RANDOM: Press P.SCAN to enter the random play
mode.
RANDOM will appear on the display. While in
this mode, the tracks on the discs will be played in
random order. If you press
SEEK, PREV or NEXT
while in the random mode, the previous or next track
will be scanned randomly. Press P.SCAN again to turn
off RANDOM and return to normal operation.
RECALL: Press this button to see what track is
currently playing. Press RECALL again within five
seconds to see how long the track has been playing.
When a new track starts to play, the track number will
also appear. Press RECALL a third time and the time
of
day will be displayed.
TAPE AUX: With a disc loaded in the player and the
radio playing, press this button once to play the compact
disc. To return to playing the radio, press
AM-FM. If
both a cassette tape and CD are loaded, press
TAPE
AUX to switch between the tape and compact disc.
EJECT Press this button on the remote player to eject a
compact disc.
Theft-Deterrent Feature (If Equipped)
THEFTLOCK@ is designed to discourage theft of your
radio. It works by using a secret code
to disable all radio
functions whenever battery power is removed. Your
audio system is equipped with THEFTLOCK if
THEFTLOCK is displayed on the front of the radio.
The THEFTLOCK feature for the radio may be used or
ignored. If ignored, the system plays normally and the
radio is not protected by the feature.
If THEFTLOCK is
activated, your radio will not operate if stolen.
When THEFTLOCK is activated, the radio will display
LOC to indicate a locked condition anytime battery
power has been interrupted. If your battery loses power
for any reason, you must unlock the radio with the secret
code before it will operate.
3-21
ProCarManuals.com

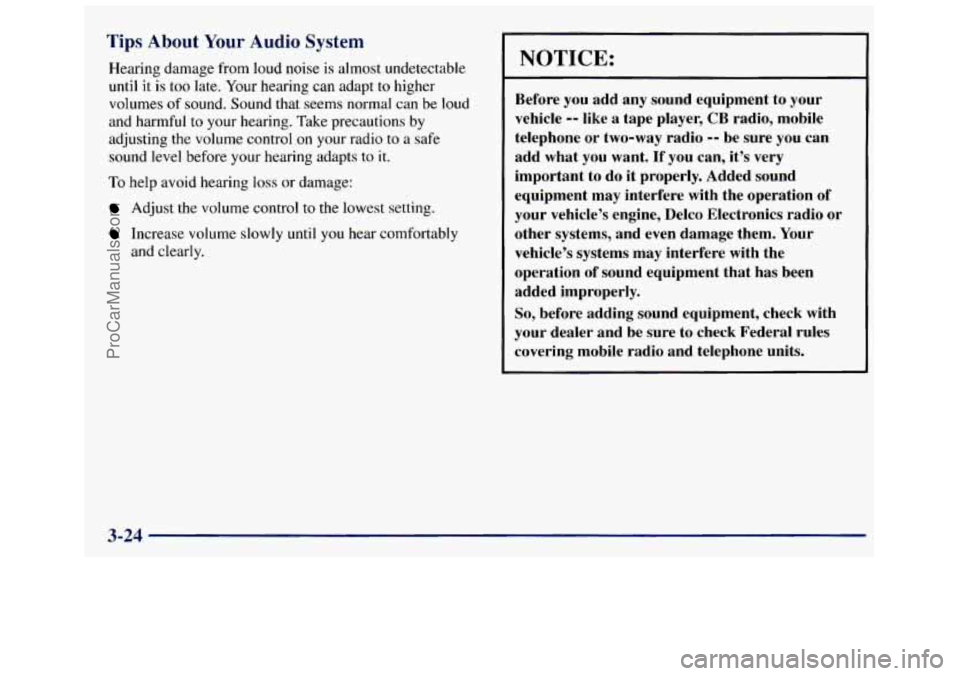

Tips About Your Audio System
Hearing damage from loud noise is almost undetectable
until it
is too late. Your hearing can adapt to higher
volumes
of sound. Sound that seems normal can be loud
and harmful to your hearing. Take precautions by
adjusting
the volume control on your radio to a safe
sound level before
your hearing adapts to it.
To help avoid hearing loss or damage:
Adjust the volume control to the lowest setting.
Increase volume slowly until you hear comfortably
and clearly.
NOTICE:
Before you add any sound equipment to your
vehicle
-- like a tape player, CB radio, mobile
telephone or two-way radio
-- be sure you can
add what you want.
If you can, it’s very
important to do it properly. Added sound
equipment may interfere with the operation
of
your vehicle’s engine, Delco Electronics radio or
other systems, and even damage them. Your
vehicle’s systems may interfere with the
operation
of sound equipment that has been
added improperly.
So, before adding sound equipment, check with
your dealer and be sure to check Federal rules
covering mobile radio and telephone units.
3-24
ProCarManuals.com

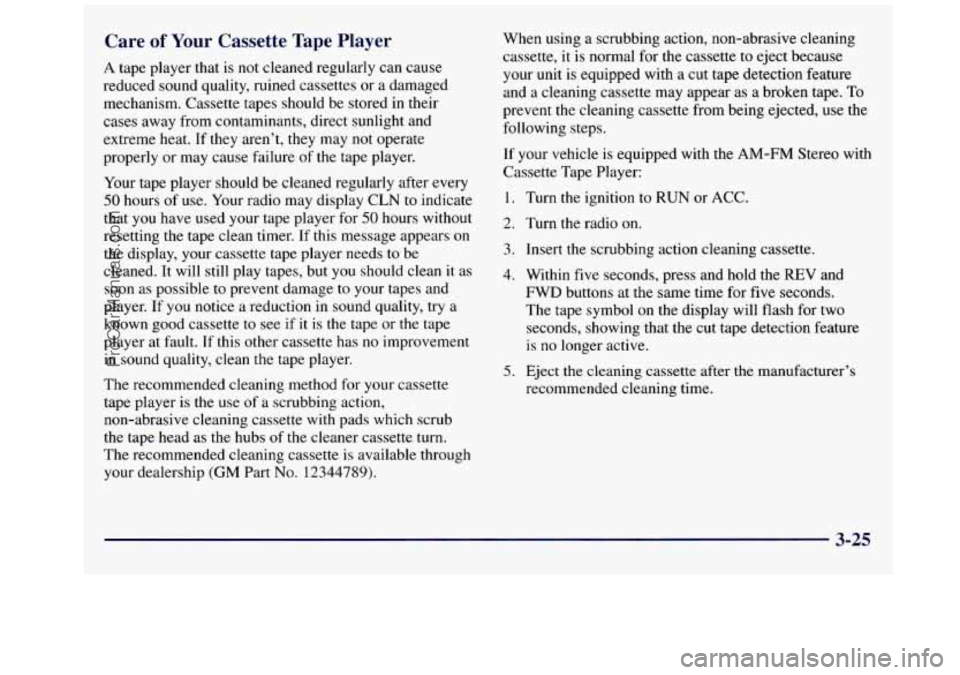

Care of Your Cassette Tape Player
A tape player that is not cleaned regularly can cause
reduced sound quality, ruined cassettes or a damaged
mechanism. Cassette tapes should be stored in their
cases
away from contaminants, direct sunlight and
extreme heat.
If they aren’t, they may not operate
properly or may cause failure of the tape player.
Your tape player should be cleaned regularly after every
50 hours of use. Your radio may display CLN to indicate
that you have used your tape player for
50 hours without
resetting
the tape clean timer. If this message appears on
the display, your cassette tape player needs to be
cleaned. It will still play tapes, but you should clean it as
soon
as possible to prevent damage to your tapes and
player. If you notice
a reduction in sound quality, try a
known good cassette to see if it is the tape or the tape
player at fault.
If this other cassette has no improvement
in sound quality, clean the tape player.
The recommended cleaning method for your cassette
tape player is the use of a scrubbing action,
non-abrasive cleaning cassette with pads which scrub
the tape head as the hubs of the cleaner cassette turn.
The recommended cleaning cassette is available through
your dealership
(GM Part No. 12344789).
When using a scrubbing action, non-abrasive cleaning
cassette, it is normal for
the cassette to eject because
your unit is equipped with a cut tape detection feature
and a cleaning cassette may appear as a broken tape.
To
prevent the cleaning cassette from being ejected, use the
following steps.
If your vehicle is equipped with the
AM-FM Stereo with
Cassette Tape Player:
1.
2.
3.
4.
5.
Turn the ignition to RUN or ACC.
Turn the radio on.
Insert the scrubbing action cleaning cassette.
Within five seconds, press and hold the
REV and
FWD buttons at the same time for five seconds.
The tape symbol on the display will flash for two
seconds, showing that the cut tape detection feature
is no longer active.
Eject
the cleaning cassette after the manufacturer’s
recommended cleaning time.
3-25
ProCarManuals.com

If your vehicle is equipped with the AM-FM Stereo with
Cassette Tape Player and Automatic Tone Control:
1. Turn the ignition to
RUN or ACC.
2. Turn the radio off.
3. Press and hold the TAPE AUX button for five
seconds. The tape symbol on the display will flash
for two seconds.
4. Insert the scrubbing action cleaning cassette while
the tape symbol is flashing.
5. Eject the cleaning cassette after the manufacturer’s
recommended cleaning time.
When the cleaning cassette has been ejected,
the cut tape
detection feature is active again.
You may also choose a non-scrubbing action, wet-type
cleaner which uses a cassette with a fabric belt
to clean
the tape head. This type of cleaning cassette will not
eject
on its own. A non-scrubbing action cleaner may
not clean as thoroughly as the scrubbing type cleaner.
The
use of a non-scrubbing action, dry-type cleaning
cassette is not recommended. After
you clean
the player, press and hold EJECT for
five seconds to reset the CLN indicator.
The radio will
display
--- to show the indicator was reset.
Cassettes are subject
to wear and the sound quality
may degrade over time. Always make sure the cassette
tape is in good condition before
you have your tape
player serviced.
Care of Your Compact Discs
Handle discs carefully. Store them in their original cases
or other protective cases and away from direct sunlight
and dust. If the surface
of a disc is soiled, dampen a
clean, soft cloth
in a mild, neutral detergent solution and
clean
it, wiping from the center to the edge.
Be sure never to touch the signal surface when handling
discs. Pick up discs by grasping the outer edges or the
edge of the hole and the outer edge.
Care of Your Compact Disc Player
The use of CD lens cleaner discs is not advised, due to
the risk of contaminating the lens of the CD optics with
lubricants internal to the CD mechanism.
3-26
ProCarManuals.com

Brakes (Continued) System Warning Light
......................... 2-56
Trailer
...................................... 4-33
Transmission Shift Interlock Check
............... 7-40
Wear
....................................... 6-30
Brakes. Anti-Lock
............................... 4-7
Braking in Emergencies
........................... 4-8
Break-In. New Vehicle
.......................... 2- 17
BTSICheck
................................... 7-40
Braking
........................................ 4-6
Brightness Control
.............................. 2-40
Bulb Replacement
.............................. 6-32
Camper-Type Mirrors
.......................... 2-47
Canadian Roadside Assistance
...................... 8-7
Capacities and Specifications
...................... 6-67
Carbon Monoxide
............... 2.29.2.30.2.33. 4.26
Cassette Deck Service
........................... 7-38
Cassette Tape Player Care
........................ 3-25
Center High-Mounted Stoplamp
................... 2-42
Center Passenger Position
........................ 1-39
Center Rear Passenger Position
.................... 1-39
Certification Label
.............................. 4-27
Certificatioflire Label
.......................... 4-27
Chains. Safety
................................. 4-33
Chains. Tire
................................... 6-50
Changing a Flat Tire
............................. 5-22
Care
of Compact Disc
Player ...................... 3-26
Cassette Tape Player
........................ 3.9. 3. 11
Charging System Light
.......................... 2-54 Check Gages
Light
.............................. 2-62
Checking Transmission Fluid Hot
.................. 6-18
Checking Your Restraint Systems
.................. 1-61
Chemical Paint Spotting
.......................... 6-58
Child Restraints
................................ 1-46
Securing
in a Rear Outside Seat Position ........... 1-52
Securing
in the Center Rear Seat Position .......... 1-54
Securing
in the Center Seat Position .............. 1-54
Securing in the Passenger Seat Position
........... 1-55
Securing in the Right Front Seat Position .......... 1-55
TopStrap
................................... 1-51
Where to Put
........................... 1-50. 1-51
Circuit Breakers and Fuses
....................... 6-61
Cleaner. Air
................................... 6-16
Cleaning Aluminum Wheels
............................ 6-56
Fabric
...................................... 6-52
Glass ....................................... 6-54
Inside
of Your Vehicle ......................... 6-51
Instrumentpanel
............................. 6-53
Leather
..................................... 6-53
Outside of Your Vehicle ........................ 6-55
Special Problems
............................. 6-52
Stains
...................................... 6-52
Tires
....................................... 6-57
Wheels
..................................... 6-56
Windshield and Wiper Blades
................... 6-54
Climate Control System
........................... 3-2
Clock. Setting the ................................ 3-7
Cigarette Lighter ............................... 2-48
Vinyl
....................................... 6-53
9-2
ProCarManuals.com

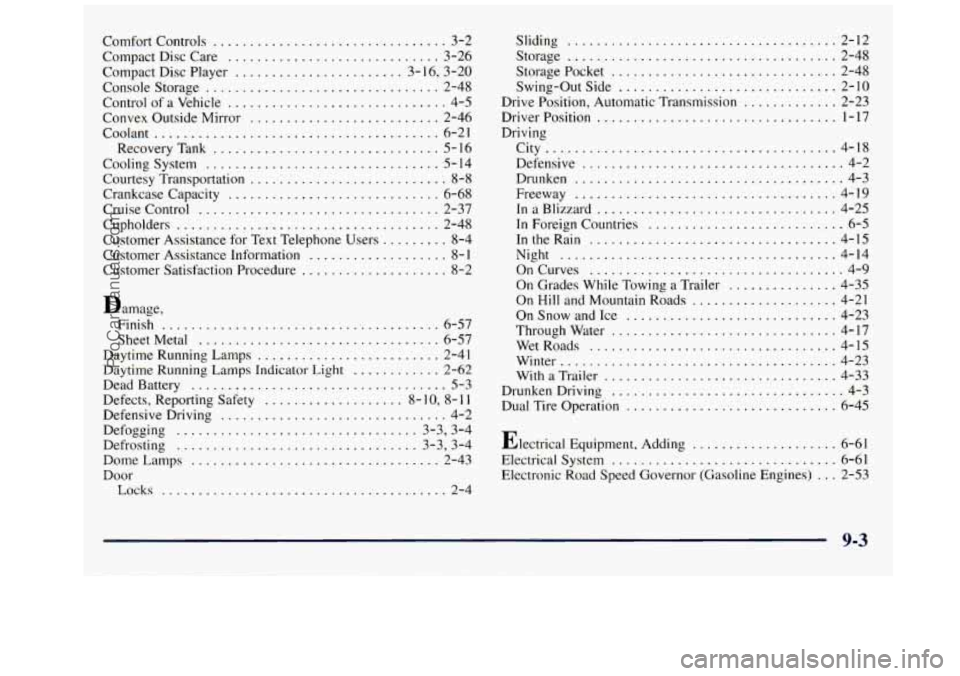

Comfort Controls ................................ 3-2
Compact Disc Care ............................. 3-26
Compact Disc Player
....................... 3- 16. 3.20
Console Storage
................................ 2-48
Control of
a Vehicle .............................. 4-5
Convex Outside Mirror
.......................... 2-46
Coolant
....................................... 6-21
RecoveryTank
............................... 5-16
Cooling System
................................ 5- 14
Courtesy Transportation
........................... 8-8
Crankcase Capacity ............................. 6-68
Cruise Control
................................. 2-37
Cupholders
.................................... 2-48
Customer Assistance Information
................... 8- 1
Customer Satisfaction Procedure .................... 8-2
Customer Assistance
for Text Telephone Users
......... 8-4
Damage. Finish
...................................... 6-57
Sheet Metal ................................. 6-57
Daytime Running Lamps
......................... 2-41
Daytime Running Lamps Indicator
Light ............ 2-62
Dead Battery ................................... 5-3
Defects. Reporting Safety
................... 8-10. 8-1 1
Defensive Driving ............................... 4-2
Defogging
................................. 3.3. 3.4
Defrosting
................................. 3.3. 3.4
Dome Lamps
.................................. 2-43
Door Locks
....................................... 2-4 Sliding
..................................... 2-12
Storage
..................................... 2-48
Swing-Out Side
.............................. 2-10
Drive Position. Automatic Transmission
............. 2-23
DriverPosition
................................. 1-17
Driving City
........................................ 4-18
Defensive
.................................... 4-2
Drunken
..................................... 4-3
Freeway
.................................... 4-19
InaBlizzard
................................. 4-25
In Foreign Countries ........................... 6-5
IntheRain
.................................. 4-15
Night
...................................... 4-14
OnCurves
................................... 4-9
On Grades While Towing a Trailer ............... 4-35
On Hill
and Mountain Roads .................... 4-21
OnSnowandIce
............................. 4-23
Throughwater
............................... 4-17
WetRoads
.................................. 4-15
Winter
...................................... 4-23
With
a Trailer ................................ 4-33
Drunken Driving
................................ 4-3
Dual Tire Operation
............................. 6-45
Storagepocket
............................... 2-48
Electrical Equipment. Adding
.................... 6-61
Electrical System
............................... 6-61
Electronic
Road Speed Governor (Gasoline Engines) ... 2-53
9-3
ProCarManuals.com

OH-Road Recovery ............................. 4- 1 1
Oil. Engine .................................... 6-12
Overheating Engine
............................. 5- 1 1
Owner Checks and Services ....................... 7-38
Owner Publications. Ordering
................ 8- 1 1. 8- I2
Paint Spotting. Chemical
........................ 6-58
Park
Automatic Transmission
....................... 2-21
Shifting Into
................................. 2-25
Shifting Out of
............................... 2-28
AtNight
.................................... 2-15
Brake
...................................... 2-24
Brake Mechanism Check
....................... 7-41
Over Things That Burn
........................ 2-29
With
a Trailer ................................ 4-36
Passenger Position
.............................. 1-26
Passing
.................................. 4-11
Passlock
..................................... 2-16
Periodic Maintenance Inspections
.................. 7-42
Power Antenna Mast Care
............................ 3-27
DoorLocks
................................... 2-5
Remote Control Mirror
........................ 2-45
Seat
......................................... 1-3
Steering
..................................... 4-8
Steering Fluid
................................ 6-25
Windows
................................... 2-31
Pregnancy. Use of Safety Belts
.................... 1-25
Parking
Lots
....................................... 2-16 Problems
on the Road
............................ 5-1
Publications. Service and Owner .............. 8- 1 1. 8- 12
Radiator
..................................... 5-18
Radiator Pressure Cap
........................... 6-24
Radio Reception
................................ 3-23
Radios
.......................... 3.7.3.9.3.11. 3.16
Rain. Driving In
................................ 4-15
Reading Lamps
................................ 2-43
Rear
Axle
....................................... 6-21
Door Security Locks
........................... 2-5
Outside Seat Position
.......................... 1-34
Towing
..................................... 5-11
Rear Air Conditioning and Rear Heater
............... 3-5
Rear Heater Controls (without Air Conditioning)
....... 3-4
Rear Passenger Temperature Control
................. 3-5
Rear Safety Belt Comfort Guides .................. 1-37
Rearview Mirror
................................ 2-45
Reclining Front Seatbacks
......................... 1-3
Recommended
Fluids and Lubricants ............... 7-44
Recovery Tank. Coolant
.......................... 5-16
Refrigerants. Air Conditioning
.................... 6-70
Remote Compact Disc Player
..................... 3-20
Replacement SeatPassengers
.............................. 1-34
Bulbs
...................................... 6-66
Parts
....................................... 6-69
Wheel
...................................... 6-49
Replacing Safety Belts
........................... 1-62
Reporting Safety Defects .................... 8- 10. 8-11
9-7
. ~ ...
ProCarManuals.com
