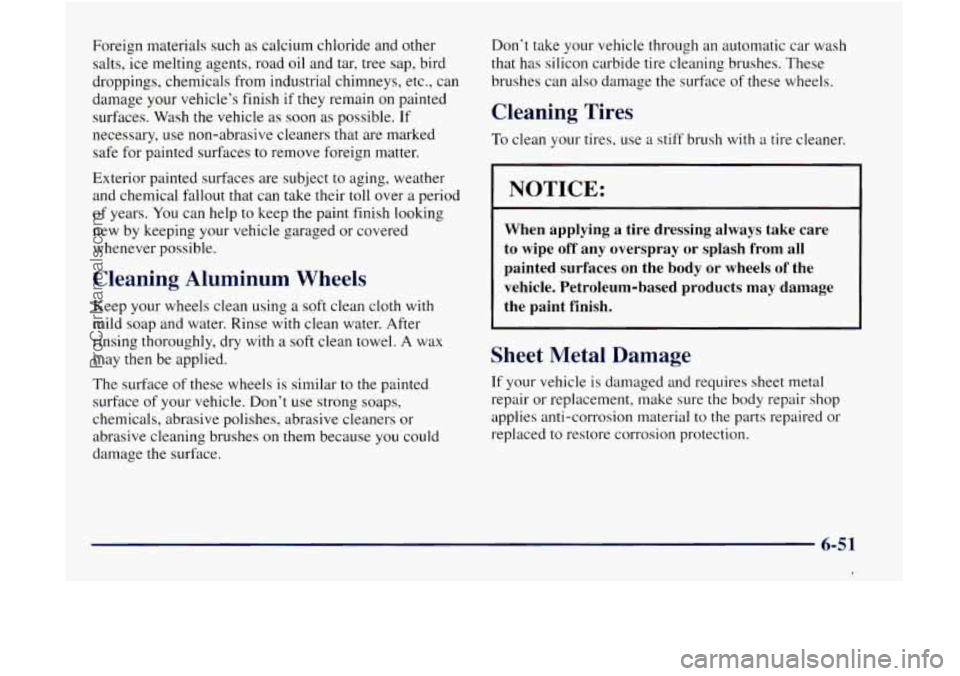

Foreign materials such as calcium chloride and other
salts, ice melting agents, road oil and tar, tree sap, bird
droppings, chemicals from industrial chimneys, etc., can
damage your vehicle’s finish if they remain on painted
surfaces. Wash the vehicle
as soon as possible. If
necessary, use non-abrasive cleaners that are marked
safe for painted surfaces to remove foreign matter.
Exterior painted surfaces are subject to aging, weather
and chemical fallout that can take their toll over
a period
of years. You can help to keep the paint finish looking
new by keeping your vehicle garaged or covered
whenever possible.
Cleaning Aluminum Wheels
Keep your wheels clean using a soft clean cloth with
mild soap and water. Rinse with clean water. After
rinsing thoroughly, dry with a soft clean towel. A wax
may then be applied.
The surface
of these wheels is similar to the painted
surface of your vehicle. Don’t use strong soaps,
chemicals, abrasive polishes, abrasive cleaners or
abrasive cleaning brushes on them because you could
damage the surface. Don‘t take your vehicle through
an automatic car wash
that has silicon carbide tire cleaning brushes. These
brushes can
also damage the surface of these wheels.
Cleaning Tires
To clean your tires, use a stiff brush with a tire cleaner.
NOTICE:
When applying a tire dressing always take care
to wipe off any overspray or splash from all
painted surfaces on the body
or wheels of the
vehicle. Petroleum-based products may damage
the paint finish.
Sheet Metal Damage
If your vehicle is damaged and requires sheet metal
repair or replacement, make sure the body repair shop
applies anti-corrosion material
to the parts repaired or
replaced to restore corrosion protection.
6-51
1
ProCarManuals.com

Maintenance Schedule
I Short Trip/City Definition I
Follow the Short TripKity Maintenance Schedule if any
one of these conditions is true for your vehicle:
Most trips are less than 5 to 10 miles (8 to 16 km).
This is particularly important when outside
temperatures are below freezing.
Most trips include extensive idling (such as frequent
driving in stop-and-go traffic).
off-road frequently.
You operate your vehicle in dusty areas 6r
0 You frequently tow a trailer or use a carrier on top of
your vehicle.
or other commercial application.
If the vehicle is used for delivery service, police, taxi
One
of the reasons you should follow this schedule if
you operate your vehicle under any of these conditions
is that these conditions cause engine oil
to break
down soonel:
Short Trip/City Intervals
Every 3,000 Miles (5 000 km): Engine Oil and Filter
Change (or
3 months, whichever occurs first). Chassis
Lubrication (or
3 months, whichever occurs first). Drive
Axle Service (or
3 months, whichever occurs first).
Every 6,000 Miles (10 000 km): Tire Rotation.
Every 15,000 Miles (25 000 km): Air Cleaner Filter
Inspection,
if driving in dusty conditions. Automatic
Transmission Service (severe conditions only).
Every 30,000 Miles (50 000 km): Air Cleaner Filter
Replacement. Fuel Filter Replacement.
Every 50,000 Miles (83 000 km): Automatic
Transmission Service (normal conditions).
Every 60,000 Miles (100 000 km): Engine
Accessory Drive Belt Inspection. Fuel Tank, Cap and
Lines Inspection.
Every 100,000 Miles (166 000 km): Spark Plug Wire
Inspection. Spark Plug Replacement. Positive
Crankcase Ventilation (PCV) Valve Inspection.
(Continued)
-- 7-5
ProCarManuals.com

Maintenance Schedule
I Short Trip/City Intervals I
Every 150,000 Miles (240 000 km): Cooling System
These intervals only summarize maintenance services.
Be sure to follow the complete maintenance schedule on
the following pages. Service
(or every
60 months, whichever occurs first).
1 Long TridHiEhwav Definition
Follow this maintenance schedule only if none of the
conditions from the Short Trip/City Maintenance
Schedule is true. Do not use this schedule
if the vehicle
is used for trailer towing, driven in a dusty area or used
off paved roads. Use the Short TripKity schedule for
these conditions.
Driving a vehicle with a fully warmed engine under
highway conditions causes engine oil
to break
down slower:
Long TridHiehwav Intervals
Every 7,500 Miles (12 500 km): Engine Oil and Filter
Change (or every 12 months, whichever occurs first).
Chassis Lubrication (or every 12 months, whichever
occurs first). Drive Axle Service. Tire Rotation.
Every 15,000 Miles (25 000 km): Automatic
Transmission Service (severe conditions only).
Every 30,000 Miles (50 000 km): Fuel Filter
Replacement. Air Cleaner Filter Replacement.
Every 50,000 Miles (83 000 km): Automatic
Transmission Service (normal conditions).
Every 60,000 Miles (100 000 km): Engine
Accessory Drive Belt Inspection. Fuel Tank, Cap and
Lines Inspection.
Inspection. Spark Plug Replacement. Positive
Crankcase Ventilation (PCV) Valve Inspection.
Every 150,000 Miles (240 000 km): Cooling System
Service (or every
60 months, whichever occurs first).
These intervals only summarize maintenance services.
Be sure to follow the complete maintenance schedule
on
the following pages.
Every 100,000 Miles (166 000 km): Spark Plug Wire
7-6 I
~ 1 I
ProCarManuals.com

Short TripKity Maintenance Schedule I
The services shown in this schedule up to 100,000 miles
( 166 000 km) should be performed after 100,000 miles
( 166 000 km) at the same intervals. The services shown
at
150,000 miles (240 000 km) should be performed at
the same interval after 150,000 miles (240
000 ktn).
See “Owner Checks and Services” and “Periodic
Maintenance Inspections” following.
Footnotes
7 The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure
to perform this maintenance item will not nullify
the emission warranty or limit recall liability prior to the
completion
of the vehicle’s ~1sefu1 life. We, however.
urge that all recommended maintenance services be
performed
at the indicated intervals and the maintenance
be recorded.
## Lubricate the front suspension, ball joints, steering
linkage, parking brake cable guides, propshaft splines.
universal joints and brake pedal springs.
+ A ~ood time to check your brakes is during tire
rotation. See “Brake System Inspection” under ”Periodic
Maintenance Inspections”
in Part C of this schedule.
.:. .:, -,-*,- Drive axle service (see “Recommended Fluids and
Lubricants“ in the Index for proper lubricant to use):
Locking Differential -- Drain fluid and refill at first
engine oil change.
At subsequent oil changes. check
fluid level and add fluid
as needed. If driving in
dusty areas or towing a trailer, drain fluid and refill
every 15,000 miles
(25 000 km).
Standard Differential -- Check fluid level and add
fluid
as needed at every oil change. If driving in
dusty areas or towing a trailer. drain fluid and refill
every
15,000 miles (25 000 km).
More frequent lubrication may be required for
hea\jy-duty
or off-l-oad use.
7-7
ProCarManuals.com

1 Short TripKity Maintenance Schedule I
27,000 Miles (45 000 kin) (Continued)
0 Lubricate chassis components (or every 3 months, whichever occurs first).
0 Check readfront axle fluid level and add fluid as needed. Check constant
(See footnote
#.)
velocity
joints and axle seals for leaking. (See footnote **.)
30,000 Miles (50 000 km)
0
0
0
0
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
Check readfront axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking. (See footnote
**.)
Replace fuel filter.
An Emission Control Service. (See footnote?.)
Replace air cleaner filter.
An Emission Control Service.
Change automatic transmission fluid and filter if the vehicle is mainly driven
under one or more of these conditions:
7-12
In heavy city traffic where the outside temperature regularly reaches 90°F
(32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
I i
DATE I
I MILEAGE ACTUAL I SERVICEDBY: I
ProCarManuals.com

Short TripKity Maintenance Schedule
0 Check readfront axle fluid level and add fluid as needed. Check constant
0 Change automatic transmission fluid and filter if the vehicle is mainly driven
velocity
joints and axle seals for leaking. (See footnote
**.)
under one or more of these conditions:
- In heavy city traffic where the outside temperature regularly reaches 90°F
- In hilly or mountainous terrain.
(32 "C) or higher.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or delivery service.
If you do nut use your vehicle under any of these conditions, change the fluid
and filter every 50,000 miles (83 000 km).
Inspect air cleaner filter if you are driving in dusty conditions. Replace filter
if necessary.
An Emission Control Service. (See footnote?.)
48,000 Miles (80 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs first).
Lubricate chassis components (or every 3 months, whichever occurs first).
An Emissiorz Control Service.
(See footnote
#.)
DATE I
(Continued)
7-15
ProCarManuals.com

I Short Trip/City Maintenance Schedule 1
60,000 Miles (100 000 km) (Continued)
0 Lubricate chassis components (or every 3 months, whichever occurs first).
(See footnote
#.)
Check readfront axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking. (See footnote
**.)
0 Change automatic transmission fluid and filter if the vehicle is mainly driven
under one or more of these conditions:
- In heavy city traffic where the outside temperature regularly reaches 90°F
- In hilly or mountainous terrain.
(32°C)
or higher.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or delivery service.
Ifyou do not use your vehicle under any of these conditions, change the fluid
and filter every
50,000 miles (83 000 km).
An Emission Control Service.
Art Emission Control Service. (See footnote?.)
An Emission Control Service.
0 Inspect engine accessory drive belt.
0 Replace fuel filter.
0 Replace air cleaner filter.
7-18
ProCarManuals.com

I Short Trip/City Maintenance Schedule I
75,000 Miles (125 000 km)
0
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
Lubricate chassis components (or every
3 months, whichever occurs first).
(See footnote
#.)
Change automatic transmission fluid and filter if the vehicle is mainly driven
under one or more of these conditions:
- In heavy city traffic where the outside temperature regularly reaches 90°F
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or delivery service.
Ifyou do not
use your vehicle under any of these conditions, change the fluid
andfilter every
50,000 miles (83 000 km).
Inspect air cleaner filter if you are driving in dusty conditions.
Replace filter if necessary,
An Emission Control Service. (See footnote?.)
Check readfront axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking. (See footnote
**.)
(32" C) or higher.
DATE 1
I MILEAGE ACTUAL I SERVICEDBY I
7-21
ProCarManuals.com
