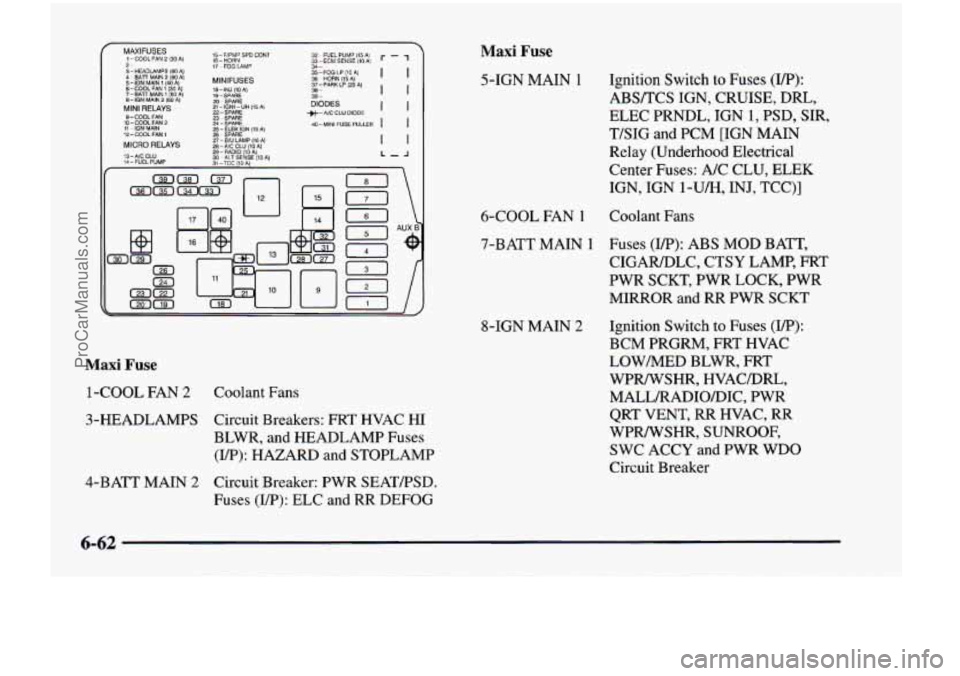

Maxi Fuse
5-IGN MAIN 1 Ignition Switch to Fuses (VP):
ABS/TCS IGN, CRUISE, DRL,
ELEC PRNDL, IGN
1, PSD, SIR,
T/SIG and PCM [IGN MAIN
Relay (Underhood Electrical
Center Fuses:
A/C CLU, ELEK
IGN, IGN
l-U/H, INJ, TCC)]
8-IGN MAIN
2
Maxi Fuse
1-COOL FAN 2 Coolant Fans
3-HEADLAMPS Circuit Breakers: FRT HVAC
HI
BLWR, and HEADLAMP Fuses
(UP): HAZARD and STOPLAMP
4-BATT MAIN
2 Circuit Breaker: PWR SEATPSD.
Fuses
(VP): ELC and RR DEFOG 6-COOL
FAN
1 Coolant Fans
7-BATT MAIN
1 Fuses (UP): ABS MOD BATT,
CIGARDLC, CTSY LAMP, FRT
PWR SCKT, PWR LOCK, PWR MIRROR and RR PWR SCKT
Ignition Switch to Fuses
(VP):
BCM PRGRM, FRT HVAC
LOWMED BLWR, FRT
WPWSHR, HVACDRL,
MALL/RADIO/DIC, PWR QRT
VENT, RR HVAC, RR
WPWSHR, SUNROOF,
SWC ACCY and PWR WDO
Circuit Breaker
6-62
ProCarManuals.com
Mini Relays
9-COOL FAN RH FAN 1, LH FAN 2
10-COOL FAN 2 LH FAN 2
1 1 -1GN MAIN
FUSES: A/C CLU, IGN l-U/H,
INS, ELEK IGN, TCC
12-COOL FAN
1 RH FAN 1, LH FAN 2
Micro Relays
13-AIC CLU
A/C Clutch
14-FUEL PUMP Fuel Pump
15-FFMP SPD Not Used
cow
16-HORN
17-FOG LAMP
Mini Fuse
18-INJ
19-SPARE
20-SPARE Horn
LH Fog
Lamp, RH Fog Lamp,
Fog Lamp Indicator
Fuel Injectors 1-6
Not Used
Not Used
Mini Fuse
21-IGN1-UH
22-SPARE
23-SPARE
24-SPARE
25-ELEK IGN
26-SPARE
27-Bh-J LAMP
28-NC CLU
29-RADIO Evaporative
Emissions (EVAP)
Canister Purge Valve, Heated
Oxygen Sensors
1 and 2, Mass Air
Flow (MAF) Sensor
Not Used
Not Used
Not Used
Ignition Control Module (ICM)
Not Used
Transaxle Range Switch to
Back-up Lamps
A/C CLU Relay to A/C
Compressor Clutch Oil
Driver Information Display,
Heater A/C Control, Radio, Rear
Side Door Actuator Control
Motor, Remote Control Door
Lock Receiver (RCDLR), Security
Indicator Lamp and Theft
Deterrent Shock Sensor
6-63
ProCarManuals.com

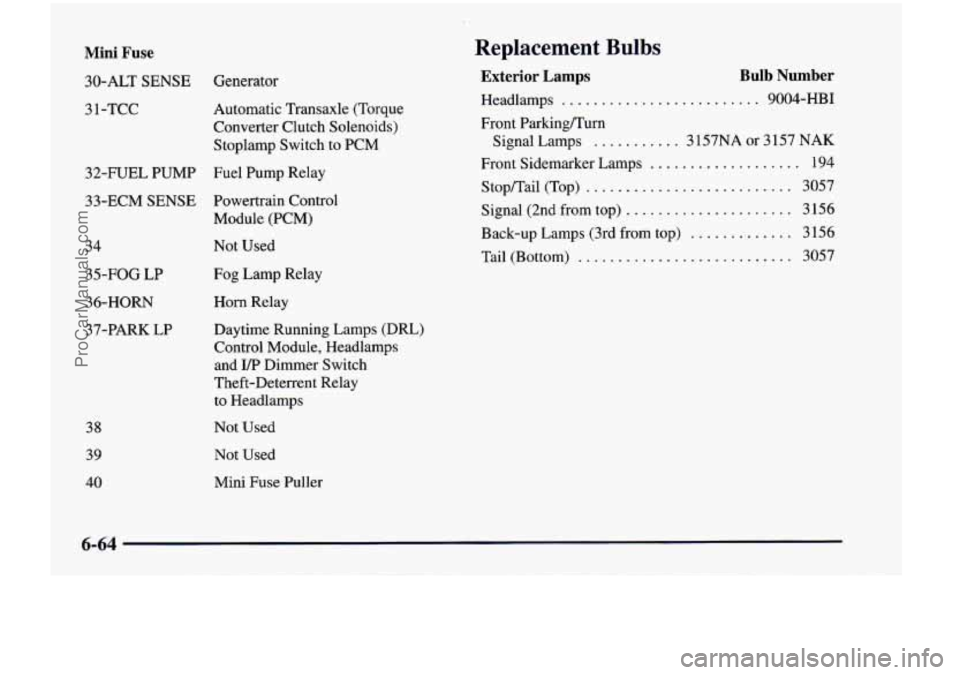

Mini Fuse
30-ALT SENSE
3 1 -TCC Generator
Automatic
Transaxle (Torque
Converter Clutch Solenoids)
Stoplamp Switch
to PCM
32-FUEL PUMP Fuel Pump Relay
33-ECM SENSE Powertrain Control
Module (PCM)
34
35-FOG LP
36-HORN
37-PARK
LP
38
39
40
Not Used
Fog Lamp Relay
Horn Relay
Daytime Running Lamps (DRL)
Control Module, Headlamps
and
I/P Dimmer Switch
Theft-Deterrent Relay to Headlamps
Not Used
Not Used
Mini Fuse Puller
Replacement Bulbs
Exterior Lamps Bulb Number
Headlamps ......................... 9004-HBI
Front ParkingRurn Signal Lamps
........... 3157NA or 3157 NAK
Front Sidemarker Lamps ................... 194
Stop/Tail (Top) .......................... 3057
Signal (2nd from top) ..................... 3156
Back-up Lamps (3rd from top)
............. 3156
Tail (Bottom)
........................... 3057
ProCarManuals.com

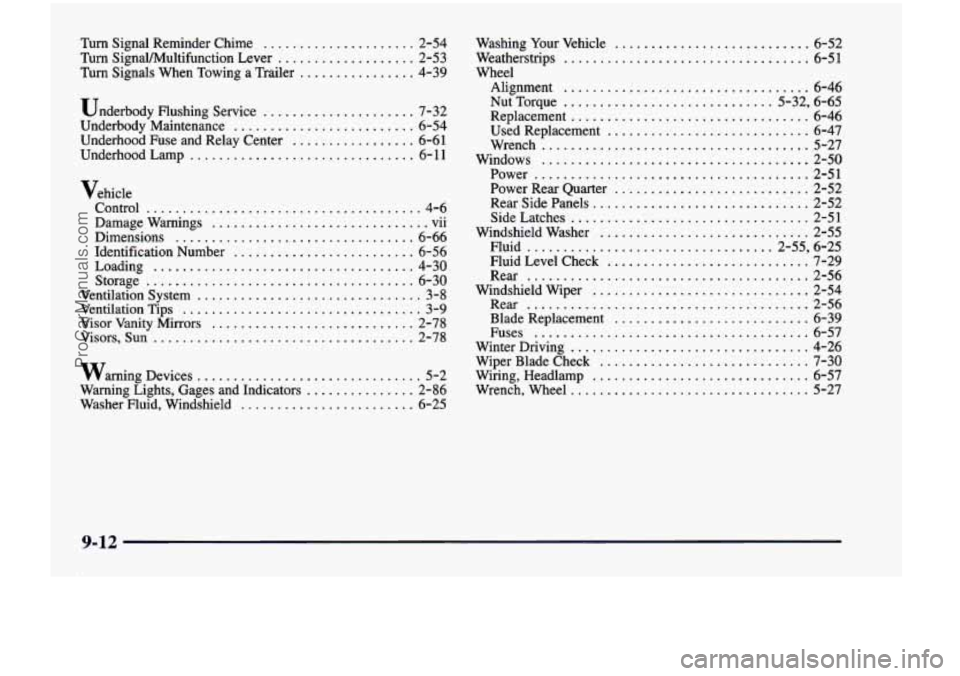

Turn Signal Reminder Chime ..................... 2-54
