Downloaded from www.Manualslib.com manuals search engine a CAUTION:
Snow can trap exhaust gases under your vehicle.
This can cause deadly
CO (carbon monoxide) gas
to get inside. CO could overcome you and kill
you.
You can’t see it or smell it, so you might not
know it is in your vehicle. Clear away snow from
around the base of your vehicle, especially any
that
is blocking your exhaust pipe. And check
around again from time
to time to be sure snow
doesn’t collect there.
Open
a window just a little on the side of the
vehicle that’s away from the wind. This will help
keep
CO out.
Run your engine only as long as you must. This saves
fuel. When you run the engine, make it go a little faster
than just idle. That is, push the accelerator slightly. This
uses less fuel for the heat that
you get and it keeps the
battery charged.
You will need a well-charged battery to
restart the vehicle, and possibly for signaling later on
with your headlamps. Let the heater run for a while. Then,
shut the engine
off and close the window almost
all the way to preserve the heat. Start the engine again
and repeat this
only when you feel really uncomfortable
from the cold. But do it as little as possible. Preserve the
fuel as long as you can.
To help keep warm, you can get
out of the vehicle and do some fairly vigorous exercises
every half hour or
so until help comes.
Loading Your Ve’ kle
OCCUPANTS
VEHICLE CAP. WT.
.
TIRE-LOADING INFORMATION
FRT, CTR. RR. TOTAL LBS. KG
MAX. LOADING & GVWR SAME AS VEHICLE
CAPACITY WEIGHT XXX COLD TIRE
TIRE
SIZE SPEED PRESSURE
RTG PSPKPa
FRT.
RR.
SPA.
IF TIRES ARE HOT, ADD 4PSli28KPa
SEE OWNER’S MANUAL FOR ADDITIONAL
INFORMATION
4-28

Downloaded from www.Manualslib.com manuals search engine Before closing the hood, be sure all the filler caps
are on.
Then just pull the hood down and close it firmly.
Engine Oil
LOW OIL
If the LOW OIL light on
the instrument panel comes
on, it means you need to
check your engine oil
level right
away. For more
information, see “Low Oil
Light”
in the Index.
You
should check your engine oil level regularly; this is
an added reminder.
It’s a good idea to check your engine oil every time you
get
fuel. In order to get an accurate reading, the oil must
be warm and the vehicle must be on level ground. The
engine oil dipstick is the yellow loop near the back
of the engine
Note: Do not check the 5.7L engine oil level after the
engine has been sitting overnight,
A higher than normal
reading might be obtained. Check oil level with the oil
warm. Shut off the engine, wait a few minutes, and then
check the oil.
Turn off the engine and give the oil a few minutes to
drain back into the oil pan.
If you don’t, the oil dipstick
might not show the actual level.
6-12

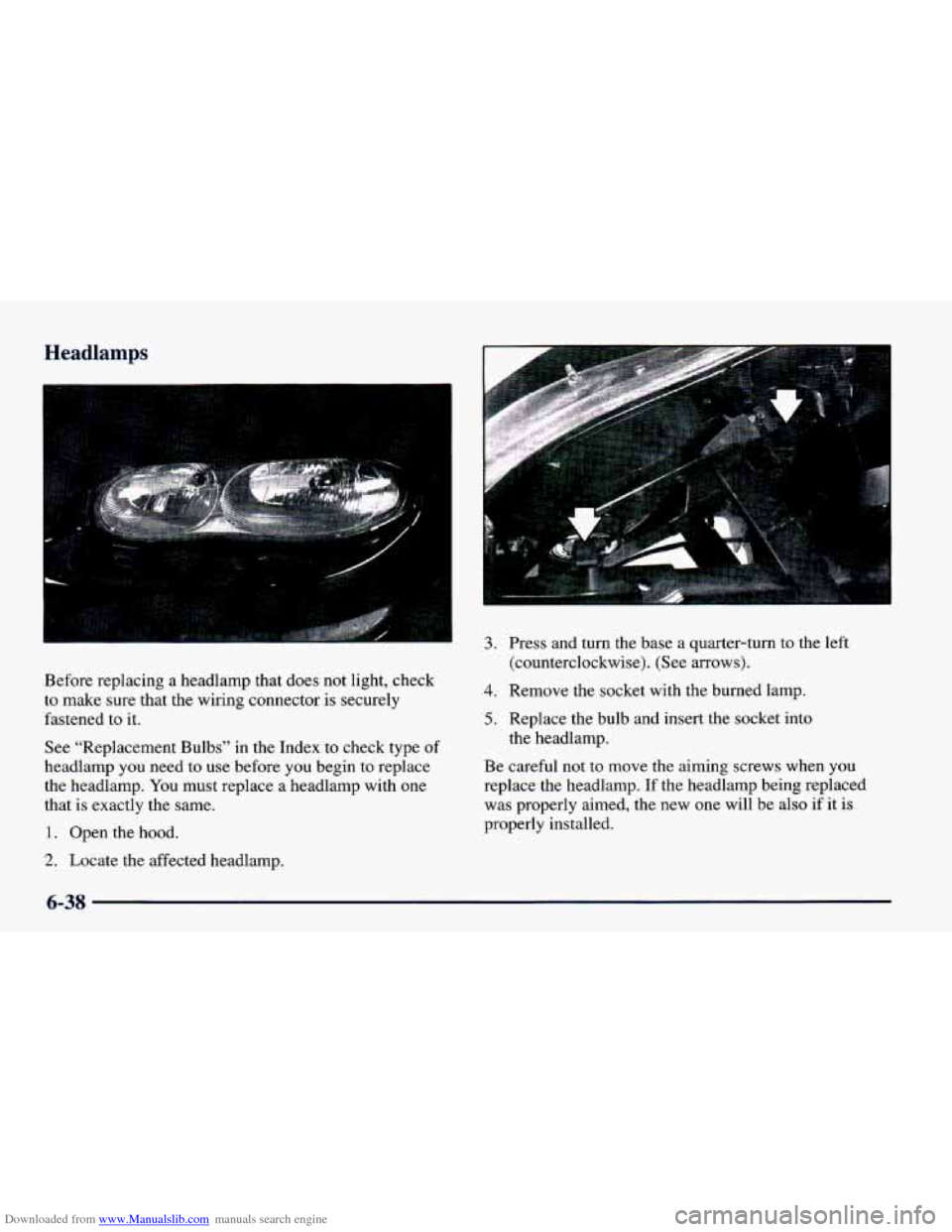

Downloaded from www.Manualslib.com manuals search engine Headlamns
3.
Before replacing a headlamp that does not light, check
to make sure that the wiring connector
is securely
fastened to
it.
See "Replacement Bulbs" in the Index to check type of
headlamp you need to use before you begin to replace
the headlamp.
You must replace a headlamp with one
that is exactly the same.
1. Open the hood.
2. Locate the affected headlamp.
4.
5.
Press and turn the base a quarter-turn to the left
(counterclockwise). (See arrows).
Remove the socket with
the burned lamp.
Replace the bulb and insert the socket into
the headlamp.
Be careful
not to move the aiming screws when you
replace the headlamp. If the headlamp being replaced
was properly aimed, the new one will be also
if it is
properly installed.
6-38

Downloaded from www.Manualslib.com manuals search engine Headlamps
The headlamp wiring is protected by a circuit breaker.
An electrical overload will cause the lamps to go on
and off, or in some cases to remain
off. If this happens,
have your headlamp wiring checked right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and a
fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools. If
the overload is caused by some electrical problem and
not snow, etc., be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers protect the power windows and other
power accessories. When the current load is too heavy,
the circuit breaker opens and closes, protecting the
circuit until the problem
is fixed or goes away.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected
from short circuits by a combination of fuses, circuit
breakers, and fusible thermal links in the wiring itself.
This greatly reduces the chance of fires caused by
electrical problems.
Look at the silver-colored band inside the
fuse. If the
band is broken or melted, replace the fuse. Be sure
you
replace a bad fuse with a new one of the correct size.
If you ever have a problem on
the road and don’t have a
spare fuse, you can borrow one of the correct value. Just
pick some feature of your vehicle that you can get along
without
-- like the radio or cigarette lighter -- and use
its fuse,
if it is the size you need. Replace it as soon as
you can.
6-63

Downloaded from www.Manualslib.com manuals search engine At Least Twice a Year
Restraint System Check
Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors and anchorages are
working properly. Look for any other loose or damaged
safety belt system parts. If you see anything that might
keep a safety belt system from doing its job, have it
repaired. Have any torn or frayed safety belts replaced.
Also look for any opened or broken air bag coverings,
and have them repaired or replaced. (The air bag system
does not need regular maintenance.)
Wiper Blade Check
Inspect wiper blades for wear or cracking. Replace blade
inserts that appear worn or damaged or that streak or
miss areas of the windshield. Also see “Wiper Blades,
Cleaning” in the Index.
Manual Transmission Check
Check the transmission fluid level; add if needed. See
“Manual Transmission” in the Index. Check for leaks.
A fluid loss may indicate a problem. Have the system
inspected and repaired if needed.
Automatic Transmission Check
Check the transmission fluid level; add if needed. See
“Automatic Transmission” in the Index. A fluid loss
may indicate a problem. Check the system and repair if
needed.
Hydraulic Clutch System Check
Check the fluid level in the clutch reservoir. See
“Hydraulic Clutch Fluid” in the Index. A fluid loss
in this system could indicate a problem. Have the
system inspected and repaired at once.
At Least Once a Year
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant
specified in Part
D.
Body Lubrication Service
Lubricate all hinges and latches, including those for the
hood, rear compartment, console doors and any folding
seat hardware. Part
D tells you what to use. More
frequent lubrication may be required when exposed to
a corrosive environment.
7-33

Downloaded from www.Manualslib.com manuals search engine 0 Section 9 Index
Accessory Plug ............................... 2-58
AirBag
....................................... 1-20
How Does it Restrain .......................... 1-24
How it Works ................................ 1-22
Location
.................................... 1-22
Readiness Light
......................... 1-21, 2-76
Servicing
................................... 1-25
What Makes it Inflate
.......................... 1-23
What Will You See After it Inflates
............... 1-24
When Should it Inflate
......................... 1-23
Air Cleaner
.................................... 6- 18
Air Conditioning
................................ 3-3
Aircontrol ..................................... 3-2
Alarm
Arming the System
............................ 2-16
Content Theft-Deterrent
....................... 2- 15
Disarming the System ......................... 2- 17
Turning
Off the Alarm ......................... 2-17
AlarmPanicMode
............................... 2-9
Alignment and Balance, Tire
...................... 6-50
Aluminum Wheels, Cleaning
...................... 6-58
Antifreeze
..................................... 6-26
Anti-Lock
..................................... 4-7
Brake System Warning Light
................ 2-78, 4-7
Adding Equipment to the Outside
of Your Vehicle ...... 6-3
Brakes
...................................... 4-7
Anti.Theft. Radio
..............................
Control Off Switch ............................ 4-10
Control System
................................ 4-9
System Warning Light
..................... 2.79. 4.9
Audio Equipment. Adding
........................ 3-23
Audio Systems
.................................. 3-6
Auto-Down Window
............................ 2-44
Automatic Overdrive
............................ 2-32
Automatic Transmission
......................... 2-30
BTSICheck
................................. 7-34
Check
...................................... 7-33
Fluid
....................................... 6-20
Operation
................................... 2-30
Park Mechanism Check
........................ 7-35
Shifting
..................................... 2-30
Starting Your Engine
.......................... 2-27
Axle, Limited-Slip Rear
......................... 2-43
Axle, Rear
.................................... 6-26
9-1

Downloaded from www.Manualslib.com manuals search engine Battery ...................................... 6-37
Jump Starting
................................. 5-3
Replacement. Keyless Entry .................... 2- 11
Warnings
........................... 5.3.5.4. 6.37
BBB Auto Line
................................. 8-9
Before Leaving on a Long Trip
.................... 4-21
Better Business Bureau Mediation
................... 8-9
Blizzard
...................................... 4-27
Brake Adjustment
.................................. 6-36
Checking Fluid
............................... 6-34
Fluid
....................................... 6-33
Master Cylinder
.............................. 6-33
Parking
..................................... 2-37
Pedal Travel
................................. 6-36
Replacing System Parts
........................ 6-36
System Warning Light
......................... 2-77
Trailer
...................................... 4-34
Transmission Shift Interlock
.................... 2-43
Wear
....................................... 6-35
Brakes. Anti-Lock
............................... 4-7
Braking
........................................ 4-6
Braking
in Emergencies .......................... 4- 10
Break-In. New Vehicle
.......................... 2-24
Brightness Control
.............................. 2-52
BTSICheck
................................... 7-34
Bulb Replacement
.............................. 6-37
BTSI
......................................... 2-43 Canadian
Roadside Assistance
.................... 8-7
Capacities and Specifications
...................... 6-69
Carbon Monoxide
.......... 2.12.2.41.2.42.4.28. 4.33
Cassette Deck Service
........................... 7-32
Cassette Storage
................................ 2-56
Cassette Tape Player
......................... 3.7. 3.9
Care
of
Your Cassette Tape Player .................. 3-24
Cassette Tape Player Care
........................ 3-24
CD Player Theft-Deterrent Feature
................. 3-21
Center High-Mounted Stoplamp Bulb Replacement
.... 6-39
Certification Label
.............................. 4-29
Chains. Safety
................................. 4-34
Chains. Tire
................................... 6-51
Changing a Flat Tire
............................. 5-27
Check Gages Light
.............................. 2-85
Checking Your Restraint Systems
.................. 1-46
Chemical Paint Spotting
.......................... 6-60
Child Restraints
................................ 1-33
Securing
in a Rear Seat Position ................. 1-39
Securing in the Right Front Seat Position
.......... 1-41
WheretoPut
................................ 1-37
Cigarette Lighter
............................... 2-57
Circuit Breakers and Fuses
....................... 6-63
Cleaner. Air
................................... 6-18
Cleaning
Aluminurnwheels
............................ 6-58
Convertible Top
.............................. 6-58
Fabric
...................................... 6-53
TopStrap
................................... 1-38
9-2

Downloaded from www.Manualslib.com manuals search engine Dimensions. Vehicle ............................ 6-7 1
Dolby
B Noise Reduction 3-13
Door Last Door Closed Locking Feature
................ 2-6
Lockout Prevention
............................ 2-6
Locks
....................................... 2-4
Drive Position. Automatic Transmission
............. 2-32
Driver Position
................................. 1 - 12
Driver’s Door Alarm Delay/Shock Sensor Enable
..... 2-23
Driving City
........................................ 4-19
Defensive
.................................... 4-2
Drunken
..................................... 4-2
Freeway
.................................... 4-20
InaBlizzard
................................. 4-27
In Foreign Countries
........................... 6-5
IntheRain
.................................. 4-17
Night
...................................... 4-15
OnCurves
.................................. 4-10
On Grades While Towing a Trailer
............... 4-36
On Hill and Mountain Roads
.................... 4-23
OnSnowandIce
............................. 4-25
WetRoads
.................................. 4-17
Winter
...................................... 4-24
With a Trailer
................................ 4-34
8 .......................
Downshifting .................................. 2-36
Throughwater
............................... 4-19
DrunkenDriving
................................ 4-2 Electrical
Equipment. Adding
.......... 2.28.3.23. 6.62
Electrical System
............................... 6-62
Engine
.................................. 6-10’6-11
Coolant ..................................... 6-26
Coolant Heater
............................... 2-28
Coolant Level Check
.......................... 7-32
Coolant Temperature Gage
..................... 2-80
Exhaust
..................................... 2-41
FuseBlocks
................................. 6-64
Identification
................................ 6-62
OilLevelCheck
.............................. 7-32
Overheating
................................. 5-14
Running While Parked
......................... 2-42
Specifications
................................ 6-69
Starting Your
................................ 2-27
Engine Cooling When Trailer Towing
............... 4-37
Engineoil
.................................... 6-12
Adding
..................................... 6-13
Additives
................................... 6-17
Checking
................................... 6-13
Pressure Gage
................................ 2-83
Used
....................................... 6-17
What Kind to Use
............................. 6-14
Whentochange
.............................. 6-17
Ethanol
........................................ 6-5
Exhaust’Engine
................................ 2-41
Exit Lighting
............................. 2-20. 2-53
9-4
