1998 CADILLAC CATERA relay

Downloaded from www.Manualslib.com manuals search engine Power Distribution Fuse Block Fuses and Circuit Breakers
This fuse block is attached to the engine compartment
relay center located on top of the battery. Simply lift the
lid to open. If you have any questions about the power
distribution fuse block, consult your dealer. The
wiring circuits in your vehicle are protected from
the
short circuits by a combination of fuses and circuit
breakers.
This greatly reduces the chance of fires caused
by electrical problems.
Look at the silver-colored band inside the fuse.
If the
band is broken or melted, replace the
fuse. Be sure you
replace a bad fuse with a new one of the identical size
and rating.
If you ever have a problem on the road and don’t have a
spare fuse, you can borrow one that has the same
amperage. Pick some feature of your vehicle that
you
can get along without -- like the radio or cigarette
lighter
-- and use its fuse, if it is the correct amperage.
Replace it as soon as you can.
There
are two €use blocks in your vehicle: the
instrument panel fuse blocks and the engine
compartment relay center.
6-56

Downloaded from www.Manualslib.com manuals search engine Fuse Usage
4 RH and LH Rear Seat Cushion
Heater Relay
8
9
10
11
Transmission Control Module
Radio Speaker Amplifier
RH and LH Rear Side Door Window
Regulator Motor
Headlamp Switch,
Turn Signal
Switch, Horn Relay, CD Changer,
Multifunction Relay
Windshield Wiper Motor and Relay,
Windshield Wiper and Windshield Washer Switch
Body Control Module (BCM), Heater
Water Auxiliary Pump, Fan Control
Relays, ECM Relay, Auxiliary Water
Pump Relay
Heater and A/C Control, RH and LH
Outside Rearview Mirrors, Outside
Remote Control Rear View Mirror Switch
Fuse
12
13
14
15
Usage
Hazard Warning Switch, Instrument
Cluster, Data Link Connector (DLC),
Stoplamp Switch, Gage Cluster, Heater
and A/C Control
Remote Control Outside Rearview Mirror
Switch,
A/C Compressor Relay, Coolant
Fan Test Connector, A/C Load Switch
Cellular Telephone, RH and LH
Windshield Washer Nozzle, Driver and
Passenger Heated Seat Switch, Heater and
A/C Control, Heated Outside Rearview
Mirror and Rear Window Defogger Relay
Rear Suspension Leveling Air
Compressor Relay, Instrument Cluster,
Gage Cluster, Cruise Control Switch and
Module, Headlamp Switch, Multifunction
Relay, Passenger and Driver Heated Seat
Relay, BCM, Sunroof Actuator,
Automatic Level Control Sensor,
RH and
LH Heated Rear Seat Switch and Cushion
Relay, Driver Seat Adjuster Memory
Module, LH Front Side Door Window
Switch, Inside Rearview Mirror
6-58

Downloaded from www.Manualslib.com manuals search engine Fuse Usage Usage
16
17
18
19
20
21
22
23
24
25
26 Cigarette Lighter (Front and Console)
Horn #1 and #2
Fuel Pump
Electronic BrakeD'raction Control Module
Passenger and Driver Heated Seat Relay
Daytime Running Lamp (DRL) Relay,
LH High-Beam Headlamp Relay
Headlamp
Switch, LH Headlamp
(Low Beam)
LH Parking Lamp and
Turn Signal Lamp,
LH Rear Sidemarker Lamp, Multifunction
Relay, LH Stoplamp and Taillamp
Lifting Magnet, BCM, Gage Cluster Sunroof Actuator
Headlamp Switch, RH and LH Front
Sidemarker Lamp, Middle Taillamp, RH
and LH Rear License Plate Lamp, Radio,
Automatic Transmission Control
Indicator, Heater and A/C Control
Fuse
27
28 29
30
31
32
33
34
35 Automatic Level Control Sensor, Rear
Suspension Leveling Air Compressor
and Relay
Remote Control Door Lock Receiver, Door Lock Relay, Rear Compartment Lid
Release Connector (Not Used)
Multifunction Relay
RH Parking Lamp and Turn Signal Lamp,
RH Rear Sidemarker Lamp, RH
Stoplamp and Taillamp
RH Low-Beam Headlamp and Turn Signal Switch
RH High-Beam Headlamp Relay
Blower Controller, A/C
Compressor Relay
Heated Rear Window Defogger Relay,
Heated Outside Rearview Mirror
Passenger and Driver Seat Adjuster
Switch, Driver Seat Adjuster
Memory Module
6-59

Downloaded from www.Manualslib.com manuals search engine Relay Box
f I rn II
XI: HORN HI BEAM RH
x
HTD MIRROR lx FLASHER
RR WDO DEFOG
m m
PRK LP

HI BEAM LH ALC
Ip LO BEAM
P PI
DRL
The relay box is located on the lower part of the
instrument panel, to the right
of the steering column.
Relay
I
I1
I11
IV
V
VI
VI1
VI11 IX X
XI
Usage
High-Beam Headlamps I' &IF>
Automatic Level Control
Rear Window Defog, Heated Mirrors
Hazard Warning Flashers
High-Beam Headlamps
I1 (RH)
Horn
Parking Lamps and Turn Signal Lamps
Low-Beam Headlamps
Not Used
Not Used Daytime Running Lamps
6-60

Downloaded from www.Manualslib.com manuals search engine Engine Compartment Relay Center
The relay center is located next to the battery on the
driver’s
side of the engine. Lift the cover to access. Fusemelay Usage
1 Secondary Air Injection Pump
(Relay
K12)
Fan Control (Relay K67)
Auxiliary Water Pump (Relay K22)
Windshield Wiper Motor (Relay
K8)
6-61

Downloaded from www.Manualslib.com manuals search engine Fusemelay
5
6
7
8
9
10 12
15 16
Usage
A/C Compressor (Relay K60)
Fan Control (Relay K87)
Fan Control (Relay K26)
Fan Control (Fuse 42)
Secondary
Air Injection Pump
(Fuse 49)
Engine Controls Power (Relay K43)
Fan Control (Fuse 40)
Fan Control (Fuse 52)
Connector C110
Fuse/Relay Usage
17 Fan Control (Relay K52)
18 Fan
Control (Relay K28)
19 Fan
Control Relay, Engine Control
Module (ECM) Relay (Fuse
50)
20
27
28
29
39 Fuel
Pump (Relay K44)
Heated Oxygen Sensors (Fuse 43)
Engine Control Module (ECM)
(Fuse
60)
Engine Control Module (ECM)
(Relay K48)
Coolant Fan Test Connector
6-62

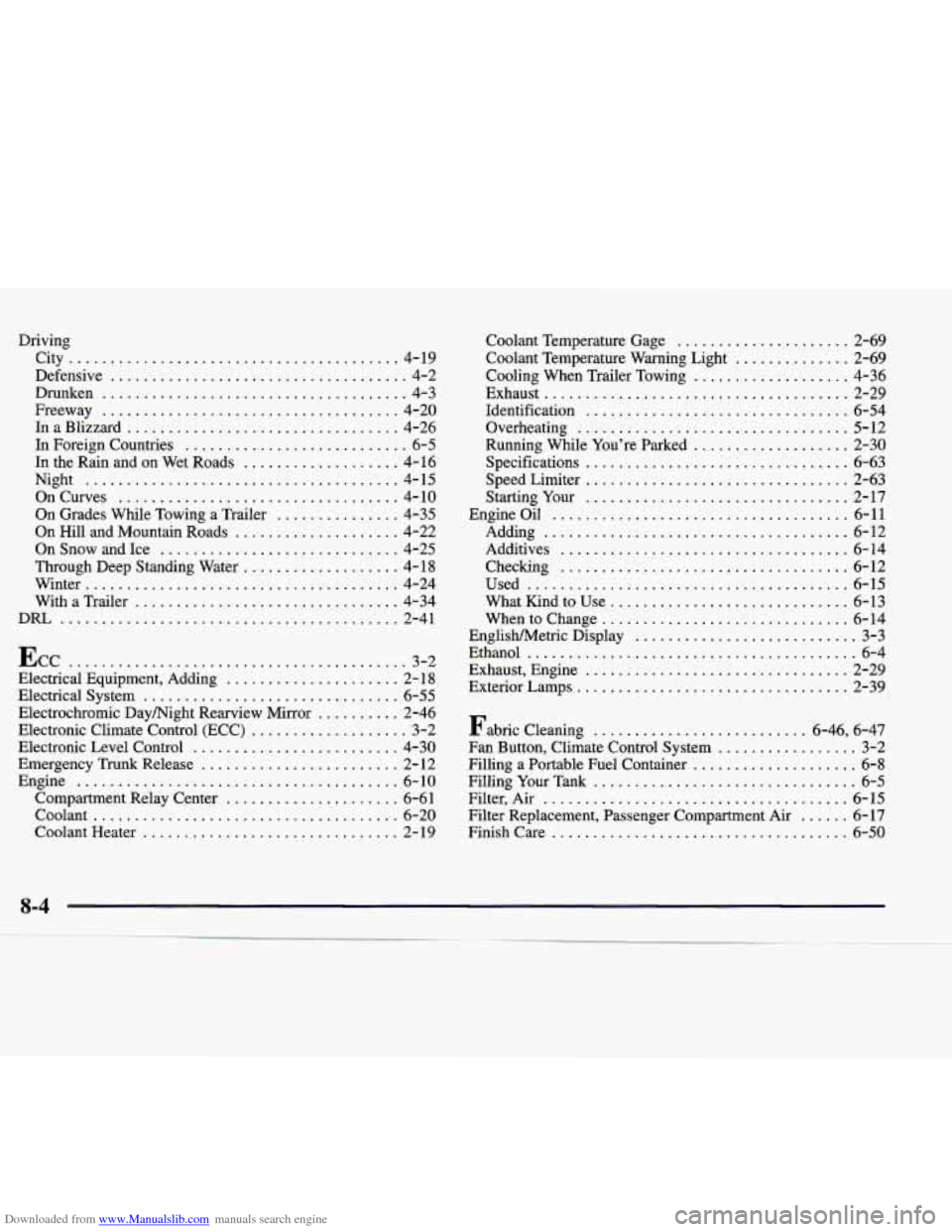

Downloaded from www.Manualslib.com manuals search engine Driving City
........................................ 4-19
Defensive
.................................... 4-2
Drunken
..................................... 4-3
Freeway
.................................... 4-20
In a Blizzard ................................. 4-26
In Foreign Countries
........................... 6-5
In the Rain and on Wet Roads ................... 4-16
Night
...................................... 4-15
OnCurves
.................................. 4-10
On Grades While Towing a Trailer
............... 4-35
On Hill and Mountain Roads
.................... 4-22
OnSnowandIce
............................. 4-25
Through Deep Standing Water
................... 4- 18
Winter
...................................... 4-24
With a Trailer
................................ 4-34
DRL ......................................... 2-41
ECC ......................................... 3-2
Electrical Equipment. Adding
..................... 2- 18
Electrochromic Daymight Rearview Mirror
.......... 2-46
Electronic Climate Control (ECC)
................... 3-2
Electronic Level Control
......................... 4-30
Engine
....................................... 6-10
Coolant
..................................... 6-20
Coolant Heater
............................... 2- 19
Electrical System
............................... 6-55
Emergency Trunk Release
........................ 2- 12
Compartment Relay Center
..................... 6-61 Coolant Temperature Gage
..................... 2-69
Cooling When Trailer Towing
................... 4-36
Overheating
................................. 5-12
Running While You’re Parked
................... 2-30
Specifications
................................ 6-63
Speed Limiter
................................ 2-63
StartingYour
................................ 2-17
Engine Oil
.................................... 6-11
Adding ..................................... 6-12
Additives
................................... 6-14
Checking
................................... 6-12
Used
....................................... 6-15
What Kind to Use
............................. 6-13
Whentochange
.............................. 6-14
EnglishMetric Display
........................... 3-3
Ethanol ........................................ 6-4
Exhaust. Engine
................................ 2-29
Coolant Temperature Warning Light
.............. 2-69
Exhaust
..................................... 2-29
Identification
................................ 6-54
Exterior Lamps
................................. 2-39
Fabric Cleaning
.......................... 6.46. 6.47
Fan Button. Climate Control System
................. 3-2
Filling a Portable Fuel Container
.................... 6-8
Filter. Air
..................................... 6-15
Filter Replacement. Passenger Compartment Air
...... 6-17
Finish Care
.................................... 6-50
Filling
Your Tank
................................ 6-5

Downloaded from www.Manualslib.com manuals search engine Paint Spotting. Chemical ........................ 6-52
Park Automatic Transmission
....................... 2-20
Shifting Into
................................. 2-25
Shifting Out
of ............................... 2-27
At Night
.................................... 2- 13
Brake
...................................... 2-24
Lots
....................................... 2-13
On Hills With a Trailer
......................... 4-36
Passenger Compartment Air Filter
................... 3-8
Passenger Compartment Air Filter Replacement
....... 6-17
Passenger’s Side Temperature Knob
................. 3-2
Parking
Over Things That Burn
........................ 2-29
Passenger’s Seatback Latch
........................ 1-8
Passing
....................................... 4- 12
Perimeter Lighting
.............................. 2-41
Playing a Cassette Tape
..................... 3-11. 3-18
Playing a Compact Disc
.......................... 3-20
Power DoorLocks
................................... 2-5
Recliner
..................................... 1-8
Remote Control Mirror
........................ 2-47
Seats
........................................ 1-4
Steering
.................................... 4-10
SteeringFluid
................................ 6-24
Windows
................................... 2-31
Windows and Other Power Options
............... 6-55
Power Distribution Fuse Block
.................... 6-56
Pregnancy. Use of Safety Belts
.................... 1-26
Retained Accessory
........................... 2- 17 Problems on the Road
............................ 5-1
Programmable Automatic Door Locks
............... 2-5
Programming the Power Windows ................. 2-31
Programming the
Sunroof ........................ 2-54
Programming the Universal Transmitter
............. 2-56
Publications. Service and Owner
.............. 7- 13. 7- 14
Radio Data Systems
(RDS) Program Type
(PTY) Selections
.............................. 3-21
Radio Reception
................................ 3-27
Radios
................................... 3-9. 3-13
Rain. Driving In
................................ 4-16
RAP ......................................... 2-17
Axle
....................................... 6-19
Door Security Locks
........................... 2-6
Reading Lamps
.............................. 2-45
Seat Passenger Positions
....................... 1-36
Rear
Seatpassengers
.............................. 1-36
Seats
....................................... 1-10
Turn Signal Lamp. Bulb Replacement
............. 6-36
Window Defogger
............................. 3-8
WindowLockout ............................. 2-32
Rearview Mirror. Electrochromic Daymight
......... 2-46
Recirculation
................................... 3-5
Reclining Front Seatbacks
......................... 1-6
Refrigerants. Air Conditioning
.................... 6-63
RelayBox
..................................... 6-60
Remote Fuel Door Release
........................ 6-6
Remote. Keyless Entry System (RKE)
............... 2-8
Removable Head Restraints
........................ 1-9
8-8
