1998 BMW 318ti engine




COMPONENT LOCATION CHART
:





 !


COMP.8500.0 7100.0LOCATION DESCRIPTION

G6 . . .
PASSENGER’S AIR BAG GAS
GENERATOR . . . . . . . . . . . . . . . . . . . . .
behind glove box above . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18-3



G12 . .
DRIVER’S SIDE PYROTECHNICAL
BELT TENSIONER . . . . . . . . . . . . . . . .
driver’s seat right







G13 . .


PASSENGER’S SIDE
PYROTECHNICAL BELT
TENSIONER . . . . . . . . . . . . . . . . . . . . .

passenger’s seat left







G14 . .
LEFT SIDE AIR BAG GAS
GENERATOR . . . . . . . . . . . . . . . . . . . . .
in driver’s door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

30-1



G15 . .
RIGHT SIDE AIR BAG GAS
GENERATOR . . . . . . . . . . . . . . . . . . . . .
in passenger’s door





G6509

GENERATOR . . . . . . . . . . . . . . . . . . . . . .

front LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

03-1


H1w . . ANTI–THEFT HORN (ALPINE) . . . . . . . in RH front bumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07-3
H2 . . . LEFT HORN . . . . . . . . . . . . . . . . . . . . . . . . front of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-3
H3 . . . RIGHT HORN . . . . . . . . . . . . . . . . . . . . . . front of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-3

H4 . . .

RIGHT FRONT TURN LIGHT . . . . . . . . .

RH front of vehicle




H5 . . . RIGHT REAR TURN LIGHT . . . . . . . . . . RH side of body rear end
H6 . . . LEFT REAR TURN LIGHT . . . . . . . . . . . LH side of body rear end

H7 . . .
LEFT FRONT TURN LIGHT . . . . . . . . . .
LH front of vehicle





H8 . . .

RIGHT FRONT AUXILIARY TURN
LIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . .
RH front of vehicle




H9 . . . LEFT FRONT AUXILIARY TURN LIGHT LH front of vehicle
H10 . . CHIME MODULE . . . . . . . . . . . . . . . . . . . above LH footwell dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-3




COMPONENT LOCATION CHART
:





 !


COMP.8500.0 7100.0LOCATION DESCRIPTION
H56 . . LEFT REAR HIGH RANGE SPEAKER . under rear window shelf

H57 . .

LEFT REAR LOW RANGE SPEAKER .

under rear window shelf




H58 . . LEFT FRONT LOW RANGE SPEAKER in lower LH A–pillar
H59 . . LEFT FRONT HIGH RANGE SPEAKER in upper LH front door

H66 . .
SUBWOOFER . . . . . . . . . . . . . . . . . . . . . .
at back of rear window shelf





H91 . .



RIGHT LUGGAGE COMPARTMENT
LIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . .


in luggage compartment right






I1008 . SEAT MAT . . . . . . . . . . . . . . . . . . . . . . . . . in passenger’s seat area
K2 . . . . HORN RELAY . . . . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-2
K4 . . . . BLOWER RELAY . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-2

K9 . . . .

UNLOADER RELAY, TERMINAL 15 . . .

below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

20-1


K13 . . REAR DEFOGGER RELAY . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-1
K16 . . HAZARD FLASHER RELAY . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-2

K19 . .
COMPRESSOR CONTROL RELAY . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .
12-1

K21 . . NORMAL SPEED RELAY . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-1
K22 . . HIGH SPEED RELAY . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-1

K45 . .
FOLDING SUNROOF COMFORT
RELAY . . . . . . . . . . . . . . . . . . . . . . . . . . .
below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18-1


K46 . . HIGH BEAM LIGHT RELAY . . . . . . . . . . below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-1

K46z .

DAY LIGHT RELAY MODULE . . . . . . . .

below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18-1


K47 . . FRONT FOG LIGHT RELAY . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-2




COMPONENT LOCATION CHART
:





 !


COMP.8500.0 7100.0LOCATION DESCRIPTION
K48 . . LOW BEAM LIGHT RELAY . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-2

K125 .

ABS PUMP MOTOR RELAY, TIMED . . .

Power Distribution Box rear LH side of engine compartment . . . . . . . . . . . .

12-1


K6300 ENGINE CONTROL MODULE RELAY . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-3
K6301w FUEL PUMP RELAY . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-3

K6304
SECONDARY AIR PUMP RELAY . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .
12-3

K6326

UNLOADER RELAY, TERMINAL 15 . . .

rear RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

27-1


M2 . . . FUEL PUMP . . . . . . . . . . . . . . . . . . . . . . . . below RH side of rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-2
M3 . . . WIPER MOTOR . . . . . . . . . . . . . . . . . . . . rear of engine compartment below center of cowl . . . . . . . . . . . . . . . . . . . . . 09-1

M4 . . .
WASHER PUMP . . . . . . . . . . . . . . . . . . . .
front RH side of engine compartment on washer fluid reservoir . . . . . . . . . .
07-3



M7 . . .

HEADLIGHT/FOG LIGHT WASHER
PUMP . . . . . . . . . . . . . . . . . . . . . . . . . . .
front RH side of engine compartment on washer fluid reservoir . . . . . . . . . .

14-3


M9 . . . AUXILIARY FAN MOTOR . . . . . . . . . . . . behind front grille behind trim panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
M12 . . DRIVER’S DOOR LOCK MOTOR . . . . . in lower LH front door behind trim panel

M13 . .
PASSENGER’S DOOR LOCK MOTOR
in lower RH side of front door behind trim panel



M16 . . GAS FILLER LOCK MOTOR . . . . . . . . . in RH rear side of luggage compartment behind trim panel . . . . . . . . . . . . . 29-1


M17 . .

LUGGAGE COMPARTMENT LOCK
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . .
rear side of luggage compartment behind trim panel . . . . . . . . . . . . . . . . . . .

23-1


M21 . . DRIVER’S WINDOW MOTOR . . . . . . . . LH front door behind door panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-1
M23 . . PASSENGER’S WINDOW MOTOR . . . . RH front door behind door panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-2

M24z .

FOLDING SUNROOF MOTOR . . . . . . . .

in roof panel






M25 . .

CRUISE CONTROL ACTUATOR
(TEMPOMAT) . . . . . . . . . . . . . . . . . . . . .
front LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

09-3




COMPONENT LOCATION CHART
:





 !


COMP.8500.0 7100.0LOCATION DESCRIPTION
M30 . . BLOWER MOTOR . . . . . . . . . . . . . . . . . . rear of engine compartment behind RH fresh air cowl

M50 . .

DRIVER’S SEAT CUSHION TILT
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . .

under driver’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

30-3



M51 . .

DRIVER’S SEAT MOVEMENT MOTOR

under driver’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

30-3


M52 . . DRIVER’S SEAT HEIGHT MOTOR . . . . under driver’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-3


M53 . .

DRIVER’S SEATBACK RECLINER
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . .
under driver’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

30-3



M58 . .
PASSENGER’S SEATBACK RECLINER
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . .
under passenger’s seat




M59 . . PASSENGER’S SEAT HEIGHT MOTOR under passenger’s seat



M60 . .



PASSENGER’S SEAT MOVEMENT
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . .


under passenger’s seat








M61 . .

PASSENGER’S SEAT CUSHION TILT
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . .
under passenger’s seat






M93 . .

AUXILIARY THROTTLE POSITION
MOTOR (ADS) . . . . . . . . . . . . . . . . . . . .
LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

27-3


M111 . FRESH AIR RECIRCULATION MOTOR behind center of dashboard
M6510 STARTER . . . . . . . . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment

N8 . . .
ANTENNA AMPLIFIER AM/FM . . . . . . .
on lift gate



N9 . . . RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . center console


N12w .

ANTI–THEFT CONTROL MODULE
(ALPINE) . . . . . . . . . . . . . . . . . . . . . . . . .
RH side of dash behind glove box




N17 . . CRASH CONTROL MODULE . . . . . . . . . behind instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-1




COMPONENT LOCATION CHART
:






 !


COMP.8500.0 7100.0LOCATION DESCRIPTION
N22 . . CD CHANGER . . . . . . . . . . . . . . . . . . . . . . in LH forward side of luggage compartment

P90 . .

FRONT POWER DISTRIBUTION BOX

rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

03-2


P95 . . AUXILIARY FUSE BOX . . . . . . . . . . . . . . below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-1
P97 . . AUXILIARY FUSE BOX . . . . . . . . . . . . . . below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-1

R11 . .
BLOWER RESISTORS . . . . . . . . . . . . . .
behind center of dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18-2

R6252

THROTTLE POSITION SENSOR . . . . .

LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10-2




R6255z

THROTTLE POSITION SENSOR
(ASC) . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

27-2


S2 . . . . IGNITION SWITCH . . . . . . . . . . . . . . . . . . LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-3

S3 . . . .
AUTOMATIC TRANSMISSION RANGE
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

19-1



S4 . . . .
HORN SWITCH . . . . . . . . . . . . . . . . . . . . .
on steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16-1

S5 . . . . WIPER/WASHER SWITCH . . . . . . . . . . . LH side of dash RH side of steering column above
S6 . . . . ASC SWITCH . . . . . . . . . . . . . . . . . . . . . . center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-2
S7 . . . . COMBINATION SWITCH . . . . . . . . . . . . . LH side of dash LH side of steering column above . . . . . . . . . . . . . . . . . . . . 16-3

S8 . . . .
LIGHT SWITCH . . . . . . . . . . . . . . . . . . . . .
LH side of dash



S13 . . PASSENGER’S DOOR JAMB SWITCH RH front door jamb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-1
S14 . . DRIVER’S DOOR JAMB SWITCH . . . . . front LH door pillar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-1
S17 . . MIRROR CONTROL SWITCH . . . . . . . . in upper LH front door

S18 . .

HAZARD SWITCH . . . . . . . . . . . . . . . . . .

below front of console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

19-1


S21w . ENGINE HOOD SWITCH . . . . . . . . . . . . front RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-3




COMPONENT LOCATION CHART
:





 !


COMP.8500.0 7100.0LOCATION DESCRIPTION
S28 . . CRUISE CONTROL SWITCH . . . . . . . . . LH side of dash RH side of steering column above . . . . . . . . . . . . . . . . . . . . 16-3

S29 . .

BRAKE LIGHT SWITCH . . . . . . . . . . . . .

LH footwell on brake pedal support bracket behind LH footwell trim . . . . . .

15-3


S30 . . BRAKE LIGHT SWITCH . . . . . . . . . . . . . LH footwell on clutch pedal support bracket behind LH footwell trim . . . . . 15-3
S31 . . PARK BRAKE SWITCH . . . . . . . . . . . . . . center console on rear of park brake lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-2

S32 . .
CLUTCH SWITCH . . . . . . . . . . . . . . . . . .
LH footwell underside of steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15-3

S36y .

DOUBLE TEMPERATURE SWITCH . . .

front RH side of engine compartment near RH headlight assembly . . . . . .

08-3


S37 . . GLOVE BOX LIGHT SWITCH . . . . . . . . in glove box
S38z . TILT/SLIDE SUNROOF SWITCH (SHD) in roof panel

S47 . .
DRIVER’S DOOR LOCK SWITCH . . . . .
LH front door in door at key lock assembly



S48 . . DRIVER’S DOOR HANDLE SWITCH . . in driver’s door
S49 . . PASSENGER’S DOOR LOCK SWITCH RH front door in door at key lock assembly

S51 . .
DRIVER’S SEAT, SEAT CONTROL
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
under driver’s seat





S53 . .
DRIVER’S SEAT, SEAT HEATER
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

30-2



S54 . .
PASSENGER’S SEAT, SEAT HEATER
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

19-1





S56 . .



PASSENGER’S SEAT, SEAT CONTROL
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .


under passenger’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


19-1



S58 . . DRIVER’S SEAT BELT SWITCH . . . . . . in LH front seat belt buckle
S59 . . PASSENGER’S SEAT BELT SWITCH . in RH front seat belt buckle




COMPONENT LOCATION CHART
:





 !


COMP.8500.0 7100.0LOCATION DESCRIPTION

S61y .
LUGGAGE COMPARTMENT LIGHT
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
underside of luggage compartment lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

22-2


S75 . . BLOWER SWITCH . . . . . . . . . . . . . . . . . . center of dash



S77 . .



DRIVER’S MAKE–UP MIRROR
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .


above LH sun visor in sun visor bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


24-1





S78 . .

PASSENGER’S MAKE–UP MIRROR
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
above RH sun visor in sun visor bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15-1


S82y . FOG LIGHT SWITCH . . . . . . . . . . . . . . . . on instrument cluster
S126y DRIVER’S POWER WINDOW SWITCH center console near gearshift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-2

S127y
PASSENGER’S POWER WINDOW
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
center console near gearshift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

19-2



S198 .
JET HEATER THERMOSWITCH . . . . . .
front LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29-2

S218 . REAR DEFOGGER SWITCH . . . . . . . . . center console
S235 . STARTER IMMOBILIZATION SWITCH . LH footwell underside of steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-3
S238 . FOLDING SUNROOF SWITCH . . . . . . . in roof panel

S302 .

CENTRAL LOCKING SWITCH . . . . . . . .

center console near gearshift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

19-2


S530 . IHKS CONTROL SWITCH . . . . . . . . . . . . center of dash
S531 . TEMPERATURE WHEEL SWITCH . . . . center of dash

S8503
PROGRAM SWITCH . . . . . . . . . . . . . . . .
center console



S8507 KICK–DOWN SWITCH . . . . . . . . . . . . . . LH footwell
S8511 REVERSING LIGHT SWITCH . . . . . . . . under front of car LH side of transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-3
T6151 CYL. 1 IGNITION COIL . . . . . . . . . . . . . . RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-3

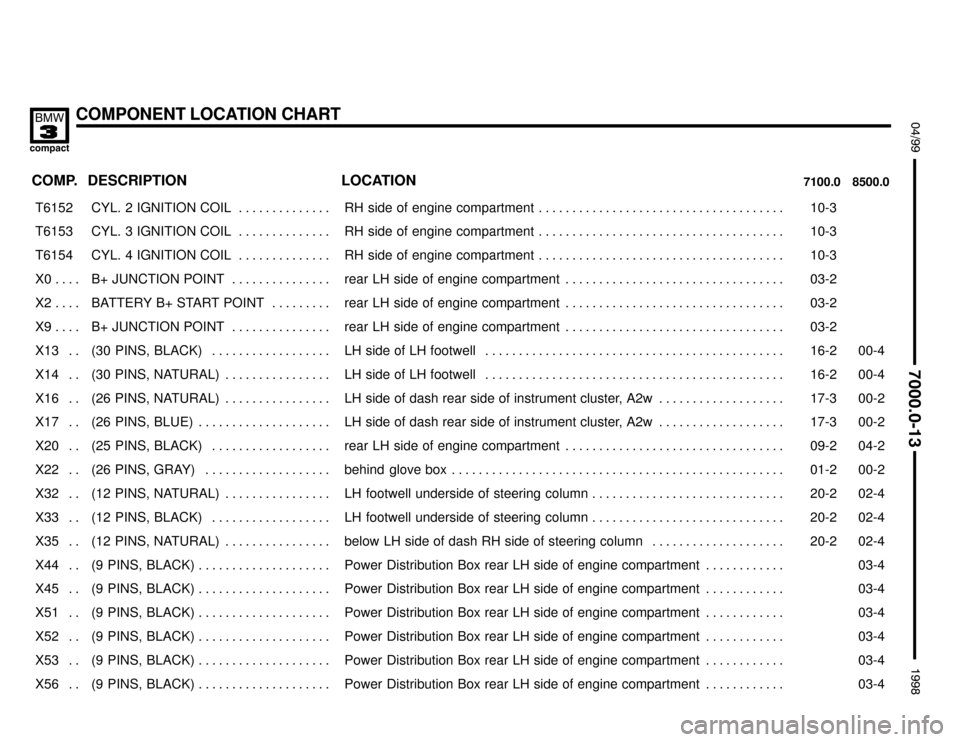

COMPONENT LOCATION CHART
:





 !


COMP.8500.0 7100.0LOCATION DESCRIPTION
T6152 CYL. 2 IGNITION COIL . . . . . . . . . . . . . . RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-3

T6153

CYL. 3 IGNITION COIL . . . . . . . . . . . . . .

RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10-3


T6154 CYL. 4 IGNITION COIL . . . . . . . . . . . . . . RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-3
X0 . . . . B+ JUNCTION POINT . . . . . . . . . . . . . . . rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03-2

X2 . . . .
BATTERY B+ START POINT . . . . . . . . .
rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
03-2

X9 . . . .

B+ JUNCTION POINT . . . . . . . . . . . . . . .

rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

03-2


X13 . . (30 PINS, BLACK) . . . . . . . . . . . . . . . . . . LH side of LH footwell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-2 00-4
X14 . . (30 PINS, NATURAL) . . . . . . . . . . . . . . . . LH side of LH footwell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-2 00-4

X16 . .
(26 PINS, NATURAL) . . . . . . . . . . . . . . . .
LH side of dash rear side of instrument cluster, A2w . . . . . . . . . . . . . . . . . . .
17-3
00-2
X17 . . (26 PINS, BLUE) . . . . . . . . . . . . . . . . . . . . LH side of dash rear side of instrument cluster, A2w . . . . . . . . . . . . . . . . . . . 17-3 00-2
X20 . . (25 PINS, BLACK) . . . . . . . . . . . . . . . . . . rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 09-2 04-2
X22 . . (26 PINS, GRAY) . . . . . . . . . . . . . . . . . . . behind glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01-2 00-2
X32 . .

(12 PINS, NATURAL) . . . . . . . . . . . . . . . .

LH footwell underside of steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

20-2

02-4
X33 . . (12 PINS, BLACK) . . . . . . . . . . . . . . . . . . LH footwell underside of steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-2 02-4
X35 . . (12 PINS, NATURAL) . . . . . . . . . . . . . . . . below LH side of dash RH side of steering column . . . . . . . . . . . . . . . . . . . . 20-2 02-4

X44 . .
(9 PINS, BLACK) . . . . . . . . . . . . . . . . . . . .
Power Distribution Box rear LH side of engine compartment . . . . . . . . . . . .


03-4
X45 . . (9 PINS, BLACK) . . . . . . . . . . . . . . . . . . . . Power Distribution Box rear LH side of engine compartment . . . . . . . . . . . . 03-4
X51 . . (9 PINS, BLACK) . . . . . . . . . . . . . . . . . . . . Power Distribution Box rear LH side of engine compartment . . . . . . . . . . . . 03-4
X52 . . (9 PINS, BLACK) . . . . . . . . . . . . . . . . . . . . Power Distribution Box rear LH side of engine compartment . . . . . . . . . . . . 03-4
X53 . .

(9 PINS, BLACK) . . . . . . . . . . . . . . . . . . . .

Power Distribution Box rear LH side of engine compartment . . . . . . . . . . . .



03-4
X56 . . (9 PINS, BLACK) . . . . . . . . . . . . . . . . . . . . Power Distribution Box rear LH side of engine compartment . . . . . . . . . . . . 03-4
