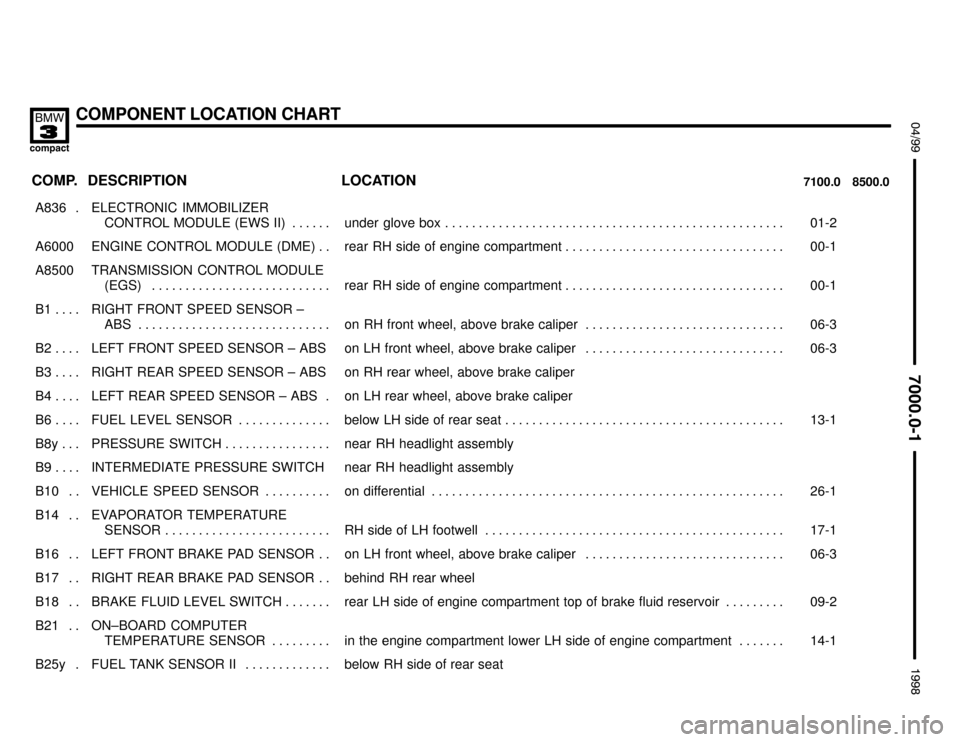

COMPONENT LOCATION CHART
:
!
COMP.8500.0 7100.0LOCATION DESCRIPTION
A836 .
ELECTRONIC IMMOBILIZER
CONTROL MODULE (EWS II) . . . . . .
under glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
01-2
A6000 ENGINE CONTROL MODULE (DME) . . rear RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 00-1
A8500
TRANSMISSION CONTROL MODULE
(EGS) . . . . . . . . . . . . . . . . . . . . . . . . . . .
rear RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
00-1
B1 . . . .
RIGHT FRONT SPEED SENSOR –
ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
on RH front wheel, above brake caliper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
06-3
B2 . . . . LEFT FRONT SPEED SENSOR – ABS on LH front wheel, above brake caliper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 06-3
B3 . . . . RIGHT REAR SPEED SENSOR – ABS on RH rear wheel, above brake caliper
B4 . . . . LEFT REAR SPEED SENSOR – ABS . on LH rear wheel, above brake caliper
B6 . . . .
FUEL LEVEL SENSOR . . . . . . . . . . . . . .
below LH side of rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13-1
B8y . . . PRESSURE SWITCH . . . . . . . . . . . . . . . . near RH headlight assembly
B9 . . . . INTERMEDIATE PRESSURE SWITCH near RH headlight assembly
B10 . .
VEHICLE SPEED SENSOR . . . . . . . . . .
on differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26-1
B14 . .
EVAPORATOR TEMPERATURE
SENSOR . . . . . . . . . . . . . . . . . . . . . . . . .
RH side of LH footwell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17-1
B16 . . LEFT FRONT BRAKE PAD SENSOR . . on LH front wheel, above brake caliper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 06-3
B17 . . RIGHT REAR BRAKE PAD SENSOR . . behind RH rear wheel
B18 . .
BRAKE FLUID LEVEL SWITCH . . . . . . .
rear LH side of engine compartment top of brake fluid reservoir . . . . . . . . .
09-2
B21 . .
ON–BOARD COMPUTER
TEMPERATURE SENSOR . . . . . . . . .
in the engine compartment lower LH side of engine compartment . . . . . . .
14-1
B25y . FUEL TANK SENSOR II . . . . . . . . . . . . . below RH side of rear seat
Page 210 of 281
COMPONENT LOCATION CHART
:
!
COMP.8500.0 7100.0LOCATION DESCRIPTION
B72 . . FUEL TANK PRESSURE SENSOR . . . RH rear wheel well, behind trim panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-1
B78 . .
DRIVER’S SIDE IMPACT SENSOR . . .
LH B–pillar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29-3
B79 . .
PASSENGER’S SIDE IMPACT
SENSOR . . . . . . . . . . . . . . . . . . . . . . . . .
RH B–pillar
B6203
CRANKSHAFT POSITION/RPM
SENSOR . . . . . . . . . . . . . . . . . . . . . . . . .
under RH front of car rear of radiator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
08-1
B6205 INTAKE AIR TEMPERATURE SENSOR LH side of engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 09-3
B6209 HALL EFFECT CAMSHAFT SENSOR . front of engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2
B6217
HOT FILM AIR MASS METER . . . . . . . .
top front of engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
09-3
B6231 OIL PRESSURE SWITCH . . . . . . . . . . . . LH front of engine below intake manifold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1
B6232
ENGINE COOLANT TEMPERATURE
SENSOR . . . . . . . . . . . . . . . . . . . . . . . . .
behind RH fresh air cowl below intake manifold . . . . . . . . . . . . . . . . . . . . . . .
28-1
B6240 KNOCK SENSOR . . . . . . . . . . . . . . . . . . . top front of engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-2
B9508
PRESSURE SWITCH . . . . . . . . . . . . . . . .
near RH headlight assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
08-3
B62001
OXYGEN SENSOR (IN FRONT OF
CATALYTIC CONVERTER) . . . . . . . . .
under center of car . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25-1
B62002
OXYGEN SENSOR (BEHIND
CATALYTIC CONVERTER) . . . . . . . . .
under center of car . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26-3
C101 . CONTACT RING . . . . . . . . . . . . . . . . . . . . top of steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-1
D100 . DATA LINK CONNECTOR . . . . . . . . . . . rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 09-2
D110 .
OBD II CONNECTOR . . . . . . . . . . . . . . . .
center console right . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
24-3
E7 . . . . LEFT HEADLIGHT . . . . . . . . . . . . . . . . . . front LH side of engine compartment
Page 211 of 281
COMPONENT LOCATION CHART
:
!
COMP.8500.0 7100.0LOCATION DESCRIPTION
E8 . . . . RIGHT HEADLIGHT . . . . . . . . . . . . . . . . . front RH side of engine compartment
E9 . . . .
REAR DEFOGGER I . . . . . . . . . . . . . . . .
on lift gate
E11 . . . LEFT HIGH BEAM LIGHT . . . . . . . . . . . . near LH headlight assembly
E12 . . RIGHT HIGH BEAM LIGHT . . . . . . . . . . near RH headlight assembly
E13 . .
LEFT LOW BEAM LIGHT . . . . . . . . . . . .
near LH headlight assembly
E14 . .
RIGHT LOW BEAM LIGHT . . . . . . . . . . .
near RH headlight assembly
E15 . . LEFT PARK LIGHT . . . . . . . . . . . . . . . . . . front of vehicle
E19 . . RIGHT PARK LIGHT . . . . . . . . . . . . . . . . front of vehicle
E26 . .
LEFT FOG LIGHT . . . . . . . . . . . . . . . . . . .
under LH front bumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
06-2
E27 . . RIGHT FOG LIGHT . . . . . . . . . . . . . . . . . under RH front bumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 06-2
E28 . . FRONT CIGAR LIGHTER . . . . . . . . . . . . center console
E29 . . FRONT CIGAR LIGHTER LIGHT . . . . . center console
E32z .
REAR CENTER INTERIOR LIGHT . . . .
in roof panel
E34 . .
FRONT DOME LIGHT/MAP READING
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . .
in roof panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
00-3
E35 . . DRIVER’S MAKE–UP MIRROR LIGHT in sun visor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-1
E36 . .
PASSENGER’S MAKE–UP MIRROR
LIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . .
in sun visor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15-1
E42 . . GLOVE BOX LIGHT . . . . . . . . . . . . . . . . . RH side of glove box
E43 . .
LEFT LICENSE PLATE LIGHT . . . . . . . .
underside of luggage compartment lid, near license plate . . . . . . . . . . . . . .
07-1
E44 . . RIGHT LICENSE PLATE LIGHT . . . . . . underside of luggage compartment lid, near license plate . . . . . . . . . . . . . . 07-1
Page 212 of 281
COMPONENT LOCATION CHART
:
!
COMP.8500.0 7100.0LOCATION DESCRIPTION
E46 . .
LEFT LUGGAGE COMPARTMENT
LIGHT ASSEMBLY . . . . . . . . . . . . . . . .
in LH rear side of luggage compartment
E47 . .
RIGHT LUGGAGE COMPARTMENT
LIGHT ASSEMBLY . . . . . . . . . . . . . . . .
in RH rear side of luggage compartment
E51 . .
LEFT WASHER JET HEATER . . . . . . . .
on underside of engine hood
E52 . . RIGHT WASHER JET HEATER . . . . . . . on underside of engine hood
E56 . . DRIVER’S SEATBACK HEATER . . . . . . in upper LH front seatback
E57 . . DRIVER’S SEAT HEATER . . . . . . . . . . . under LH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-3
E58 . .
PASSENGER’S SEAT HEATER . . . . . . .
underside of RH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30-3
E59 . . PASSENGER’S SEATBACK HEATER . in upper RH front seatback
E61 . . LEFT FRONT FOOTWELL LIGHT . . . . . LH footwell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-3
E62 . .
RIGHT FRONT FOOTWELL LIGHT . . .
right footwell
E82 . .
TRANSMISSION POSITION
INDICATOR LIGHT . . . . . . . . . . . . . . . .
center console
E97 . . LIGHT SWITCH ILLUMINATION . . . . . . LH side of dash
E98 . . FOG LIGHT SWITCH ILLUMINATION . center of dash
E103 .
CLIMATE CONTROL SWITCH
ILLUMINATION . . . . . . . . . . . . . . . . . . .
center console
F97 . . .
FUSIBLE LINK . . . . . . . . . . . . . . . . . . . . . .
rear of engine compartment
G1 . . . BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . rear RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03-3
G5 . . . DRIVER’S AIR BAG GAS GENERATOR behind steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-1
Page 213 of 281
COMPONENT LOCATION CHART
:
!
COMP.8500.0 7100.0LOCATION DESCRIPTION
G6 . . .
PASSENGER’S AIR BAG GAS
GENERATOR . . . . . . . . . . . . . . . . . . . . .
behind glove box above . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18-3
G12 . .
DRIVER’S SIDE PYROTECHNICAL
BELT TENSIONER . . . . . . . . . . . . . . . .
driver’s seat right
G13 . .
PASSENGER’S SIDE
PYROTECHNICAL BELT
TENSIONER . . . . . . . . . . . . . . . . . . . . .
passenger’s seat left
G14 . .
LEFT SIDE AIR BAG GAS
GENERATOR . . . . . . . . . . . . . . . . . . . . .
in driver’s door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30-1
G15 . .
RIGHT SIDE AIR BAG GAS
GENERATOR . . . . . . . . . . . . . . . . . . . . .
in passenger’s door
G6509
GENERATOR . . . . . . . . . . . . . . . . . . . . . .
front LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
03-1
H1w . . ANTI–THEFT HORN (ALPINE) . . . . . . . in RH front bumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07-3
H2 . . . LEFT HORN . . . . . . . . . . . . . . . . . . . . . . . . front of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-3
H3 . . . RIGHT HORN . . . . . . . . . . . . . . . . . . . . . . front of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-3
H4 . . .
RIGHT FRONT TURN LIGHT . . . . . . . . .
RH front of vehicle
H5 . . . RIGHT REAR TURN LIGHT . . . . . . . . . . RH side of body rear end
H6 . . . LEFT REAR TURN LIGHT . . . . . . . . . . . LH side of body rear end
H7 . . .
LEFT FRONT TURN LIGHT . . . . . . . . . .
LH front of vehicle
H8 . . .
RIGHT FRONT AUXILIARY TURN
LIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . .
RH front of vehicle
H9 . . . LEFT FRONT AUXILIARY TURN LIGHT LH front of vehicle
H10 . . CHIME MODULE . . . . . . . . . . . . . . . . . . . above LH footwell dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-3
Page 215 of 281
COMPONENT LOCATION CHART
:
!
COMP.8500.0 7100.0LOCATION DESCRIPTION
H56 . . LEFT REAR HIGH RANGE SPEAKER . under rear window shelf
H57 . .
LEFT REAR LOW RANGE SPEAKER .
under rear window shelf
H58 . . LEFT FRONT LOW RANGE SPEAKER in lower LH A–pillar
H59 . . LEFT FRONT HIGH RANGE SPEAKER in upper LH front door
H66 . .
SUBWOOFER . . . . . . . . . . . . . . . . . . . . . .
at back of rear window shelf
H91 . .
RIGHT LUGGAGE COMPARTMENT
LIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . .
in luggage compartment right
I1008 . SEAT MAT . . . . . . . . . . . . . . . . . . . . . . . . . in passenger’s seat area
K2 . . . . HORN RELAY . . . . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-2
K4 . . . . BLOWER RELAY . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-2
K9 . . . .
UNLOADER RELAY, TERMINAL 15 . . .
below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20-1
K13 . . REAR DEFOGGER RELAY . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-1
K16 . . HAZARD FLASHER RELAY . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-2
K19 . .
COMPRESSOR CONTROL RELAY . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .
12-1
K21 . . NORMAL SPEED RELAY . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-1
K22 . . HIGH SPEED RELAY . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-1
K45 . .
FOLDING SUNROOF COMFORT
RELAY . . . . . . . . . . . . . . . . . . . . . . . . . . .
below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18-1
K46 . . HIGH BEAM LIGHT RELAY . . . . . . . . . . below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-1
K46z .
DAY LIGHT RELAY MODULE . . . . . . . .
below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18-1
K47 . . FRONT FOG LIGHT RELAY . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-2
Page 216 of 281
COMPONENT LOCATION CHART
:
!
COMP.8500.0 7100.0LOCATION DESCRIPTION
K48 . . LOW BEAM LIGHT RELAY . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-2
K125 .
ABS PUMP MOTOR RELAY, TIMED . . .
Power Distribution Box rear LH side of engine compartment . . . . . . . . . . . .
12-1
K6300 ENGINE CONTROL MODULE RELAY . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-3
K6301w FUEL PUMP RELAY . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-3
K6304
SECONDARY AIR PUMP RELAY . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .
12-3
K6326
UNLOADER RELAY, TERMINAL 15 . . .
rear RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27-1
M2 . . . FUEL PUMP . . . . . . . . . . . . . . . . . . . . . . . . below RH side of rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-2
M3 . . . WIPER MOTOR . . . . . . . . . . . . . . . . . . . . rear of engine compartment below center of cowl . . . . . . . . . . . . . . . . . . . . . 09-1
M4 . . .
WASHER PUMP . . . . . . . . . . . . . . . . . . . .
front RH side of engine compartment on washer fluid reservoir . . . . . . . . . .
07-3
M7 . . .
HEADLIGHT/FOG LIGHT WASHER
PUMP . . . . . . . . . . . . . . . . . . . . . . . . . . .
front RH side of engine compartment on washer fluid reservoir . . . . . . . . . .
14-3
M9 . . . AUXILIARY FAN MOTOR . . . . . . . . . . . . behind front grille behind trim panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
M12 . . DRIVER’S DOOR LOCK MOTOR . . . . . in lower LH front door behind trim panel
M13 . .
PASSENGER’S DOOR LOCK MOTOR
in lower RH side of front door behind trim panel
M16 . . GAS FILLER LOCK MOTOR . . . . . . . . . in RH rear side of luggage compartment behind trim panel . . . . . . . . . . . . . 29-1
M17 . .
LUGGAGE COMPARTMENT LOCK
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . .
rear side of luggage compartment behind trim panel . . . . . . . . . . . . . . . . . . .
23-1
M21 . . DRIVER’S WINDOW MOTOR . . . . . . . . LH front door behind door panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-1
M23 . . PASSENGER’S WINDOW MOTOR . . . . RH front door behind door panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-2
M24z .
FOLDING SUNROOF MOTOR . . . . . . . .
in roof panel
M25 . .
CRUISE CONTROL ACTUATOR
(TEMPOMAT) . . . . . . . . . . . . . . . . . . . . .
front LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
09-3
Page 218 of 281
COMPONENT LOCATION CHART
:
!
COMP.8500.0 7100.0LOCATION DESCRIPTION
N22 . . CD CHANGER . . . . . . . . . . . . . . . . . . . . . . in LH forward side of luggage compartment
P90 . .
FRONT POWER DISTRIBUTION BOX
rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
03-2
P95 . . AUXILIARY FUSE BOX . . . . . . . . . . . . . . below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-1
P97 . . AUXILIARY FUSE BOX . . . . . . . . . . . . . . below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-1
R11 . .
BLOWER RESISTORS . . . . . . . . . . . . . .
behind center of dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18-2
R6252
THROTTLE POSITION SENSOR . . . . .
LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10-2
R6255z
THROTTLE POSITION SENSOR
(ASC) . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27-2
S2 . . . . IGNITION SWITCH . . . . . . . . . . . . . . . . . . LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-3
S3 . . . .
AUTOMATIC TRANSMISSION RANGE
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19-1
S4 . . . .
HORN SWITCH . . . . . . . . . . . . . . . . . . . . .
on steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16-1
S5 . . . . WIPER/WASHER SWITCH . . . . . . . . . . . LH side of dash RH side of steering column above
S6 . . . . ASC SWITCH . . . . . . . . . . . . . . . . . . . . . . center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-2
S7 . . . . COMBINATION SWITCH . . . . . . . . . . . . . LH side of dash LH side of steering column above . . . . . . . . . . . . . . . . . . . . 16-3
S8 . . . .
LIGHT SWITCH . . . . . . . . . . . . . . . . . . . . .
LH side of dash
S13 . . PASSENGER’S DOOR JAMB SWITCH RH front door jamb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-1
S14 . . DRIVER’S DOOR JAMB SWITCH . . . . . front LH door pillar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-1
S17 . . MIRROR CONTROL SWITCH . . . . . . . . in upper LH front door
S18 . .
HAZARD SWITCH . . . . . . . . . . . . . . . . . .
below front of console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19-1
S21w . ENGINE HOOD SWITCH . . . . . . . . . . . . front RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-3
