01-165

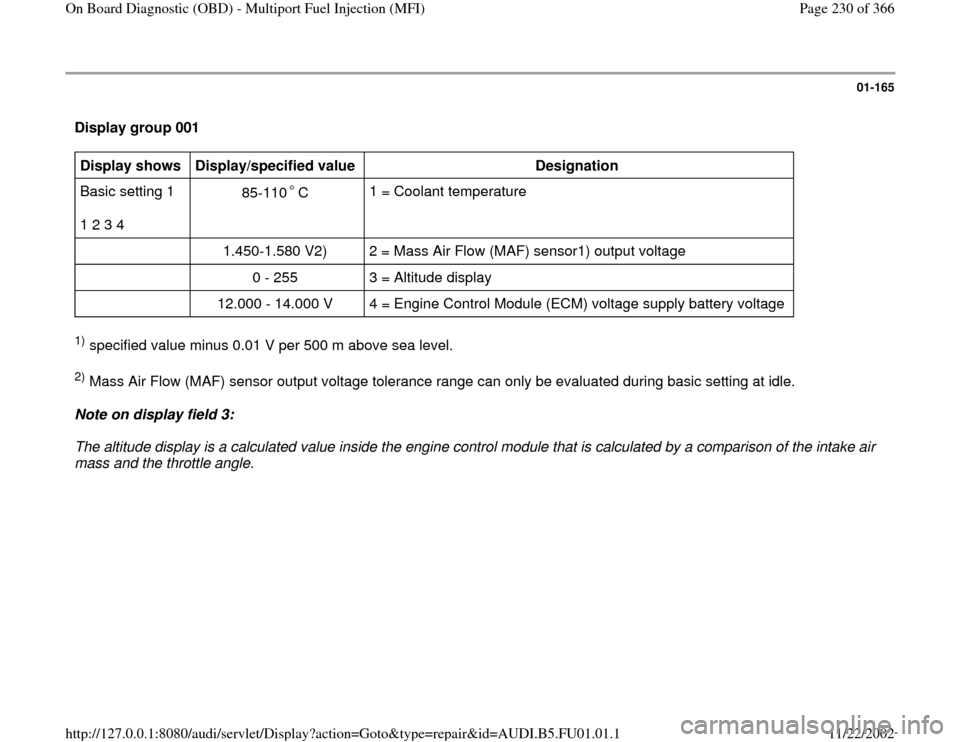

Display group 001 Display shows
Display/specified value
Designation
Basic setting 1
1 2 3 4 85-110 C
1 = Coolant temperature
1.450-1.580 V2) 2 = Mass Air Flow (MAF) sensor1) output voltage
0 - 255 3 = Altitude display
12.000 - 14.000 V 4 = Engine Control Module (ECM) voltage supply battery voltage
1) specified value minus 0.01 V per 500 m above sea level. 2) Mass Air Flow (MAF) sensor output voltage tolerance range can only be evaluated during basic setting at idle.
Note on display field 3:
The altitude display is a calculated value inside the engine control module that is calculated by a comparison of the intake air
mass and the throttle angle.
