JSA051.0
INJECTION

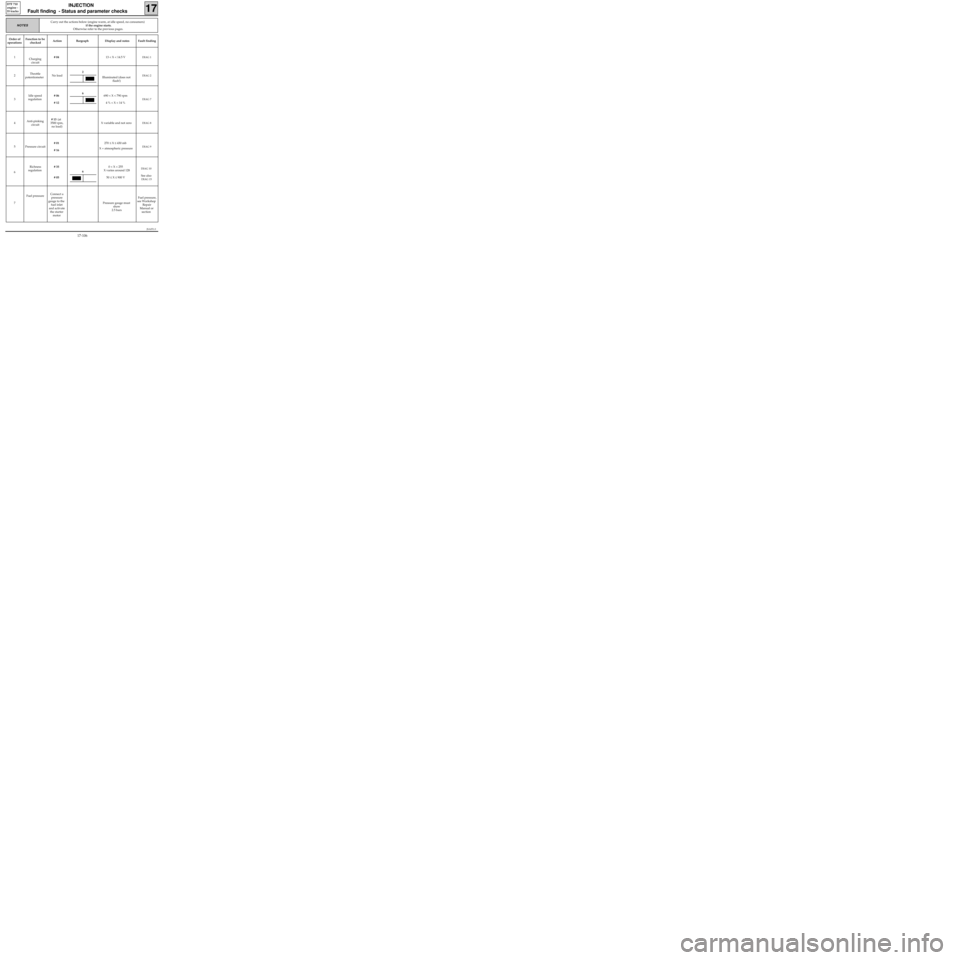

Fault finding - Status and parameter checks
17
D7F 710
engine -
35 tracks
Order of
operationsFunction to be
checkedAction Bargraph Display and notes Fault finding
1
Charging
circuit# 0413 < X < 14.5 V
DIAG 1
2Throttle
potentiometerNo load
Illuminated (does not
flash!)DIAG 2
3Idle speed
regulation# 06
# 12690 < X < 790 rpm
4 % < X < 14 %DIAG 7
4Anti-pinking
circuit# 13 (at
3500 rpm,
no load)X variable and not zeroDIAG 8
5 Pressure circuit# 01
# 16270 ≤ X ≤ 430 mb
X = atmospheric pressureDIAG 9
6Richness
regulation# 35
# 050 < X < 255
X varies around 128
50 ≤ X ≤ 900 V
DIAG 10
See also
DIAG 15
7Fuel pressureConnect a
pressure
gauge to the
fuel inlet
and activate
the starter
motorPressure gauge must
show
2.5 bars Fuel pressure,
see Workshop
Repair
Manual or
section
Carry out the actions below (engine warm, at idle speed, no consumers)
if the engine starts.
Otherwise refer to the previous pages.
NOTES
6
6
2
17-106

JSA051.0
INJECTION
Fault finding - Status and parameter checks
17
D7F 710
engine -
35 tracks
Order of
operationsFunction to be
checkedAction Bargraph Display and notes Fault finding
8Power assisted
steering
pressostatTurn wheels
to full lockIlluminated when wheels
turned to full lock
DIAG 17
Carry out the actions below (engine warm, at idle speed, no consumers)
if the engine starts.
Otherwise refer to the previous pages.
NOTES
13
17-107

JSA051.0
INJECTION
Fault finding - Status and parameter checks
17
D7F 710
engine -
35 tracks
Check during road test.NOTES
Order of
operationsFunction to be
checkedAction Bargraph Display and notes Fault finding
1 Vehicle speed
information# 18X = speed read on
speedometer in km/h
DIAG 13
2Adaptive
richnessProgram-
ming
# 30
# 31106 ≤ X ≤ 150
106 ≤ X ≤ 150 DIAG 14
3Emission of
pollutants2500 rpm
after driving
At idle
speed, wait
for
stabilisationCO < 0.3 %
CO2 > 13.5 %
O2 < 0.8 %
HC < 100 ppm
0.97 < λ < 1.03
CO < 0.5 %
HC < 100 ppm
0.97 < λ < 1.03
DIAG 15
see also
DIAG 10
17-108

JSA051.0
INJECTION
Fault finding - Status and parameter interpretation17
D7F 710
engine -
35 tracks
AFTER REPAIRStart the status and parameter check again from the beginning.
DIAG 1
Fiche n° 27
BATTERY VOLTAGE
XR25 aid:Battery voltage, ignition on, Minimum < # 04 < Maximum
Battery voltage, idle speed, Minimum < # 04 < Maximum
No fault bargraphs should be illuminated.
No consumersNOTES
If # 04 < Minimum, the battery is discharged:
Check the charging circuit to determine the cause of this fault.
Ignition on
If # 04 > Maximum, the battery may be overcharged:
Check the charging voltage is correct with and without consumers.
If # 04 < Minimum, the charging voltage is too low:
Check the charging circuit to determine the cause of this fault.
At idle speed
If # 04 > Maximum, the charging voltage is too high:
The alternator regulator is faulty. Repair this fault and check the electrolyte level in the battery.
NOTE:
The battery and the charging circuit may be checked using the OPTIMA 5800 station (measurement does
not require the battery to be disconnected, which retains the memories of the computers).
17-109

Check the insulation and continuity of the line:
Computer 3 C Throttle potentiometer
Computer 5 B Throttle potentiometer
Computer 15 A Throttle potentiometer
Repair if necessary.
JSA051.0
INJECTION
Fault finding - Status and parameter interpretation17
D7F 710
engine -
35 tracks
AFTER REPAIRStart the status and parameter check again from the beginning.
DIAG 2
THROTTLE POTENTIOMETERFiche n° 27
XR25 aid:# 17 outside tolerances
# 17 does not vary when throttle moves
Status BG 2LH or 2RH, incorrect illumination
No fault bargraphs should be illuminated.
Ignition on or engine running.NOTES
Status bargraph 2RH
incorrect illuminationNoneNOTES
Check the resistance of the throttle potentiometer.
Replace the throttle potentiometer if necessary.
# 17 is fixedNoneNOTES
Check the resistance of the throttle potentiometer when the throttle butterfly is moved.
If the resistance varies, check the electrical lines of the sensor.
If the resistance does not vary, check that the sensor is connected mechanically to the throttle.
If necessary, replace the sensor.
# 17 outside tolerancesNoneNOTES
Check the upper and lower stops of the throttle butterfly.
Check the accelerator control (points of resistance and friction).
Repair.
17-110

Check the insulation, continuity and that there is no interference resistance on the electrical line :
Computer 6 2 Coolant temperature sensor
Computer 15 1 Coolant temperature sensor
Repair.
JSA051.0
INJECTION
Fault finding - Status and parameter interpretation17
D7F 710
engine -
35 tracks
AFTER REPAIRStart the status and parameter check again from the beginning.
DIAG 3
Fiche n° 27
COOLANT TEMPERATURE
XR25 aid: # 02 = Engine temperature ± 5 °C
No fault bargraphs should be illuminated.NOTES
If the value read is incoherent, check the sensor is correctly following the standard table of values for
"resistance as a function of temperature".
Replace the sensor if the values are incorrect (
NOTE : If a sensor is incorrect, this is often due to an electric
shock).
17-111

Check the insulation, continuity and that there is no interference resistance on the electrical line :
Computer 2 2 Air temperature sensor
Computer 15 1 Air temperature sensor
Repair.
JSA051.0
INJECTION
Fault finding - Status and parameter interpretation17
D7F 710
engine -
35 tracks
AFTER REPAIRStart the status and parameter check again from the beginning.
DIAG 4
Fiche n° 27
AIR TEMPERATURE
XR25 aid:# 03 = Temperature under the bonnet ± 5 °C
No fault bargraphs should be illuminated.NOTES
If the value read is incoherent, check the sensor is correctly following the standard table of values for
"resistance as a function of temperature".
Replace the sensor if the values are incorrect (
NOTE : If a sensor is incorrect, this is often due to an electric
shock).
17-112

Check the insulation, continuity and that there is no interference resistance on the electrical line :
Computer 13 B Flywheel signal sensor
Computer 31 A Flywheel signal sensor
Repair.
JSA051.0
INJECTION
Fault finding - Status and parameter interpretation17
D7F 710
engine -
35 tracks
AFTER REPAIRStart the status and parameter check again from the beginning.
DIAG 5
Fiche n° 27
TDC DETECTION
XR25 aid:Status BG 3LH, incorrect illumination
No fault bargraphs should be illuminated.
When the starter motor is activated.NOTES
Check the resistance of the TDC sensor.
Replace the sensor if necessary.
Check the sensor is correctly mounted.
Repair if necessary.
Check the condition of the target (if it has been removed).
Repair if necessary.
17-113
